E Series Mechanical Seals
Installs exactly like your current seal.No adjustment. No modification. No lead-time delays.Lower cost. Equal service life
G Series Mechanical Seals
High-performance single mechanical seal, ideal for high speed, high temperature, high pressure and frequent start-stop conditions, compatible with ANSI and process pumps
Seals & API Configurations for Leading Pump Brands
Core Advantages & Design Concept
E Series
Pressure:≤ 1.6 Mpa Temperature:≤ 120℃ Speed:≤ 20 m/s
G Series
Pressure:≤ 2.5 Mpa Temperature:≤ 392℃ Speed:≤ 25 m/s

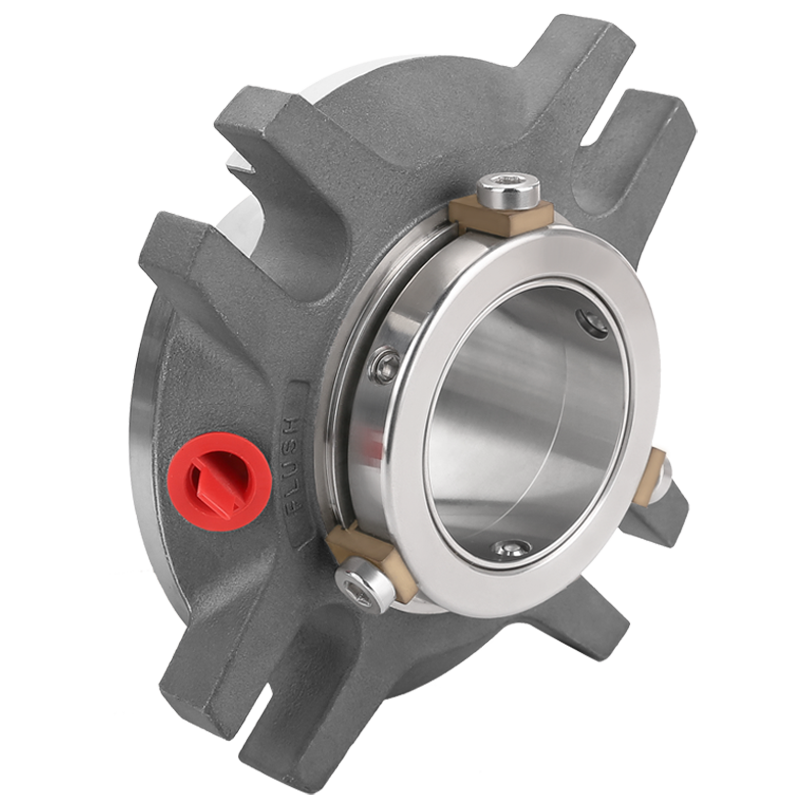

ESM
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| ESM | SINGLE | 11\12 | Standard Bore | 1.375",1.750", 2.125",2.500" |
| ESM | SINGLE | 11\12 | CBS | 1.375", 1.875",2.625" |

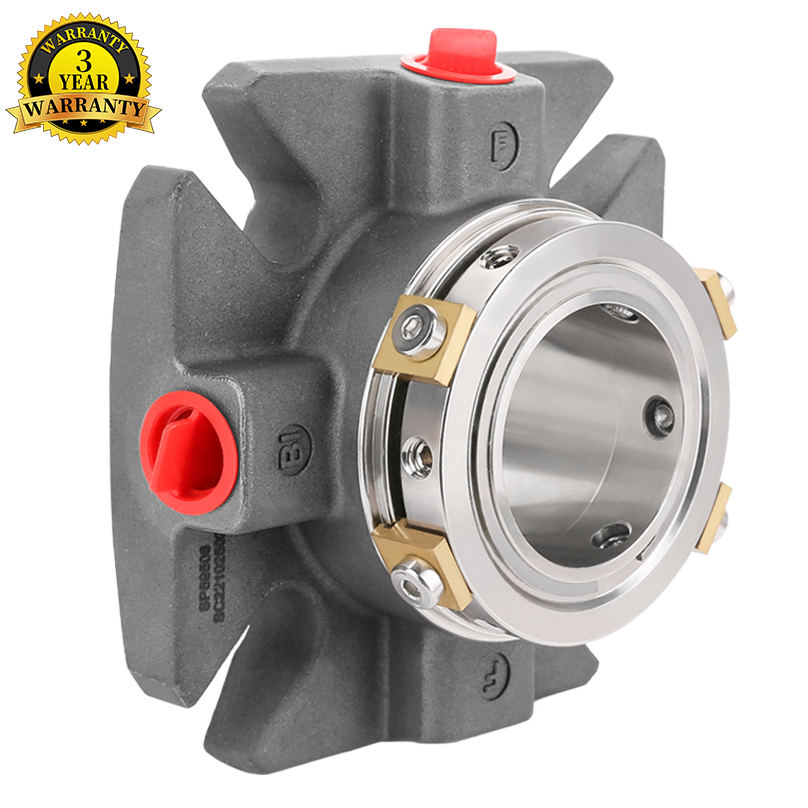

GSM
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| GSM | SINGLE | 11\12 | Standard Bore | 1.375",1.750", 2.125",2.500" |
| GSM | SINGLE | 11\12 | CBS | 1.375", 1.875",2.625" |

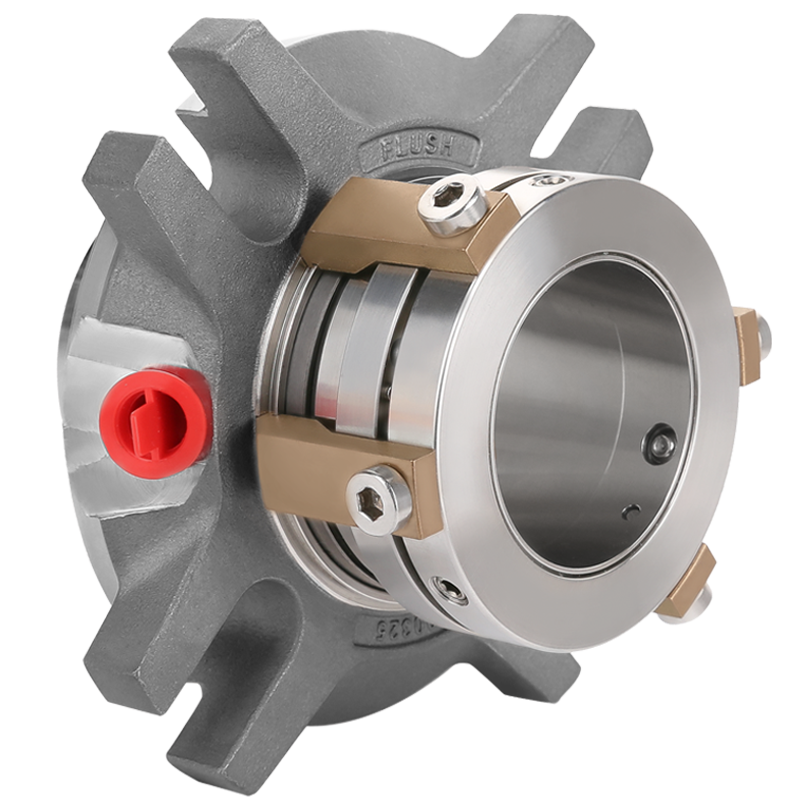

EDM
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| EDM | DOUBLE | 52\53\54 | Standard Bore | 1.375",1.750", 2.125",2.500" |
| EDM | DOUBLE | 52\53\54 | CBS | 1.375", 1.875",2.625" |

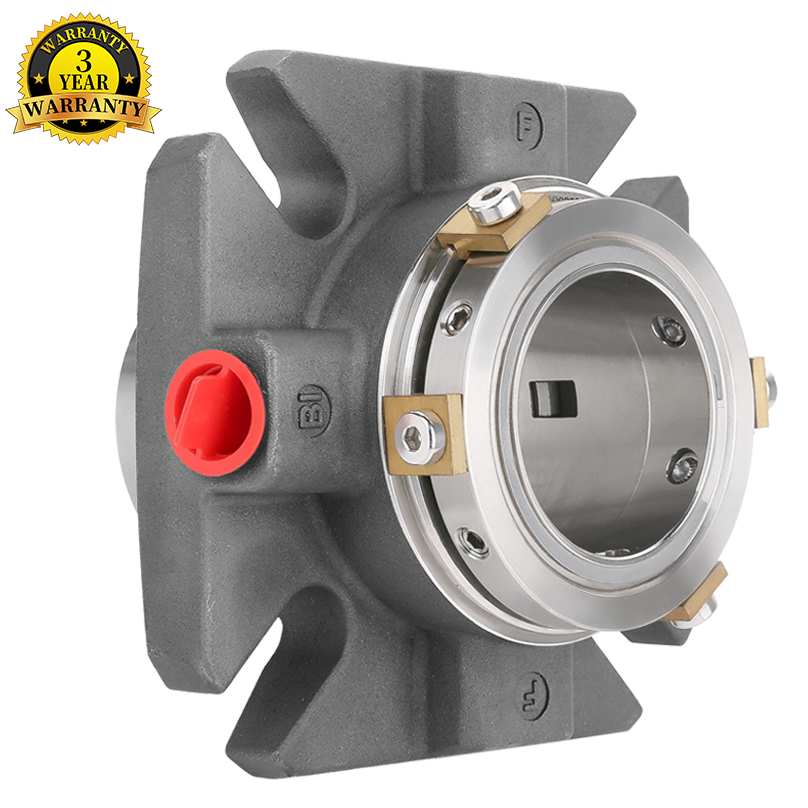

GDM
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| GDM | DOUBLE | 52\53\54 | Standard Bore | 1.375",1.750", 2.125",2.500" |
| GDM | DOUBLE | 52\53\54 | CBS | 1.375", 1.875",2.625" |

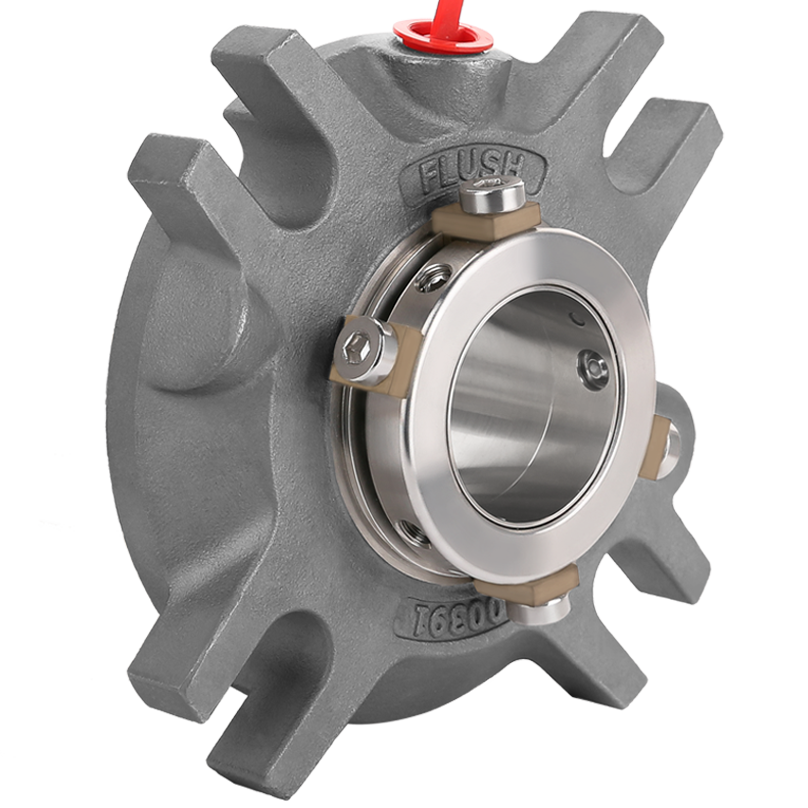

ESMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| ESMA | SINGLE | 11\12 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| ESMA | SINGLE | 11\12 | FML&CBLM | 1.375", 1.875",2.625" |

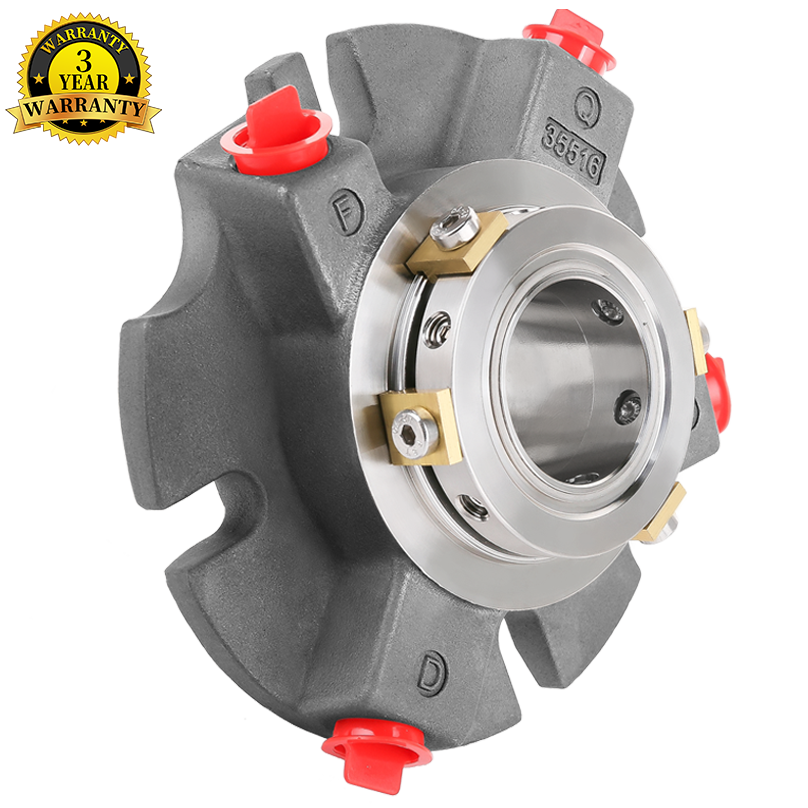

GSMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| GSMA | SINGLE | 11\12 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| GSMA | SINGLE | 11\12 | FML&CBLM | 1.375", 1.875",2.625" |

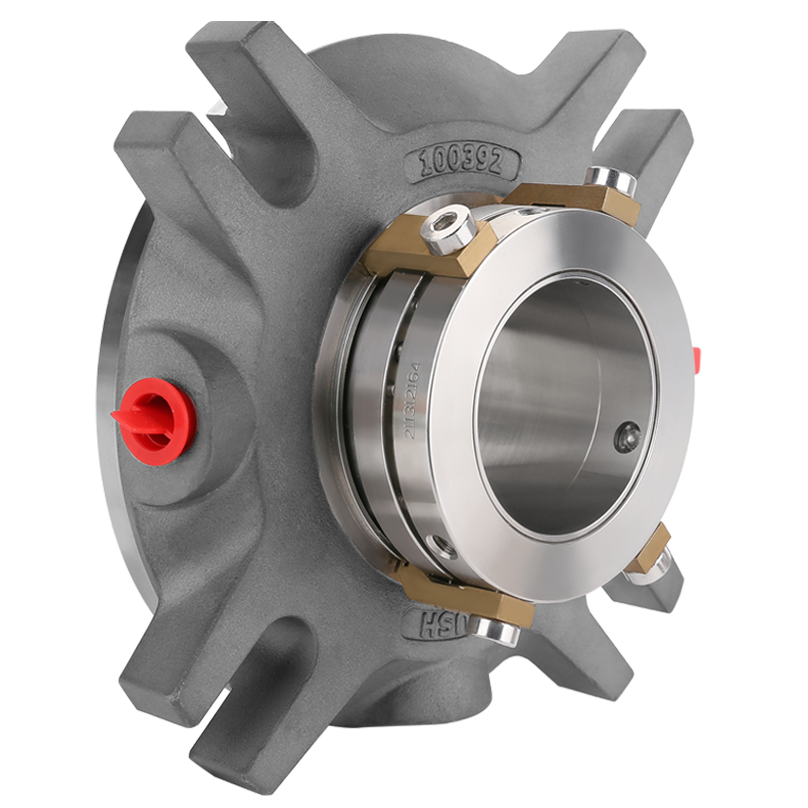

EDMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| EDMA | DOUBLE | 52\53\54 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| EDMA | DOUBLE | 52\53\54 | FML&CBL | 1.375", 1.875",2.625" |

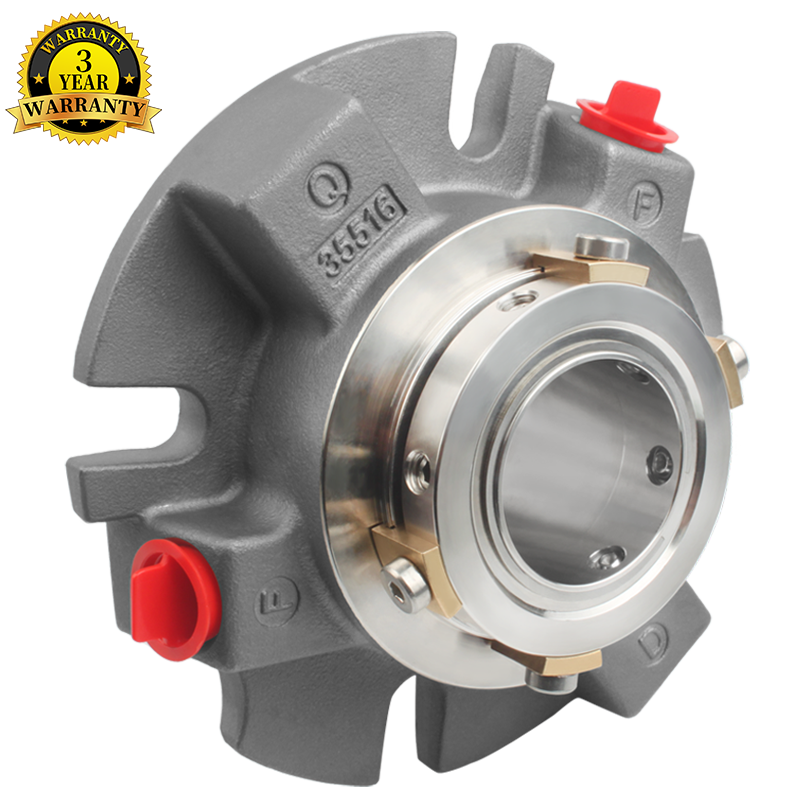

GDMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| GDMA | DOUBLE | 52\53\54 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| GDMA | DOUBLE | 52\53\54 | FML&CBL | 1.375", 1.875",2.625" |
