THE CARTRIDGE SEAL PLATFORM

Start from a

Mature Design.

Configure It for

Your Equipment.

FBU starts with a mature cartridge-seal design, adapts the equipment fit and agreed application requirements, then delivers a complete factory-built cartridge seal.

Submit Equipment Data

See How FBU Builds and Tests It

Multiple mature seal cores Equipment-specific configuration

Complete cartridge seals only

Representative platform configuration

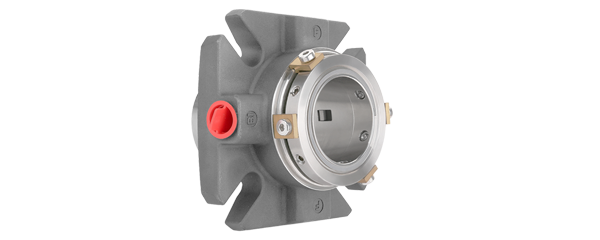

Complete cartridge architecture

HOW THE PLATFORM WORKS

Select. Configure. Deliver complete.

The platform begins with an appropriate mature seal-core architecture. It ends with a complete cartridge seal—not loose components for the customer to finish.

01 · SELECT

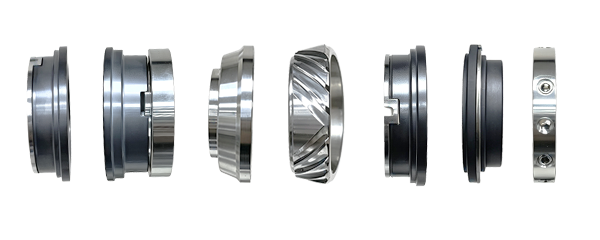

A Proven Seal Core

Select the right architecture from multiple mature core options for the equipment and duty.

02 · CONFIGURE

Equipment-Specific Interfaces

Define the sleeve, gland, interfaces, materials and connection details around the application.

03 · DELIVER

A Complete Cartridge Seal

Factory-assembled, air-leak tested before shipment, identified and ready for controlled repeat supply.

Proven Seal Core + Equipment-Specific Configuration = Complete

Factory-Built Cartridge Seal

A CONTROLLED ENGINEERING MODEL

What starts proven. What changes. What you receive.

FBU avoids unnecessary redesign while retaining the equipment-specific engineering needed for correct fit, duty and lifecycle control.

WHAT STARTS PROVEN

Mature Architecture

→ Selected seal-core architecture

→ Established design logic

→ Mature functional features

→ Repeatable engineering basis

WHAT WE CONFIGURE

Equipment & Duty

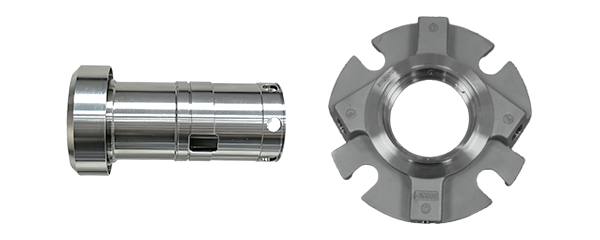

→ Sleeve and shaft interface

→ Gland and seal-chamber interface

→ Materials and elastomers

→ Ports, connections and project options

WHAT YOU RECEIVE

Complete Control

→ Complete factory-built cartridge seal

→ Product identification and installation information

→ Air-leak test report where applicable

→ Repeat part-number and repair-kit continuity

See How FBU Designs and Validates a Platform

ONE CONTROLLED LIFECYCLE

From one application to installed-base aftermarket.

The platform carries equipment information, configuration decisions, manufacturing records and replacement logic forward—so repeat supply does not restart from zero.

Understand

Equipment and duty

Configure

Fit and requirements

Build & Verify

Complete cartridge

Identify

Part number and records

Repeat Supply

Seals and repair kits

CUSTOMER OWNERSHIP

Your Equipment. Your Brand. Your Aftermarket.

The platform is designed to strengthen the customer’s equipment program—not redirect the relationship or installed-base value away from the customer.

01 Your Equipment

Configured around the pump or rotating-equipment interface and operating duty.

Fit and interfaces

Application requirements

Pump integration

02 Your Brand

Supplied under the agreed brand and identification structure.

Private-label options

Customer part numbers

Controlled product identity

03 Your Aftermarket

Factory-assembled, air-leak tested before shipment, identified and ready for controlled repeat supply.

Traceable repeat parts

Repair-kit continuity

Independent aftermarket route

CLEAR PLATFORM BOUNDARY

A complete cartridge—not a box of parts.

FBU supplies complete cartridge mechanical seals. The Platform does not mean one universal design for every application.

Public boundary: complete factory-built cartridge seals, selected and configured for the equipment. FBU does not supply loose components for customer assembly of a new seal.

START WITH ONE APPLICATION

Start with your pump, seal or application data.

Send what you have. FBU will identify the appropriate route, the information still needed and the validation required before production.

Pump model

Existing seal

Equipment drawing

Operating conditions

China pump project

Submit Equipment Data

See Manufacturing & Quality
