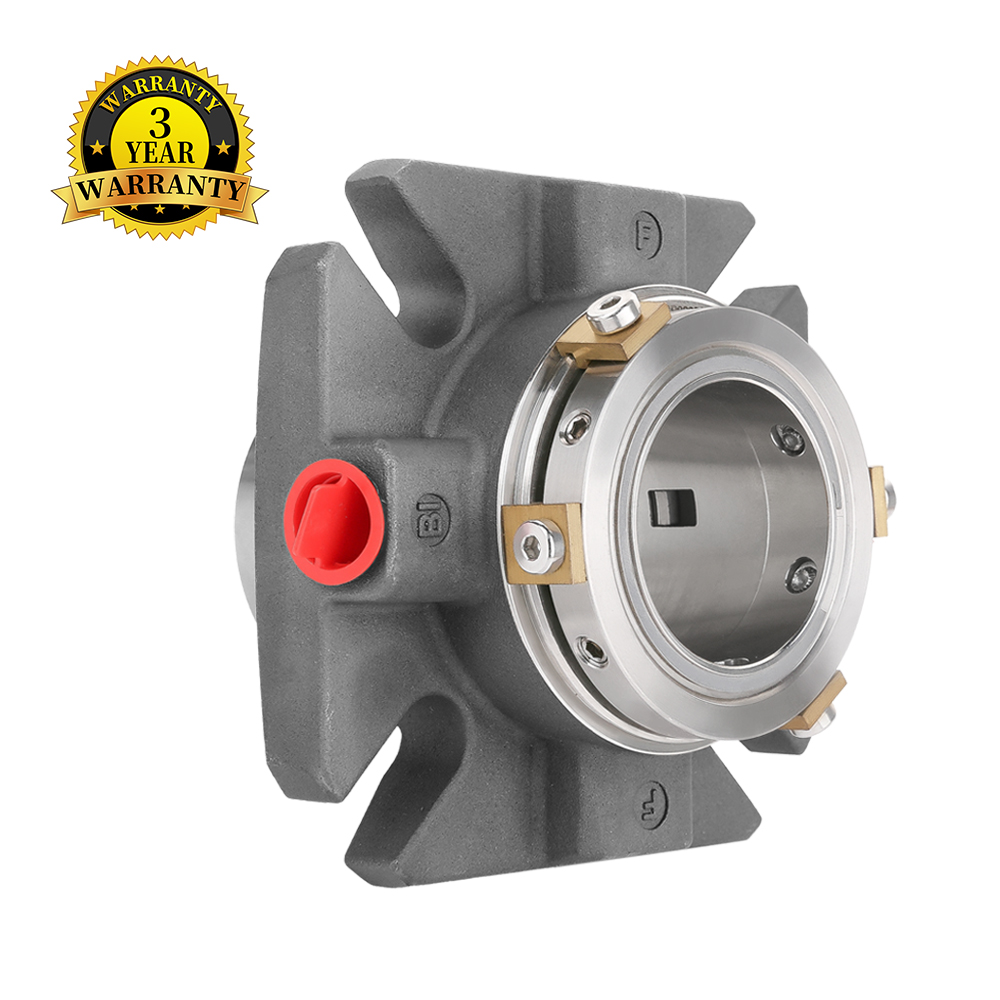

Product Description
TECHNICAL FEATURES
•Stationary Pusher Cartridge Seal with Face-to-back configuration.
•Double balanced integral ring design can better resist pressure fluctuations in the sealing chamber.
•Integrated bidirectional flow design, unique pump efficiency ring design, and significant barrier liquid circulation effect.
•Higher pressure limit ,Higher temperature limit, maximum temperature resistance of 160 ℃, no issues such as ring shedding and end face displacement caused by inlay process.
APPLICABLE CHAMBERS TYPE
•Modular cartridge design, provide high performance sealing solutions for chemical applications
•Equipped with Buffer/Barrier In and Out environmental ports
•Sizes range from 1.000 "to 4.000" (24mm~100mm)
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry
•Oil, Gas and Energy Sector
•Water Treatment and Environmental Protection Engineering
•Pharmaceutical and Food & Beverage Industries
•Hazardous Chemicals and Specialized Industries
•Marine and Offshore Engineering
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 | |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.000 "to 4.000" (24mm~100mm) | |
| Pressure | ≤ 25 bar | |
| Temperature | -20 ° C ~+ 160 °C | |
| Sliding velocity | ≤ 20 m/s | |
Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 11 | Shaft Sleeve | 316SS |
| 28.1 | Internal Drive Ring | 316SS |
| 21 | Internal Rotary Face | SSIC/TC |
| 22 | Internal Stationary Face | Carbon/SSIC/TC |
| 25 | Spring Plate | 316SS |
| 10,20 | Spring | Alloy 276 |
| 32 | Gland Insert | 316SS |
| 33.4 | Deflector | 316SS |
| 23.2 | Pump Ring | 316SS |
| 41 | External Stationary Face | Carbon/SSIC/TC |
| 12 | Gland | 316SS |
| 42 | External Rotary Face | SSIC/TC |
| 13 | Clamp Ring | 316SS |
| 27.1 | Drive Screw | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.3,40.5 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 40.1,40.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 17.2 | Circlip | 316SS |
| 33.2 | External Drive Ring | 316SS |
| 40.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 17.3,17.4 | Circlip | 316SS |
| 14 | Setting Clip | Brass |
| 27.2 | Clip Screw | 316SS |
| 51 | Gasket | AF1 |
