Product Description
TECHNICAL FEATURES
•Double-balanced, which makes the construction fully independent of pressure changes in both process and barrier fluid.
•Design is unaffected by pressure changes.Two sets of multi spring structures on the inner and outer sides of the double seal provide more stable spring loads for the two pairs of friction pairs, without affecting each other.
•It's designed for minimum damage risk — the rugged construction for all applications prevents failure and provides long and trouble-free service.
•Larger buffer chamber flushing space, bidirectional flow design, more significant cooling effect.
•Easy installation and low maintenance costs. Ultimate reliability for screen sealing requirements.
•It is recommended to use GLD (plan 54) for seal water control.
APPLICABLE CHAMBERS TYPE
Mainly used in VOITH® MS series pressure screen.Covering Shaft Diameters Including 70,94,101, etc.
TYPICAL INDUSTRIAL APPLICATIONS
Type 2850 is a double-acting mechanical seal specifically engineered for VOITHR MS series pressure screen, designed to handle liquid operating conditions involving solid particles and impurities.
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 | |
PERFORMANCE CAPABILITIES
| Seal Chamber Pressure | ≤ 20 bar | |
| Buffer Chamber Seal Water Pressure | ≤ 15 bar | |
| Temperature | -20 ° C ~+ 180 °C | |
| Sliding velocity | ≤ 20 m/s | |
| Material Options | 316SS, Duplex Steel,Titanium, Other alloy etc. | |
| Suitable Media | Water, various types of oils,solvents, pulp, and other media | |

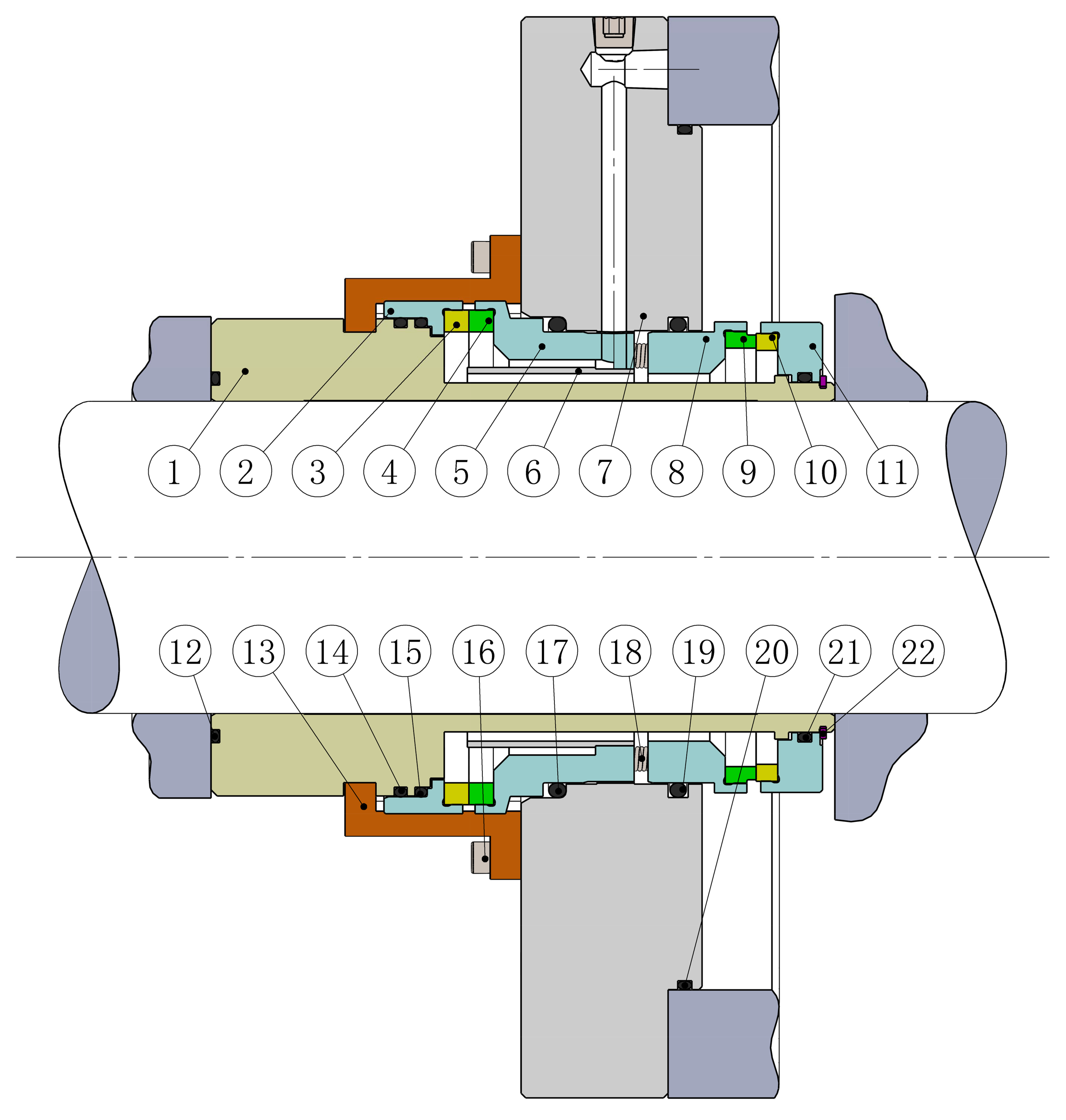

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Sleeve | 316SS/Hast.C/D2205/D2507/904L |
| 2 | Rotary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 3 | Rotary Face | Carbon/SIC/TC |
| 4 | Stationary Face | Carbon/SIC/TC |
| 5 | Stationary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 6 | Deflector | 316SS/Hast.C/D2205/D2507/904L |
| 7 | Gland | 316SS/Hast.C/D2205/D2507/904L |
| 8 | Stationary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 9 | Stationary Face | Carbon/SIC/TC |
| 10 | Rotary Face | Carbon/SIC/TC |
| 11 | Rotary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 12 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 13 | Setting Clips | 304SS/Cu |
| 14 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 15 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 16 | Screw | A2-70 |
| 17 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 18 | Spring | Hast.C |
| 19 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 20 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 21 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 22 | Circlip | 316SS |
