Industrial water pumps are the quiet champions of modern manufacturing, municipal systems, and power plants. They run continuously to move millions of gallons of water daily, keeping critical processes running smoothly. However, these systems also represent a major source of operational expense, particularly when it comes to maintenance and fluid containment. Traditional sealing methods, like gland packing or component mechanical seals, often struggle to keep up with the demands of modern high-pressure water systems. They leak, wear out too quickly, and require constant manual attention.
To protect your budget and ensure reliable operation, upgrading your industrial water pump to a Cartridge Mechanical Seal is one of the smartest investments you can make. This pre-assembled, factory-tested sealing system is engineered specifically to replace legacy sealing methods. In this guide, we will look at how this advanced sealing solution reduces downtime, protects expensive equipment, and lowers your plant's overall energy bills.
To understand the value of an upgrade, we must first look at the real cost of older sealing solutions. Many plants still rely on gland packing or standard component seals because they are cheap to buy upfront. However, this initial savings is quickly lost through ongoing maintenance costs, water loss, and unexpected downtime.
Gland packing is a traditional method that uses braided fibers stuffed into the pump's stuffing box.
The Problem of Intentional Leaks: Gland packing must leak to stay cool. It requires a steady drip of water to lubricate the shaft. This means you are constantly wasting treated water or paying to process contaminated runoff.
Friction and Heat: Packing creates significant friction against the rotating shaft. This friction acts like a continuous brake, forcing the pump motor to draw more power. This wastes electricity and drives up your energy bills.
Labor-Intensive Maintenance: Packing wears out quickly and requires regular manual tightening. Maintenance teams must constantly adjust the gland followers to keep the leak rate under control, which wastes valuable labor hours.
Component mechanical seals were designed to stop the leaks associated with gland packing, but they introduced a new set of problems.
Delicate Assembly in Dirty Environments: Installing a component seal requires a technician to assemble delicate springs, O-rings, and polished faces directly on the pump shaft. Doing this in a dusty or humid industrial environment often introduces contaminants that ruin the seal before the pump even starts.
Incorrect Spring Tension: Technicians must manually measure and set the spring compression. If they make a mistake by even a fraction of an inch, the seal faces will either run too hot and burn up, or they will fail to seal properly and leak immediately.
Vulnerability to Vibration: Standard component seals cannot handle the shaft deflection and vibration common in high-flow water pumps. This lack of flexibility leads to cracked seal faces and sudden, catastrophic failures.

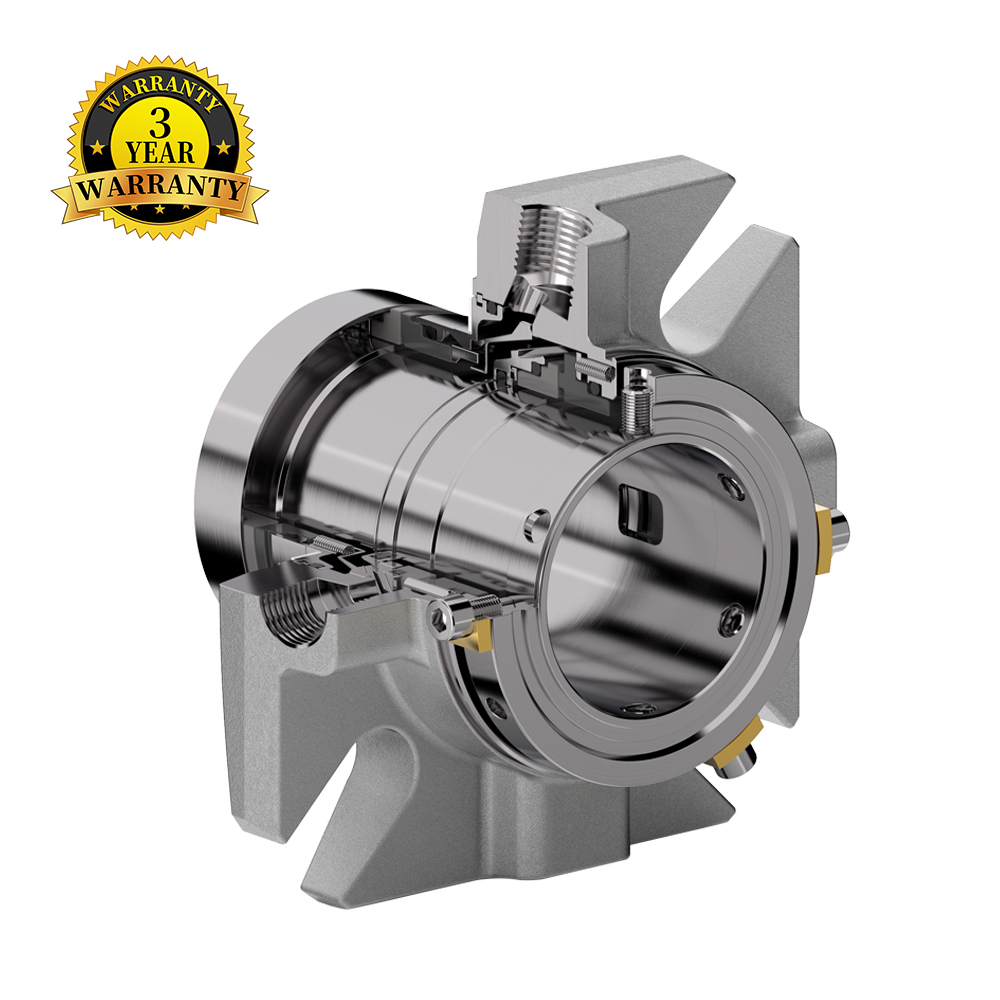

A Cartridge Mechanical Seal changes your maintenance strategy by taking the assembly work out of the field and moving it into a controlled factory environment. By integrating all the necessary parts into a single, pre-engineered unit, it eliminates the main causes of premature seal failure.
The primary benefit of a Cartridge Mechanical Seal is its pre-assembled design.
Preset Spring Tension: The springs are pre-loaded to the exact engineering specifications at the factory. Technicians do not need to make complex calculations or use measuring tools during installation.
Centering Clips: Heavy-duty brass or plastic clips hold the internal sleeve and gland plate in perfect alignment. These clips are removed only after the seal is fully bolted to the pump, guaranteeing that the faces are perfectly aligned.
Protected Seal Faces: Because the delicate sealing faces are enclosed inside the cartridge housing, they are completely protected from dust, fingerprints, and physical damage during shipping and installation.
The design of a cartridge seal acts as a protective shield for the rest of your industrial water pump.
The Integrated Sleeve: The seal components mount directly onto a metal sleeve instead of the pump shaft itself. This sleeve slides over the shaft, protecting the expensive metal shaft from wear, corrosion, and scoring caused by dynamic O-rings.
Built-In Flushing Ports: The heavy-duty gland plate features built-in ports that allow you to easily connect flush lines. This introduces clean water directly to the seal faces, keeping them cool and washing away any abrasive debris.
Robust Static Sealing: Cartridge seals use stationary O-rings that do not slide along the shaft during operation. This eliminates the dynamic friction that typically wears grooves into pump shafts.
In any industrial facility, downtime is the enemy of profitability. When an important water pump stops working, entire production lines can grind to a halt. Upgrading to a Cartridge Mechanical Seal dramatically reduces the time it takes to get your pump back online.
Replacing a gland packing system or a component seal is a tedious, multi-hour process that requires highly skilled labor.
The Component Nightmare: Technicians must dismantle the pump, clean the shaft, measure the seal housing, slide each individual seal part onto the shaft, set the tension, and rebuild the pump. This process easily takes three to five hours.
The Cartridge Standard: A Cartridge Mechanical Seal is a single "slip-on" unit. You slide the cartridge onto the shaft, bolt the gland plate to the pump housing, tighten the drive collar screws, remove the centering clips, and the job is done. The entire process takes less than an hour.
Because installing a cartridge seal is so straightforward, you do not need to wait for a highly specialized sealing expert to perform the replacement.
Lower Labor Costs: Your standard maintenance team can quickly learn to swap out cartridge seals, saving you from paying expensive external contractors.
Fewer Repeat Failures: Because the installation process is virtually foolproof, you avoid the common "double downtime" scenario where a newly installed component seal leaks immediately due to an installation error.
Simplified Inventory: Cartridge seals are designed to fit standard pump dimensions, allowing you to standardize your spare parts inventory and reduce the amount of cash tied up in warehouse stock.
Sealing Feature | Gland Packing | Component Mechanical Seal | Cartridge Mechanical Seal |
|---|---|---|---|
Average Installation Time | 2 - 3 Hours (Frequent maintenance) | 3 - 5 Hours (High complexity) | 30 - 45 Minutes (Simple slip-on) |
Risk of Installation Error | Low (But requires constant adjustment) | Extremely High (Easy to damage faces) | Extremely Low (Factory preset) |
Required Maintenance Skill | Medium | Extremely High | Low to Medium |
Expected Service Life | 1 - 6 Months (Frequent repacking) | 6 - 12 Months (Highly variable) | 2 - 5 Years (Highly reliable) |
An industrial water pump is a significant capital investment. The most expensive parts of the pump are the rotating shaft and the motor. Using poor sealing methods can lead to severe damage to these core assets, forcing you to pay for expensive rebuilds or complete pump replacements.
Legacy sealing methods are notoriously hard on pump shafts.
The Grinding Action of Gland Packing: As the pump shaft rotates against gland packing, abrasive particles in the water become trapped in the packing fibers. This turns the packing into sandpaper, slowly grinding deep grooves into the pump shaft.
Dynamic O-Ring Wear: Component seals use dynamic O-rings that slide back and forth along the shaft to accommodate thermal expansion. Over time, this movement wears away the metal, creating microscopic leaks that cannot be stopped without replacing the shaft.
The Cartridge Solution: In a Cartridge Mechanical Seal, the dynamic O-rings and seal components ride on a replaceable heavy-duty sleeve, not on the pump shaft. Any wear occurs on this easily replaceable sleeve, preserving the integrity of the expensive shaft.
By protecting the shaft, a cartridge seal extends the overall lifespan of your pump.
Reduced Bearings Failure: Water leaking from legacy seals often travels along the shaft and enters the pump bearing housing. This contaminates the bearing oil, leading to rapid bearing failure. By stopping leaks, cartridge seals keep bearings dry and running smoothly.
Protection Against Motor Burnout: Large leaks can spray water directly onto the pump motor, causing electrical shorts and motor failure. A reliable cartridge seal keeps the wet end of the pump completely isolated from the dry electrical components.
Lower Total Cost of Ownership: Because you are not constantly machining shafts or replacing bearings, the total lifetime cost of running the pump drops dramatically.
For municipal water facilities and large industrial plants, water and electricity are major operational costs. A Cartridge Mechanical Seal helps you reduce both, delivering clear and measurable return on investment (ROI).
Pumping water is an energy-intensive process. Every bit of resistance in the system forces the motor to work harder.
High Friction Losses: Gland packing must exert high radial pressure on the shaft to keep water from rushing out. This constant friction wastes significant mechanical energy.
Smooth Rotation: Mechanical seals use highly polished, flat faces that slide against each other with minimal friction. This allows the pump shaft to spin more freely, reducing the electrical draw on the motor.
Continuous Savings: While the energy savings on a single small pump might seem minor, when multiplied across dozens of large industrial water pumps running 24/7, the electricity savings can add up to thousands of dollars per year.
In water utility plants, every gallon of water that leaks represents lost revenue.
The Cost of Treated Water: Leaking water from gland packing is often highly treated, clean drinking water. Letting this water leak onto the pump floor is simply throwing away chemical and energy investments.
Wastewater Surcharges: In chemical or industrial plants, any leaked water must be collected in sump pumps and sent to a wastewater treatment facility. This means you are paying twice for the leaked water: once to buy it, and once to treat it as waste.
Environmental Compliance: Many regions impose heavy fines on plants that allow industrial wastewater to leak into the surrounding soil. Upgrading to a cartridge seal is the easiest way to ensure compliance with strict local environmental laws.
Cost Category | Gland Packing (Annual Cost per Pump) | Cartridge Mechanical Seal (Annual Cost per Pump) | Net Annual Savings |
|---|---|---|---|
Water Loss / Leakage | $450 - $1,200 (Constant dripping) | $0 (Zero-leakage operation) | $450 - $1,200 |
Maintenance Labor | $600 - $1,500 (Frequent adjustments) | $50 - $150 (Minimal intervention) | $550 - $1,350 |
Energy Consumption | High (Due to friction on shaft) | Low (Optimized face design) | $200 - $500 |
Shaft / Sleeve Repairs | $800 - $2,000 (Scoring damage) | $0 (Protected by sleeve) | $800 - $2,000 |
Total Operational Cost | $2,050 - $5,700 | $50 - $300 | $2,000 - $5,400 |
Not all water is the same. Some industrial water pumps handle clean municipal water, while others move abrasive river water, hot boiler feed water, or chemical-laden cooling tower water. To maximize your cost savings, you must choose a Cartridge Mechanical Seal with materials matched to your specific application.
The seal faces are the heart of the system. Choosing the right material combination prevents premature wear and cracking.
Silicon Carbide vs. Silicon Carbide (SiC/SiC): This is the ultimate choice for water containing abrasive particles, sand, or grit (such as raw river water or wastewater). Silicon carbide is extremely hard and resists scratching.
Silicon Carbide vs. Carbon (SiC/Car): This is the standard choice for clean water applications, such as boiler feed or HVAC systems. Carbon provides excellent self-lubricating properties, reducing friction and heat buildup during operation.
Tungsten Carbide (WC): For high-pressure water systems where thermal shock is a concern, tungsten carbide offers superior structural strength and fracture resistance.
The metal housing and rubber O-rings must also resist chemical attack and temperature extremes.
316L Stainless Steel: The standard metal choice for water service, offering excellent corrosion resistance in clean and municipal water.
Duplex Stainless Steel or Hastelloy: For industrial water pumps handling chlorinated water, brackish water, or chemical effluents, upgrading to these exotic alloys prevents pitting and stress corrosion cracking.
EPDM vs. Viton (FKM): EPDM is the preferred elastomer for hot water and steam systems because it maintains its elasticity without hardening. Viton is ideal for water containing trace hydrocarbons or chemicals.
Upgrading your industrial water pump to a Cartridge Mechanical Seal is not just an equipment upgrade; it is a strategic business decision. While legacy sealing methods like gland packing or component seals may seem cheaper initially, they are a continuous drain on your operating budget. They cause expensive shaft damage, waste valuable water resources, consume extra energy, and require hours of tedious maintenance.
By switching to a pre-assembled, double-balanced cartridge seal, you eliminate human error during installation, protect your capital assets, and dramatically lower your plant's overall operating costs. The mathematical ROI is clear: the initial cost of the upgrade is typically recovered within the first year of operation through saved labor, water, and energy. Over the multi-year life of the seal, the accumulated savings will significantly improve your plant's bottom line.
Yes, most standard centrifugal pumps can be upgraded. If your pump currently uses gland packing or a component seal, there is likely a Cartridge Mechanical Seal designed to fit into your existing stuffing box dimensions. In some cases, a small modification to the pump gland plate or shaft sleeve may be required, but the process is highly standardized.
Gland packing relies on constant physical compression against the rotating shaft to limit water leakage, which creates high mechanical friction. A mechanical seal uses two flat, highly polished faces that slide against each other with a microscopic lubricating barrier. This drastically reduces friction, allowing the pump motor to run more efficiently and consume less electricity.
In clean, stable water service (like municipal water or closed-loop cooling), a high-quality Cartridge Mechanical Seal can easily run continuously for 3 to 5 years, and sometimes even longer. This is a massive improvement over gland packing, which often requires monthly adjustments and complete replacement every 6 months.
Component seals arrive as separate, loose parts (springs, O-rings, faces, and collars). The technician must measure the exact shaft position and compress the springs manually during assembly. Any minor dust contamination or measurement error will cause the seal to leak. A cartridge seal is fully assembled and preset at the factory, so the technician simply slides it onto the shaft and bolts it in place without taking anything apart.
Yes, pumping abrasive water (like river water containing silt or sand) requires a flush plan (such as API Plan 11 or Plan 32). This plan routes a small stream of clean water into the seal chamber to wash away abrasive particles before they can get trapped between the sealing faces, greatly extending the life of your Cartridge Mechanical Seal.
