FBU PREMIUM CARTRIDGE SEALS | ANSI PUMP SOLUTIONS

Core Advantages & Design Concept

G Series

Pressure:≤ 2.5 Mpa Temperature:≤ 392℃ Speed:≤ 25 m/s

E Series

Pressure:≤ 1.6 Mpa Temperature:≤ 120℃ Speed:≤ 20 m/s

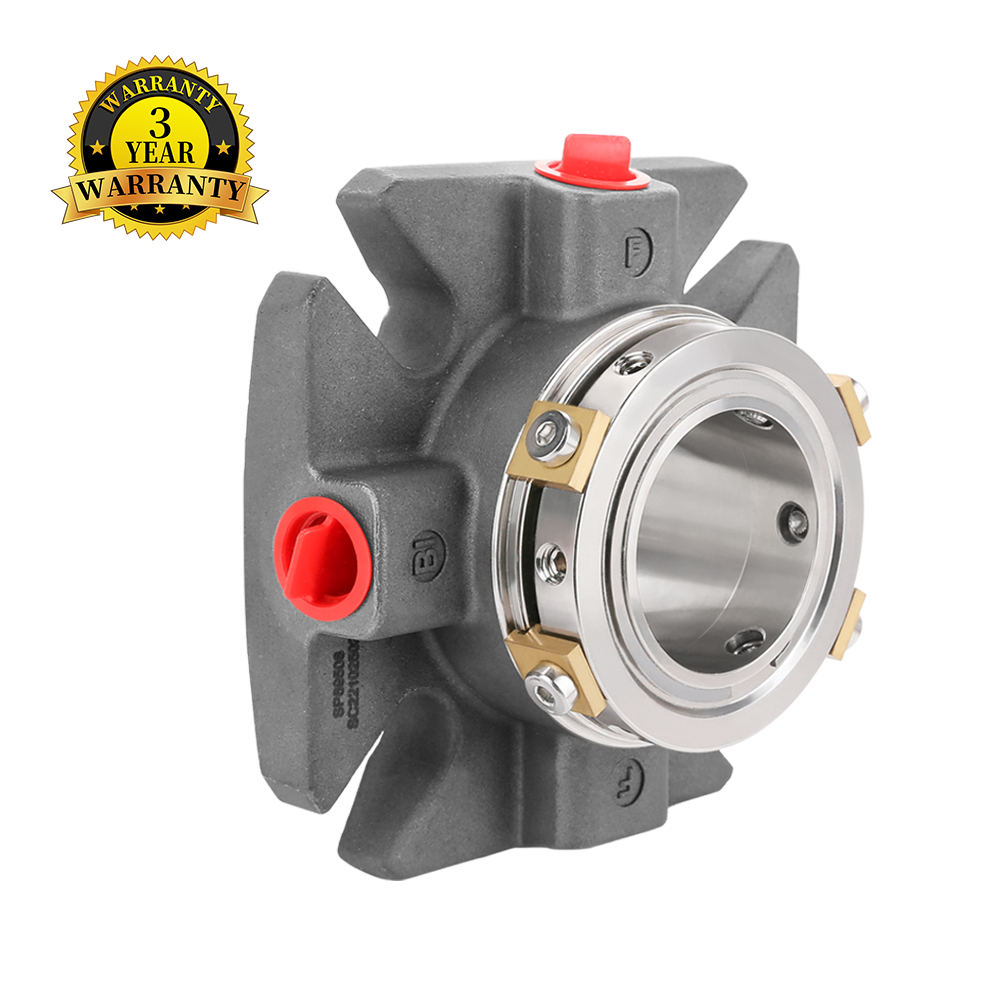

GSM/GSMA

Stationary ring compensation design:

Stable running performance, dependable under high-pressure & high-speed working conditions

Multi-spring uniform loading layout:

Reduced abrasion, effectively extending overall service life

Pre-assembled cartridge construction:

Plug-and-drop installation without alignment or pump modification

Metal drive plus protective shaft sleeve:

Prevents pump shaft abrasion & damage, cutting down maintenance expenditure

Compatible with standard API flush plans:

Excellent heat dissipation, anti-fouling & resistant to fine grit impurities

Full interchangeability for ANSI process pumps:

Identical installation size, direct drop-in replacement without machining

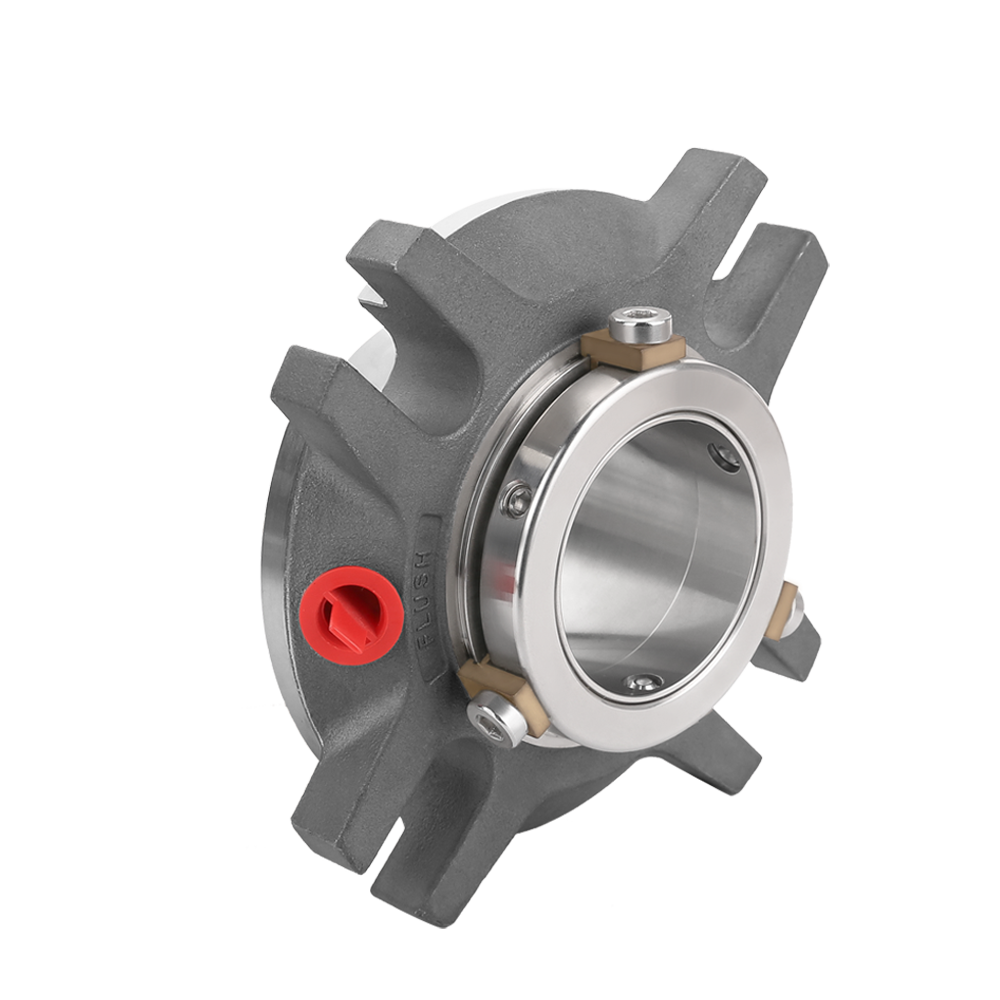

ESM/ESMA

Standard cartridge seal for ANSI pumps：

True no-alignment, no-setup, drop-in installation

Multiple springs for even loading：

Stable pressure, low friction, long service life; reliable in high-pressure and fluctuating conditions

Hydraulically balanced design：

Consistent performance under high pressure, stable at high temperatures; rated to 1.6 MPa / 120°C

Outboard spring configuration：

Springs isolated from process fluid, resistant to fouling, clogging, and abrasive particles

Shaft-protecting sleeve + metal-to-metal drive：

No shaft wear, no shaft damage, reduces pump maintenance costs

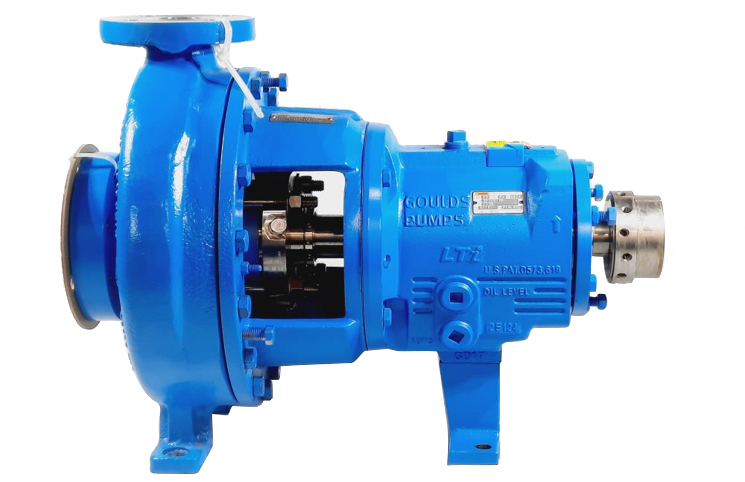

Perfectly fits Goulds 3196 / Mark III：

100% interchangeable mounting dimensions; no modifications required, direct drop-in replacement

GDM/GDMA

Double containment construction：

Zero-leakage performance to satisfy safety and environmental standards

Integrated pumping ring design：

Self-circulation cooling with no external power required

Dual balanced multi-spring layout：

Stable operation amid fluctuating working pressure

Oversized internal flow passages：

Anti-crystallization & anti-blockage against fiber and solid impurities

Modular assembled structure：

Easy fitting, interchangeable spares and reduced maintenance cost

Matches mainstream buffer fluid systems：

Proven adaptability for harsh and severe service conditions

EDM/EDMA

Double cartridge seal compliant with ANSI B73.1：

High safety rating, zero leakage for hazardous process media

Dual balanced multi-spring structure：

Uniform load distribution, low heat generation and extended service life

Compatible with API Plan 52/53/54：

Direct hookup for existing buffer tank systems, no pipe rework needed

Oversize flow passages for anti-clog & anti-crystallization：

Superior durability vs standard double seals for crystalline and particle-laden fluids

Full dimensional match for ANSI pump housings：

Available for standard/taper/large bore, CBS/FML/CBL seal chambers
