How To Eliminate Rotating Equipment Leakage with Cartridge Mechanical Seals

Views: 211     Author: Site Editor     Publish Time: 2026-08-02      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Introduction

Rotating equipment plays a vital role in modern industrial plants. Whether we look at centrifugal pumps moving aggressive chemicals, massive agitators mixing pharmaceutical batches, or compressors handling volatile gases, these machines keep production lines moving. However, they all share a common vulnerability: the shaft seal interface. Because the shaft must spin while the equipment housing remains stationary, a gap exists. Without a reliable barrier, the process fluid will escape.

For decades, plant operators struggled with traditional sealing methods like compression packing or complex component seals. These older systems demand constant maintenance and are prone to sudden, catastrophic failures. Today, the Cartridge Mechanical Seal stands as the industry standard for eliminating leakage. It provides a pre-assembled, robust, and highly reliable solution that drops directly onto the equipment shaft.

This guide explores how we can eliminate rotating equipment leakage once and for all. By adopting these modern sealing practices, we can protect our equipment, ensure environmental safety, and dramatically lower our operating costs.

The Cost of Leakage in Rotating Equipment and Why Component Seals Fail

Leakage in rotating equipment is not just an annoying maintenance issue; it represents a major threat to safety, productivity, and profitability. When a pump or mixer leaks, the consequences ripple through the entire facility. To solve this problem, we must first understand the true cost of these leaks and why traditional sealing methods struggle to contain them.

Financial and Environmental Impact of Leaking Pumps and Agitators

The moment process fluid escapes from a pump, costs begin to pile up. Cleanups require valuable labor, and many chemicals require expensive hazardous waste disposal.

  • Product Loss: In high-value industries like pharmaceuticals or specialty chemicals, even a small leak can waste thousands of dollars of product every single day.

  • Bearing Failure: Escaping fluid often finds its way into the equipment bearing frame. It washes out the grease or contaminates the oil, leading to rapid bearing failure. This turns a simple seal swap into an expensive, time-consuming shaft and bearing rebuild.

  • Environmental Violations: Volatile organic compounds (VOCs) and hazardous air pollutants (HAPs) cannot escape into the atmosphere. Regulatory bodies levy heavy fines on plants with chronic emission leaks.

  • Safety Hazards: Corrosive, flammable, or toxic fluids pose immediate dangers to plant personnel. Slippery floors and airborne mists create an unsafe work environment.

The Human Error Factor in Traditional Component Seal Installation

Traditional component seals require a technician to install individual parts directly onto the equipment shaft. The installer must handle delicate carbon faces, slide O-rings over sharp keyways, and manually compress tiny springs to the exact working length.

  1. Precise Measurements Needed: A standard component seal requires the installer to measure and mark the shaft sleeve within a fraction of a millimeter. A mistake of just $0.5 \text{ mm}$ can either overload the seal faces (causing rapid wear) or underload them (causing immediate leakage).

  2. Handling Vulnerability: Seal faces are incredibly flat, usually polished to within three helium light bands (less than $1 \ \mu\text{m}$). Touching these faces with dirty hands or letting dust settle on them during assembly will ruin the seal before the pump even starts.

  3. Misalignment Risks: If the stationary gland is bolted down unevenly, the seal faces will not run parallel. This creates uneven wear, face separation, and early failure.

How a Cartridge Mechanical Seal Works to Stop Leakage

The Cartridge Mechanical Seal was designed specifically to eliminate the installation errors and vulnerabilities associated with component seals. By packaging all seal components into a single, pre-assembled unit, it removes the guesswork from the installation process.

The Prefabricated One-Piece Design Advantage

A cartridge assembly contains the shaft sleeve, the seal faces, the springs, the gland plate, and the elastomeric O-rings in one self-contained package.

  • Factory-Set Tension: The manufacturer sets the exact spring compression at the factory using specialized setting clips. This ensures that the seal faces contact each other with the perfect amount of force every time.

  • Protected Components: Because the delicate internal parts are enclosed within the steel cartridge gland and sleeve, they are shielded from dirt, grease, and physical damage during shipping and handling.

  • Fast Installation: Instead of spending hours taking precise measurements and assembling loose parts, a technician simply slides the complete cartridge onto the shaft, bolts the gland to the pump casing, tightens the drive collar, and removes the centering clips.

Understanding Seal Face Dynamics and Fluid Film Control

At the heart of every mechanical seal is the interface between the rotating face and the stationary face. These two highly polished surfaces run against each other, creating the primary barrier against leakage.

  1. The Role of the Fluid Film: To prevent the faces from rubbing themselves to pieces, a microscopic film of fluid must exist between them. This film is typically only $1 \ \mu\text{m}$ thick. It provides lubrication and cools the faces.

  2. Pressure Balancing: The cartridge design controls the hydraulic forces acting on the seal faces. A balanced design reduces the hydraulic load as the system pressure rises, maintaining the ideal fluid film thickness and preventing the faces from overheating.

  3. Spring Force Consistency: Spring systems inside the cartridge supply the initial force needed to hold the faces together before the pump is pressurized. By placing these springs outside the process fluid, we prevent them from clogging with debris or corroding over time.

Selecting the Right Cartridge Seal Configuration for Different Rotating Equipment

Not all rotating equipment operates under the same conditions. A high-speed centrifugal pump handling clean water requires a different sealing strategy than a slow-moving top-entry mixer processing thick slurry. We must match the Cartridge Mechanical Seal configuration to the specific demands of the machine and the fluid.

Single Cartridge Seals vs. Double Cartridge Seals

The first major decision is choosing between a single and a double seal arrangement. This choice depends primarily on the fluid characteristics, pressure, and the safety risks of a leak.

  • Single Cartridge Seals: These feature one set of seal faces. They rely on the process fluid inside the pump casing to lubricate and cool the faces. They are simple, cost-effective, and ideal for non-hazardous, clean fluids like water, light oils, and mild solvents.

  • Double Cartridge Seals: These contain two sets of faces, creating an isolated chamber between them. We fill this chamber with an external barrier or buffer fluid. If the inner seal leaks, the fluid escapes into the barrier system, not into the environment. This makes double seals mandatory for toxic, corrosive, abrasive, or highly flammable chemicals.

Application Matching: Centrifugal Pumps, Agitators, and Heavy-Duty Mixers

Different types of rotating equipment place unique physical stresses on mechanical seals.

  1. Centrifugal Pumps: These machines run at high rotational speeds, typically $1500 \text{ RPM}$ to $3600 \text{ RPM}$. Here, the primary challenges are heat dissipation and high pressure. The seal must have excellent thermal conductivity and a balanced design to handle these speeds.

  2. Agitators and Mixers: These vessels feature long, overhung shafts that rotate slowly but experience massive radial deflection (shaft runout). A standard pump seal would fail immediately under these conditions. Agitator cartridge seals must feature large internal clearances and robust bearing guides to absorb shaft movement without damaging the seal faces.

Equipment Type

Typical Shaft Speed

Primary Challenge

Recommended Configuration

Centrifugal Pump

$1500$ - $3600 \text{ RPM}$

High heat generation, pressure spikes

Single or Double Cartridge Seal with flush plan

Top-Entry Agitator

$10$ - $150 \text{ RPM}$

Severe radial shaft runout, dry running

Double Cartridge Agitator Seal with integrated bearing

Horizontal Blender

$50$ - $300 \text{ RPM}$

Heavy solids, abrasive slurries

Double Cartridge Seal with external pressurized barrier

Material Science: Choosing Faces and Elastomers to Survive Harsh Rotating Environments

Even the best mechanical design will fail if the materials inside the seal cannot withstand the chemical and thermal environment of the process. We must carefully select the seal face materials and elastomeric O-rings to match our specific application.

Silicon Carbide, Tungsten Carbide, and Carbon Face Pairings

The sliding seal faces must be hard enough to resist wear but possess low friction coefficients to minimize heat generation.

  • Silicon Carbide (SiC): This material is exceptionally hard, chemically inert, and has excellent thermal conductivity. It is the premier choice for demanding chemical and slurry applications. We often pair it against itself (SiC vs. SiC) for abrasive fluids.

  • Tungsten Carbide (TC): Offering high fracture toughness, tungsten carbide resists mechanical shock better than silicon carbide. It is commonly used in high-pressure oil and gas applications or where severe vibration occurs.

  • Carbon-Graphite: This is a self-lubricating, softer material. Pairing carbon against silicon carbide or tungsten carbide is the most common combination for clean fluids. The carbon wears slightly to match the hard face perfectly, providing an exceptionally tight seal.

Matching Elastomers to Process Chemistry and Temperature

O-rings act as the secondary seals, sealing the static gaps between the sleeve and the shaft, and between the faces and the housing.

  1. EPDM: Excellent for hot water, steam, and polar solvents. However, it degrades rapidly if it comes into contact with petroleum-based oils, hydrocarbons, or strong acids.

  2. FKM (Fluorocarbon): Highly versatile, FKM handles oils, fuels, and many chemicals at temperatures up to $200^\circ\text{C}$. It can struggle in highly alkaline environments or when exposed to superheated steam.

  3. FFKM (Perfluoroelastomer): This material offers near-universal chemical resistance, matching the properties of PTFE while retaining the elasticity of an O-ring. It can handle extreme temperatures up to $320^\circ\text{C}$ but carries a premium cost.

Seal Component

Material Option

Temperature Limits

Chemical Resistance

Best Suited For

Hard Face

Sintered Silicon Carbide

Up to $400^\circ\text{C}$

Outstanding (Universal)

Corrosive chemicals, abrasive slurries, high-speed pumps

Soft Face

Resin-Impregnated Carbon

Up to $250^\circ\text{C}$

Very Good (Avoid strong oxidizers)

Clean water, hydrocarbons, general chemical transfer

Elastomer

FKM (Fluorocarbon)

$-20^\circ\text{C}$ to $200^\circ\text{C}$

Excellent for oils and acids

Hydrocarbon processing, basic chemical plants

Elastomer

FFKM (Perfluoroelastomer)

$-15^\circ\text{C}$ to $320^\circ\text{C}$

Outstanding (Near-universal)

Highly aggressive chemicals, high-temperature reactors

Step-by-Step Installation Guide to Ensure Zero Leakage Upon Startup

One of the greatest benefits of a Cartridge Mechanical Seal is its simplicity of installation. However, we must still follow a precise procedure to ensure we do not introduce new issues during the process.

Preparing the Shaft and Stuffing Box

Before we slide the new cartridge onto the shaft, we must prepare the machine. A clean, true environment is essential for a leak-free startup.

  • Check Shaft Runout: Mount a dial indicator on the pump casing and rotate the shaft. The radial runout must be within the manufacturer's limits, typically less than $0.05 \text{ mm } (0.002 \text{ inches})$. Excessive runout will cause the seal faces to vibrate and leak.

  • Inspect the Shaft Surface: The shaft must be free of burrs, sharp edges, and deep scratches. Any rough spots can cut or displace the shaft sleeve O-ring as we slide the seal into position.

  • Clean the Stuffing Box Face: The metal face where the cartridge gland bolts down must be clean and flat. Remove any old gasket material or rust with a wire brush or fine emery paper.

Sliding, Securing, and the Critical Spacer Clip Step

Once the equipment is prepared, we can install the cartridge. Follow these steps carefully to ensure perfect alignment.

  1. Lubricate the Shaft: Apply a light lubricant (like silicone grease or soapy water) to the shaft. Do not use petroleum-based lubricants if your seal uses EPDM O-rings, as they will swell and fail.

  2. Slide the Cartridge On: Slide the complete assembly onto the shaft. Be gentle; do not force it. Guide the gland bolts through the slots in the cartridge plate.

  3. Reassemble the Pump: Reinstall the pump impeller, casing, and bearings. Bolt the pump housing back together securely.

  4. Tighten the Gland Bolts: Tighten the gland nuts in a star pattern to ensure even compression of the gland gasket. Torque them to the manufacturer's specification.

  5. Lock the Collar Screws: Tighten the set screws on the cartridge drive collar. This locks the internal sleeve to the rotating shaft.

  6. Remove the Setting Clips: This is the most critical step. The metal setting clips hold the cartridge at its correct working length. Once the collar is locked to the shaft and the gland is bolted down, we must remove these clips. Keep them in a safe place for future maintenance or pump rebuilds.

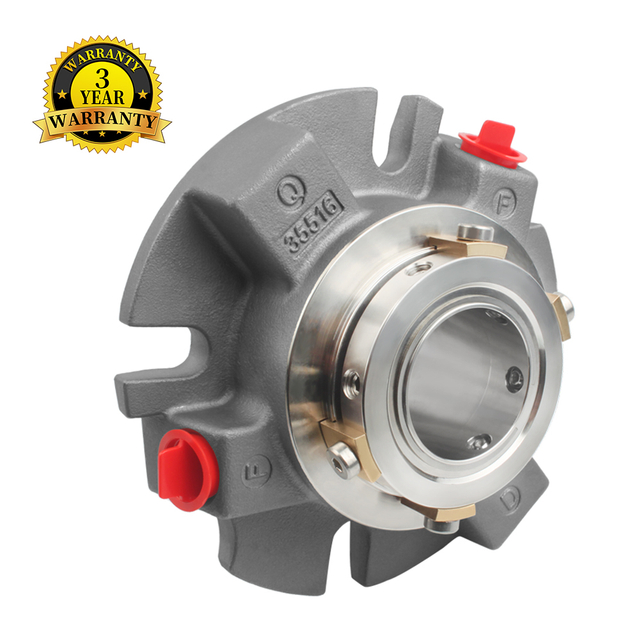

Cartridge Mechanical Seal

Troubleshooting and Extending the Lifecycle of Your Cartridge Mechanical Seal

Installing a high-quality Cartridge Mechanical Seal is only half the battle. To keep our rotating equipment running without leaks for years, we must monitor its performance and provide the correct operating environment.

Identifying the Root Causes of Premature Seal Failure

If a cartridge seal begins to leak prematurely, it is rarely due to a manufacturing defect. Almost always, an external system issue is to blame.

  • Dry Running: If a pump loses suction or is started without being primed, the liquid film between the seal faces evaporates. Within seconds, the faces will overheat, crack, or blister. This is the leading cause of seal failure.

  • Vibration: Cavitation, pipe strain, or shaft misalignment can cause severe high-frequency vibration. This vibration chips the brittle hard faces and forces the seal faces apart, causing immediate leakage.

  • Scale and Slurry Buildup: If the process fluid contains suspended solids, they can build up around the atmospheric side of the seal. This prevents the spring system from moving, keeping the faces from sealing as they wear.

Utilizing API Piping Plans for Heat Dissipation and Face Flushing

To protect the seal from these harsh operating conditions, we use standard API (American Petroleum Institute) piping plans. These plans supply a controlled flow of fluid to the seal chamber to clean, cool, and lubricate the faces.

  1. API Plan 11 (Discharge Recirculation): This plan pipes a small stream of fluid from the pump discharge through an orifice and injects it directly onto the seal faces. It vents air from the seal chamber and carries away heat generated by the faces.

  2. API Plan 32 (External Flush): When handling heavy slurries or polymerizing fluids, we inject a clean, compatible external fluid into the seal chamber. This creates a high-pressure barrier that keeps abrasive particles away from the seal faces.

  3. API Plan 53A (Pressurized Dual Seal System): For double cartridge seals, we connect a pressurized reservoir containing a clean barrier fluid (like synthetic oil or water). By keeping the barrier pressure higher than the pump casing pressure, we ensure that no process fluid can ever cross the inner faces, guaranteeing zero leakage to the outside environment.

Conclusion

Eliminating rotating equipment leakage is a highly achievable goal when we transition from traditional component seals to modern Cartridge Mechanical Seal technology. These pre-assembled units eliminate the manual measurement errors, delicate face handling, and alignment issues that lead to early component seal failure. By selecting the correct configurations and materials, performing careful installations, and supporting the seals with appropriate API flush plans, we can achieve years of trouble-free, leak-free operation.

Investing in high-quality cartridge seals pays immediate dividends. It keeps our workplaces clean, protects maintenance personnel from hazardous chemicals, lowers cleanup costs, and prevents unscheduled production shutdowns.

FAQ

1. Why do component seals leak more often during startup than cartridge seals?

Component seals fail during startup because of manual installation errors. If a technician measures the shaft position incorrectly, the springs will not apply the correct pressure to the faces. Furthermore, dust, dirt, or finger grease can easily get on the faces during assembly. A Cartridge Mechanical Seal is pre-assembled and pre-set in a clean factory environment, removing these installation risks entirely.

2. Can a cartridge mechanical seal handle shaft deflection in heavy mixers?

Yes, but you must select a cartridge seal specifically designed for mixer and agitator service. These seals are engineered with larger internal clearances to accommodate shaft radial runout. They also often include an integrated dual-bearing assembly inside the cartridge itself. This bearing helps stabilize the shaft, protecting the delicate seal faces from excessive movement.

3. Do I need to modify my pump to install a cartridge mechanical seal?

In most cases, no. Modern cartridge seals are designed to fit standard ASME, ANSI, and DIN pump stuffing boxes. The gland plates feature universal bolt slots that adapt to various bolt-hole circles, allowing you to slide the cartridge directly into place without machining the pump housing.

4. What happens if we forget to remove the setting clips after installation?

If you forget to remove the centering/setting clips, the seal sleeve and gland will remain locked together. When you start the pump, the shaft will try to spin the entire gland plate, which is bolted to the casing. This will cause severe mechanical damage, shearing the drive collar, destroying the bearings, or cracking the seal faces within a split second of startup.

5. How does temperature affect cartridge seal life, and how do we manage it?

High temperatures reduce the viscosity of the fluid film between the seal faces, causing it to evaporate. This leads to dry running and rapid face wear. Extreme heat also degrades elastomeric O-rings, causing them to harden and crack. We manage high temperatures by utilizing API thermal flush plans (like Plan 21 or Plan 23) that cool the fluid before injecting it into the seal chamber, or by using high-temperature elastomers like FFKM.
