Chemical processing facilities move some of the most hazardous fluids on earth. From volatile organic solvents to highly concentrated acids, these fluids require total containment. Within these operations, the chemical centrifugal pump acts as both the workhorse and the most vulnerable point of failure. Traditional packing and component-style seals often fail to maintain containment under harsh, corrosive conditions. When these systems fail, they release hazardous emissions that threaten workforce safety, trigger regulatory fines, and pollute local ecosystems.
To achieve zero-emission performance, chemical processing plants rely on the Cartridge Mechanical Seal. This self-contained, pre-assembled sealing solution is engineered specifically to eliminate the common vulnerabilities of older sealing methods.
Industrial chemical pumps do not just move water. They transport fluids that are toxic, corrosive, reactive, and often flammable. To choose an effective sealing solution, we must first understand the severe mechanical and chemical forces that constantly threaten to breach containment inside the pump casing.
Chemical centrifugal pumps run at high speeds, creating physical forces that test every component. If the shaft sealing area has any microscopic gap, high pressure will force toxic chemicals out into the atmosphere.
Volatile Organic Compounds (VOCs): Solvents like benzene or toluene evaporate quickly at ambient temperatures. These emissions are invisible but highly hazardous to health. They require absolute sealing to comply with strict environmental regulations like EPA standards.
Corrosive Destruction: Strong acids, including sulfuric and hydrochloric acids, do not just leak; they actively destroy the pump exterior, baseplates, and nearby instrumentation once they escape the wet end of the pump.
Exothermic Reactivity: Some process chemicals react violently when they touch moisture in the air. A minor leak can quickly turn into a fire or an explosion hazard on the factory floor.
Historically, maintenance crews utilized component mechanical seals because of their low purchase price. However, these basic seals have severe vulnerabilities in chemical environments.
Complex Manual Setup: A component seal requires the technician to handle loose springs, delicate faces, and elastomeric O-rings. If they miscalculate the installation length by even a single millimeter, the seal faces will either burn up from high friction or leak immediately upon pump startup.
Vulnerability to Shaft Runout: Chemical pumps often operate far from their Best Efficiency Point (BEP). This creates high radial forces and shaft deflection. Component seals cannot accommodate this movement, leading to cracked faces and catastrophic leaks.
Atmospheric Exposure during Install: The delicate, polished faces of a component seal remain exposed to the dusty, humid environment of a chemical plant during assembly. Any tiny particle of dust trapped between the faces will act as an abrasive, grinding down the seal during operation.
A high-performance Cartridge Mechanical Seal changes the containment strategy completely. By integrating all seal components into a single, factory-tested assembly, it removes the variables that cause standard seals to fail prematurely.

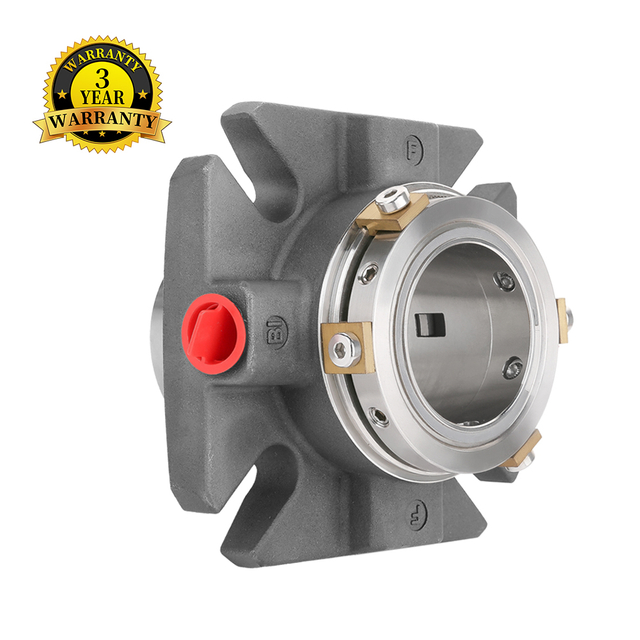

A cartridge seal is a complete package. It includes the shaft sleeve, gland plate, seal faces, springs, and elastomer seals in a single unit.
The Internal Sleeve: The seal components mount directly onto a metal sleeve instead of the pump shaft. This sleeve slides over the pump shaft, protecting the expensive metal shaft from wear, corrosion, and scoring caused by dynamic O-rings.
The Gland Plate: This heavy-duty plate bolts directly to the pump stuffing box. It houses the flushing and cooling ports, allowing operators to introduce environmental controls directly to the seal faces.
Multi-Spring Design: Instead of a single, large coil spring that can easily clog, cartridge seals use multiple small springs. These springs sit outside the process fluid, ensuring they remain free of chemical buildup and maintain even pressure across the seal faces.
For toxic applications, a single seal is rarely enough. We must utilize a double Cartridge Mechanical Seal featuring a double-balanced design.
Double-Balanced Geometry: This specialized design ensures that the seal faces stay closed even if pressure spikes unexpectedly on either side. Whether the barrier fluid pressure drops or the process pressure surges, the hydraulic balance keeps the sealing faces firmly together.
Internal vs. External Pressure Resistance: The inner seal containment faces resist the high internal pressure of the pump, while the outer seal faces contain the clean barrier fluid. This dual-layer containment ensures that if the primary seal fails, the secondary seal acts as a backup, keeping toxic fluid inside the pump housing.
Pumping Ring Integration: High-quality cartridge seals feature an integrated internal pumping ring. This mechanical ring acts as a mini-pump, actively circulating the barrier fluid through an external cooling loop without relying on external pumps.
The metal parts, seal faces, and rubber elements inside a Cartridge Mechanical Seal must survive constant exposure to aggressive chemicals. Choosing the wrong material will lead to rapid corrosion, face cracking, and catastrophic leaks.
Standard stainless steel (316L) cannot survive long in hot, acidic, or highly alkaline services. We must upgrade the metal and face materials to specialized alloys and ceramics.
Hastelloy C-276 and Alloy 20: These exotic alloys offer exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in highly acidic environments, such as sulfuric or phosphoric acid lines.
Titanium and Monel: For highly oxidizing or chlorinating environments, titanium parts provide an unbeatable protective oxide layer. Monel is the industry standard for hydrofluoric acid applications.
Sintered Silicon Carbide (SiC-SiC): This is the ultimate face material pairing for abrasive or corrosive chemicals. Sintered silicon carbide is incredibly hard, has high thermal conductivity, and does not degrade in aggressive caustics. We avoid reaction-bonded silicon carbide because the free silicon can be chemically attacked by acids.
The soft seals (O-rings) must maintain their elasticity to seal the microscopic clearances between metal parts.
Perfluoroelastomers (FFKM / Kalrez): This material offers near-universal chemical resistance. It stands up to ketones, esters, highly concentrated acids, and extreme temperatures (up to 300°C / 572°F) without swelling or degrading.
PTFE Bellows Designs: For extremely aggressive acids where no rubber elastomer can survive, we use a PTFE bellows cartridge seal. The bellows design eliminates dynamic O-rings entirely, removing the risk of chemical attack on the secondary seals.
Chemical Media | Recommended Metallurgy | Recommended Seal Face Pair | Recommended Elastomer |
|---|---|---|---|
98% Sulfuric Acid | Alloy 20 / Hastelloy C-276 | Sintered SiC vs. Sintered SiC | FFKM (Kalrez) |
Sodium Hydroxide (Caustic) | 316L Stainless Steel | Sintered SiC vs. Carbon | FKM or EPDM |
Hydrochloric Acid | Hastelloy C-276 / Titanium | Sintered SiC vs. Sintered SiC | PTFE / FFKM |
Volatile Organic Solvents | 316L Stainless Steel | Sintered SiC vs. Carbon | FFKM or High-Grade FKM |
To prevent any trace of toxic chemicals from escaping into the environment, we must separate the process fluid from the atmosphere. We achieve this by using a dual pressurized Cartridge Mechanical Seal paired with an engineered barrier system.
A pressurized dual seal utilizes a clean barrier fluid (typically water or synthetic oil) inside the space between the inner and outer seal faces.
Pressure Differential: We maintain the barrier fluid pressure at least 1.5 to 2.0 bar (20 to 30 psi) higher than the pressure in the pump stuffing box.
Inward Pressure Vector: Because the barrier fluid is at a higher pressure, any natural micro-leakage across the primary seal face travels from the clean barrier fluid into the process chamber.
Total Isolation: The toxic process fluid cannot cross the primary seal face because it would have to flow against a higher pressure gradient. This ensures zero process emissions escape to the atmosphere.
To ensure the integrity of the barrier system, we must supply constant pressure to the seal chamber.
Nitrogen Pressurization: We use a pressurized reservoir tank connected to an industrial nitrogen utility line to apply constant gas pressure over the barrier fluid.
Accumulator Safety: If the nitrogen supply fails, bladder-type accumulators hold a volume of pressurized fluid to maintain seal containment until the pump can be safely shut down.
No-Product Contact: The inner seal faces operate in a clean, lubricating barrier fluid rather than the harsh, dirty chemical process. This dramatically increases the service life of the seal faces.
Statistically, more than half of all component seal failures are caused by errors during installation. In a hazardous chemical plant, an installation error can have disastrous consequences. A pre-assembled Cartridge Mechanical Seal is engineered to eliminate these human errors entirely.
The most critical step in installing a mechanical seal is setting the correct spring compression.
The Role of Centering Clips: Cartridge seals feature brass or plastic centering clips pre-installed at the factory. These clips lock the sleeve and the gland plate together in the exact working position.
No Measuring Tapes Required: You simply slide the complete cartridge assembly onto the pump shaft, bolt the gland plate to the pump housing, tighten the drive collar screws to the shaft, and then remove the centering clips.
Guaranteed Spring Compression: Because the factory sets the alignment, the springs compress to the exact design specifications. This prevents the faces from running too hot due to over-compression or leaking due to under-compression.
As pumps start up and shut down, thermal expansion and pressure spikes cause the pump shaft to move axially.
Shaft Sleeve Protection: In a cartridge seal, any dynamic elastomer wear occurs on the replaceable stainless steel or alloy sleeve of the seal, not on the expensive pump shaft itself.
No Shaft Scoring: Standard component seals use dynamic O-rings that rub against the bare shaft, creating grooves that ruin the shaft over time. The cartridge sleeve isolates the shaft completely from this wear.
Simplified Rebuilding: When the cartridge seal eventually wears out, you do not need to machine or replace the pump shaft. You simply pull the old cartridge off, slide a new or refurbished one on, and the pump is ready to run.
Feature Comparison | Old-School Component Seal | Modern Cartridge Mechanical Seal |
|---|---|---|
Installation Time | 2 to 4 hours of tedious labor | 30 to 45 minutes |
Risk of Face Contamination | High (Delicate faces exposed during install) | None (Faces are enclosed and protected) |
Spring Alignment | High risk of uneven compression | Perfectly preset via factory centering clips |
Shaft Integrity | Dynamic O-rings score and wear the shaft | Replaceable sleeve protects the shaft |
Factory Pressure Testing | Impossible until fully installed in the pump | 100% pre-tested before shipping |
A Cartridge Mechanical Seal is only as good as the piping plan supporting it. In chemical plants, we use standardized API (American Petroleum Institute) piping plans to control the environment around the seal faces and monitor for any signs of failure.
The choice between API Plan 52 and Plan 53A depends on how toxic the chemical is and whether any minor dilution is allowed in the process.
API Plan 52 (Unpressurized Dual Seal): This plan uses an external reservoir containing a buffer fluid at pressure lower than the stuffing box pressure. It collects any minor vapor leakage from the primary seal and vents it to a flare or vapor recovery system. It is ideal for moderately hazardous fluids where a small amount of dilution is acceptable.
API Plan 53A (Pressurized Dual Seal): This plan uses a reservoir containing a barrier fluid pressurized by an external gas source (usually nitrogen) to a pressure higher than the stuffing box pressure. This is the gold standard for highly toxic, carcinogenic, or lethal chemicals because it ensures absolute zero product emissions.
API Plan 54 (External Forced Circulation): For highly aggressive, high-temperature, or slurry-heavy chemical lines, we route a clean, pressurized barrier fluid from an external circulating system. This provides maximum cooling and flushing capacity.
To prevent catastrophic spills, we must monitor the seal's health in real-time. We configure our API piping systems with smart instrumentation.
Pressure Switches on the Barrier Reservoir: In an API Plan 53A system, a sudden drop in barrier fluid pressure indicates that either the gas supply has failed or the primary seal face has developed a major leak. This triggers an immediate alarm to operators.
Level Transmitters: We monitor the liquid level in the seal reservoir. A slow decrease in level is normal (due to microscopic lubrication loss), but a sudden drop indicates a primary or secondary seal failure. A rising level in a Plan 52 system indicates that the primary seal is leaking process fluid into the reservoir.
Thermocouples on the Gland Plate: We mount temperature sensors close to the seal faces. A rapid temperature spike warns of a "dry-running" condition, allowing operators to shut down the centrifugal pump before the faces crack or shatter.
Preventing toxic leaks in chemical centrifugal pumps requires a system-level approach that combines robust mechanical design with advanced materials and precise environmental controls. Standard component seals are no longer acceptable for hazardous processes where a single leak can cause severe environmental damage or human injury. Upgrading to a custom-engineered Cartridge Mechanical Seal is the single most effective action a chemical facility can take to ensure absolute fluid containment, protect expensive rotating shafts, and eliminate costly installation errors.
By pairing double-balanced cartridge designs with high-performance metallurgies (like Hastelloy) and chemical-resistant elastomers (like FFKM), processing plants can achieve a reliable, multi-year operating life. Backed by the correct API piping plans and real-time instrumentation, these robust sealing solutions will keep your chemical centrifugal pumps running safely, efficiently, and in complete environmental compliance.
A single cartridge seal has one set of sealing faces and is typically used for non-hazardous or mildly corrosive fluids with a flush plan. A double Cartridge Mechanical Seal features two sets of faces (inner and outer) separated by a barrier fluid chamber. It is the mandatory choice for toxic, volatile, or lethal chemical applications because it creates an absolute barrier between the process fluid and the outside environment.
Standard FKM (Viton) elastomers can swell, chemically degrade, or lose their elasticity when exposed to strong acids, ketones, ethers, or high operating temperatures. FFKM (perfluoroelastomer) features a fully fluorinated molecular backbone, giving it near-universal chemical compatibility and the ability to withstand extreme temperatures without failing.
In a pressurized system (like API Plan 53A), the clean barrier fluid inside the seal is maintained at a pressure higher than the process fluid inside the pump stuffing box. Because fluids naturally flow from high-pressure zones to low-pressure zones, any microscopic leakage across the primary seal face travels from the clean barrier fluid into the pump process, completely preventing the toxic process chemical from escaping.
Yes. Unlike standard component seals where springs are exposed to the fluid and can easily clog, a heavy-duty cartridge seal locates the springs on the atmospheric side, away from the process fluid. Additionally, we can pair the cartridge seal with an API Plan 32 (external clean flush) to push abrasive particles away from the seal faces.
The centering clips maintain the precise spacing and spring compression of the Cartridge Mechanical Seal while it is being handled and bolted onto the pump. If you remove them too early, the shaft sleeve can slide out of alignment, causing uneven spring compression and immediate seal failure upon startup. You must remove them only after the gland bolts are tightened and the drive collar is locked to the pump shaft.
