Pulp and paper manufacturing is one of the most demanding processing environments in the world. From handling abrasive wood fibers to pumping corrosive chemical liquors, the pumps in these facilities face constant abuse. Standard component seals often fail prematurely under these harsh conditions, leading to costly unscheduled downtime and massive water waste. To solve these ongoing challenges, mill operators are turning to high-performance Cartridge Mechanical Seal solutions customized for international standard pumps.
In this comprehensive guide, we will analyze how custom-engineered seals prevent leaks, handle high stock consistencies, and resist chemical attack. By focusing on practical, actionable insights, we will help you understand how the right seal design can dramatically lower your total cost of ownership (TCO) and keep your paper mill running smoothly.
Pulp and paper mills move millions of gallons of fluids every day. These fluids are rarely clean or easy to pump. To choose the right seal, we must first understand the mechanical and chemical forces acting inside the pump chamber.
The primary challenge in any paper mill is the presence of paper stock. This is a mixture of water and wood fibers. As the concentration of fiber increases, the fluid behaves less like water and more like a thick paste.
Fiber Packing: Cellulose fibers love to collect in low-velocity areas. In a standard stuffing box, fibers pack around the seal spring and faces, clogging the seal movement and causing dry running.
High Consistency Stock: Medium and high-consistency pumps (pumping 8% to 15% fiber stock) create extreme radial and axial forces. This causes significant shaft deflection, which destroys standard component seals in days.
Abrasive Fillers: Modern paper production uses mineral fillers like titanium dioxide and calcium carbonate. These particles act as sandpaper, grinding down seal faces if they manage to get between them.
Chemical pulping relies on aggressive chemical recovery loops. Pumps must handle hot, highly corrosive liquors at various stages of the process.
Black Liquor: This byproduct of the Kraft process contains organic lignin and inorganic chemicals. It is highly alkaline, highly viscous, and often pumped at temperatures exceeding 120°C (248°F). If it cools down, it crystallizes, which can instantly shatter seal faces.
White and Green Liquors: These fluids contain sodium hydroxide, sodium sulfide, and sodium carbonate. They are highly corrosive and require seal materials that will not dissolve or degrade over time.
Acidic Bleaching Agents: The bleaching section uses chlorine dioxide, ozone, or sulfuric acid. These acids rapidly corrode standard 316 stainless steel pump parts and seal glands, requiring specialized metallurgy.
For decades, maintenance teams used gland packing or component mechanical seals because they were cheap. However, the hidden costs of installation errors, shaft wear, and operational downtime make them a poor choice for modern high-uptime paper mills. A pre-engineered Cartridge Mechanical Seal changes the equation.
Component seals require manual assembly inside the pump. The technician must measure the exact working length of the seal, compress the springs, and slide the delicate faces over a bare shaft. This process is ripe for errors.

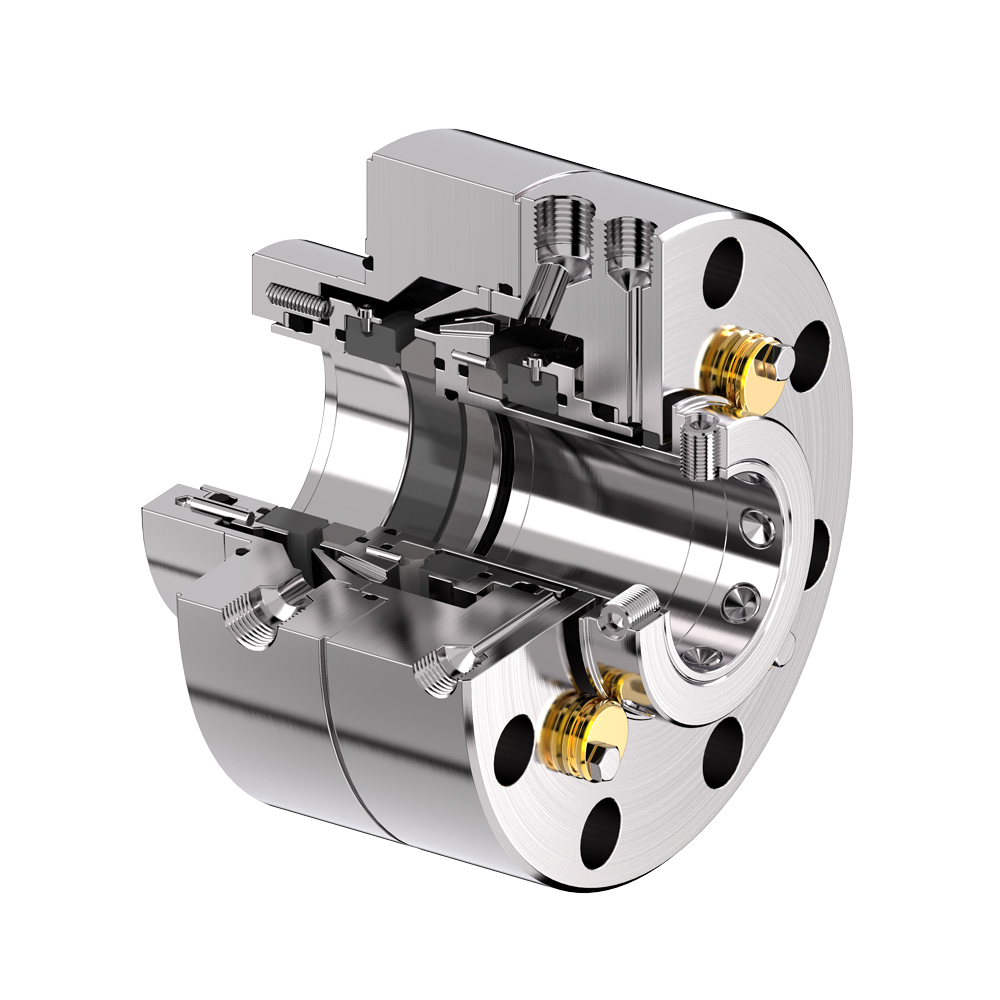

No Manual Measurements: A Cartridge Mechanical Seal is a self-contained unit. The sleeve, faces, springs, and gland are all pre-assembled at the factory. You slide it onto the shaft, bolt the gland, tighten the drive collar, and remove the setting clips.
Protection for the Shaft: Component seals use dynamic O-rings that ride directly on the pump shaft. Over time, these O-rings collect abrasive pulp particles and wear grooves into the metal, requiring expensive shaft replacement. A cartridge seal has its own internal sleeve, protecting your expensive pump shaft from all wear.
Cleanliness During Install: Paper mills are dusty environments. Installing a component seal exposes the highly polished faces to airborne fibers and grit. Cartridge designs keep the faces protected inside the metal gland until the machine is fully secured.
Every custom cartridge seal undergoes rigorous static and dynamic pressure testing before leaving the manufacturing facility.
Guaranteed Performance: Because the manufacturer tests the assembly, you know the seal is leak-free before you install it. This eliminates the frustration of starting up a rebuilt pump only to find the seal is leaking immediately.
Reduced Labor Times: Replacing a component seal or packing can take several hours of tedious work. A cartridge seal can be replaced in less than 45 minutes, dramatically cutting downtime during emergency outages.
Feature Comparison | Standard Component Seal | Cartridge Mechanical Seal |
|---|---|---|
Installation Error Risk | High (Requires manual setting & handling) | Low (Pre-set at the factory) |
Shaft Wear / Damage | Common (Dynamic O-rings score the shaft) | None (Sleeve protects the pump shaft) |
Testing Standards | Untested until pump startup | 100% Pressure-tested before delivery |
Average Replacement Time | 3 to 6 Hours | 45 to 90 Minutes |
Resistance to Shaft Deflection | Poor (Faces misalign easily) | Excellent (Built-in clearances accommodate movement) |
No single seal material can handle every application in a paper mill. Customizing the metallurgy, seal face combinations, and elastomers of your Cartridge Mechanical Seal is the secret to achieving a multi-year run life.
The seal faces must be hard enough to resist abrasive fibers and fillers, yet provide low friction to prevent overheating.
Sintered Silicon Carbide (SiC vs. SiC): This is the default pairing for slurry applications. It is incredibly hard, has excellent thermal conductivity, and resists wear from abrasive paper stock. We use sintered silicon carbide rather than reaction-bonded variants because it offers superior chemical resistance in highly alkaline liquors.
Tungsten Carbide (TC vs. TC): For applications involving severe mechanical shock or high-pressure spikes, tungsten carbide is preferred. It is less brittle than silicon carbide, meaning it can survive the heavy vibration caused by pump cavitation or air entrainment in the pulp.
Diamond-Like Carbon (DLC) Coatings: For extreme applications, applying a thin layer of crystalline diamond to the silicon carbide faces reduces friction by up to 50%, allowing the seal to survive temporary dry-running events without heat checking.
The metal parts and rubber seals must withstand aggressive pulping chemicals and high heat.
Super Duplex and Hastelloy: While standard seals use 316 stainless steel, we customize our cartridge glands and sleeves with Duplex (2205), Super Duplex (2507), or Hastelloy C-276. These alloys prevent stress corrosion cracking and pitting in acidic bleaching sections and hot black liquor systems.
Fluoroelastomers (FKM): Excellent for general services and acidic environments up to 200°C.
Perfluoroelastomers (FFKM/Kalrez): For the absolute harshest chemical loops, such as concentrated black liquor and chlorine dioxide bleaching lines, we utilize FFKM. It provides near-universal chemical resistance and survives temperatures up to 300°C (572°F).
Deciding between a single or double Cartridge Mechanical Seal configuration is a balance of initial cost, environmental concerns, and the nature of the pumped fluid.
Single cartridge seals are ideal for less aggressive fluids where water consumption must be kept low, but some environmental control is still needed.
Lower Stock Consistencies: We use single seals for clean water, white water, and low-consistency stock (under 2% fiber).
The Power of API Plan 62 (Quench): A single Cartridge Mechanical Seal can be paired with a steam or water quench. This flush line injects a small amount of clean fluid onto the atmospheric side of the seal faces. It prevents dissolved solids (like sugars or green liquor crystals) from crystallizing on the faces and destroying the outer seal components.
Cost-Effective Simplicity: Single seals require no complex external piping or barrier fluid systems, making them easy to maintain for utility pumps around the mill.
For high-consistency stock (above 3%), abrasive slurries, and hazardous chemicals, a double Cartridge Mechanical Seal is mandatory.
Isolating the Slurry: A double seal features two sets of faces (inner and outer). We pump a clean barrier fluid (usually water) into the space between these faces at a pressure 1 to 2 bar higher than the stuffing box pressure. This ensures that any micro-leakage goes from the clean barrier fluid into the product, completely preventing the dirty pulp slurry from entering the seal faces.
Zero Product Leakage: This setup is critical for environmental safety when pumping hazardous acids, caustic liquors, and high-temperature black liquor.
Protecting Against Pressure Spikes: Our double cartridge designs are engineered with double-balanced faces, meaning they can handle pressure reversals. If the barrier pressure drops unexpectedly, the inner seal faces will stay closed, keeping the process fluid inside the pump.
Application Criteria | Single Seal (Plain) | Single Seal with Quench | Double Cartridge Seal (Pressurized) |
|---|---|---|---|
Fiber Consistency Limit | < 1% | < 2% | Up to 15% (Medium/High Consistency) |
Liquor Compatibility | Unsuitable | Suitable for light liquors | Mandatory for Black/White/Green Liquor |
Water Consumption | None | Low (Quench flow only) | Moderate to High (Barrier fluid flow) |
Relative Initial Cost | 1.0 (Baseline) | 1.2 | 1.8 to 2.2 |
Primary Failure Risk | Fiber clogging | Crystal buildup | Loss of barrier pressure |
Paper mills utilize pumps manufactured all over the world. A major challenge for maintenance managers is sourcing seals that fit these diverse international standards without requiring extensive modifications to the pump housing.
Most modern chemical and process pumps in paper mills adhere to either European or American standards.
ISO 5199 / EN 22858: These European standards define the dimensions of the seal chamber and shaft sizes for metric process pumps. Our custom cartridge seals are designed to slide directly into these standard metric chambers, matching the exact axial bolt patterns of the pump casing.
ANSI B73.1: Common in North American mills, this standard specifies dimensional requirements for horizontal end-suction pumps. We engineer ANSI-compatible cartridge glands with slotted bolt holes, allowing a single seal design to fit multiple ANSI pump sizes.
Pulp and paper mills rely heavily on specialized, heavy-duty pumps designed by major OEMs. These pumps often feature unique shaft profiles and tapered stuffing boxes.
Sulzer AHLSTAR APP/APT Series: These famous pulp pumps utilize tapered, high-flow seal chambers designed to expel solids. A standard off-the-shelf seal will not fit or perform correctly in these chambers. We customize our Cartridge Mechanical Seal gland angles and sleeve profiles to match the exact internal taper of the AHLSTAR series, ensuring proper fluid circulation and zero fiber accumulation.
Andritz ACP/S Series: These pumps feature massive shafts and high-flow impellers. Our custom seals feature heavy-duty sleeves that slide over the stepped shaft of Andritz pumps, complete with specialized flushing channels that align perfectly with the pump’s internal bypass lines.
Goulds 3196 / 3180 Series: We build custom cartridge plates that bolt directly to the taper-bore or big-bore seal chambers of these popular process pumps, ensuring maximum heat dissipation around the seal faces.
Even the best-designed Cartridge Mechanical Seal will fail if it is left to run in a stagnant, hot, or dirty environment. Supporting your custom seal with the correct API piping plan is critical for long-term reliability.
Piping plans deliver clean water or process fluid to the seal chamber to control temperature, pressure, and cleanliness.
API Plan 11 (Discharge Bypass): We route a line from the pump discharge through an orifice and into the seal chamber. This continuous flow keeps the seal faces cool. However, we only use this for clean water or very low-consistency stock, as slurry would quickly plug the orifice.
API Plan 32 (External Clean Flush): This is the gold standard for single seals in pulp applications. We inject clean, pressurized water from an external source directly into the seal chamber. This flow creates a barrier that pushes fibers away from the seal faces, keeping them in a clean-water environment.
API Plan 54 (Pressurized Dual Barrier System): Used with double cartridge seals, Plan 54 utilizes an external pressurized system to circulate clean barrier water through the seal loop. It offers the absolute highest level of protection, keeping the seal running cool and clean even when the pump is running dry or handling 10% stock.
A proactive maintenance team can easily extend seal life by monitoring key indicators.
Install Flowmeters: Always place flow and pressure indicators on your barrier water lines. A sudden drop in barrier pressure means slurry is entering the double seal.
Monitor Temperature: Keep track of the seal gland temperature. A rapid rise indicates a loss of flush water, leading to dry running and face damage.
Check Shaft Alignment: Laser-align the pump and motor during every installation. Excessive vibration from misalignment will cause the hard seal faces to chip or chatter, leading to premature failure.
Succeeding in the highly competitive pulp and paper industry requires maximizing production uptime and minimizing utility costs. Traditional component seals and packing are no longer viable for high-performance mills. By upgrading to a custom-engineered Cartridge Mechanical Seal, mills can eliminate installation errors, protect their expensive pump shafts, and completely isolate critical seal faces from abrasive pulp fibers and corrosive liquors.
Whether you are upgrading a Sulzer AHLSTAR pulp pump or a Goulds chemical process pump, customization of seal metallurgy, face materials, and configurations is key. Supported by the correct API piping plans, these robust sealing solutions will dramatically reduce water consumption, prevent environmental leaks, and deliver the reliable, multi-year service life that modern paper production demands.
At FBUSEAL, we design and manufacture world-class sealing solutions specifically engineered for the most demanding industrial applications. Our range of high-performance Cartridge Mechanical Seal products is trusted by paper mills and chemical plants worldwide to keep critical pumps running under extreme conditions. We specialize in custom designs that fit international standard pulp and paper pumps without requiring modification, ensuring a perfect seal every single time.
Visit us at FBUSEAL to explore our product catalog, request a custom engineering consultation, and learn how we can help you eliminate seal failures in your facility.
Component seals fail because pulp fibers pack inside the seal springs and clog the moving parts. Once clogged, the faces cannot adjust to shaft movement and open up, letting abrasive fibers between the polished surfaces, which ruins them.
Yes. Black liquor is highly viscous, chemically aggressive, and tends to crystallize when it cools down. A pressurized double seal is required to keep clean barrier fluid between the faces, preventing the black liquor from contacting and destroying the seal internals.
OEM pulp pumps often have non-standard, tapered seal chambers designed to clear out solids. An off-the-shelf standard seal will not fit these dimensions or bolt patterns. A custom cartridge seal is engineered to match the exact taper and bolt pattern of your specific pump model, ensuring optimal flow and easy installation.
Plan 32 injects clean external water directly into the pump chamber, where it mixes with your product. Plan 54 circulates clean barrier water through the loop of a double seal, keeping the barrier fluid completely separate from the process fluid (unless there is a seal leak).
Yes. Unlike rigid component seals, a high-quality cartridge seal is designed with internal clearances that allow the seal sleeve and faces to move slightly with the shaft, preventing damage from the heavy shaft deflection common in thick pulp pumps.
