What Is A Mechanical Seal & How Does It Work? — FBU SEALS Guide

A mechanical seal is a non-contact shaft sealing device used between a rotating shaft and a stationary housing. Rather than "plugging" the gap, it relies on a pair of precisely lapped, tightly mated faces that hold an extremely thin fluid film, blocking media leakage while the shaft keeps turning. In short, a mechanical seal lets rotating equipment stay leak-tight without grinding the shaft — which is exactly why it has replaced packing as the standard shaft seal across modern industry.

Rotating equipment such as pumps, agitators and compressors shares one unavoidable problem: the shaft must pass through the casing, leaving a gap where process media can escape. The mechanical seal solves this with two precision flat faces pressed together. One rotates with the shaft and is called the rotating face; the other is fixed to the gland and is called the stationary face. Both faces are lapped to a mirror finish, and between them sits a fluid film only 0.5–1 micron thick — roughly 1/50 to 1/100 of a human hair. That micron film does three jobs at once: it seals the media inside the equipment, it lubricates the two faces so they never rub metal-to-metal, and it carries away the friction heat generated at the interface. A spring or bellows keeps the faces pressed together and automatically compensates for wear as the faces thin out. The result is the quiet trick behind every mechanical seal: the shaft turns, the media stays contained, and the faces barely wear.

Every mechanical seal is built from five functional parts that work together to keep that film alive. The rotating face turns with the shaft and forms one half of the sealing interface. The stationary face is fixed to the gland and forms the other half. The spring or bellows supplies and maintains the face contact pressure and compensates for wear. Secondary seals — O-rings or gaskets — provide static sealing between the rotating face and the shaft and between the stationary face and the gland, while still allowing the parts to float axially. Drive hardware such as a drive collar or set screw transmits torque to the rotating face and prevents it from slipping and spinning freely. The precision behind these parts is worth noting: face flatness is usually better than three light bands on an optical flat, face contact pressure is typically designed around 0.1–0.3 MPa, and the working fluid film measures roughly 0.5–1 micron.

Traditional packing seals take a different approach, compressing soft material between the shaft and the casing. The problem is straightforward — the shaft keeps rotating, and the harder you pack it, the more you grind the shaft. Packing inevitably leaks, wastes drive power, damages the shaft surface and demands frequent gland tightening. A mechanical seal replaces the idea of "plugging the gap" with a mated pair of precision faces. Compared with packing, a mechanical seal delivers far lower leakage (film-level rather than continuous weep), virtually no shaft wear, lower friction power loss, less frequent maintenance and broad suitability for high speed and high pressure. This is why mechanical seals have become the mainstream shaft sealing solution for pumps and similar rotating equipment.

Anywhere a shaft must rotate while the media must not leak, a mechanical seal is likely present. In pumps — centrifugal, multi-stage, slurry and hot-water units — the seal contains the process fluid. In agitated equipment such as reactors, crystallizers and polymerizers, it seals the vessel against the atmosphere. In compressors and turbines it handles process gas and oil systems. The industries that depend on them span petrochemical, power generation, pulp and paper, metallurgy, water and wastewater, food and pharmaceutical, and new energy applications such as hydrogen and energy-storage cooling.

A mechanical seal lives or dies by its fluid film, and once that film breaks down, failure follows quickly. The most common failure causes are closely tied to temperature and operating conditions. Dry running happens when seal-chamber pressure falls below the media's vapor pressure, flashing the film away and causing face thermal cracking. Secondary seals age under heat, with O-rings hardening and carbonizing until they lose the ability to compensate. Solid particles in the media enter the interface and score the faces, opening leakage paths. Installation error — wrong compression or poor alignment — loads the faces unevenly. Thermal shock from rapid temperature swings cracks the seal rings. Selecting the right face pairing, elastomer and support system for the actual duty is the most effective way to keep the film intact.

For flammable, toxic or precious media, or for vacuum service, very high pressure and high PV values, a double mechanical seal with a barrier or buffer fluid keeps containing the media even if the primary seal fails. This is the high-risk configuration recommended by API 682, and it is where cartridge double seals such as the FBU SEALS KDC and GDMA families earn their place. FBU SEALS engineers cartridge mechanical seals — single, double and tandem — to these principles, matching face materials and support systems to the real operating challenge rather than to a catalog number.

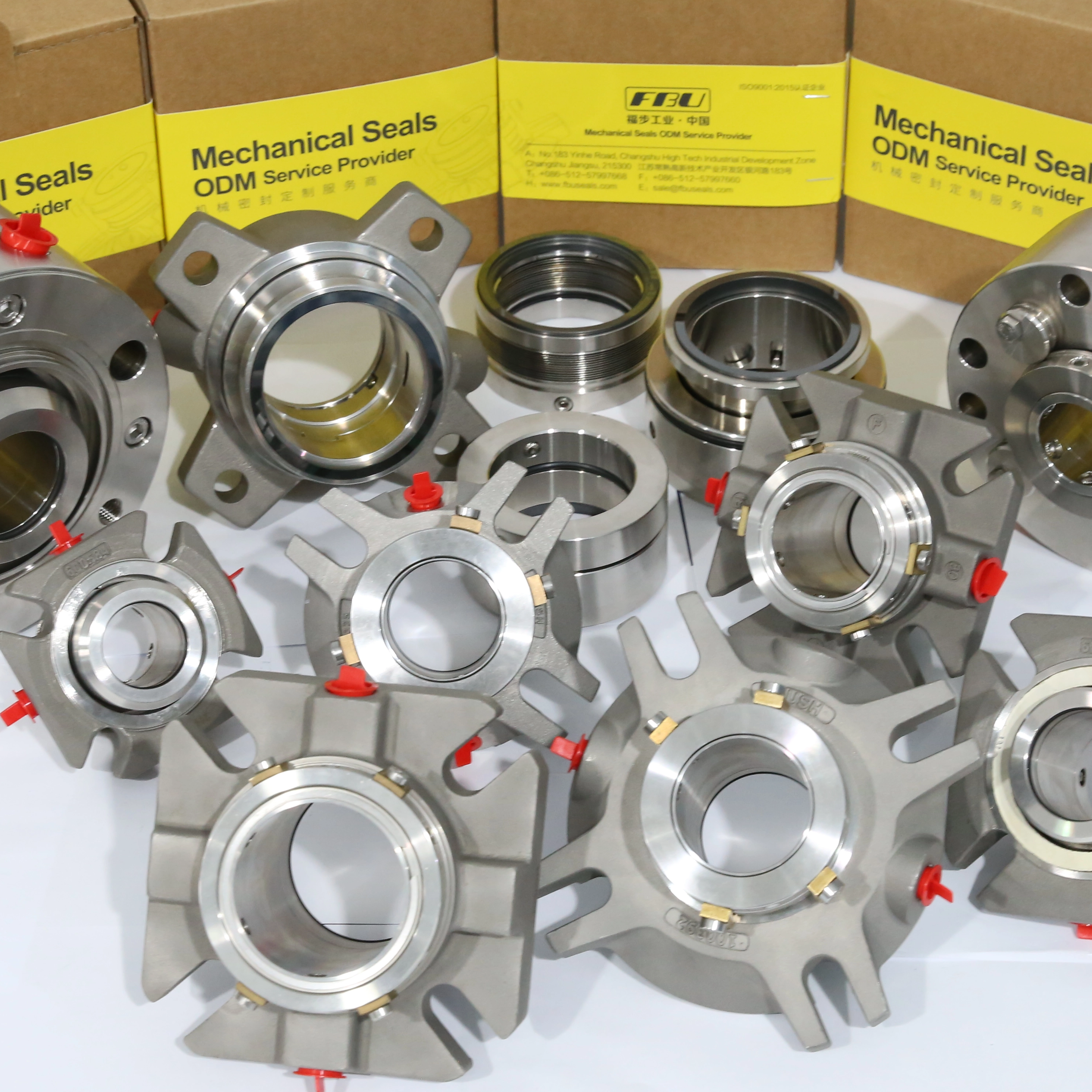

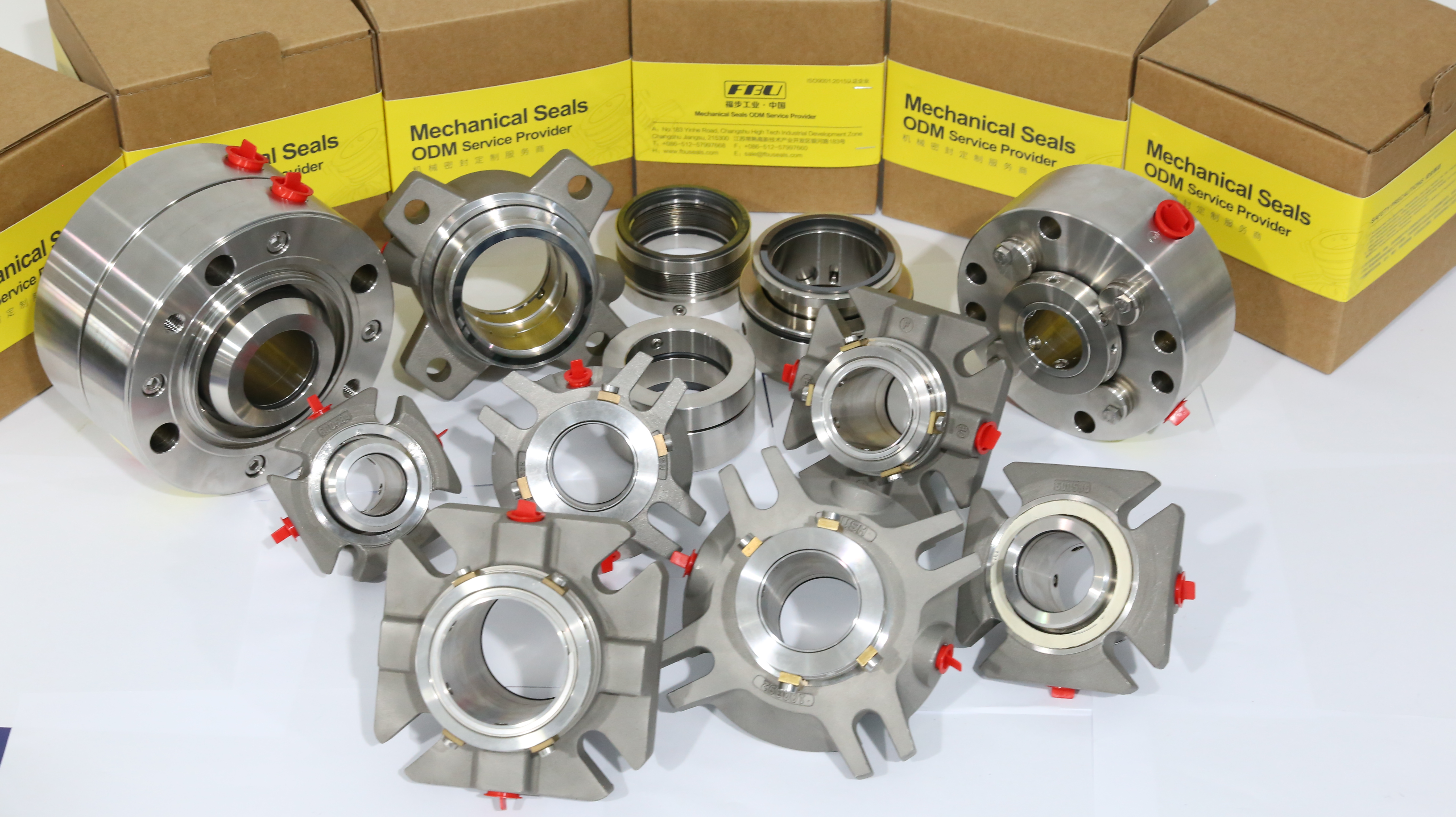

FBU SEALS is a cartridge mechanical seal specialist with more than 18 years of experience serving over 50 countries across chemical, oil and gas, pulp and paper and other process industries. If you are specifying a seal for a difficult media, share your operating parameters — media, temperature, pressure, speed, shaft size and solids content — and FBU SEALS will run a free selection assessment to find the right configuration.

FAQ

Q1: What is a mechanical seal? A: A mechanical seal is a non-contact shaft sealing device that prevents leakage between a rotating shaft and a stationary housing. FBU SEALS designs cartridge mechanical seals using a pair of lapped faces and a 0.5–1 micron fluid film to seal, lubricate and cool the interface while the shaft turns.

Q2: How does a mechanical seal work? A: A mechanical seal works by pressing two precision-lapped faces together — one rotating with the shaft, one fixed to the gland — with a spring or bellows. A 0.5–1 micron fluid film between them seals the media in, lubricates the faces and carries away friction heat, so the shaft rotates leak-tight without metal-to-metal wear.

Q3: What is the difference between a mechanical seal and packing? A: Packing compresses soft material against the shaft, which grinds the shaft, leaks more and wastes power. A mechanical seal uses a mated pair of precision faces and a fluid film, giving near-zero leakage, almost no shaft wear, lower friction and less maintenance — which is why mechanical seals replaced packing on most pumps.

Q4: What are the main parts of a mechanical seal? A: A mechanical seal has five core parts: the rotating face, the stationary face, the spring or bellows (face load and wear compensation), the secondary seals (O-rings or gaskets), and the drive hardware (collar or set screw). Together they hold a 0.5–1 micron film at about 0.1–0.3 MPa face pressure.

Q5: Why do mechanical seals fail? A: Mechanical seals most often fail when the fluid film breaks down — from dry running, heat-aged O-rings, solid particles scoring the faces, installation misalignment, or thermal shock. Keeping the film intact through correct material and support-system selection is the key to longer seal life.

Q6: When do I need a double mechanical seal? A: You need a double mechanical seal for flammable, toxic or precious media, or for vacuum, very high pressure and high PV duty. With a barrier or buffer fluid, it contains the media even if the primary seal fails — the high-risk configuration recommended by API 682.

Q7: How long does a mechanical seal last? A: Mechanical seal life depends on the duty. In clean, near-ambient service a seal can run for several years, while high temperature, solids, dry running and frequent start-stop dramatically shorten it. Correct selection and maintenance set the upper limit.
