In hazardous, corrosive, and high-pressure industries like chemical processing, pharmaceuticals, and pulp & paper, mechanical seals serve as the "heart" that ensures the safe operation of process pipelines.
Historically, many plants relied heavily on traditional Single Mechanical Seals. However, with environmental regulations tightening globally (such as zero-tolerance policies for VOCs emissions) and increasing demands for continuous production, single seals are revealing their fatal limitations.
Today, a massive technical evolution of "upgrading from single to double mechanical seals" is sweeping the industry. In this wave, premium domestic seals are successfully capturing the market share of established international giants with hardcore technology and unparalleled cost-efficiency.
While single mechanical seals are structurally simple and offer low upfront costs, they frequently fail under severe working conditions:
High Risk of Leakage: A single seal relies on just one sealing interface to contain the medium. If cavitation, crystallization, or pressure fluctuations occur, the seal faces wear out rapidly, leading to direct leaks of toxic, flammable, or explosive media.
Vulnerability to "Dry Running": If a pump runs dry or the process medium is interrupted, friction generates intense heat within seconds, causing a catastrophic thermal shock that destroys the single seal instantly.
Exorbitant Downtime Costs: Frequent leaks not only pose environmental and safety hazards but also lead to unscheduled shutdowns and massive production losses.
Upgrading to a Double Mechanical Seal is essentially installing a "double insurance policy" for your critical equipment.
[Single Seal]: Medium ----> [ Seal Face ] ----> Atmosphere (Wears out = Direct Leak)
[Double Seal]: Medium ----> [ Inner Face ] <--- Barrier Fluid (High P) ---> [ Outer Face ] ----> Atmosphere
By introducing an external barrier system (API Plan 53A/54, etc.) between two sets of seal faces—with a barrier pressure 0.1–0.2 MPa higher than the medium pressure—the double seal achieves a profound performance leap:
True "Zero Leakage": Since the barrier fluid pressure is higher than the process medium, any micro-wear on the inner seal face only allows clean barrier fluid to enter the medium, completely preventing the process fluid from escaping into the environment.
Absolute Immunity to "Dry Running": The seal faces are continuously lubricated and cooled by the independent, pressurized barrier fluid. Even if the pump chamber runs completely empty, the seal remains perfectly protected.
3x to 5x Longer Lifespan: By drastically optimizing the working environment of the seal faces, unscheduled equipment downtime is slashed by more than 80%.
In the past, the high-end double mechanical seal market was almost entirely monopolized by global giants like John Crane and EagleBurgmann. Plant managers knew double seals were superior, but were deterred by exorbitant import prices and weeks of lead time for spare parts.
We have disrupted this landscape. Our confidence in providing seamless upgrades to replace international brands lies in three core pillars:
We utilize international-grade Laser Face Texturing (LFT) technology and premium materials like high-purity Silicon Carbide (SSiC) and Tungsten Carbide (TC). Backed by Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA), our seals easily match or exceed the PV values (Pressure × Velocity) of big-brand equivalents, while reducing your overall procurement and modification costs by 50%.

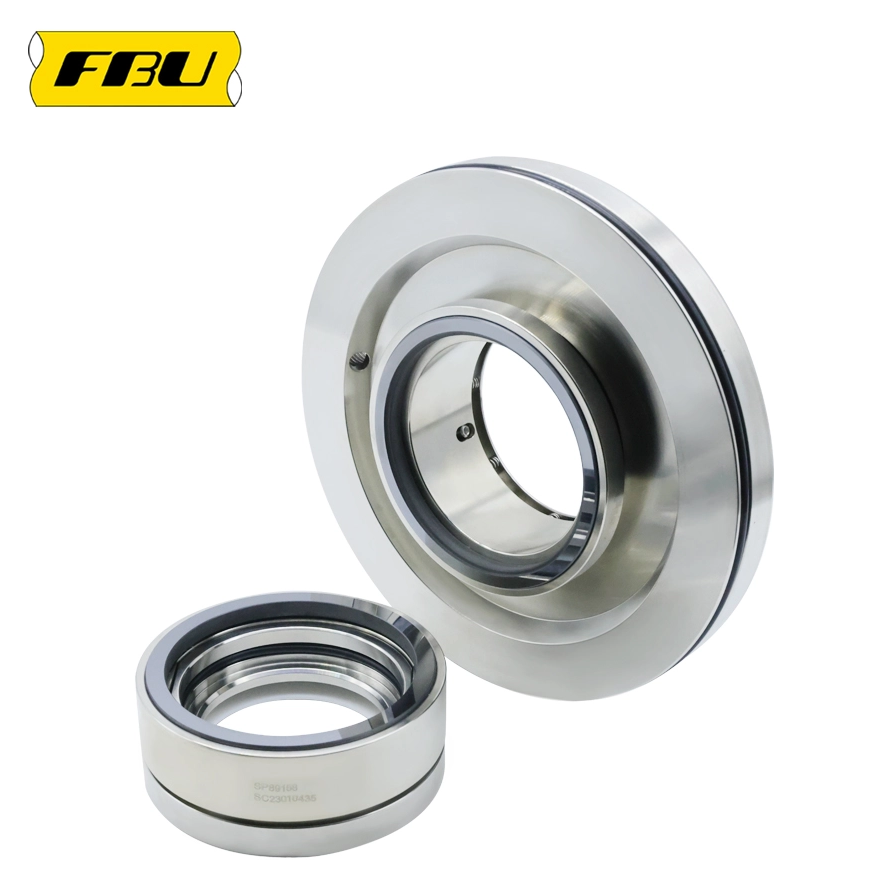

The biggest concern for engineers during an upgrade is the need to re-machine the pump stuffing box or change the shaft sleeve. Our double mechanical seals feature a fully cartridge-ized, modular design that perfectly matches the dimensions of your existing single seal stuffing box. It offers a 100% non-destructive, drop-in replacement.
While international brands often require 8 to 12 weeks for custom orders, our robust local supply chain and digital machining centers allow us to ship standard solutions within 7 days and respond to emergencies within 24 hours. Furthermore, we provide one-stop turn-key API flush support systems (e.g., Plan 53A barrier reservoirs).
Upgrading from single to double mechanical seals is not just a technology upgrade—it is a strategic decision for safety and profitability. By choosing our premium localization solutions, you are not just buying a seal; you are investing in a comprehensive strategy to cut costs, boost efficiency, and eliminate risks.
Eliminate the big-brand premium and maximize your safety margins and profits. Contact our application engineers today to get your complimentary double seal upgrade blueprint!
