FBU Successfully Delivers Type 6523 Seal for KSB® pump RPH

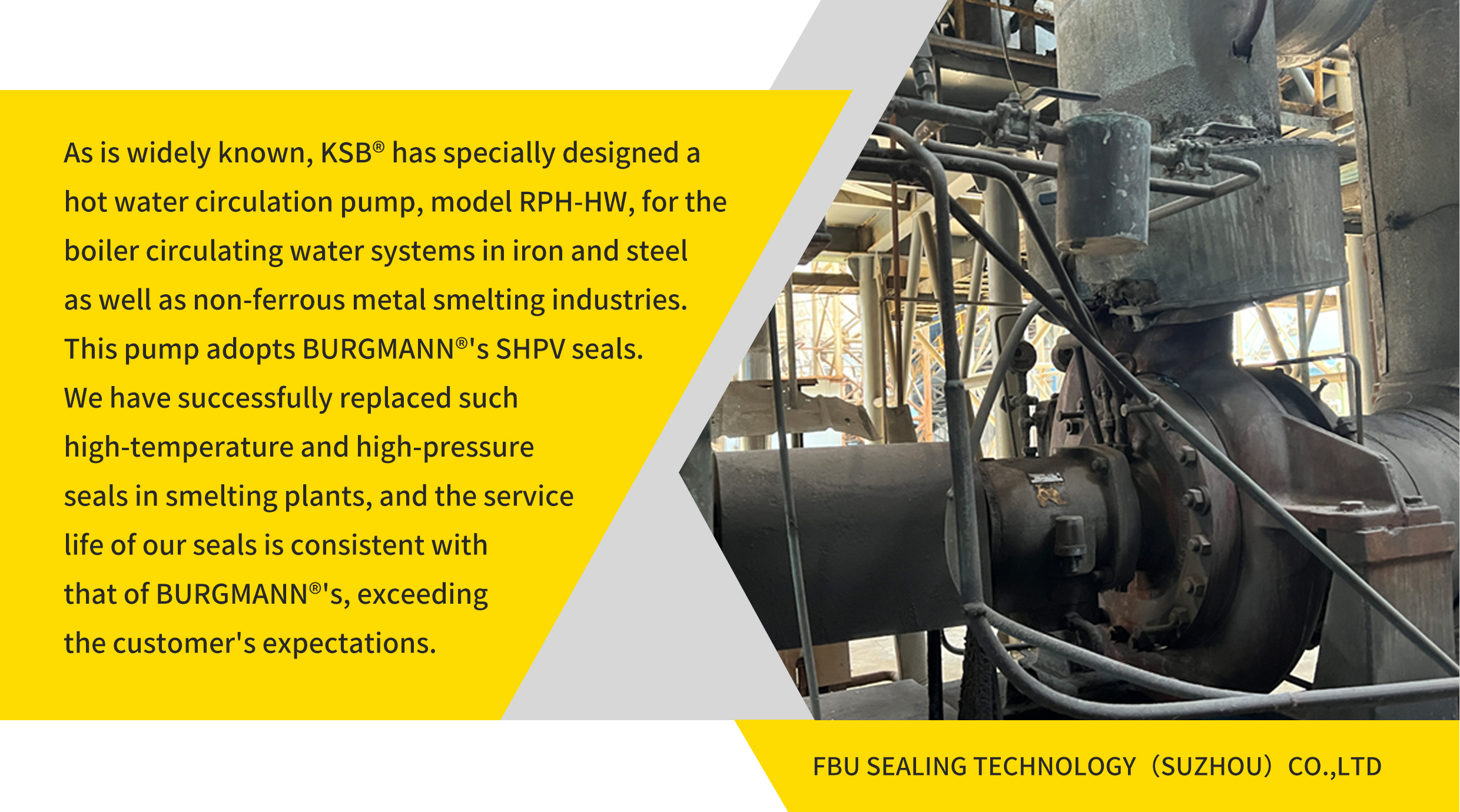

FBU recently successfully supplied and delivered the Type 6523 mechanical seal for the KSB® RPH series of high-temperature and high-pressure boiler hot water circulation pumps. The product has been operating stably at the customer’s site. The RPH-HW hot water circulation pump, developed by KSB® specifically for the steel and non-ferrous metal smelting industries, is widely used in extremely demanding boiler water circulation systems. Its original equipment manufacturer (OEM) configuration features the BURGMANN® SHPV mechanical seal, which imposes extremely high requirements on the temperature resistance, pressure tolerance, and material compatibility of the sealing products under such conditions.

Leveraging its technical expertise in high-temperature and high-pressure sealing solutions, FBU independently developed the Type 6523 mechanical seal for such complex operating conditions. It has successfully replaced the original imported seal in a large domestic smelting enterprise. During actual operation, the seal demonstrated exceptional sealing performance and reliable stability, with a service life comparable to that of internationally leading brands of similar products. It fully meets the demands of continuous production and has received high recognition from the customer.

This successful application not only reflects FBU’s technical capability to compete with international brands in the high-end mechanical sealing field but also provides customers with a more cost-effective localized alternative solution. It further strengthens FBU’s market influence and service capabilities in high-energy-consumption industries such as metallurgy and power generation.

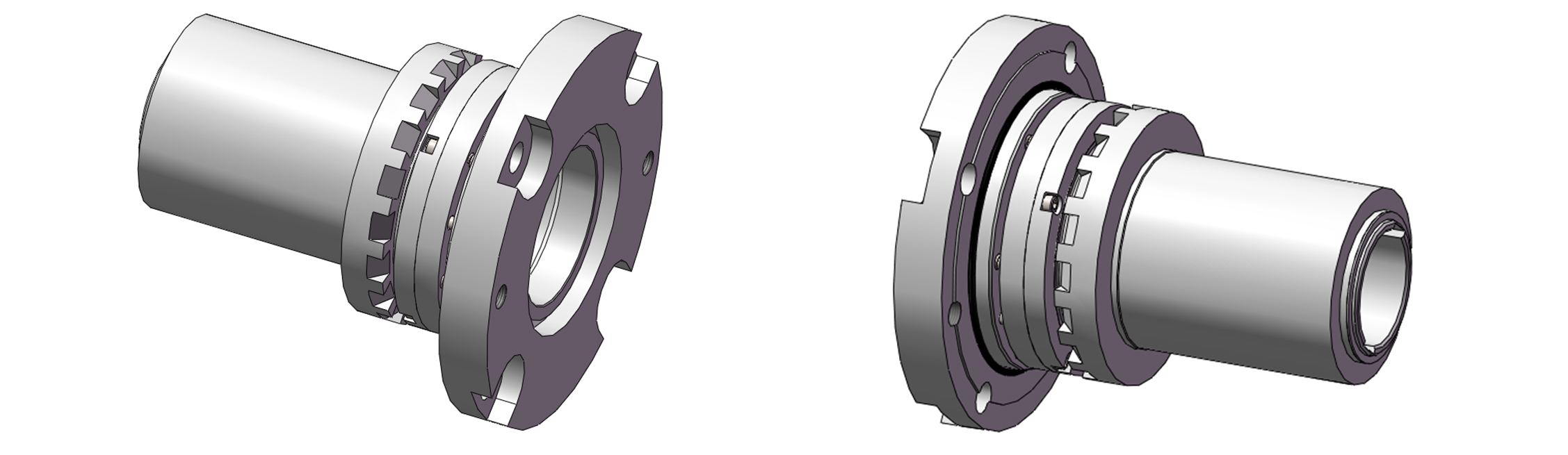

Operating parameters of 6523

Maximum Temperature	Pressure	Speed	Material
300℃	≤100bar	≤30m/s	Duplex,Hast.C276

6523 used for high-pressure working conditions outside the scope of API682 standard.Axial sealing design of sealing ring for better sealing effect.Static loop compensation design for more stable operation at high temperatures.Stronger sealing rings,shaft sleeves,and other components can withstand higher pressures.Multi spring design for more uniform annular pressure.Smaller balance coefficient can effectively reduce the end face specific pressure under high pressure.The transmission structure is more sturdy and stable.Modular design for easier maintenance.
