Mechanical Seal Vs Packing: The Real Cost Is Not The Sticker Price

The quote shows two line items. Packing costs a fraction of a cartridge seal, and at that moment the choice looks settled. It is not. That price sits at the top of the purchase order. The real money moves through the running years, one repack at a time. Once the pump is in service, packing and a mechanical seal pull in opposite directions on leakage, power draw, shaft wear, and the stops nobody planned. The seal that looked expensive at the counter is usually the cheaper one by the time the second repack comes due.

Here is what packing is actually doing in the stuffing box. Squeezed against the shaft until a thin film forms between the braid and the metal, and that film is the only thing keeping it from burning up. The same film is leakage. The plant pays for it three separate ways. Product leaves in the weep. Sealing water runs to keep the gland from cooking. A mechanic walks out every few weeks to turn the gland another quarter turn.

On a continuous-duty pump the packing comes out two to four times a year. Every pull means a stop or a bypass. Underneath it, the shaft sleeve the packing rides on cuts a groove, so by the end of a season that sleeve needs turning or it gets replaced. None of that shows on the packing invoice. That is exactly why the cheap line reads as cheap. The trap is the word itself. Cheap only describes the part before the pump turns.

A mechanical seal shuts the same gap from the other side. Two flat faces run almost touching, held by a spring and a film, not by a constant squeeze against the shaft. Leakage drops to a trace. The shaft stops wearing, nothing rubs it anymore. Nobody hand-tightens a gland, the spring keeps the faces loaded. The seal ships as a cartridge, preset and tested, so the field job is one seating instead of a half-day alignment. The plant spends more at the counter and far less after. The math turns on this one line, years between changes instead of weeks.

Three cost lines sit outside the table, and plants miss them because none carries a packing part number.

The shaft sleeve first. A cheap packing job quietly turns into a sleeve order plus a longer stop, every season, on repeat. One paper mill lost three sleeves in eighteen months to a single packed stock pump. The packing was the cheap part. The sleeves were not.

Then sealing water. In a plant with a few hundred pumps it is a metered utility, and packing drinks it around the clock. The bill lands in the utilities account, not the maintenance budget.

Then friction power. A packed gland adds real kW at the motor, and that load runs every hour the pump is alive. Spread across a pump house, the number gets ugly. People notice the power bill before they notice the sleeve.

On a VOC or LDAR regulated site, the constant weep packing cannot avoid stops being a nuisance and becomes a compliance event with its own paper trail. The low line item pushes the rest of the bill onto the running crew.

Packing is not dead. Slurry that would clog a seal face in a week, a spare pump that runs a few hours a year, a site where the only fix anyone trusts is one a mechanic does with hand tools, those are packing jobs and they are the right call. The mistake is bolting packing onto a continuous process pump and calling it the cheap option. The invoice savings come back, with interest, through the stop log.

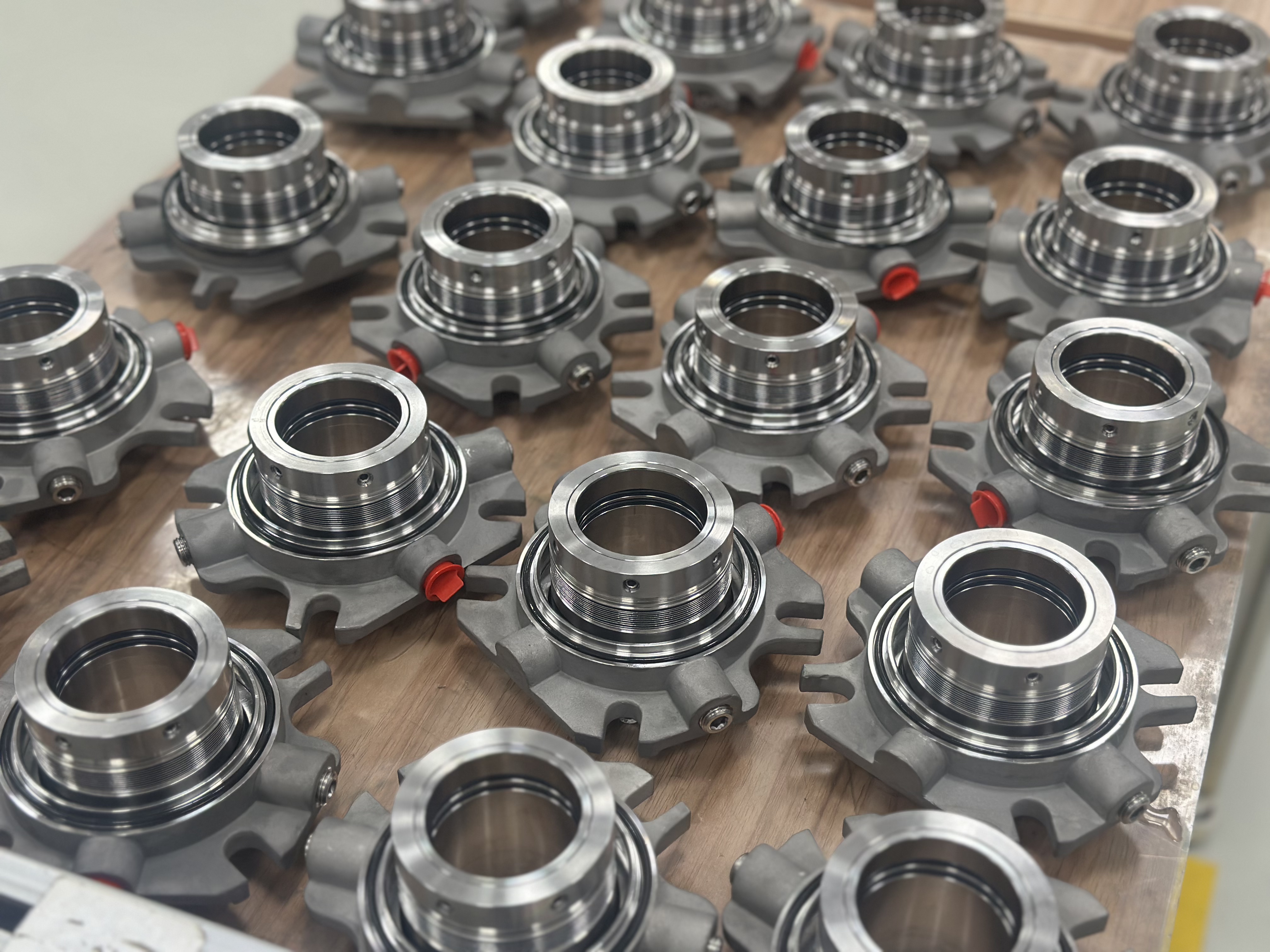

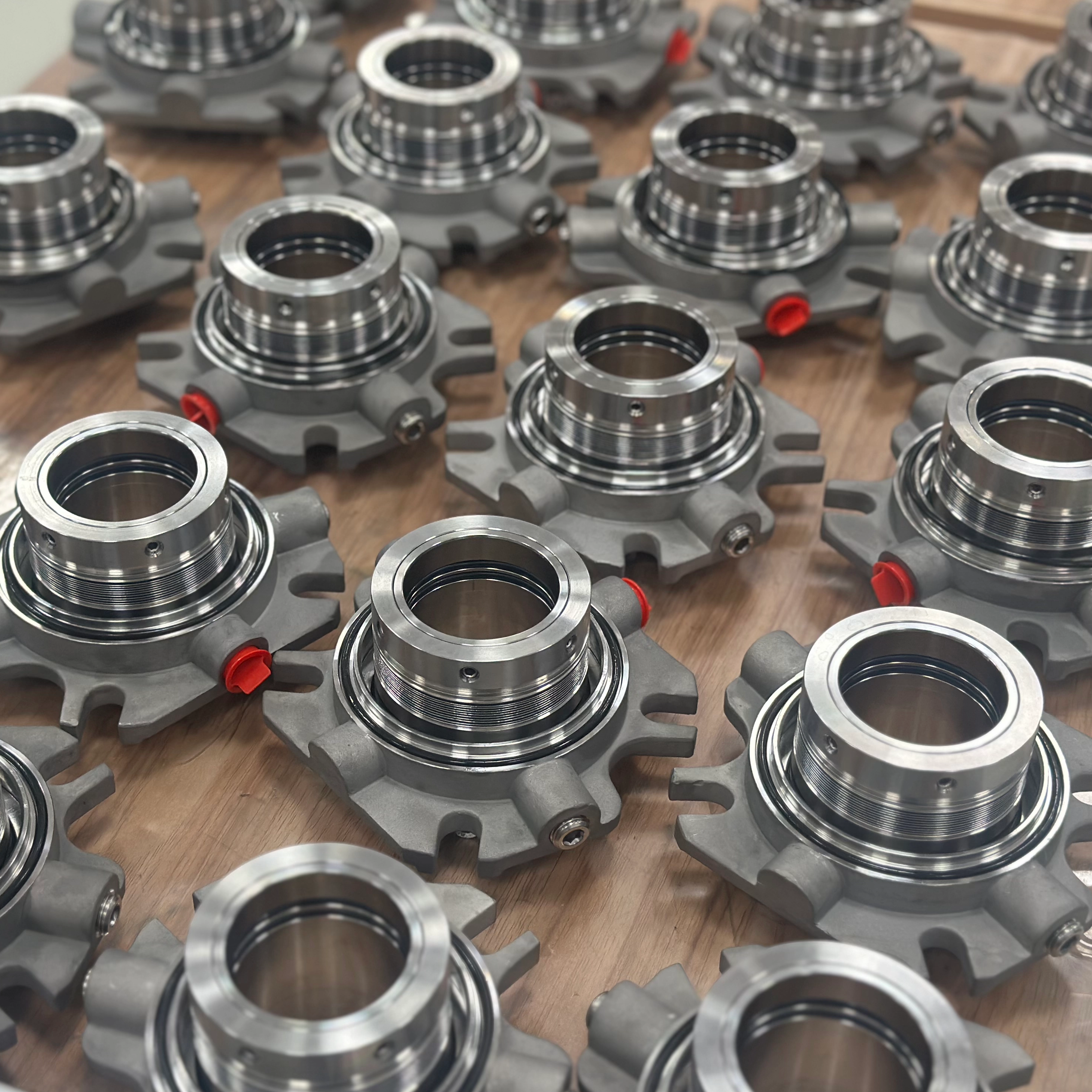

FBU builds cartridge mechanical seals that ship preset and pressure tested. The EDMA, GSMH, GDMH, EDMH and ESMH ranges cover ANSI B73 centrifugal pumps, Sulzer APP compatible pumps, pulp and paper, and general chemical duty. Selection runs against the medium and the duty the pump actually sees, not the catalog price. The cheap line at the counter is rarely the cheap seal over the life of the pump.

Is a mechanical seal always cheaper than packing?

Not at the purchase order. Run the pump for years and lower leakage, no sleeve wear, fewer unplanned stops usually win. On a spare pump that barely runs, packing stays the cheaper call.

How often does packing need repacking?

Continuous-duty pumps get tightened every few weeks and fully repacked two to four times a year, typically. Speed, pressure and the medium shift that either way.

Does packing damage the pump shaft?

It wears the shaft sleeve it presses against. A mechanical seal closes with two faces that never touch the shaft, so the sleeve stops paying the price.

Why do plants still use packing?

Slurry that clogs seal faces, a spare pump run a few hours a year, sites that want a hand-tool field fix. Packing fits those cases better than a seal.
