Product Description
TECHNICAL FEATURES
•Advanced magnetic sealing design.
•With a pair of contact sealing surfaces, provides reliable sealing performance.
•Prevent loss of oils from the bearing housing, and also prevents ingress of water & particles.
•The magnets creates a magnetically energized positive seal between two flat faces.
•Eliminates shaft wear and maintenance free.
•Magnetic Bearing Isolator mainly made by bronze, also available in an all stainless steel construction on special request.
APPLICATION CONDITION
•Suitable for high demand chemical process pump application, in accordance with the API610 10/11th edition standard oil mist lubrication working conditions.
•Design of axial sealing ring for horizontal equipment operating at a speed of 20m/s for splash lubrication/grease lubrication and other linear conditions.
•To prevent oil mist lubrication leakage to the atmospheric side.
TYPICAL INDUSTRIAL APPLICATIONS
•Aviation
•Aerospace
•Iron and Steel
•Power
•Water Conservancy
•Petrochemical
•Railway
•Marine
•Mining and Geology
•Construction Machinery
Table Description
PERFORMANCE CAPABILITIES
| Standard Sizes | 16mm-145mm(0.75"-5.875") | |
| Typical incremental Size | 1mm&0.062" | |
| Temperature | -20 ° C ~ +180 °C | |
| Sliding velocity | ≤ 20m/s | |

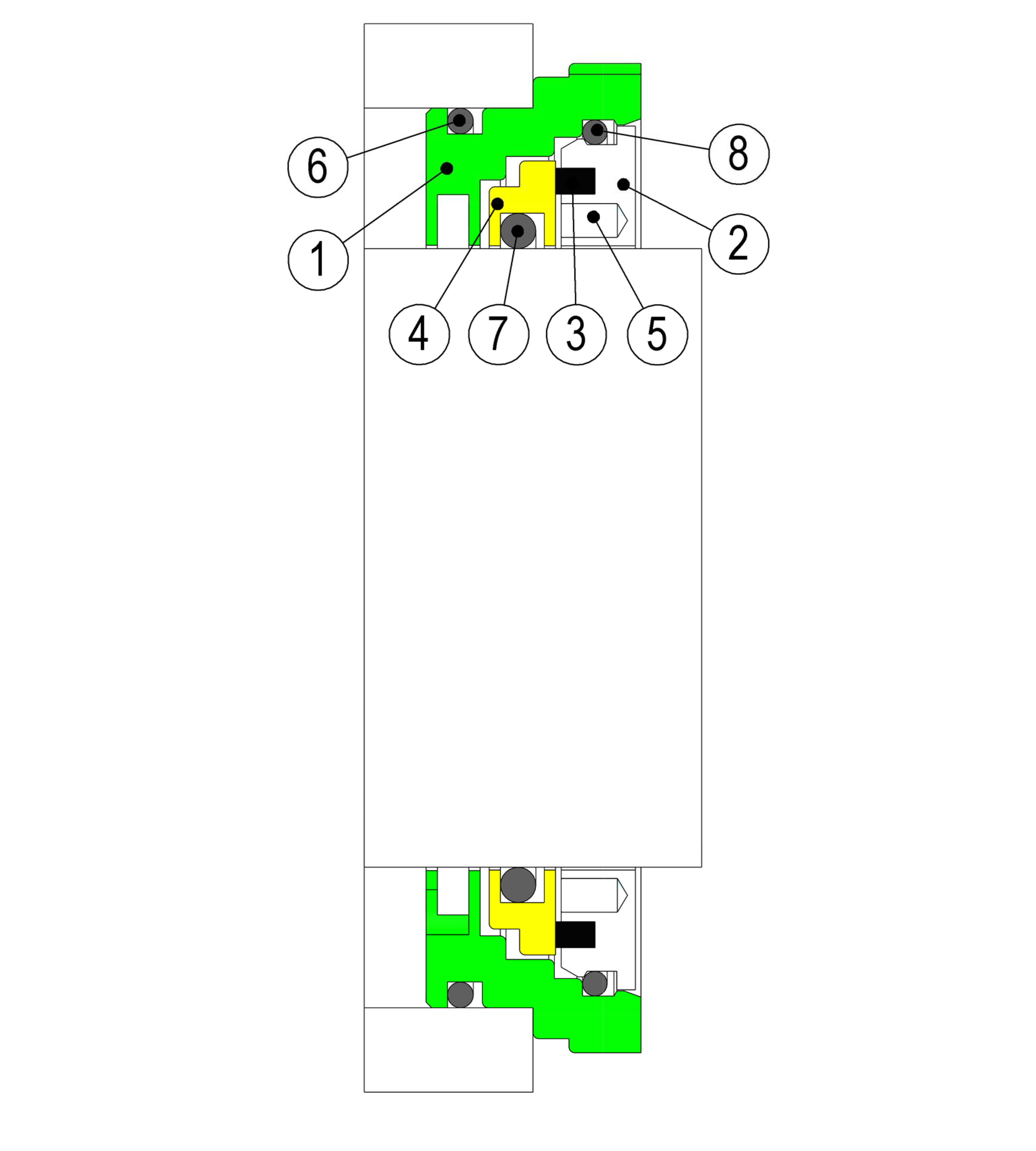

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Body | Bronze |
| 2 | Stationary | PTFE/Bronze |
| 3 | Seal Ring | PTFE |
| 4 | Rotary | Stainless Steel |
| 5 | Magnet | Neodymium |
| 6 | O-Ring | FKM |
| 7 | O-Ring | FKM |
| 8 | O-Ring | FKM |
