Key Features

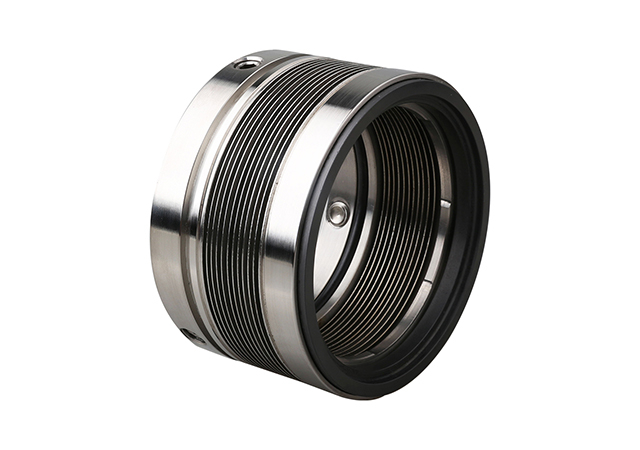

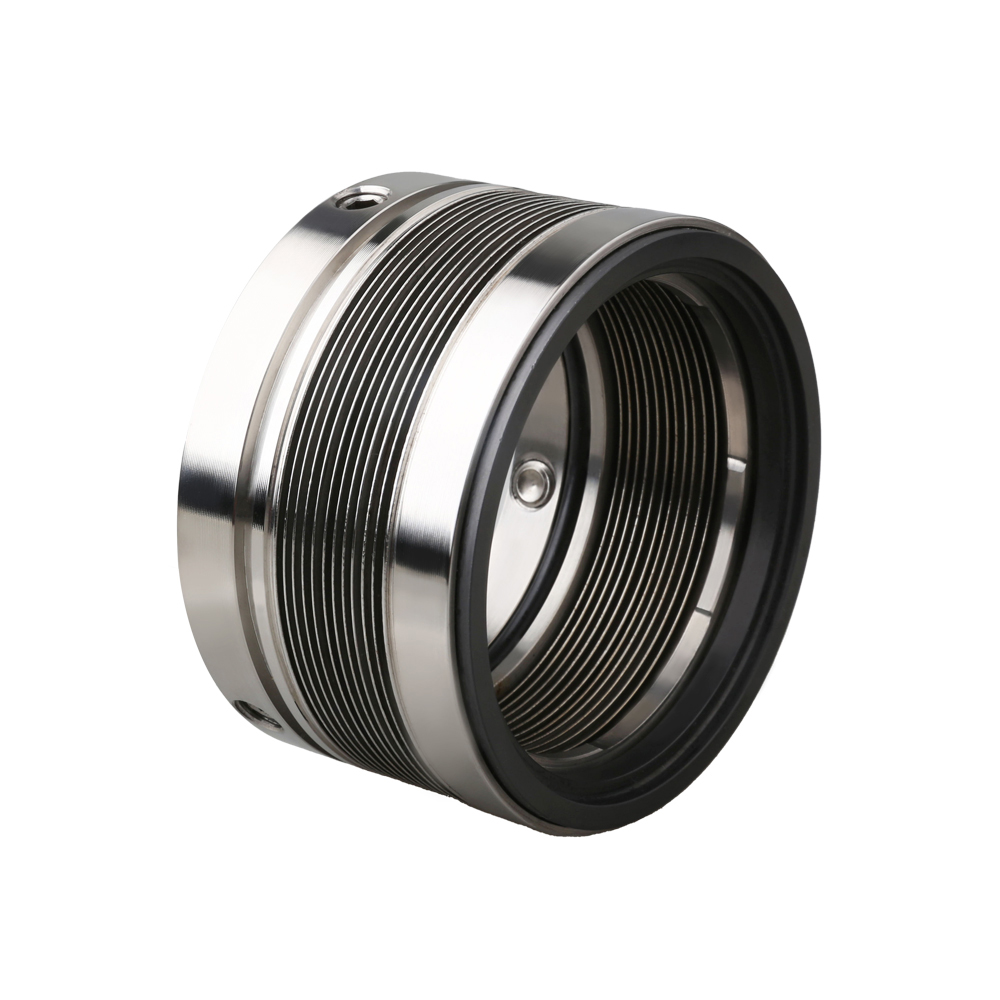

■Single rotary bellows component seal.
■Hydraulically balanced seal faces for the product, when mated with a suitable stationary.
■Bi-directional rotation.
■Short internal working length.
Specifications
| Operating Conditions | |
| Temperature | -20° Cto +210° C [-68° Fto +410° F] |
| Pressure | 0~20 Bar |
| Speed | Up to 20 m/s |
| Sealing product | Acid,alkaline, low percentage of pulp, water, oil and other similar media. |
| Material Arrangement | |
| Seal faces | SSIC/CARBON/TC |
| Rubber | EPR/Viton®/Aflas®/Kalrez® |
| Bel lows | AM 350/Alloy 276/Alloy 718 |
| Holder | 316SS/Alloy 42/Alloy 276 |
| End-Fittings | 316SS/Alloy 276 |

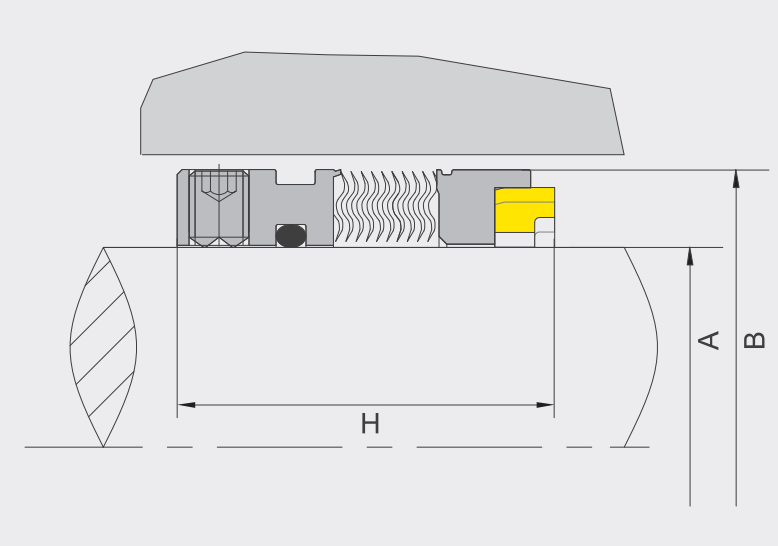

Assembly Chart
Downloads
