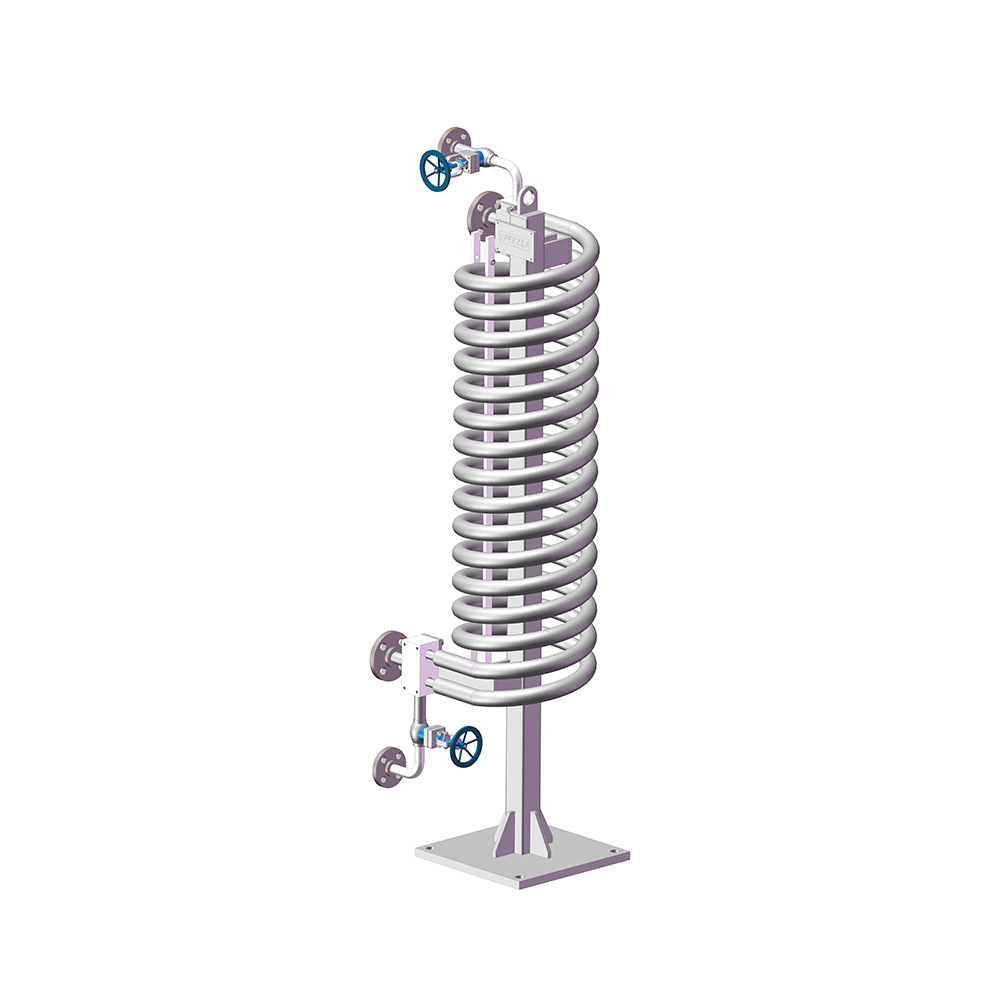

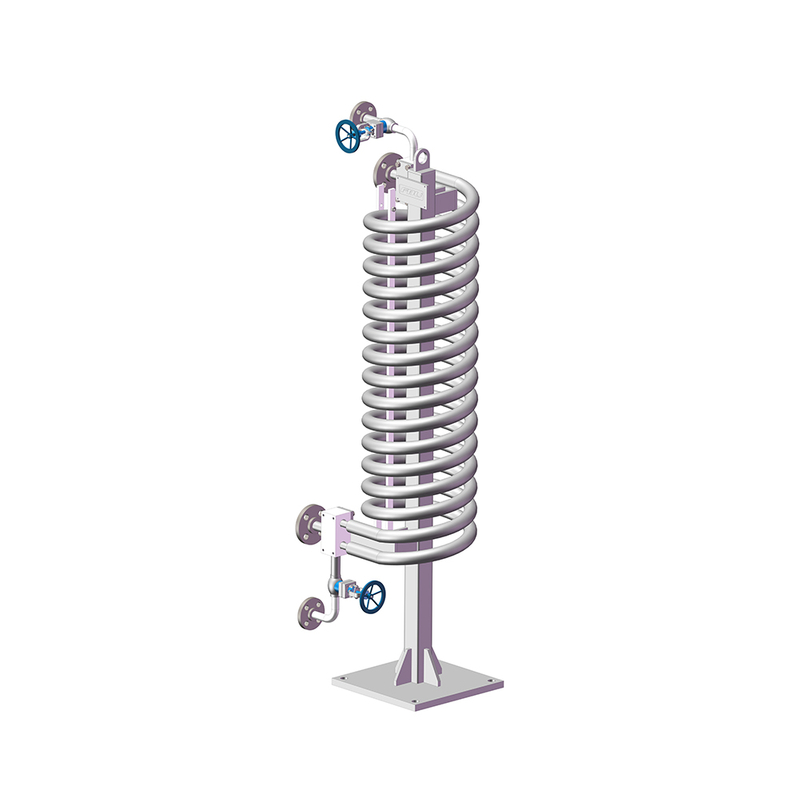

HEA Air Cooled Vessel Heat Exchanger for Plan 23 of Mechanical Seal

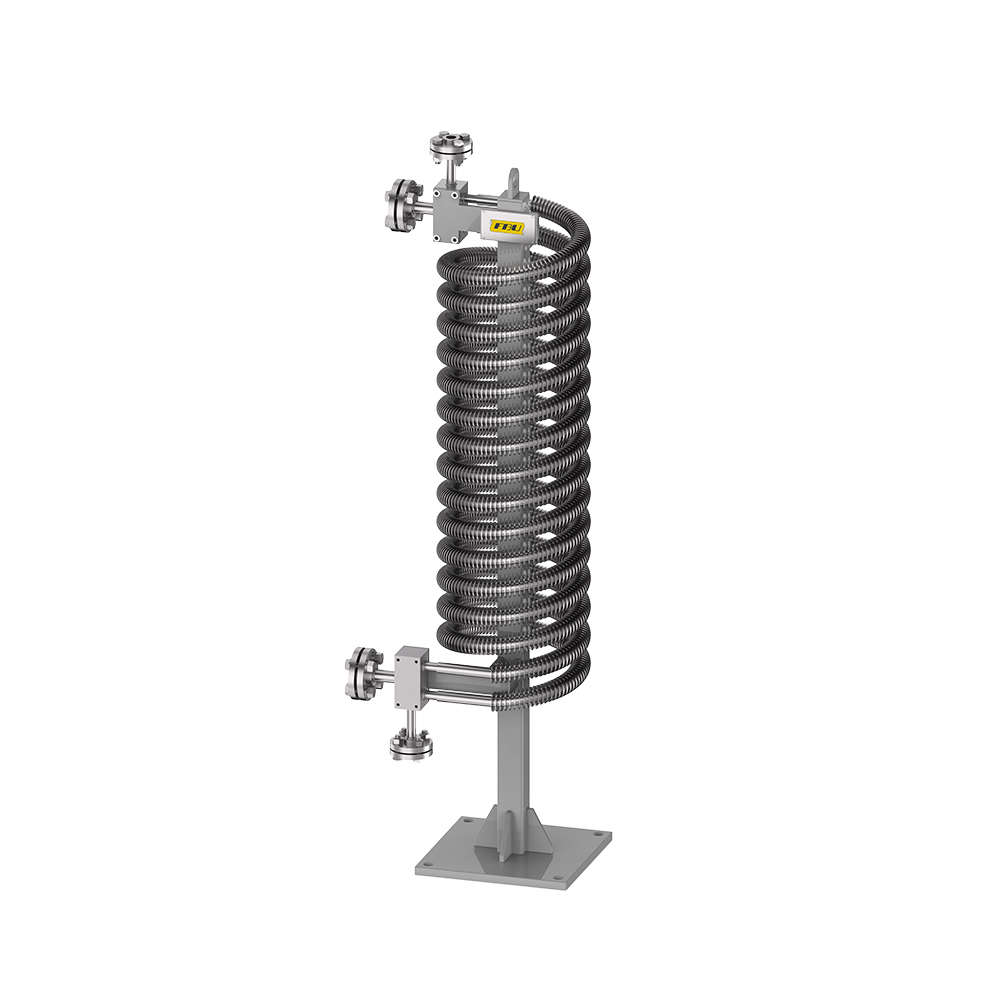

Air cooled heat exchanger
Availability:

Product Description


    Key Features

  • PLAN 23 can be used for single  seals alone or combined with PLAN52/53 for double seals;

  • The cooler cools only that fluid in which the seal operates, and this cool fluid does not enter the process, This results in high energy efficiency. Lessening the duty is very desirable because it extends the life of the cooler;

  • The cooler is only used to remove the friction heat generated by the seal end face and the heat absorption of the process medium, which can effectively reduce the heat load of the cooler. Compared with Plan21 and 22, the heat load is lower, thus prolonging the life of the cooler;

  • Piping Plan 23 is the plan of choice for all hot water services, particularly boiler feed water, and many hydrocarbon services. This plan is the standard selection for hot water at 80 °C (180 °F) and above, and boiler feed water.

  • Suit for API Plan 23.

  • Can replace Python,WEL.


        Specifications

    Pressure -0.1 ~ 2.0 MPa
    Temperature 0 ℃ ~ 160 ℃
    Material available 304SS/316SS, etc
    Flushing medium water/oil/steam etc

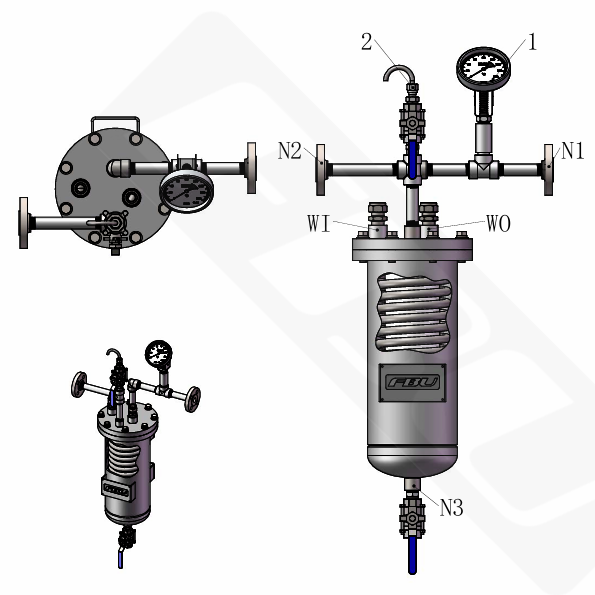

        Assembly Chart

    HEA


        Downloads

    Plan 23.pdf
