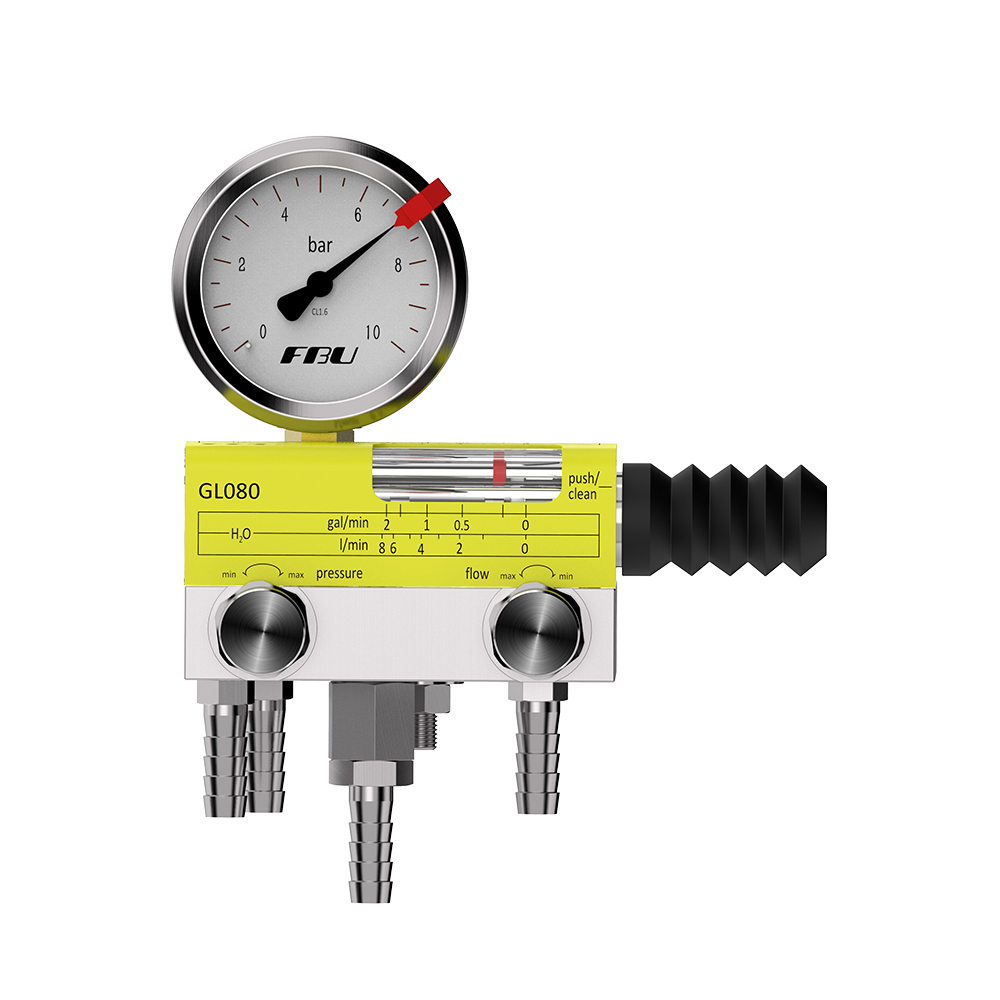

GLD Seal Water Control And Monitoring System for Mechanical Seals SWE

 Monitoring and Control Solution Flowmeter for Single Seals and Seal Water Systems
Availability:

Product Description

The GL is a unique seal water flow meter with 4 - 20 mA output that protects your seal and reduces downtime. Significant savings are achieved in seal water and maintenance costs.

APPLICATIONS:
Single and double mechanical seals Gland packings Flush water Purging Other flow measurements Autonomous processes and production plants

    Key Features

  • Can be cleaned with equipment running

  • Simplifies pump setup and service

  • Detects and locates seal water line problems

  • Flow indicator and pressure gauge with memory pin

  • Available with optional electrical alarms and leakage Monitoring System.


        Specifications

    Flow 0-8 l/min / 0-2 GPM
    Pressure: 0-10 Bar / 0-100 Psi
    Temperature: Max 75  ºC
    Material available: 304SS/316SS, etc
    Flushing medium: Water

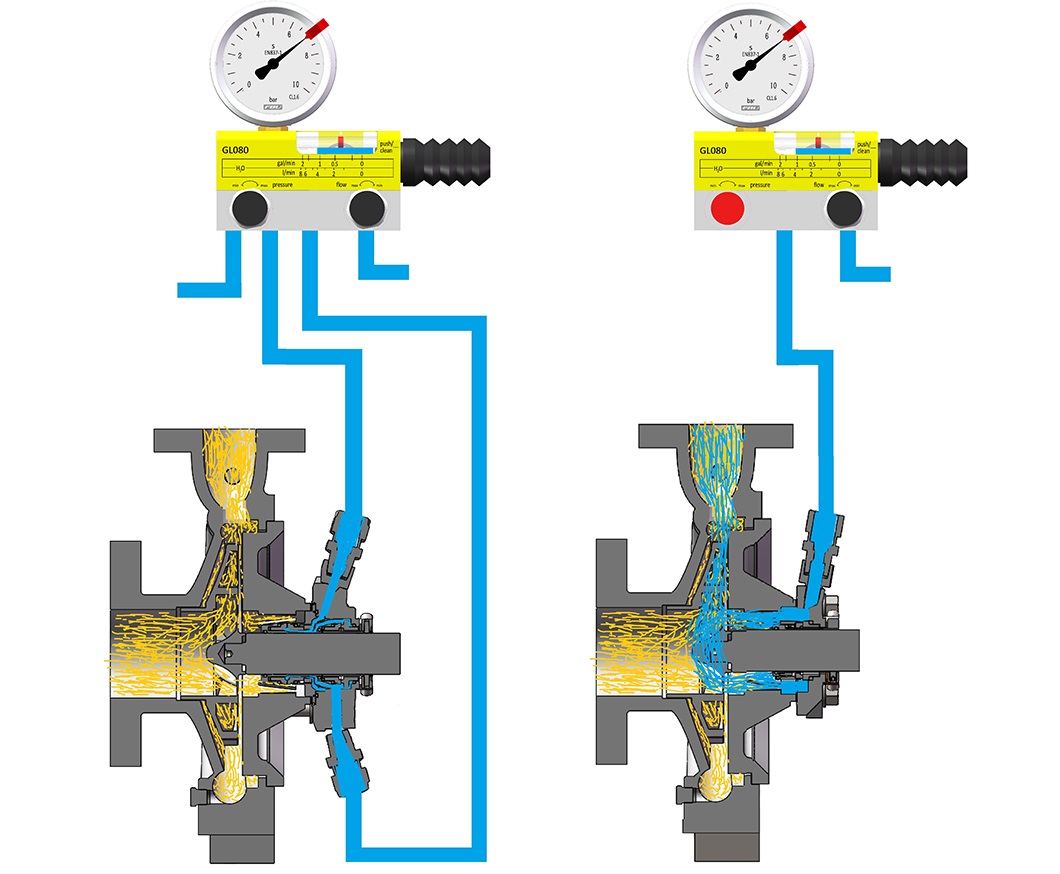

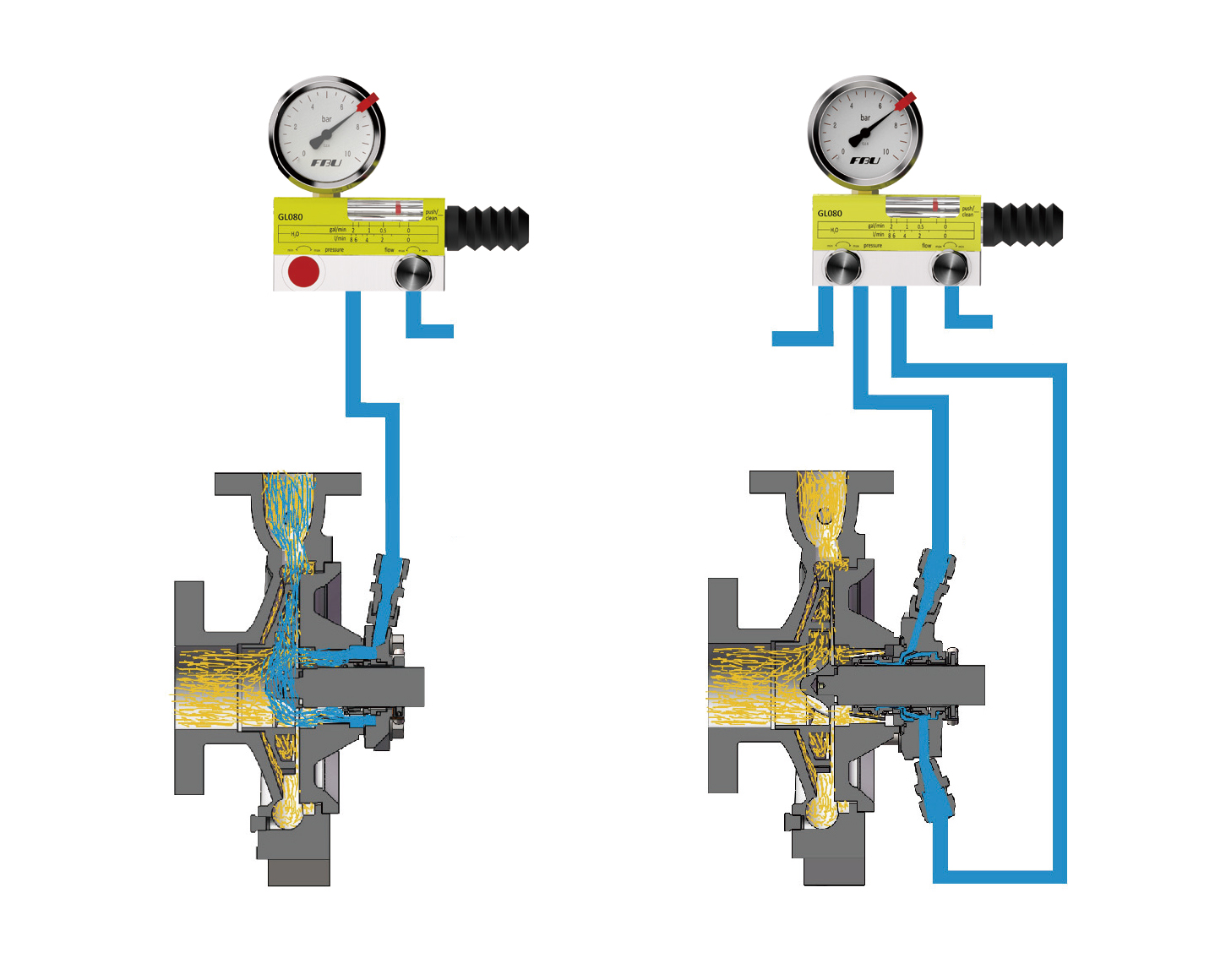

        Assembly Chart




    GLS




        Downloads

    1-flowmeter GLS-GLD-FBU.pdf
