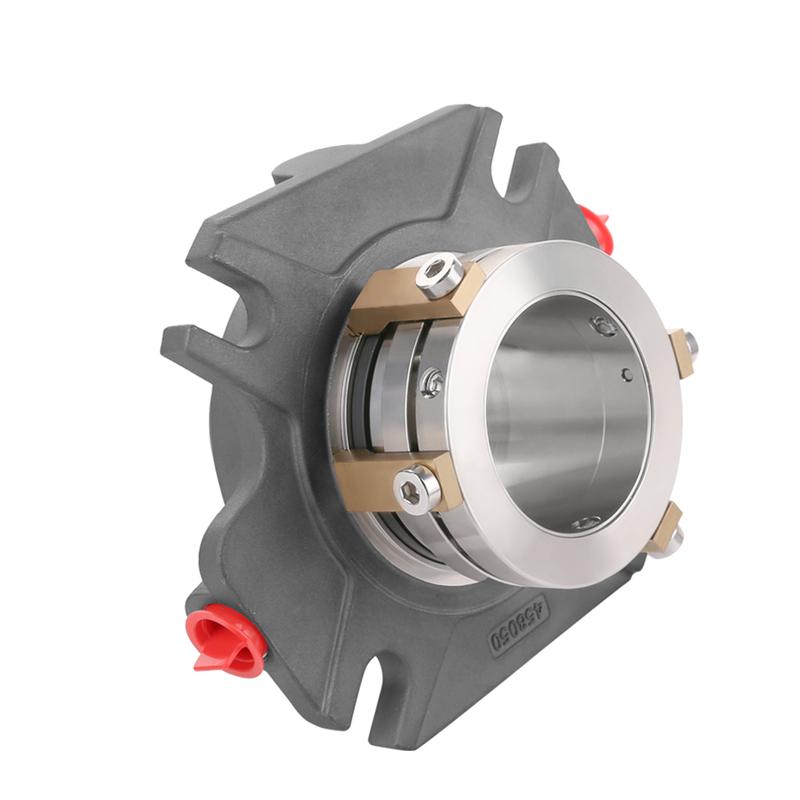

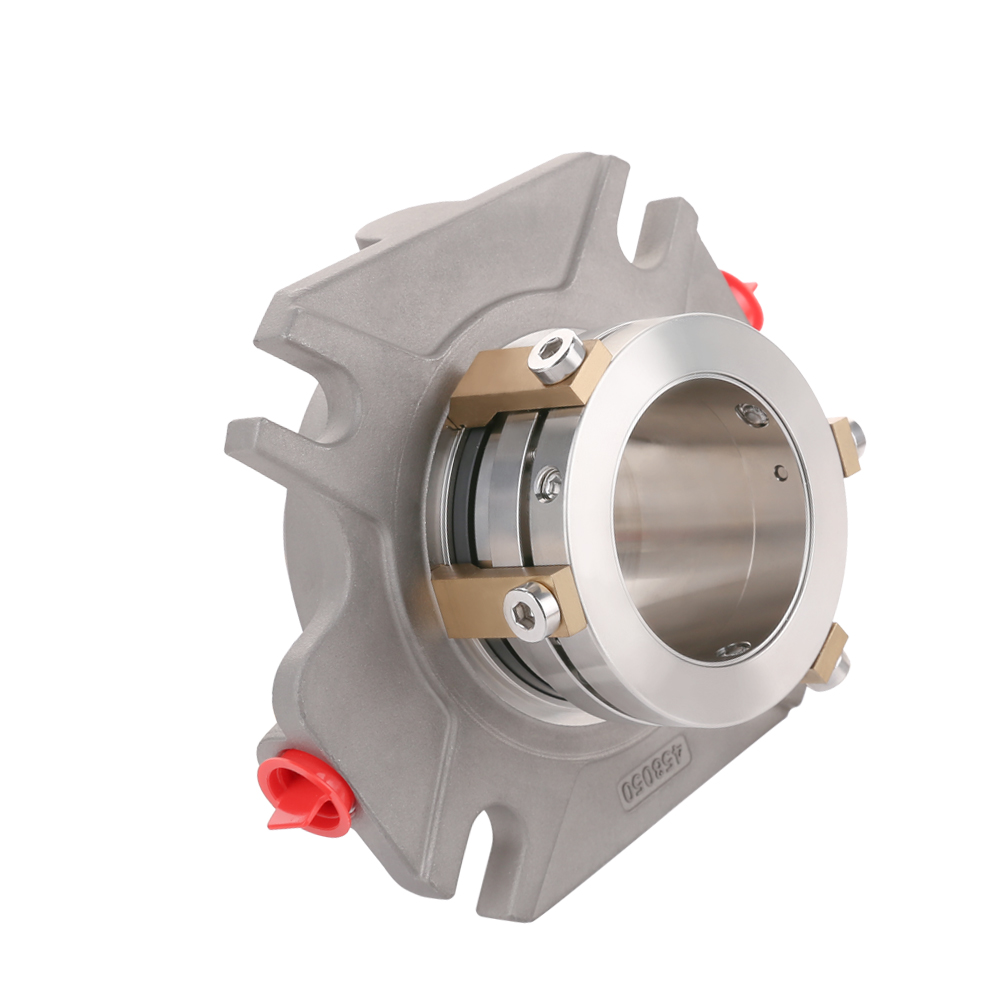

Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 |
PERFORMANCE CAPABILITIES
| Shaft diameter | 30, 40, 50, 60, 80,90 |
| Pressure | ≤ 15 bar |
| Temperature | -20 ° C ~ +120 °C |
| Sliding velocity | ≤ 20 m/s |
Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 22 | Stationary Seat | SSIC/TC |
| 21,41 | Rotary Face | SSIC/TC |
| 15 | Rotary Seat | 316SS |
| 35 | External Rotary Seat | 316SS |
| 12 | Gland | 316SS |
| 28.2 | Pin | 316SS |
| 11 | Shaft Sleeve | 316SS |
| 13 | Clamp Ring | 316SS |
| 14 | Setting Clip | 316SS/Cu |
| 27.2 | Clip Screw | 316SS |
| 27.1 | Drive Screw | 316SS |
| 27.3 | Anti-tamper Screws | 316SS |
| 10,20 | Spring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.3,40.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 51 | Gasket | AF1/PTFE |
| 44.1 | Intermediate Sleeve | 316SS |
| 40.2,40.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.6 | O-Ring | PTFE/FKM/FEP/EPDM |
| 42 | Stationary Seat | SSIC/TC |
