In industries like mining, sewage treatment, chemical processing, and metallurgy, transporting particle-containing media (such as ore pulp, sewage sludge, and sand-laden wastewater) is a core process. Pumps tasked with moving this media often face significant challenges with their sealing systems—specifically particle erosion, wear, and leakage. As a key sealing component tailored for these harsh operating conditions, cartridge mechanical seals for pumps handling particle-containing media have become a preferred solution for addressing sealing issues in particle-laden environments, thanks to their modular design, wear resistance, and impact resilience. Today, we’ll break down the essentials of selecting, using, and maintaining these seals from a popular science perspective, helping you avoid common pitfalls that lead to seal failure.
The key difference between particle-containing media and clean media lies in the suspended solid particles (ranging from a few micrometers to several hundred micrometers in size), which cause continuous damage to seal faces. Ordinary mechanical seals often struggle in such conditions, typically encountering three main issues: first, particles become embedded in gaps between seal faces, acting like "sandpaper" that repeatedly scours and rubs, scratching and wearing the faces until they lose sealing capability; second, particles clog seal chambers or spring structures, causing seal jamming and compensation failure; third, under high-pressure and high-speed conditions, particles impact seal faces, leading to local damage and leakage. Cartridge mechanical seals for pumps handling particle-containing media, however, effectively mitigate these problems through targeted structural designs and material combinations, extending seal service life.
| Seal Type | Key Advantages | Compatible Operating Conditions | Special Features (Slurry Pump Compatibility) |
| Traditional Split Mechanical Seal | Lower cost | Low particle concentration, low-pressure, room-temperature conditions | No targeted optimization; prone to scouring and wear by slurry particles |
| Standard Cartridge Mechanical Seal | Easy installation, modular design | Standard particle-containing media pumps (e.g., sewage pumps) | Moderate wear resistance; unsuitable for high-concentration slurry |

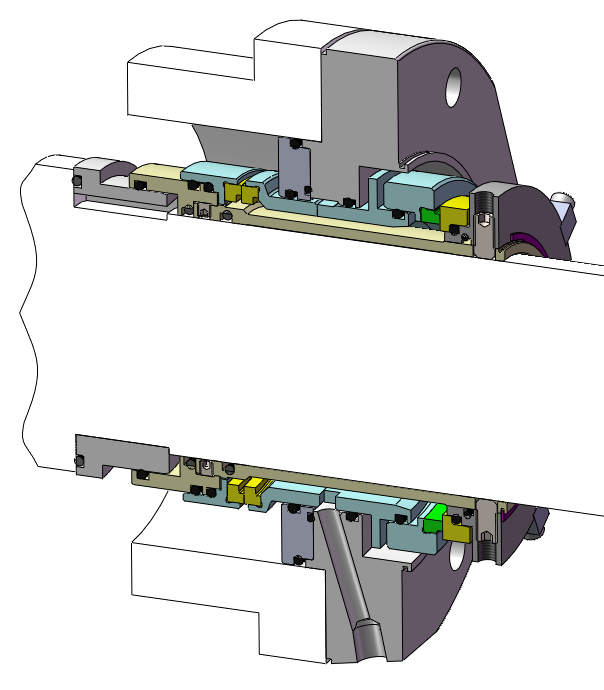

| Specialized Cartridge Mechanical Seals for Particle-Containing Media (SKD Series) | Wear and impact resistance, easy installation, compatible with auxiliary systems | High particle concentration conditions (e.g., slurry pumps, mine tailings pumps) | SKD Series Exclusives: Reinforced cemented carbide seal faces, anti-particle backflow structure, adaptive pressure compensation, suitable for slurry pumps with frequent start-stop cycles |
Third, compatibility with auxiliary systems ensures thorough cleaning and protection. Cartridge mechanical seals for pumps handling particle-containing media seamlessly integrate with flushing and filtering systems. Using API standard flushing plans (e.g., Plan 31, Plan 32), these systems quickly remove particle impurities from seal chambers while cooling heat generated by friction, preventing particle buildup and seal face burnout.
| Selection Dimension | Core Compatibility Requirements | SKD Series (Slurry Pump-Specific) Compatibility Parameters | Considerations |
| Material Selection | Wear resistance + media compatibility | Seal faces: WC/WC cemented carbide; Sealing rings: Viton | Slurry particles are highly abrasive; prioritize cemented carbide materials |
| Structure Selection | Compatible with particle concentration and pressure | Double-face structure with anti-particle backflow grooves | Slurry pump particle concentration often exceeds 100ppm; double-face protection is more reliable |
| Auxiliary System Selection | Flushing and filtering devices are mandatory | Compatible with API Plan 31+20 flushing, filtration accuracy ≤3μm | Filter slurry particles promptly to prevent intrusion into the seal chamber |
Select seal face materials based on particle hardness and size: for high-hardness particles (e.g., quartz sand) with large diameters (>50μm), prioritize cemented carbide (WC/WC) pairings for strong wear resistance; for fine particles (≤50μm) with low concentration, silicon carbide (SiC/SiC) pairings balance wear resistance and cost-effectiveness. Auxiliary sealing rings must be compatible with the media: for corrosive particle-containing conditions (e.g., acidic ore pulp in chemical processing), use Viton or perfluoroelastomer sealing rings to prevent corrosion and aging.
| Maintenance Item | Core Operational Requirements | SKD Series (Slurry Pump-Specific) Special Notes | Frequency Requirement |
| Flushing System Inspection | Ensure filter differential pressure ≤0.05MPa; replace filter elements promptly | Regularly clean flushing pipelines to prevent slurry deposition and blockage | Daily inspection; comprehensive weekly check |
| Coaxiality Control | Control pump shaft coaxiality deviation ≤0.03mm | Slurry pumps generate significant vibration; calibrate coaxiality monthly | Monthly calibration |
| Pre-Startup Preparation | Start the flushing system first, then the pump | Ensure the seal chamber is fully filled with clean flushing fluid to avoid dry friction | Perform before each startup |
| Temperature and Leakage Inspection | Seal face temperature ≤80℃, no visible leakage | Focus on monitoring seal chamber pressure to match the SKD Series’ pressure compensation characteristics | Daily inspection; record data every 2 hours |
