Product Description
Key Features

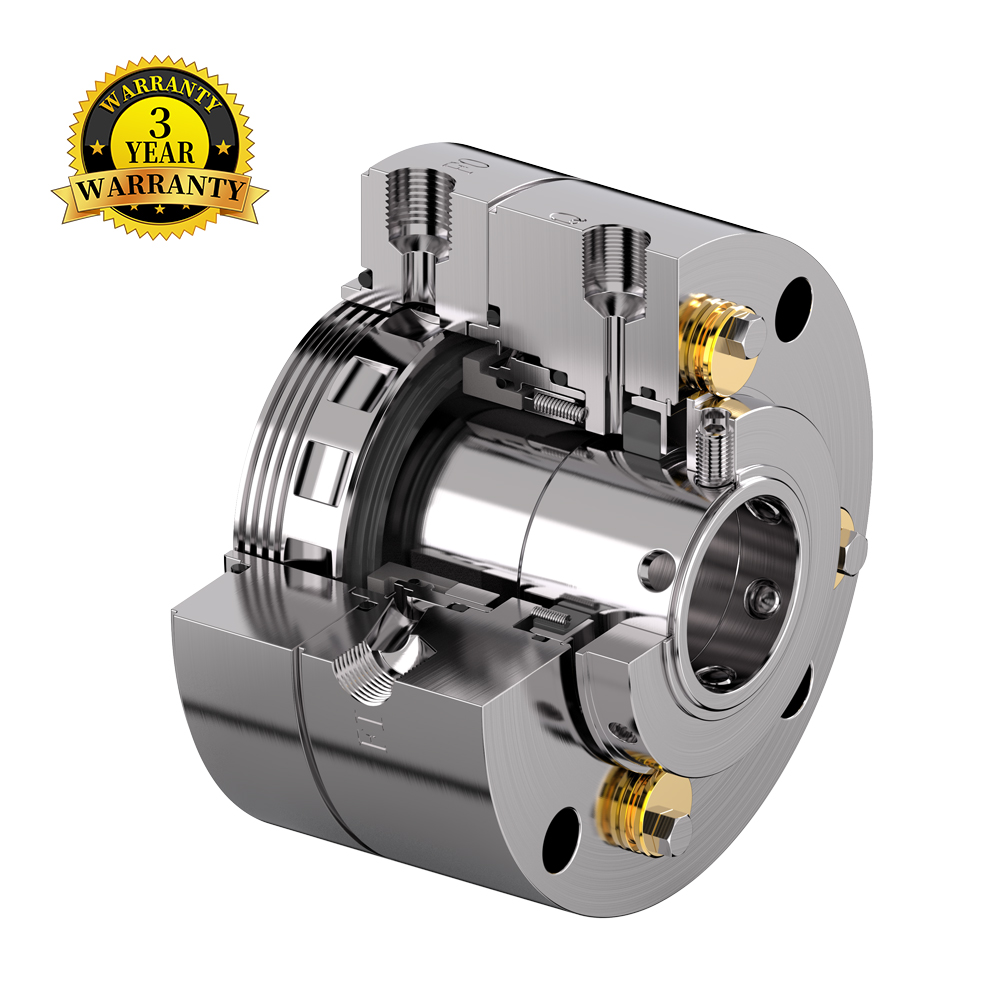

•The sealing configuration is 1CW-FX, Contacting single wet seal with a fixed throttle bushing.
•Balanced integral ring design can better resist pressure fluctuations in the sealing chamber.
•Stationary pusher cartridge seal design.
•Efficient pump efficiency ring design for better circulation effect.
•Maze shaped throttling design provides better isolation from high-temperature media.
•Combined with the 23 scheme heat exchanger, the maximum medium temperature can reach 260 ℃.
•Equipped with Quench and Drain environmental ports.
•Robust sealing rings, shaft sleeves, and other components.
•Adopting a floating graphite throttle bushing.
•Used for API Plan 23.
Specifications
| Operation Parameters | |
| Temperature | -40°C~ +260°C |
| Pressure | ≤40Bar |
| Linear Speed | ≤30m/s |
| Sealing product | Petrochemical, Oil ,Gas, water, oil, and other similar media |
| Materials | |
| Seal Face | SSIC/TC/CARBON |
| Rubber | EPDM/ FKM /Aflas® / Kalrez® |
| Springs | ALLOY 276 |
| Metal Parts | 316SS/DUPLEX/ALLOY 276/904L |
