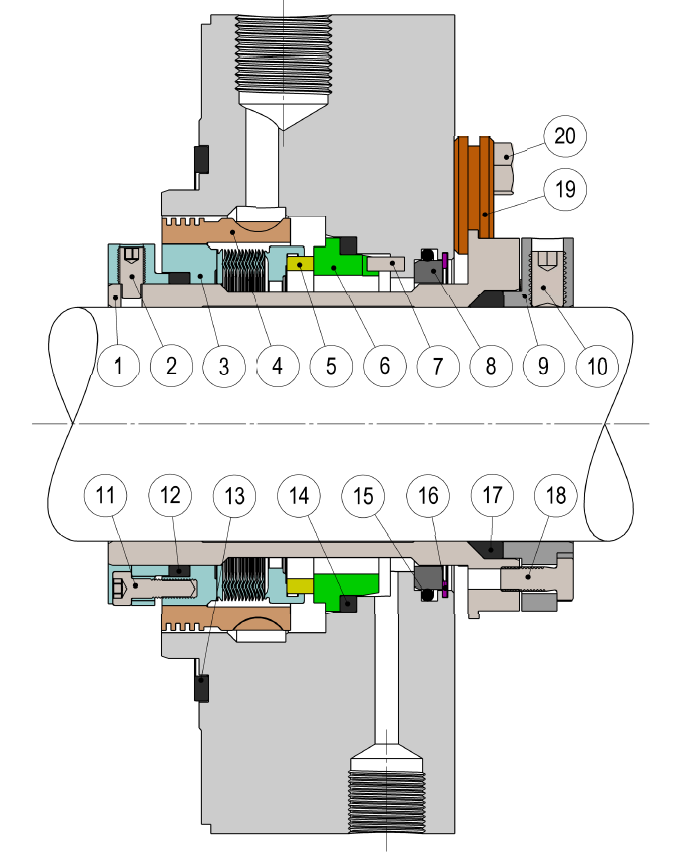

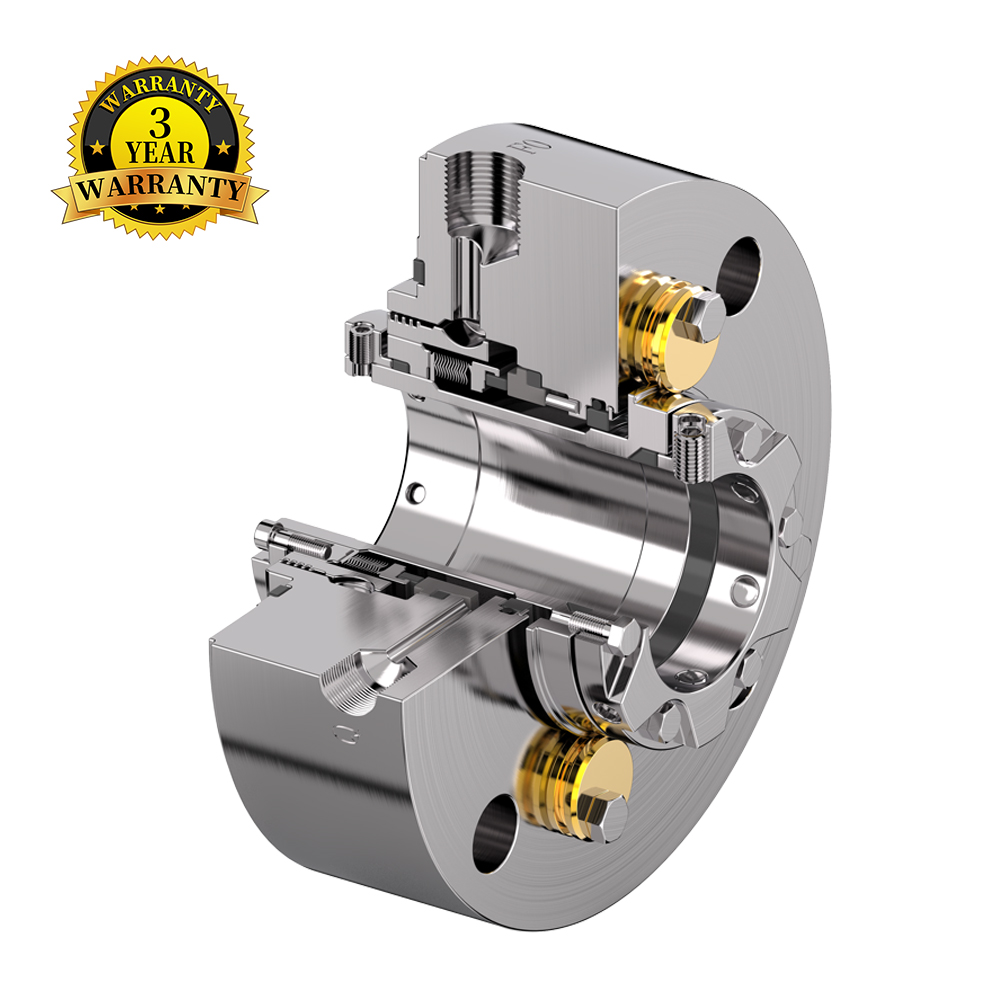

APOG23-CR3FX Single Cartridge Seal Category 1 Type C 1CW-FX

TECHNICAL FEATURES

•Primarily utilized to suit the requirements of the Oil and gas industry application defined by API682.

•The sealing configuration is 1CW-FX, Contacting single wet seal with a fixed throttle bushing.

•Efficient pump efficiency ring design for better circulation effect.

•The combination of rotating bellows and flexible graphite can effectively cope with various high-temperature or low-temperature working conditions.

•The sealing adopts distributed flushing, which can evenly cool the friction surface.

•Equipped with Quench and Drain environmental ports.

PRODUCT DESCRIPTION

•API 682 Category 2 and 3, Type C, Arrangement 1 seal
•Single seal configuration
•Balanced design
•Independent of direction of rotation
•Cartridge Construction
•For plain shafts
•Rotary metal bellows design
•Shrink fitted seal ring and solid stationary ring

TYPICAL INDUSTRIAL APPLICATIONS

•API 610 pumps

•Refining technology

•Oil and gas industry

•Petrochemical industry

•Chemical industry

•Power plant technology

•LPG plants

•Process pump

RECOMMENDED PIPING PLANS

PERFORMANCE CAPABILITIES
