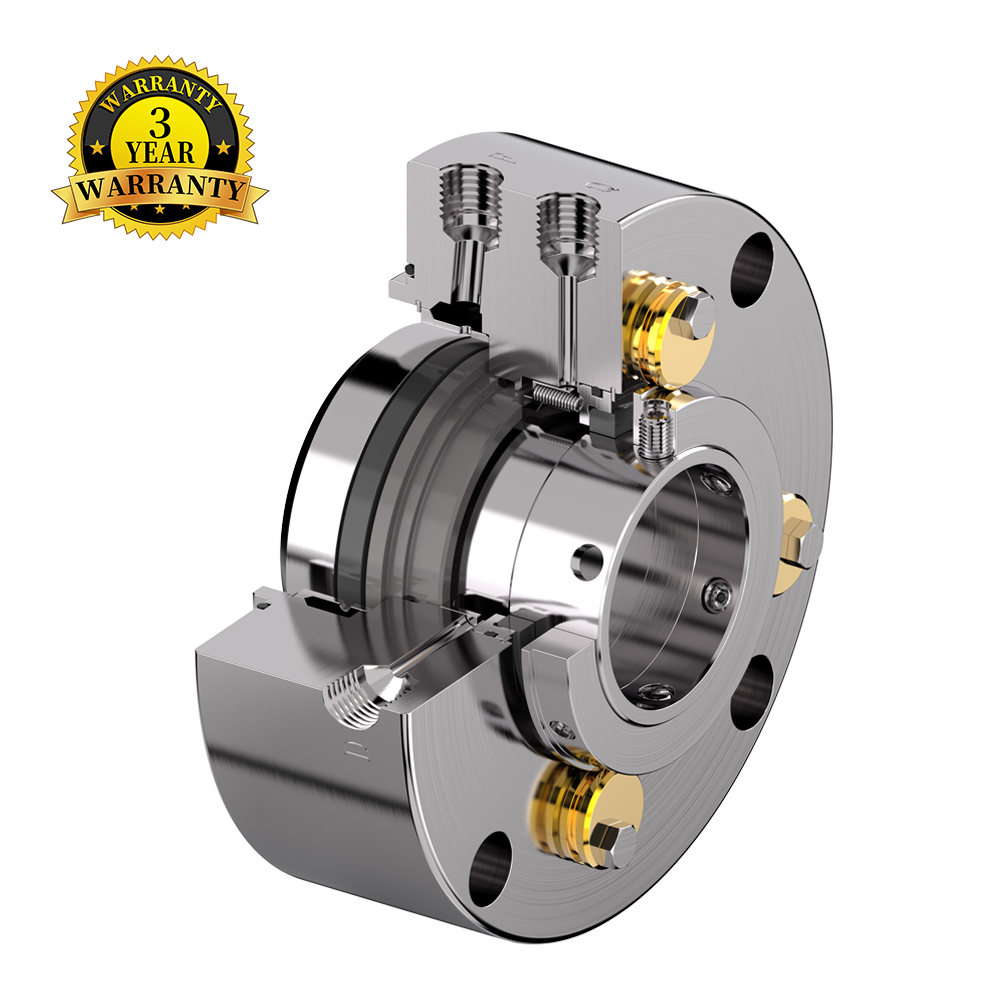

Product Description
TECHNICAL FEATURES
•Equipped with uniformly distributed flushing guide rings, which can evenly cool the friction surface.
•Equipped with Quench and Drain environmental ports.
•Adopting a fixed graphite throttle bushing.
PRODUCT DESCRIPTION
•API 682 Category 1, Type A, Arrangement 1
•Single seal configuration
•Balanced design
•Independent of direction of rotation
•Cartridge construction
•Robust construction with shrink-fitted seal face
•Heavy duty solid seat design
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical industry
•Petrochemical industry
•Oil and gas industry
•Highly volatile hydrocarbons
•Toxic and hazardous media
•Media with poor lubrication properties
•Low solids content and low abrasive media
•Vertical and horizontal ANSI chemical standard pumps
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01, 02, 03, 11, 12, 13, 14, 21, 22, 23, 31, 32, 41 | |||
| Atmospheric side | 51, 61, 62, 65A, 65B | |||
PERFORMANCE CAPABILITIES
| Shaft diameter | d1 = 20 . 110 mm (0.79" . 4.33") | |||
| Pressure | ≤ 40 bar | |||
| Temperature | -40 ° C ~ +260 °C | |||
| Sliding velocity | ≤ 30 m/s | |||

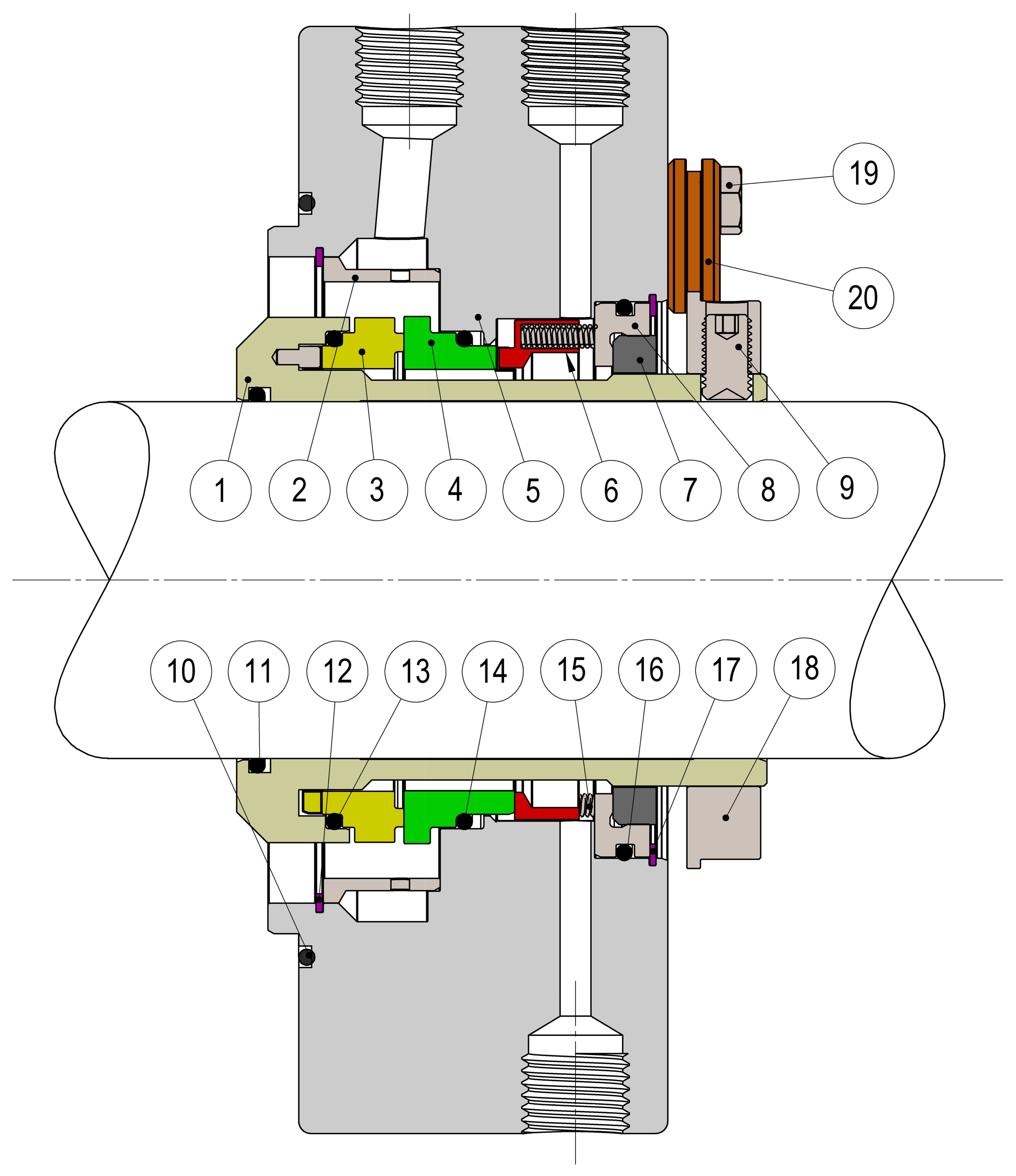

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Sleeve | 316SS/Hast.c/D2205/D2507/904L |
| 2 | Deflector | 316SS |
| 3 | Rotary Face | Carbon/SIC/TC |
| 4 | Stationary Face | Carbon/SIC/TC |
| 5 | Gland | 316SS/Hast.C/D2205/D2507/904L |
| 6 | Spring Plate | Hast.C |
| 7 | Bush Ring | Carbon |
| 8 | Bushing Seat | 316SS |
| 9 | Drive Screw | 304SS |
| 10 | O-Ring | Viton/PTFE/Aflas/Kalrez |
| 11 | O-Ring | Viton/PTFE/Aflas/Kalrez |
| 12 | Circlip | 304SS |
| 13 | O-Ring | Viton/PTFE/Aflas/Kalrez |
| 14 | O-Ring | Viton/PTFE/Aflas/Kalrez |
| 15 | Spring | Hast.C |
| 16 | O-Ring | Viton/PTFE/Aflas/Kalrez |
| 17 | Circlip | 304SS |
| 18 | Clamp Ring | 316SS |
| 19 | Clip Screw | 304SS |
| 20 | Setting Clip | 304SS |
