Product Description
Key Features

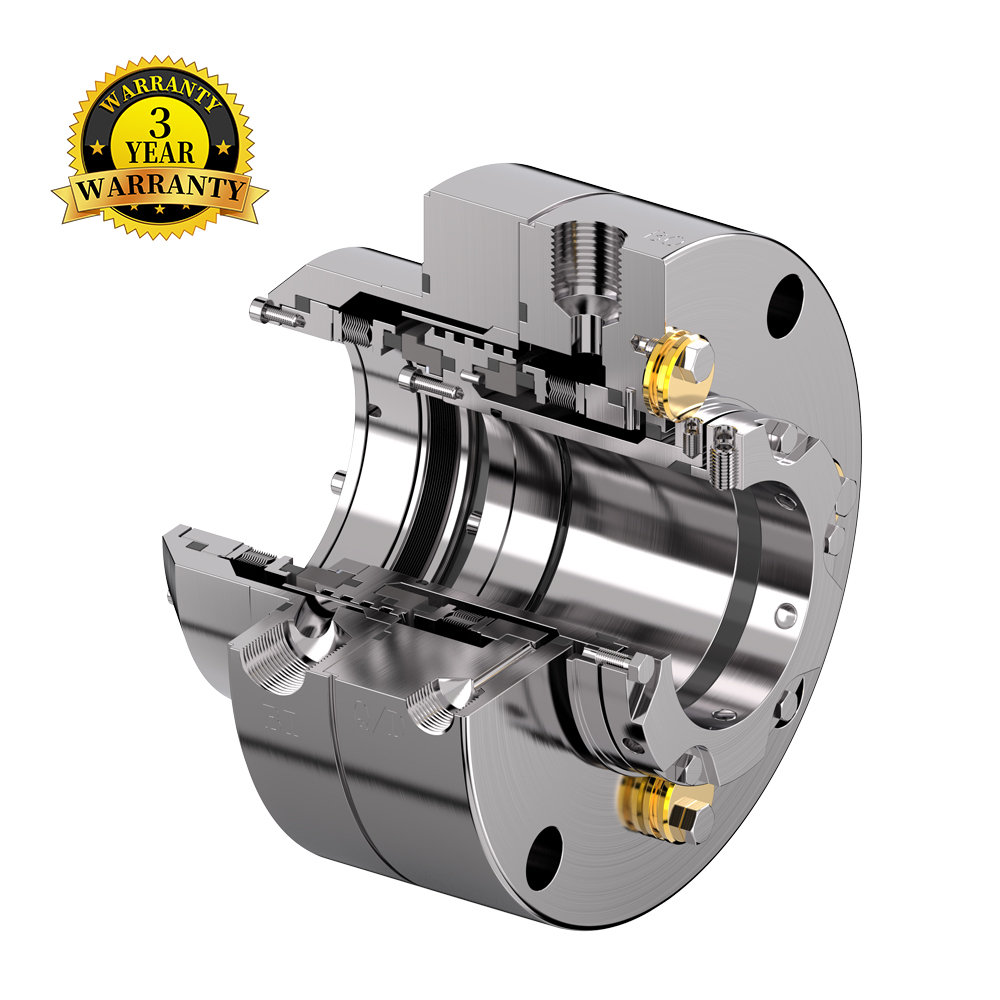

•Primarily utilized to suit the requirements of the Oil and gas industry application defined by API682.
•The sealing configuration is 3CW-FF,used for layout 3.
•Allow for greater axial displacement and radial runout.
•Integrated bidirectional flow design, unique pump efficiency ring design, and significant circulation effect of buffer/isolation liquid.
•The combination of static bellows and flexible graphite can effectively cope with various high-temperature or low-temperature working conditions.
•Static bellows design exhibits higher stability under high-speed operating conditions. Additionally, it features less mechanical wear and a longer seal service life.
•The structure is simpler and more stable than APOG-FB, making it easier to maintain.
•Supporting API Plan 53A/53B/54.
Specifications
| Key word | APOG-CSFFX Mechanical Seal | |
| Materials | Seal Face | SSIC/TC/CARBON |
| Rubber | EPDM/ FKM /Aflas®/ Kalrez® | |
| Springs | ALLOY 276 | |
| Metal Parts | 316SS/DUPLEX/ALLOY 276/904L | |
| Components | Static ring and dynamic ring | Installed on fixed equipment components and rotating shafts |
| Spring and pressure plate | Provide pressure to ensure tight contact between the static ring and dynamic ring for effective sealing. | |
| Sealing surface lubrication | To reduce friction and heat | |
| Operation Parameters | Temperature | -40°C to +400°C |
| Pressure | ≤16Bar | |
| Linear Speed | ≤30m/s | |
| Sealing product | Petrochemical, Oil ,Gas, water, oil, and other similar media |

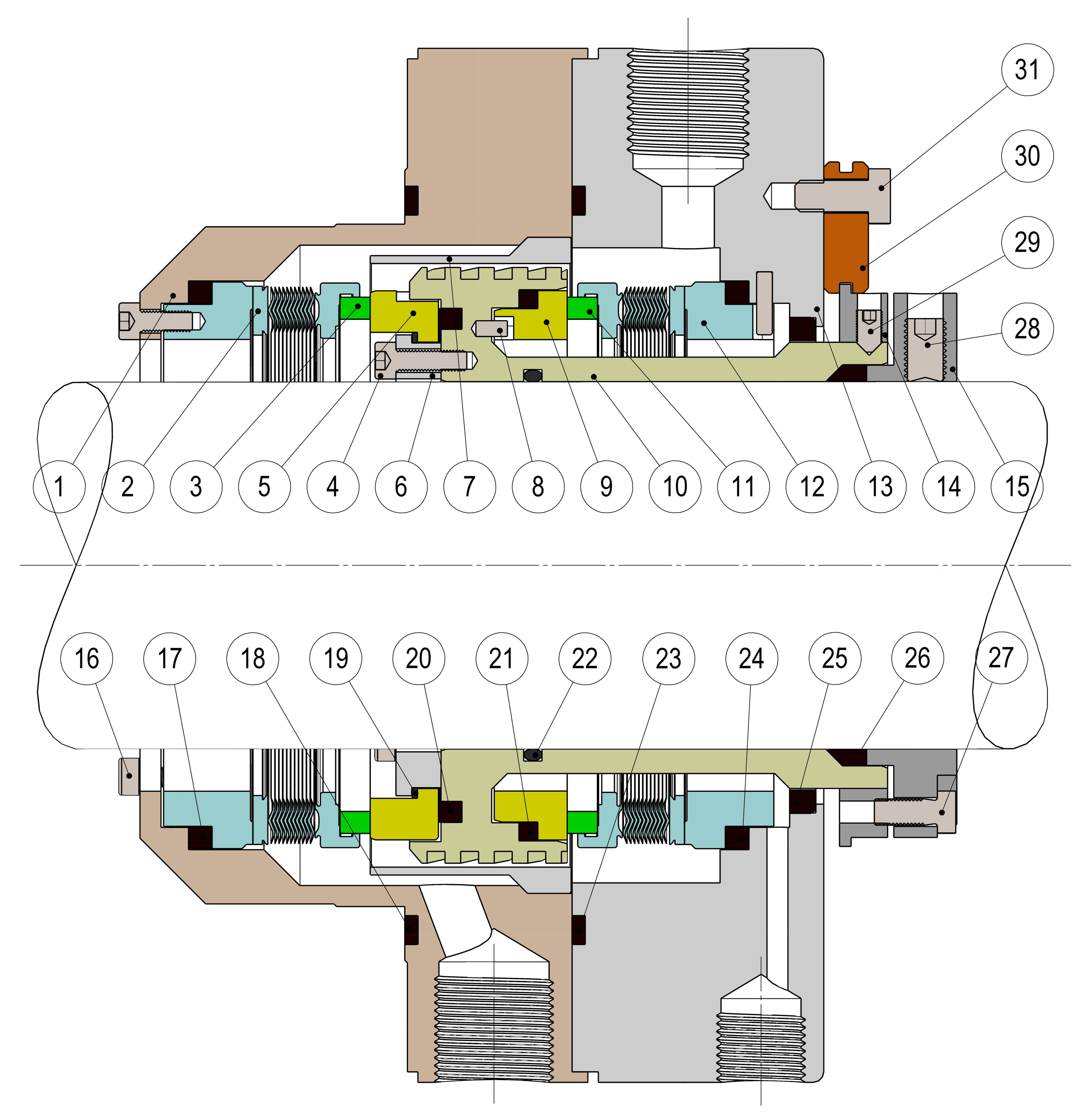

Assembly Chart
