FBU PREMIUM CARTRIDGE SEALS | ANSI PUMP SOLUTIONS
E Series Mechanical Seals
Installs exactly like your current seal.No adjustment. No modification. No lead-time delays.Lower cost. Equal service life
G Series Mechanical Seals
High-performance single mechanical seal, ideal for high speed, high temperature, high pressure and frequent start-stop conditions, compatible with ANSI and process pumps
Certificates
ISO 9001:2015
ISO 14001:2015
API Spec Q1
ISO 45001:2018
ATEX
Mechanical Seals for ANSI Process Pumps

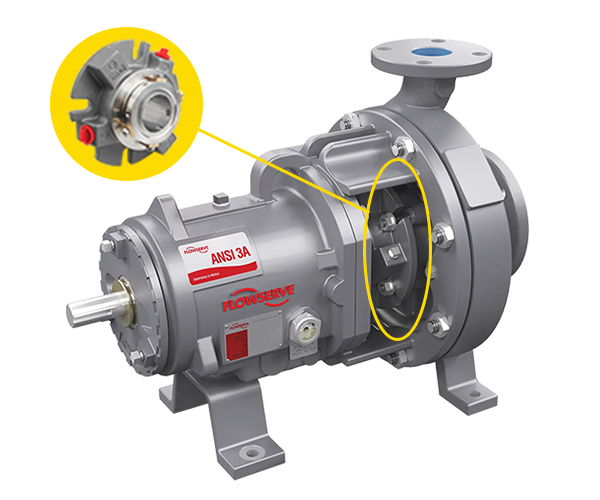

Flowserve

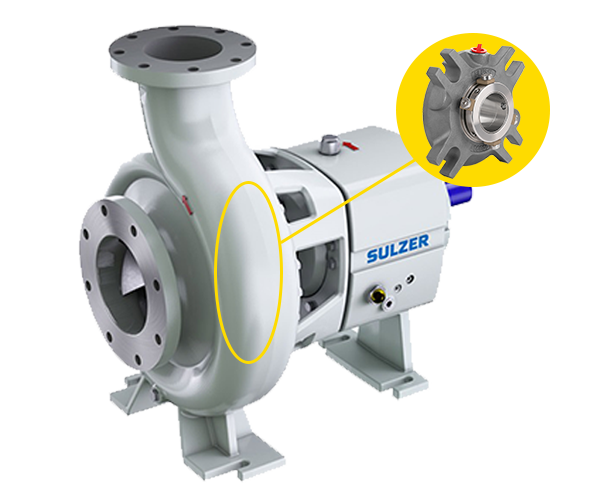

Sulzer

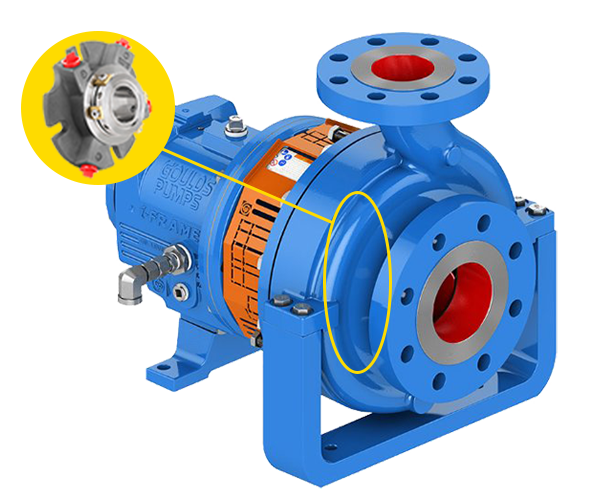

Goulds
Core Benefits & Design Philosophy
E Series
Pressure:≤ 1.6 Mpa Temperature:≤ 120℃ Speed:≤ 20 m/s
G Series
Pressure:≤ 2.5 Mpa Temperature:≤ 392℃ Speed:≤ 25 m/s

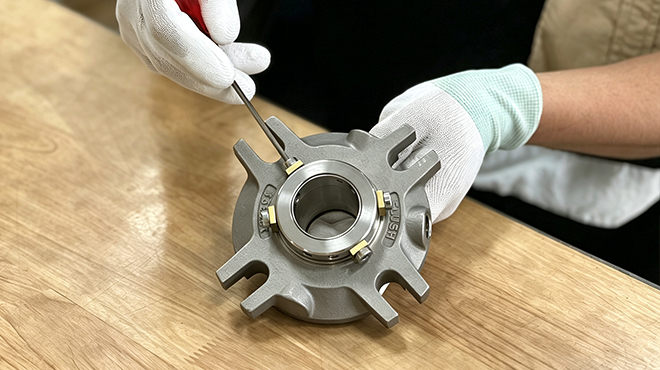

ESMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| ESMA | SINGLE | 11\12 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| ESMA | SINGLE | 11\12 | FML&CBLM | 1.375", 1.875",2.625" |

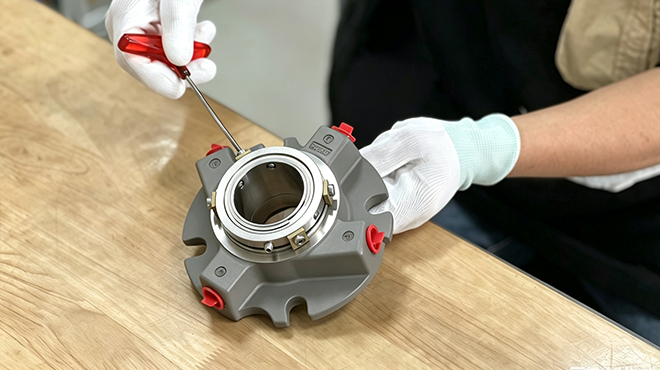

GSMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| GSMA | SINGLE | 11\12 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| GSMA | SINGLE | 11\12 | FML&CBLM | 1.375", 1.875",2.625" |
EDMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| EDMA | DOUBLE | 52\53\54 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| EDMA | DOUBLE | 52\53\54 | FML&CBL | 1.375", 1.875",2.625" |
GDMA
| Seal Model | Structure Type | API Plan | Cavity | Shaft Diameter |
| GDMA | DOUBLE | 52\53\54 | Tapbore&Bigbore | 1.375",1.750", 2.125",2.500" |
| GDMA | DOUBLE | 52\53\54 | FML&CBL | 1.375", 1.875",2.625" |
