Product Description
TECHNICAL FEATURES
•Double-balanced, which makes the construction fully independent of pressure changes in both process and barrier fluid.
•Design is unaffected by pressure changes.Two sets of multi spring structures on the inner and outer sides of the double seal provide more stable spring loads for the two pairs of friction pairs, without affecting each other.
•It's designed for minimum damage risk — the rugged construction for all applications prevents failure and provides long and trouble-free service.
•New type of diversion pipe diversion design, buffering fluid directly to the friction pair.
•Easy installation and low maintenance costs. Ultimate reliability for screen sealing requirements.
•It is recommended to use GLD (plan 54) for seal water control.
APPLICABLE CHAMBERS TYPE
Mainly used in equipment of this brand: Andritz, AHLSTROM, VALMET，Metso Paper, Voith, Toscotec, etc.Size range varies from 50mm to 200mm.
TYPICAL INDUSTRIAL APPLICATIONS
2750 is a double-acting seal particularly engineered to suit pumps, screens, knotters, sorters and pulpers in heavy process industries where liquids containing solid particles and impurities are involved.
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 | |
PERFORMANCE CAPABILITIES
| Seal Chamber Pressure | ≤ 20 bar | |
| Buffer Chamber Seal Water Pressure | ≤ 15 bar | |
| Temperature | -20 ° C ~+ 180 °C | |
| Sliding velocity | ≤ 30 m/s | |
| Material Options | 316SS, Duplex Steel,Titanium, Other alloy etc. | |
| Suitable Media | Water, various types of oils,solvents, pulp, and other media | |

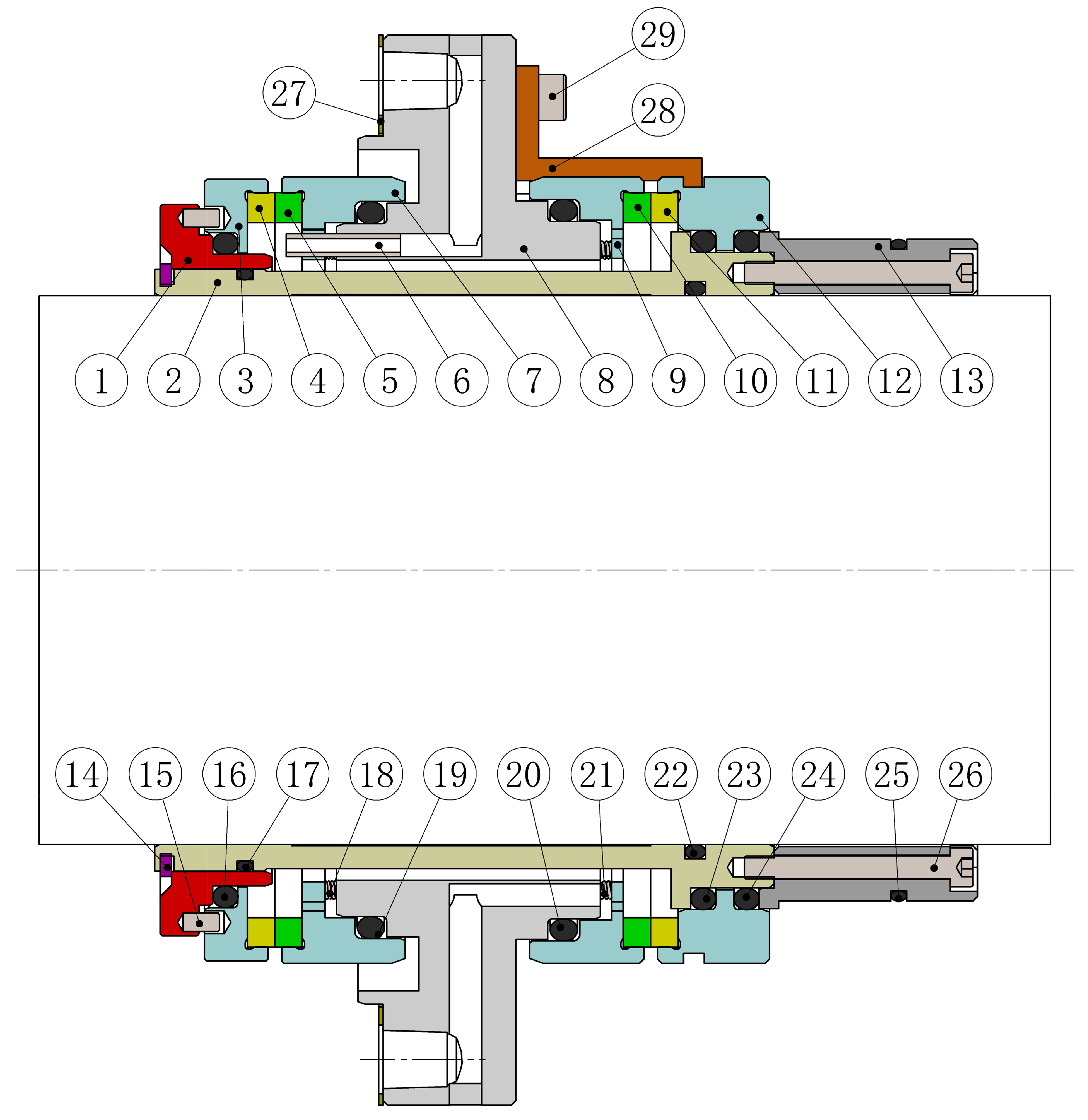

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Drive Ring | 316SS/Hast.C/D2205/D2507/904L |
| 2 | Sleeve | 316SS/Hast.C/D2205/D2507/904L |
| 3,12 | Rotary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 4,11 | Rotary Face | Carbon/SIC/TC |
| 5,10 | Stationary Face | Carbon/SIC/TC |
| 6 | Hollow pin | 316SS |
| 7,9 | Stationary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 8 | Gland | 316SS/Hast.C/D2205/D2507/904L |
| 13 | Clamp Ring | 316SS/Hast.C/D2205/D2507/904L |
| 14 | Circlip | 316SS |
| 15 | Pin | 316SS |
| 16,17,19 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 18,21 | Spring | Hast.C |
| 20,22,23 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 21 | Spring | Hast.C |
| 24,25 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 26,29 | Screw | A2-70 |
| 27 | Gasket | AFI/PTFE |
| 28 | Setting Clips | 304SS/Cu |
