Product Description
TECHNICAL FEATURES
•Double-balanced, which makes the construction fully independent of pressure changes in both process and barrier fluid.
•Design is unaffected by pressure changes.
•It's designed for minimum damage risk — the rugged construction for all applications prevents failure and provides long and trouble-free service.
•Double seal with multi spring structure, Sliding O-ring design has a large axial displacement.
•Larger buffer chamber flushing space, bidirectional flow design, more significant cooling effect.
•Easy installation and low maintenance costs. Ultimate reliability for screen sealing requirements.
•It is recommended to use GLD (plan 54) for seal water control.
APPLICABLE CHAMBERS TYPE
Mainly used in equipment of this brand: Andritz, AHLSTROM, VALMET，Metso Paper, Voith, Toscotec, etc.Size range varies from 30mm to 200mm.
TYPICAL INDUSTRIAL APPLICATIONS
2650 is a double-acting seal particularly engineered to suit pumps, screens, knotters, sorters and pulpers in heavy process industries where liquids containing solid particles and impurities are involved.
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 | |
PERFORMANCE CAPABILITIES
| Seal Chamber Pressure | ≤ 20 bar | |
| Buffer Chamber Seal Water Pressure | ≤ 15 bar | |
| Temperature | -20 ° C ~+ 180 °C | |
| Sliding velocity | ≤ 20 m/s | |
| Material Options | 316SS, Duplex Steel,Titanium, Other alloy etc. | |
| Suitable Media | Water, various types of oils,solvents, pulp, and other media | |

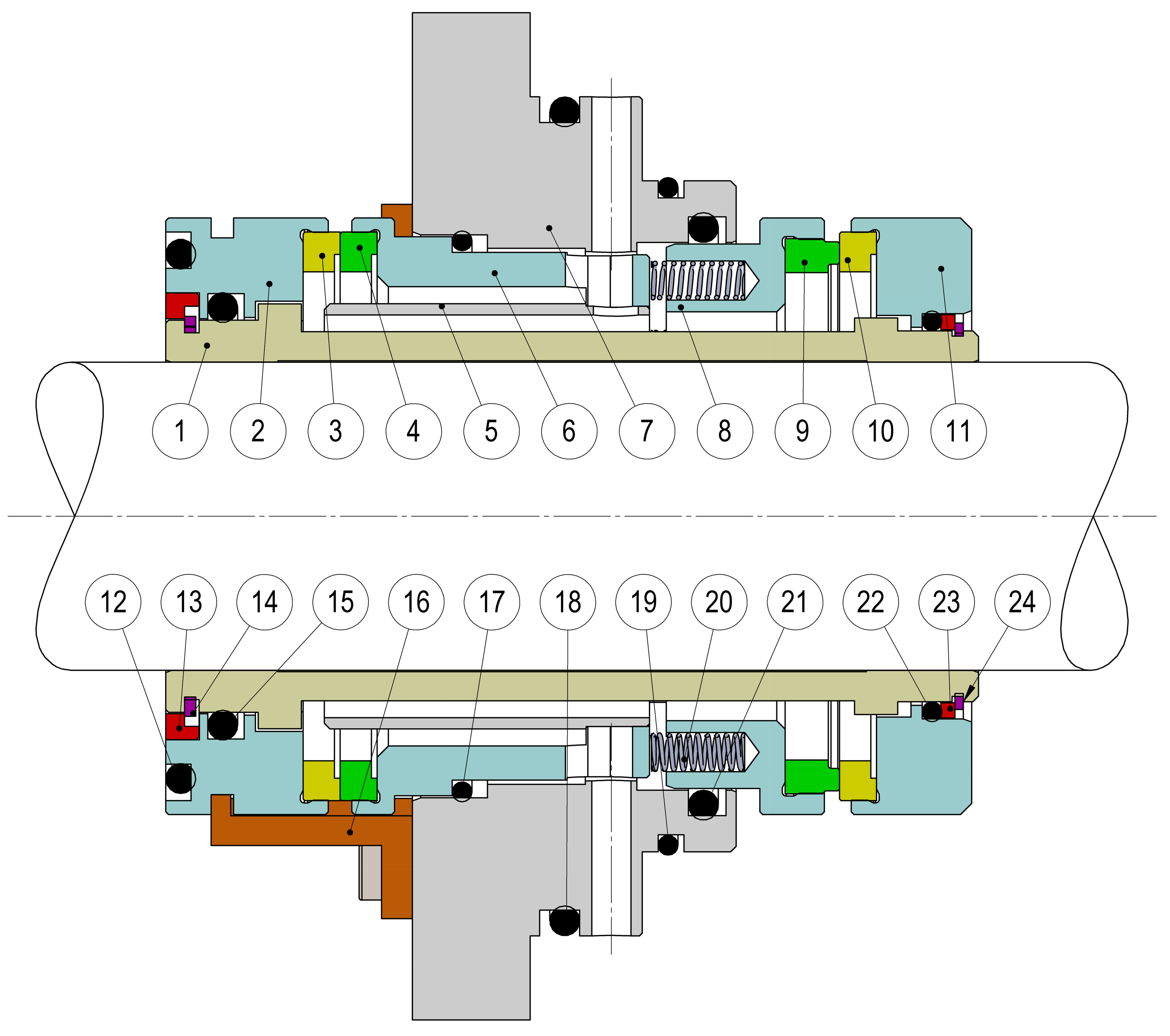

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Sleeve | 316SS/Hast.C/D2205/D2507/904L |
| 2 | Rotary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 3 | Rotary Face | Carbon/SIC/TC |
| 4 | Stationary Face | Carbon/SIC/TC |
| 5 | Deflector | 316SS/Hast.C/D2205/D2507/904L |
| 6 | Stationary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 7 | Gland | 316SS/Hast.C/D2205/D2507/904L |
| 8 | Stationary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 9 | Stationary Face | Carbon/SIC/TC |
| 10 | Rotary Face | Carbon/SIC/TC |
| 11 | Rotary Seat | 316SS/Hast.C/D2205/D2507/904L |
| 12 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 13 | Thrust Ring | 316SS |
| 14 | Circlip | 316SS |
| 15 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 16 | Setting Clips | 304SS/Cu |
| 17 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 18 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 19 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 20 | Spring | Hast.C |
| 21 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 22 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 23 | Thrust Ring | 316SS |
| 24 | Circlip | 316SS |
