Product Description
TECHNICAL FEATURES
•Stationary Pusher Seal, balanced design.
•Multi spring structure with relatively stable spring compensation.
•Simple structure, easy to install and maintain.
APPLICABLE CHAMBERS TYPE
Mainly used in KADANT® UV series pressure screen, Models of UV200, UV300, UV400, UV500, UV600.Covering Shaft Diameters Including 54,80,100,140, etc.
TYPICAL INDUSTRIAL APPLICATIONS
The 2550 Series is a Single mechanical seal specifically designed for KADANTR UV series pressure screen，Suitable for water and other clean media, as well as applications involving low-consistency pulp.
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01,02,03,11,12,13, 21,22,32 | |
PERFORMANCE CAPABILITIES
| Seal Chamber Pressure | ≤ 20 bar | |
| Temperature | -20 ° C ~+ 180 °C | |
| Sliding velocity | ≤ 20 m/s | |
| Material Options | 316SS, Duplex Steel,Titanium, Other alloy etc. | |
| Suitable Media | Water, various types of oils,solvents, pulp, and other media | |

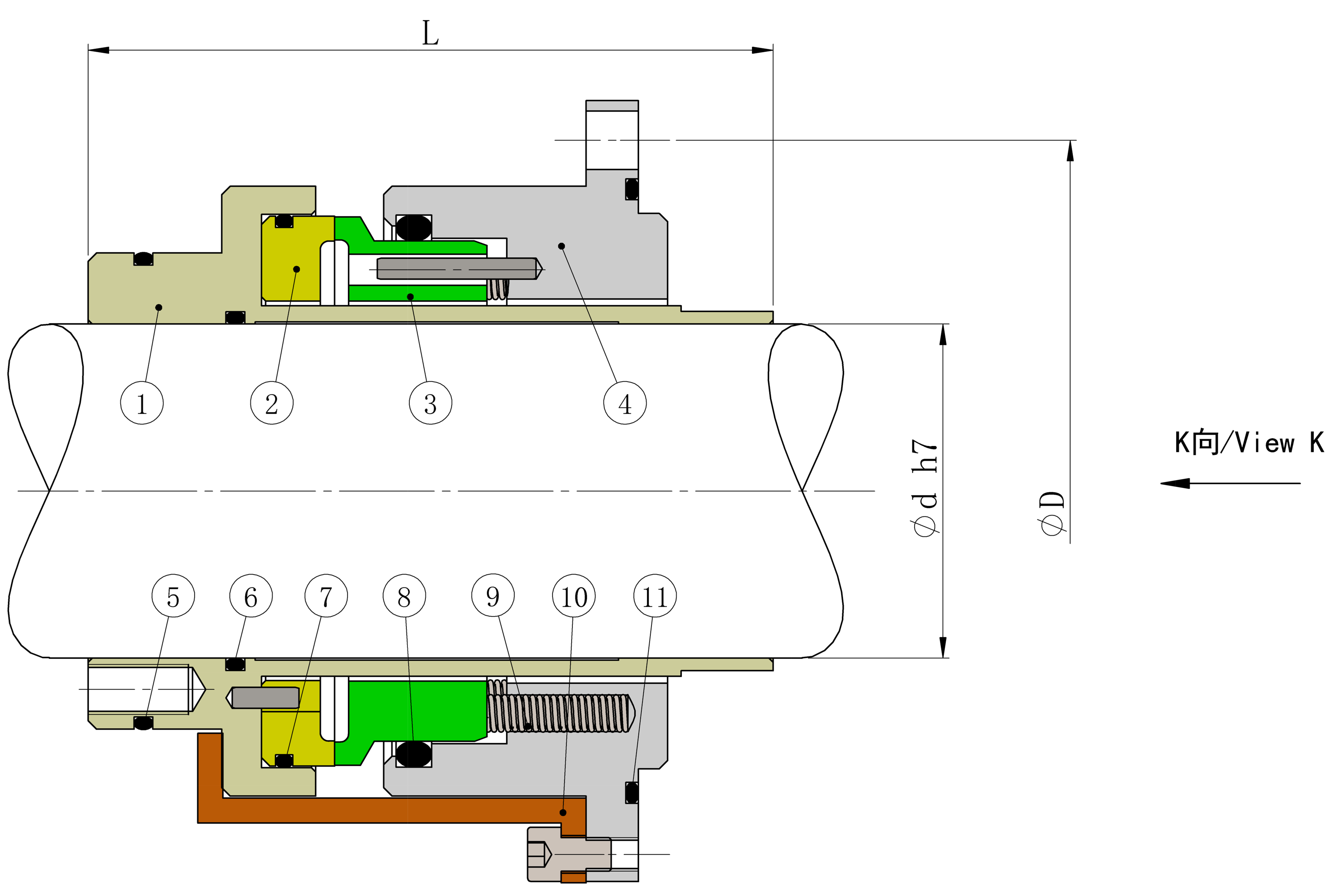

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Sleeve | 316SS |
| 2 | Rotary Face | RBSIC |
| 3 | Stationary Face | RBSIC |
| 4 | Gland | 316SS |
| 5 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 6 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 7 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 8 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 9 | Spring | 316SS |
| 10 | Setting Clip | 304SS |
| 11 | O-Ring | FKM/EPDM/Aflas/Kalrez |
