2000 Series Mechanical Seals - Adaptation Solution for Sulzer AHLSTAR APP Pumps

Views: 0 Author: Site Editor Publish Time: 2026-03-04 Origin: Site

As a globally widely used end-suction single-stage centrifugal pump product, the Sulzer AHLSTAR APP pump is designed in compliance with ISO 5199 and ISO 2858 international standards. With stable performance, it is widely used in various fields such as pulp and paper, chemical industry, water treatment, food processing, and general industry. It can adapt to various medium transportation scenarios including clean liquids, slightly contaminated media, fiber slurries, and corrosive media, serving as one of the core equipment in the process industrial production process.

During the long-term operation of the APP pump, the mechanical seal, as a core dynamic sealing component, its working condition adaptability and operational stability directly determine the continuous operation efficiency of the pump unit and the smooth progress of production plans. To address the differences in working conditions across different scenarios such as pulp and paper cooking & evaporation and chemical hazardous medium transportation, as well as the core needs of end-users for quick replacement, working condition adaptation, and convenient maintenance of seals, FBU Seal Technology (Suzhou) Co., Ltd. has launched an exclusive adaptation solution for Sulzer AHLSTAR APP pumps based on its 2000 series standardized mechanical seal product system, providing end-users with highly adaptable and reliable mechanical seal products and supporting technical services.

2210-1

I. Operating Characteristics of Sulzer AHLSTAR APP Pumps and Core Requirements for Seal Adaptation

With its modular design and wide working condition coverage, the Sulzer AHLSTAR APP pump can adapt to various application scenarios ranging from conventional clean medium transportation to harsh working conditions involving particles, corrosion, and high temperature. Different sections have clear differentiated requirements for the selection of mechanical seals:

Conventional working condition scenarios: Such as clean water transportation, conventional chemical media, and slightly contaminated liquid scenarios, requiring mechanical seals with simple structure, convenient installation and maintenance, adaptability to basic self-flushing plans, and ability to accommodate shaft movement during normal operation of the pump unit;
Harsh working condition scenarios: Such as cooking and evaporation sections in the pulp and paper industry, and transportation scenarios of hazardous, volatile, and highly corrosive media in the chemical industry, requiring mechanical seals with higher medium resistance, adaptability to isolation flushing systems supporting double-end seals, so as to reduce the risk of medium leakage and minimize the impact of working condition fluctuations on seal operation.

Combined with the structural design and application characteristics of the APP pump, the adapted mechanical seal must meet the core requirements: the installation size must match the pump chamber and shaft diameter specifications accurately to enable quick replacement; the structural design must adapt to the axial movement of the pump shaft during operation to ensure stable fitting of the seal face; it must be compatible with API standard flushing plans corresponding to the working conditions to adapt to the operating environment with different medium characteristics, temperatures, and pressures.

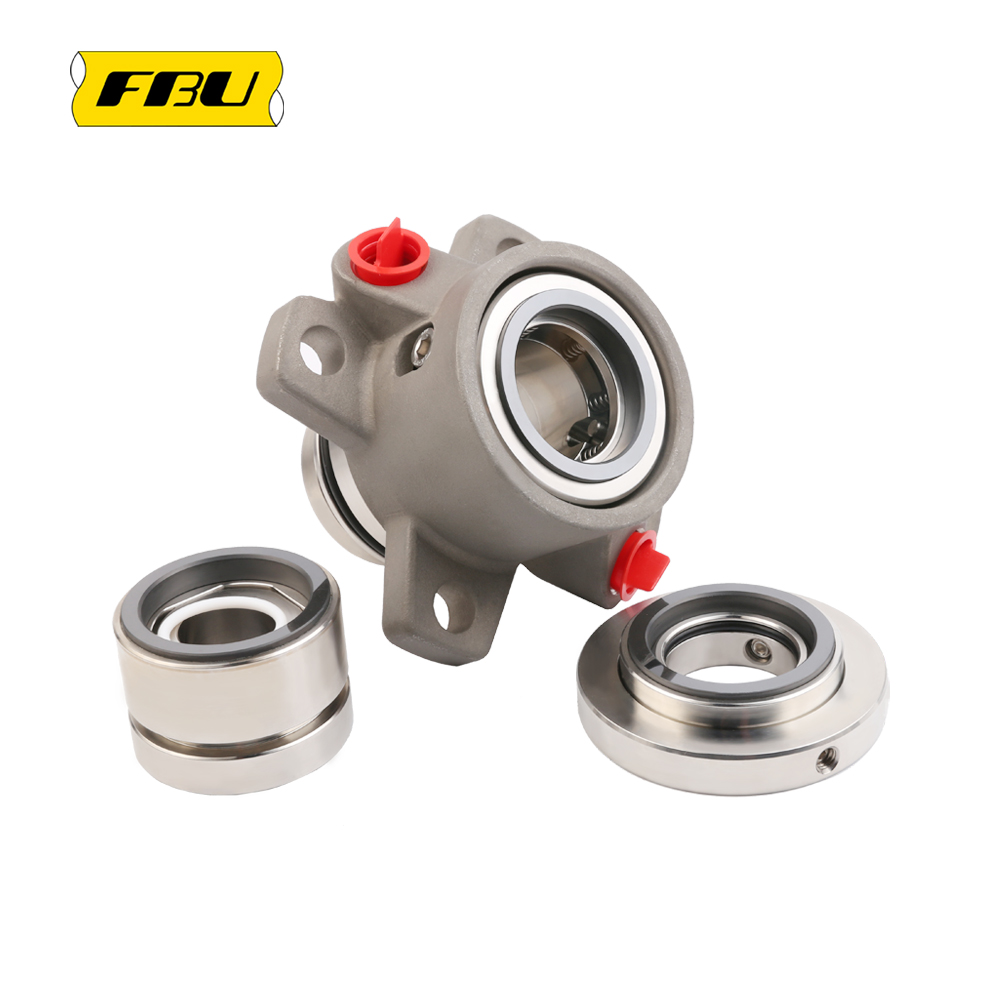

2220-1

II. Core Product System of FBU 2000 Series for APP Pump Adaptation

The FBU 2000 series mechanical seals are standardized sealing products developed for centrifugal pumps in the process industry. Among them, four models (2210, 2220, 2211, 2215) can fully adapt to the mainstream shaft diameter specifications of 30mm, 40mm, 50mm, 60mm, 80mm, and 90mm for Sulzer AHLSTAR APP pumps. The product installation size matches the design of the pump type's seal chamber, which can be directly adapted to the pump unit installation requirements without modifying the pump body structure, covering most conventional and harsh application scenarios of the APP pump. Detailed adaptation information of each model is as follows:

Product Model	Structural Design	Adaptable API Flushing Plans	Adaptable Working Conditions	Adaptable Shaft Diameter (mm)
Model 2210	Static compensation seal face, balanced design, single spring compensation structure, with larger axial movement capacity	Plan 01, 02, 11, 12, 13, 21, 22	Conventional working conditions of APP pumps, suitable for scenarios such as conventional chemical medium transportation, water treatment, conventional sections of pulp and paper industry, and transportation of clean or slightly contaminated liquids	30, 40, 50, 60, 80, 90
Model 2220	Static compensation seal face, balanced design, double-end single-set multi-spring structure, axial movement does not affect spring load	Plan 52, 53A, 54	Harsh medium working conditions of APP pumps, suitable for scenarios such as cooking and evaporation sections of pulp and paper industry, transportation of hazardous media, highly corrosive media, and volatile media	30, 40, 50, 60, 80, 90
Model 2211	Based on the 2000 series standardized design system, adopting customized structural design adapted to APP pumps	Customized adaptation according to specific working conditions	Providing customized adaptation services for specific working conditions and special installation requirements of APP pumps	30, 40, 50, 60, 80, 90 (adaptable on demand)
Model 2215	Based on the 2000 series standardized design system, adopting customized structural design adapted to APP pumps	Customized adaptation according to specific working conditions	Providing customized adaptation services for specific working conditions and special installation requirements of APP pumps	30, 40, 50, 60, 80, 90 (adaptable on demand)

III. Core Values of FBU 2000 Series for APP Pump Adaptation

Strong Installation Adaptability, Improved Maintenance Efficiency

The entire series of products strictly match the seal chamber installation size and shaft diameter specifications of Sulzer AHLSTAR APP pumps, and can directly replace the original supporting seals without additional modification to the pump body and shaft system. This greatly shortens the equipment shutdown maintenance time and reduces the difficulty of on-site installation and maintenance operations.

Comprehensive Working Condition Coverage, Flexible Selection and Adaptation

For the full range of working conditions of APP pumps from conventional to harsh, it provides product selection with different structures such as single-end and double-end seals, which can be matched with various API standard flushing plans to adapt to the operating environment with different medium characteristics, temperatures, and pressures. One-on-one selection and adaptation services can be provided according to the actual working conditions of end-users.

Reasonable Structural Design, Excellent Operational Stability

The entire series of products adopt a balanced structure and static compensation seal face design, which can reduce the impact of medium pressure on the seal face, adapt to the axial movement of the pump shaft during operation, reduce the interference of working condition fluctuations on seal operation, lower the risk of medium leakage, and adapt to the continuous production needs of the process industry.

Improved Supply System, Controllable Whole-Cycle Cost

Relying on FBU Seal's standardized production and stock preparation system, the entire series of adapted products have stable supply capacity, which can shorten the procurement cycle of end-users and reduce the pressure of spare parts inventory. At the same time, the products adopt modular design with high generalization, which can reduce the types of spare parts reserved by users and lower the maintenance cost of the whole equipment life cycle.
