Recurring Leakage and Unexplained Pump Failures in the Petroleum & Petrochemical Industry? FBU Seal Failure Analysis Pinpoints Root Causes for Targeted Solutions
Views: 0 Author: Site Editor Publish Time: 2026-03-20 Origin: Site
In the petroleum and petrochemical industry, centrifugal pumps are the backbone dynamic equipment across the full production chain — spanning upstream oil and gas exploration and gathering, midstream refining and processing, to downstream storage and distribution. Mechanical seals, in turn, stand as the make-or-break components for safe, stable, and long-running pump operation. Exposed to extreme conditions including high temperatures, high pressures, flammable and explosive hazards, strong corrosion, and entrained solid particles, pumps and mechanical seals endure constant heavy loads, leaving the industry stuck with a persistent, costly pain point:frequent media leakage and repeated unplanned pump failures, yet after countless seal replacements and pump repairs, the true root cause remains a mystery, trapping operations in a vicious cycle of "repair after repair, failure after failure". Against these ongoing challenges, FBU focuses squarely on core industry needs, using professional seal failure analysis to uncover the real issue behind breakdowns before delivering targeted, lasting fixes — and breaking free from blind, repetitive maintenance for good.
1. A Persistent Industry Dilemma: The Core Issue is "Failure to Identify the Real Problem"
For petroleum and petrochemical operators, pump leakage and failures are never minor fixes solved by "just swapping a part". They carry systemic safety risks and massive financial losses that ripple across entire operations: even small leaks of flammable, explosive, or toxic media can trigger catastrophic incidents such as fires, explosions, personnel poisoning, and environmental violations, crossing strict red lines for workplace safety and environmental compliance. The nonstop production model of refining facilities means a single unplanned shutdown can cost hundreds of thousands to millions of yuan in lost output, with upstream and downstream unit disruptions amplifying operational risks further. Frequent part replacements, full pump disassembly repairs, and ineffective troubleshooting not only inflate O&M budgets but also drain maintenance teams’ core bandwidth, while causing irreversible wear to critical pump components like shafts and impellers — drastically cutting overall equipment lifespan.
Most operators trapped in this cycle don’t lack basic maintenance skills — they fall into rigid, counterproductive thinking patterns that keep them from addressing the real problem. To clarify these common industry maintenance pitfalls clearly, the table below breaks down the key misconceptions, their on-site symptoms, and the lasting harm they cause:
Misconception Type
Core Performance
Actual Drawbacks and Hazards
Seal-Only Mentality
Immediately attribute all media leakage to poor seal quality upon occurrence, and blindly replace seals with higher-priced, higher-specification products
Ignores other potential triggers; new seals fail quickly after installation, leading to wasted spare part costs and increased maintenance workload
Pump-Only Mentality
Only repair visible damaged parts (bearings, impellers, etc.) after a pump failure, completely ignoring the linkage between pump faults and seal failures
Treats symptoms rather than root causes; the same failure recurs repeatedly, and equipment runs with hidden risks long-term, worsening wear on core components
Empiricism Bias
Subjectively judge failure causes based solely on past maintenance experience, without systematic testing or data support, leading to vague failure boundary definition
Troubleshooting direction deviates, repairs rely on trial and error, consuming excessive time and labor without solving the core problem, and prolonging shutdown maintenance duration
2. FBU Core Solution: Full-Lifecycle Seal Failure Analysis for Root-Cause Targeted Resolution
As a specialized technical provider deeply rooted in the mechanical seal sector, FBU has long targeted the core pain points of the petroleum and petrochemical industry, moving past the traditional "band-aid maintenance" mindset to develop afull-cycle seal failure analysis system fully compliant with API 682 industry standards. We leave subjective guesswork behind, relying entirely on objective test data to conduct comprehensive, multi-dimensional systematic analysis. This helps our customers define clear failure boundaries, identify the true triggers of leaks and breakdowns, and customize one-to-one corrective solutions — truly delivering "find the real problem, fix the real problem" and ending the vicious cycle for good.
Unlike surface-level troubleshooting common across the industry, FBU’s seal failure analysis delivers a full closed-loop service: On-Site Tracing → Laboratory Testing → Root-Cause Verification → Solution Deployment → Long-Term Performance Assurance. Its core purpose is to answer one critical question for every operator: When a pump fails or a seal leaks, is the issue caused by the seal itself, improper installation and maintenance, mismatched selection for operating conditions, or linked failures from the pump body?
Step 1: Full-Scenario Pre-Onsite Tracing to Define Core Troubleshooting Boundaries
FBU’s failure analysis never involves isolated testing of failed seals. Instead, we first deploy technicians to the production site to conduct a full-dimensional investigation of operating conditions and complete equipment lifecycle information, eliminating interference factors in advance and avoiding blind troubleshooting from the source. We fully verify pump design parameters and actual operating data, including media composition, operating temperature, seal chamber pressure, equipment speed, shaft runout, vibration values, and special scenarios such as intermittent startup/shutdown and condition fluctuations. We also fully review equipment operation records, including previous maintenance content, seal replacement cycles, and failure timing and condition characteristics. Additionally, we inspect the on-site installation environment, seal piping plans, and cooling and filtration system operation to ensure no potential failure detail is overlooked.
Step 2: Laboratory-Grade Specialized Testing to Determine Failure Modes and Solidify Data Support
For recovered failed seals, FBU uses professional testing equipment to conduct comprehensive failure morphology and performance analysis, objectively determining seal failure modes to provide solid data support for subsequent root-cause investigation, completely eliminating the industry bad habit of "judging by experience, repairing by guesswork". Testing covers wear, corrosion, thermal cracking, and deformation of seal faces; aging, swelling, and embrittlement of auxiliary seals; and fatigue, fracture, and corrosion of metal components. Each test result corresponds to a clear trigger, laying a solid foundation for root-cause identification.
Step 3: Multi-Dimensional Cross-Validation to Clarify Core Root Causes (Detailed in the Table Below)
This is the heart of our failure analysis process. Using dual data sets from on-site tracing and laboratory testing, our technical team performs cross-verification across all key dimensions, testing every potential trigger one by one to pinpoint the exact root cause of failures. The full breakdown of our investigation framework is listed below:
Compatibility of seal face materials with media corrosion and abrasion; adaptability of seal structure to high temperature and pressure; compliance of piping plans with API 682 standards; customized design for sulfur-containing and particle-laden media
Inherent mismatched selection for operating conditions, lack of customized solutions for extreme on-site environments, the leading cause of long-term recurring leakage
Installation & Maintenance Standardization Check
Pump shaft coaxiality deviation and seal compression setting; installation cleanliness control; adaptability between cold and hot installation; standardization of equipment startup/shutdown operations
Micron-level installation deviations and non-standard startup/shutdown operations cause abnormal wear of seal faces, leading to short-term seal failure
Seal Body Quality Verification
Conformity of seal machining accuracy, material performance, and assembly quality to industry standards and design requirements
Substandard seal quality and component process defects lead to premature damage during operation
Pump Body Linked Failure Analysis
Excessive shaft vibration caused by bearing wear, equipment resonance from unbalanced impellers; shaft runout exceeding seal allowable range; media backflow due to worn pump casing wear rings
Pump core component failures transfer to seal faces, causing abnormal seal failure that cannot be resolved by seal replacement alone
3. Preferred Supporting Solution: Core Advantages of FBU GDM Series Cartridge Mechanical Seals (Tabulated)

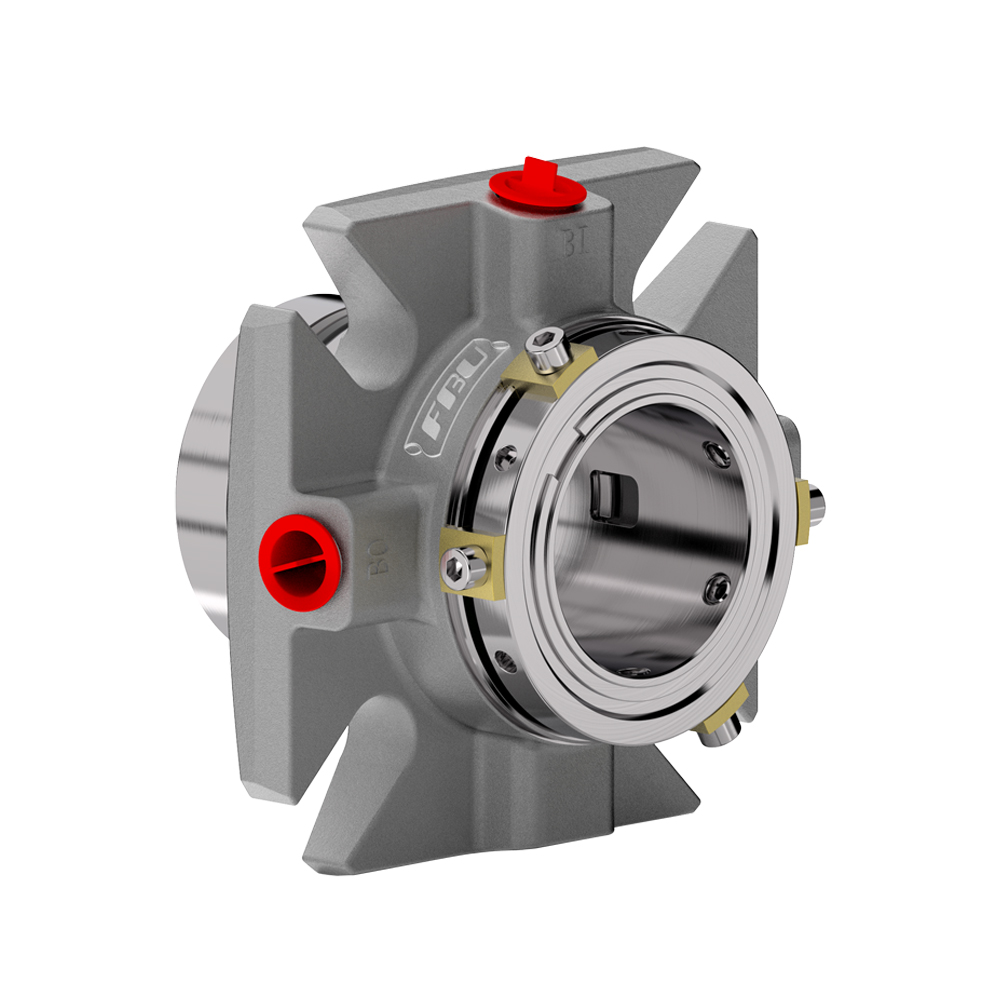

To support the corrective actions identified through our failure analysis, FBU has engineered the GDM Series cartridge mechanical seals — built specifically for the harsh operating conditions of the petroleum and petrochemical industry, while prioritizing simplified maintenance and fast deployment. Its core advantages are summarized below, making it the perfect match for post-analysis corrective solutions:
Advantage Category
Specific Design/Technical Highlights
Practical Application Value
Modular Design for Easy Maintenance
Integrated cartridge structure with pre-assembly and precision calibration before delivery; full-process step-by-step installation videos for visual operation guidance
No complex disassembly or debugging required, simple and fast installation, drastically shortening repair and shutdown time
Standardized Universal Parts
Core components adopt industry-standard universal specifications, interchangeable across different pump models
Shortens delivery lead times, reduces spare part inventory pressure, and enables rapid response to emergency failures
Robust Operating Condition Adaptation Technology

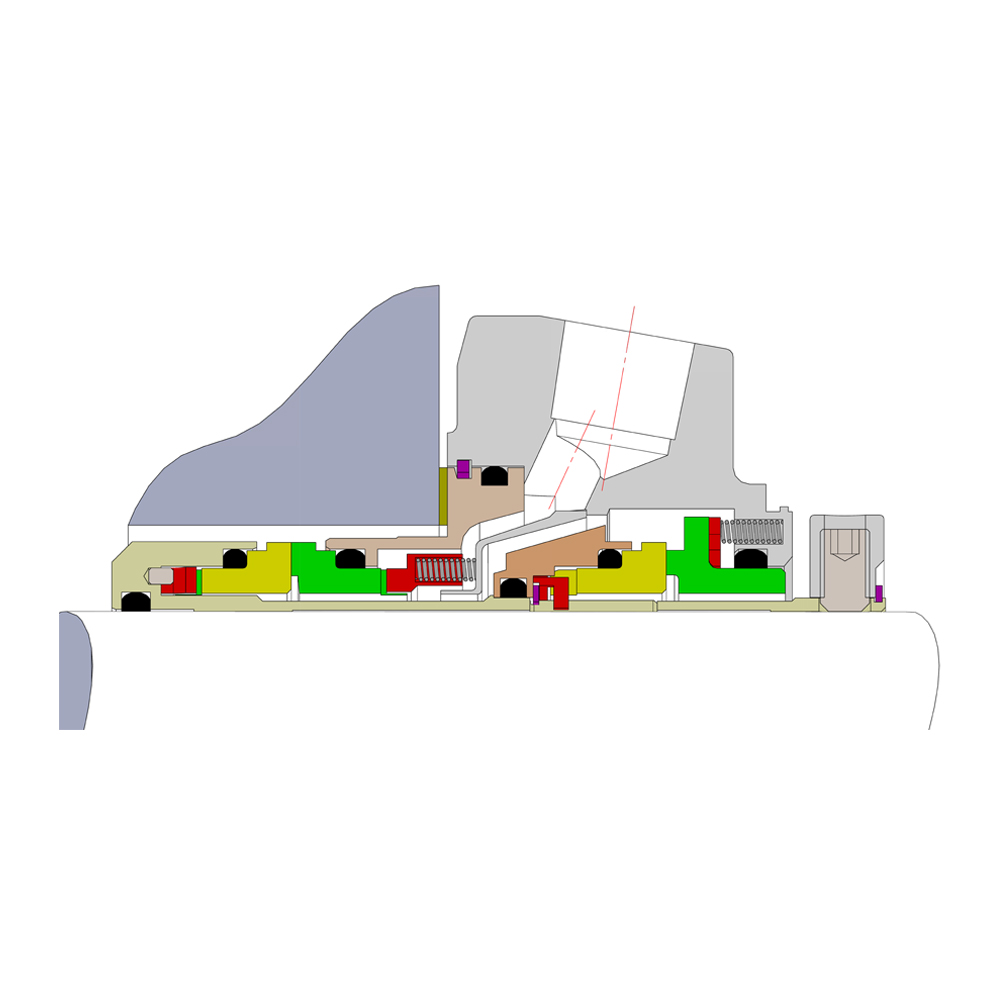

Stationary ring compensated seal face technology + tandem structure; dual balanced integrated ring for superior pressure fluctuation resistance; integrated bidirectional flow guide + unique pumping ring for efficient barrier fluid circulation; non-inserted ring design eliminates ring detachment and face displacement; compatible with Piping Plan 52/53A/53B/54
Withstands higher pressure and temperature limits, adapts to extreme operating conditions, and ensures stable, leak-free long-term operation
A feed pump serving the atmospheric and vacuum distillation unit at a large domestic refinery faced chronic, unmanageable issues: frequent leakage and repeated unplanned shutdowns. Over just 10 months, the facility replaced 7 sets of mechanical seals and disassembled the pump for repairs multiple times, yet the root cause of the failures remained unidentified. The seal mean time between failures (MTBF) dropped to less than one month, forcing repeated unplanned production slowdowns and racking up significant production and O&M losses for the operator.
After FBU’s technical team arrived on-site, we conducted a systematic investigation using our full-lifecycle seal failure analysis system: on-site inspection revealed slight bearing wear leading to excessive shaft vibration, with pump shaft coaxiality deviation far exceeding industry standards. Laboratory testing of the failed seals showed obvious vibration wear and thermal cracking on the seal faces. We ultimately identified two core root causes: excessive shaft vibration caused by pump bearing wear and substandard installation coaxiality were the primary triggers of frequent seal failures, while the original seal’s poor compatibility with the high-temperature, particle-laden media further accelerated failure.
Based on the analysis findings, we collaborated with the customer to replace the pump bearings and calibrate shaft coaxiality, resolving core pump body failures. We also matched the pump with FBU GDM Series cartridge mechanical seals, optimized the condition-adapted piping plan, and provided supporting installation videos and O&M training. After rectification, the pump operated continuously and stably for over 18 months without leakage or abnormal failures, completely solving the long-standing problem plaguing the enterprise.
5. Conclusion
For the petroleum and petrochemical industry, safe operations, long-term stable running, and cost-efficient productivity are non-negotiable core priorities. Frequent pump leakage and failures are never isolated component issues — they stem from a mix of equipment condition, operating environment, and maintenance practices. Blind, repetitive maintenance only increases wear and costs; the only way to break the cycle is to find the true root cause and implement targeted, permanent fixes.
FBU’s core promise is simple: we are more than just a mechanical seal supplier — we are a trusted seal technology partner for our customers. Centered on our professional full-cycle seal failure analysis, we help operators escape the trap of passive, repetitive maintenance, clear up the uncertainty around hidden failure causes, and pair our diagnostic expertise with the highly adaptable GDM Series cartridge mechanical seals. We resolve pump leakage and failure issues at their source, safeguard the long-term, safe, and stable operation of petroleum and petrochemical facilities, and deliver measurable, sustainable long-term value for every client.
