GDM

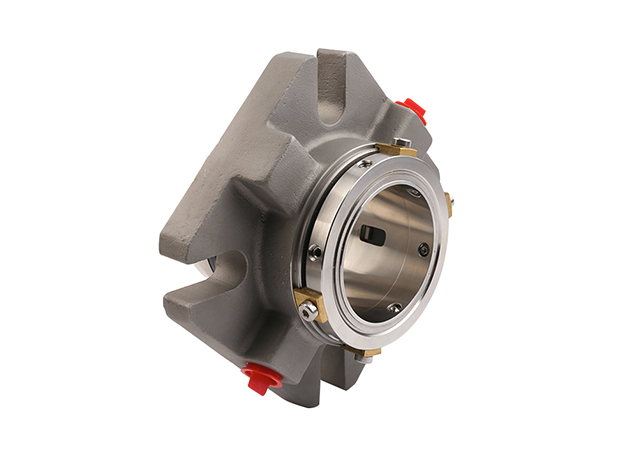

The Standard Stationary Double Seal Solution for Chemical Pumps
Availability:

■Stationary face compensation technology.

■Double balanced solid face design.

■Intergrated and Bi-directional diversion, unique pump ring design, excellet barrier fluid circulation.

■High Speed limits, up to 220 degree. No seal face drop or displacement.

■Higher pressure limits, up to 25 bar.

■Wet Part in Duplex steel, 904L, Alloy 276, Ti2, Zr-702 available.

■Suitable for API Plan 52/53A/53B/54.


Operating Conditions
Temperature-20° C to +220° C [-68° F to +428° F]
Pressure0〜25 Bar
SpeedUp to 25 m/s
Sealing product Acid,alkaline, low percentage of pulp, water, oil and other similar media.


Material Arrangement
Seal facesSSIC/CARBON/TC
RubberEPR/Viton®/Aflas®/Kalrez®
SpringsALLOY 276
Meta I316SS/DUPLEX/ALLOY 276/904L/TI2, ZR-702
