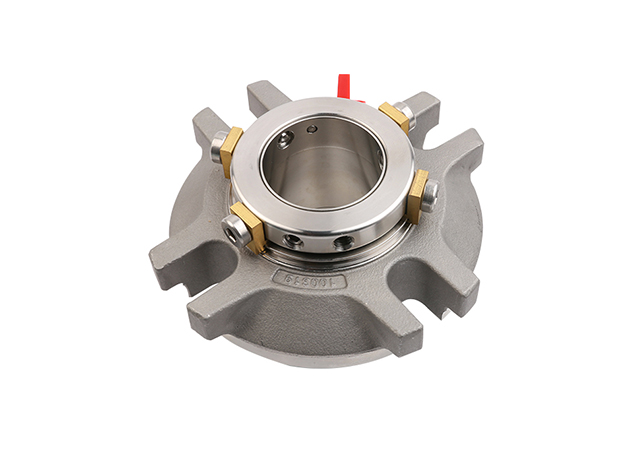

ESM

The Economically Efficient Single Seal Solution for Centrifugal Pumps
Availability:
Quantity:

■Rotating and balanced design.

■Modular design, universal compatible parts, reduced production cost.

■Springs loading protect from liquid, longer seal lifetime.

■Drive screws clamp directly on to shaft or sleeve to minimise drive loss.

■Standard 4 bolts gland designed for ISO 2858 pump.

■Suitable for Plan 11/21/32.


Operating Conditions
Temperature-20°C to +180°C [-68°F to +356°F]
Pressure0~20 Bar
SpeedUp to 20 m/s
Sealing product Acid,alkaline, low percentage of pulp, water, oil and other similar media.
Material Arrangement
Seal facesSSIC/CARBON/TC
RubberE P R/Vito n®/Af I as®/Ka I rez®
SpringsALLOY276
Meta I316SS/DUPLEX/ALLOY276/904L
