EDM

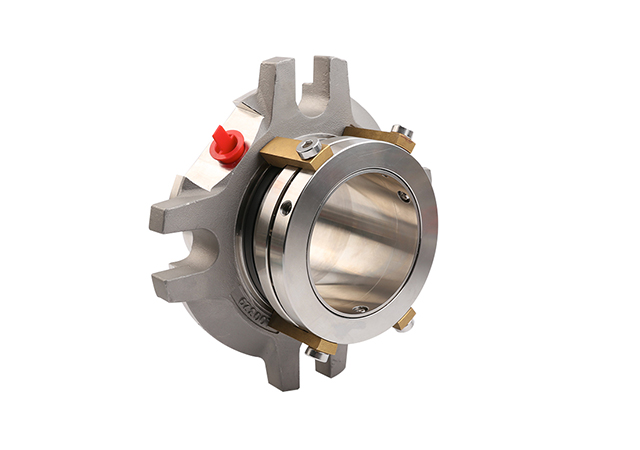

The Economically Efficient Double Seal Solution for Centrifugal Pumps
Availability:

■Rotating and balanced design.

■Modular design, universal compatible parts, reduced production cost.

■Springs loading protect from liquid, longer seal lifetime.

■Drive screws clamp directly on to shaft or sleeve to minimise drive loss.

■Standard 4 bolts gland designed for ISO 2858 pump.

■Suitable for Plan 52/53/54.


Operating Conditions
Temperature-20° C to+180° C [-68° F to +446° F]
Pressure0~20 Bar
SpeedUp to 20 m/s
Sealing productAcid,alkaline, low percentage of pulp, water, oil and other similar media.


Material Arrangement
Seal facesSSIC/CARBON/TC
RubberEPR/Viton®/Aflas®/Kalrez®
SpringsALLOY 276
Meta I316SS/DUPLEX/ALLOY 276/904L
