In the high-stakes environment of petrochemical refining, the cost of a mechanical seal is negligible compared to the cost of its failure. Yet, a recurring frustration for maintenance and reliability engineers isn’t necessarily the design of the seal itself, but the inconsistency of quality between batches.
When Batch A lasts eighteen months but Batch B fails in four, the resulting unplanned downtime ripples through production schedules, impacting both safety and the bottom line.
For many refineries, the pain point is rarely a lack of options; it is a lack of certainty. Inconsistent part dimensions, varying elastomer quality, or subtle deviations in face flatness can lead to:
Unpredictable MTBR (Mean Time Between Repair): Making preventive maintenance schedules impossible to optimize.
Secondary Equipment Damage: Seal failure often leads to bearing contamination or shaft damage.
Increased Spare Part Inventory: The need to "over-stock" to account for duds.
To move from a reactive "firefighting" mode to a proactive reliability strategy, the industry requires more than just a supplier—it needs a technical partner that treats traceability as a core engineering discipline.
At FBU Sealing Technology, we have addressed these industry pain points by moving beyond basic compliance. Reliability is built on three pillars:
Every component, from the primary seal ring to the smallest O-ring, is logged. Our system provides full-process traceability, meaning every part in a seal assembly can be traced back to its raw material batch and specific production run. This eliminates the "mystery failure" and allows for precise root-cause analysis.
Industry standards define the floor, not the ceiling. Our internal factory exit inspections are five times more rigorous than the standard requirements. We utilize advanced metrology to ensure that every seal leaving our facility is a "twin" of the design prototype, ensuring that Batch 100 performs exactly like Batch 1.
Compliance with API 682 is non-negotiable for petrochemical applications. Our engineering processes are built around these international standards to ensure compatibility, safety, and performance in the most volatile environments.

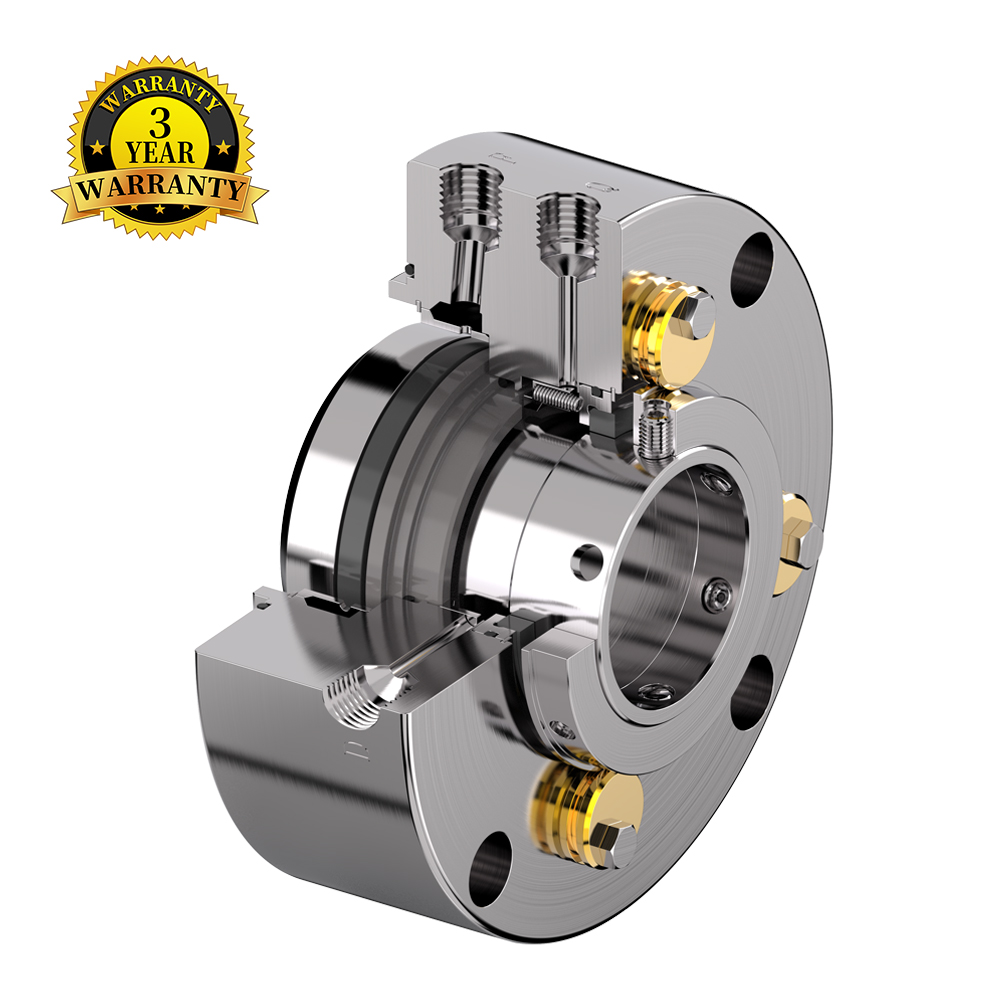

The APOG series represents our solution for single-seal configurations where stability is paramount. It is a single-cartridge, balanced seal designed for heavy-duty service.
Engineered for Thermal Stability:
One of the primary causes of batch failure is thermal distortion. The APOG series features:
Uniform Flush Distribution: An integrated guide ring ensures the flushing fluid cools the friction surfaces evenly, preventing localized hot spots.
Heavy-Duty Solid Seat: The robust design of the seat prevents deformation under high pressure ($\le 40$ bar).
Fixed Carbon Throttle Bushing: Provides an extra layer of safety by managing quench and drain fluids effectively.
Performance Specifications:
Shaft Diameter: 20 mm to 110 mm (0.79" to 4.33")
Temperature Range: -40 °C to +260 °C
Sliding Velocity: ≤ 30m/s
Rotation: Bi-directional capability for flexible installation.
The Challenge:
A major petrochemical plant in Southeast Asia experienced erratic seal life on a series of centrifugal pumps handling light hydrocarbons. While the seals were ostensibly "to spec," some units failed within 3,000 hours, while others lasted 12,000. This inconsistency made production planning a logistical nightmare.
The Solution:
FBU performed a technical audit and replaced the existing seals with the APOG-API Series. Because of our 5x inspection protocol, we identified that the previous supplier's shrink-fit rings had subtle variations in interference fit, leading to face distortion at operating temperatures.
The Result:
Consistency: Over a 24-month period, all FBU seals maintained a uniform wear pattern.
MTBR Improvement: The plant achieved a standardized MTBR of over 18,000 hours across all units.
Traceability Benefit: During a routine maintenance shutdown, the plant was able to verify the material certifications of every individual O-ring via our digital traceability records, significantly speeding up the safety audit process.
Reliability in the petrochemical industry is not just about the "best" seal—it is about the "most consistent" seal. By focusing on full-component traceability and inspection standards that far exceed the status quo, FBU Sealing Technology ensures that your production plan remains a plan, not a series of interruptions.
Looking to stabilize your plant's reliability? Contact our technical team for a seal audit or to discuss how API 682 compliance can be customized for your specific application.
Answer: While a Technical Data Sheet (TDS) confirms initial physical properties (Hardness, Tensile Strength, Elongation), it fails to account for molecular consistency and vulcanization kinetics.
The Reality: Minor fluctuations in polymer mixing or curing temperatures can create a "performance gap" between production runs.
The Risk: A batch may pass a standard shore hardness test but have a $5\%$ variation in cross-link density, leading to premature thermal degradation or chemical swelling in caustic petrochemical environments.
Answer: Inconsistent seal batches are the leading cause of "mystery" drops in Mean Time Between Failure (MTBF).
Rapid Gas Decompression (RGD): In high-pressure CO2 or Hydrogen service, even a slight decrease in material density in a specific batch can lead to internal fissuring (Explosive Decompression).
Cost Impact: For reliability engineers, one "bad batch" can negate an entire year’s worth of maintenance optimization, leading to unplanned downtime that costs refineries upwards of $50,000 per pump pull.
Answer: To ensure 100% batch-to-batch reliability, refineries are moving beyond basic mechanical tests toward Analytical Characterization:
FTIR Spectroscopy (Fingerprinting): Verifies the chemical "DNA" of the elastomer to ensure no unauthorized recipe changes.
TGA (Thermogravimetric Analysis): Accurately measures the ratio of polymer to carbon black/fillers, ensuring thermal stability.
Dynamic Stress Relaxation: Measures how the seal maintains sealing force over time, which is a much more accurate predictor of service life than a 24-hour compression set test.
Answer: Shift the focus from "Price-per-Piece" to Total Cost of Ownership (TCO) through these steps:
Batch-Specific Traceability: Require MTRs (Material Test Reports) that are specific to the production lot, not just generic "typical values."
Formula Locking: Partner with manufacturers who offer "Lock-Down" compounds where the formulation cannot be changed without customer re-validation.
Digital Material Passports: Integrate batch numbers into your CMMS (Maintenance Software) to correlate seal longevity with specific production dates.
