Understanding Single Cartridge Seal Overheating

An overheating mechanical seal is a ticking time bomb for industrial pumps. When a single cartridge mechanical seal exceeds its designed operating temperature, it leads to premature face wear, elastomer degradation, and eventually, catastrophic leakage.

If you are noticing discoloration on the seal gland, a burning smell, or audible "popping" noises from your pump, you likely have a heat-related issue. This guide breaks down why this happens and how to fix it.

5 Common Causes of Overheating in Single Cartridge Seals

To solve the problem, we must first identify the root cause. Most overheating issues stem from friction, lack of lubrication, or improper environmental controls.

1. Dry Running (The #1 Killer)

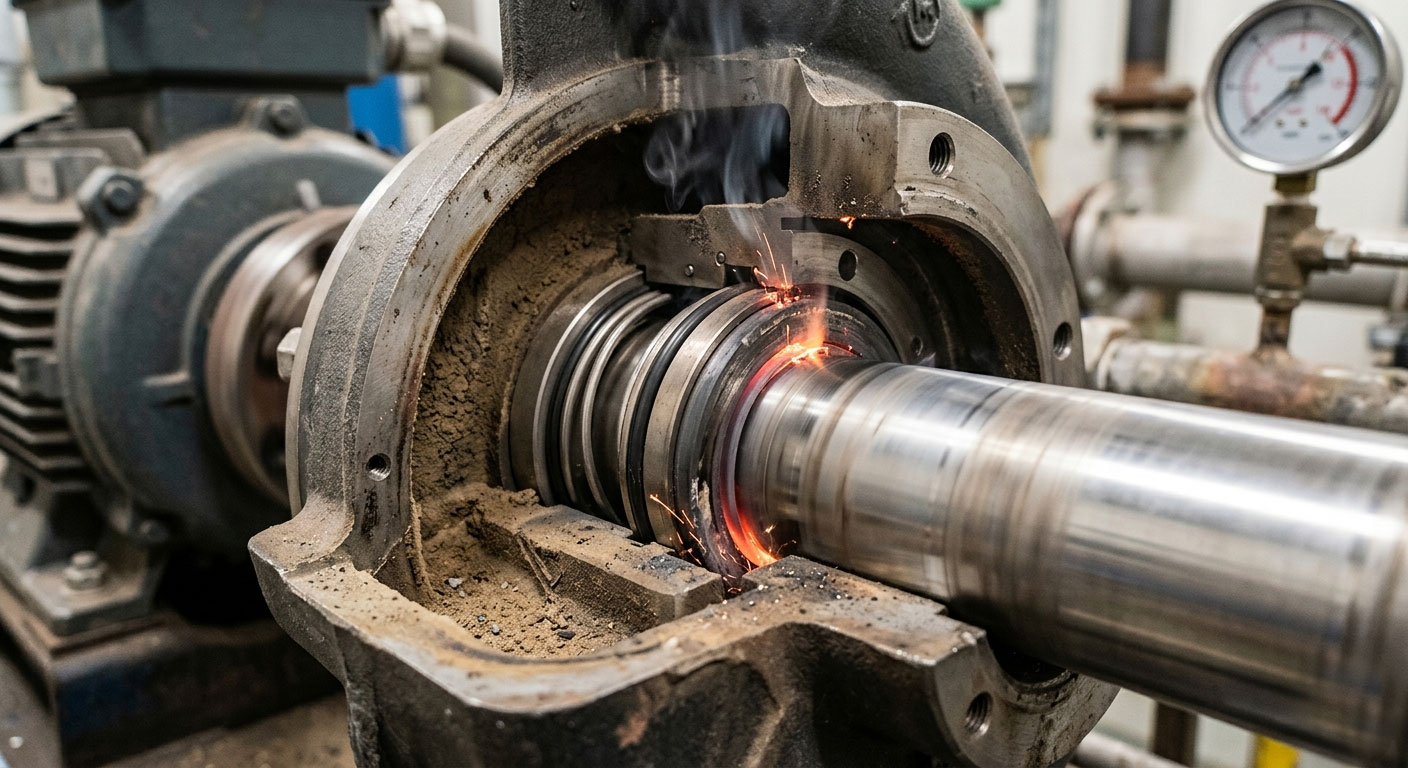

Mechanical seals rely on a thin film of fluid between the seal faces for lubrication and cooling. If the pump is started without being properly primed, or if air becomes trapped in the seal chamber, the faces rub against each other without lubrication.

Result: Rapid heat buildup within seconds, often leading to "heat checking" (radial cracks) on the seal faces.

2. Improper API Flushing Plans

Single cartridge seals often require an external or internal flush to carry away the heat generated by friction.

Plan 11 (Discharge Bypass): If the orifice is clogged, flow stops.

Plan 13 (Suction Continuous): Common in vertical pumps; if the vent is blocked, air pockets form.

Problem: If your API 682 flushing plan is insufficient for the fluid’s vapor pressure, the fluid will "flash" (turn to vapor) at the seal faces, causing them to run dry and hot.

3. Pressure-Velocity (PV) Limit Exceeded

Every seal has a rated PV value, which is the product of the seal face pressure and the peripheral velocity (sliding speed) at the seal face.

The Issue: If you are running the pump at a higher RPM than the seal was designed for, or if the system pressure has increased, the seal faces generate more heat than the materials (like Carbon vs. SiC) can dissipate.

4. Centering and Installation Errors

Although cartridge seals are "pre-set" to eliminate installation errors, issues can still occur:

Centering Clips: If the centering clips were not removed after installation, they can rub against the shaft or gland.

Shaft Misalignment: Excessive radial runout or shaft whip can cause uneven face contact, creating localized "hot spots."

5. Scale and Solid Buildup

If the process fluid contains solids or tends to crystallize (like salt or sugar solutions), particles can become trapped between the faces or clog the springs/bellows.

Result: This increases friction and prevents the seal from "breathing," leading to a rapid rise in temperature.

How to Diagnose and Fix Overheating Issues

Proactive Solutions to Prevent Heat Buildup

Optimize Your Flushing Strategy

For single cartridge seals, ensure your API Plan is optimized. If a standard Plan 11 isn't enough, consider upgrading to a Plan 21 (cooled discharge flush) to lower the temperature before the fluid reaches the seal faces.

Select the Right Face Materials

In high-friction applications, material choice is critical.

Silicon Carbide (SiC) vs. Tungsten Carbide (TC): SiC has excellent thermal conductivity and can dissipate heat faster than many other materials.

Use Technical Visualization

When troubleshooting, refer to the exploded view or cross-sectional diagram of your specific cartridge seal model. Ensure that the internal circulation path is not obstructed by debris or improper gasket placement.

Conclusion

A single cartridge seal overheating is usually a symptom of a larger system issue—either a lack of lubrication or a mismatch between the seal design and the operating environment. By monitoring your API flushing plans and ensuring proper venting, you can significantly extend the life of your mechanical seals.
