The Invisible Enemy of Mechanical Seals

You’ve invested in a high-quality single cartridge mechanical seal, followed the installation manual to the letter, and ensured your API flushing plan is operational. Yet, within weeks—or even days—the seal begins to leak.

When you strip the pump, the faces are chipped or unevenly worn. The culprit isn’t the seal quality; it’s the 0.05mm difference. In the world of high-speed rotating equipment, excessive shaft runout and vibration are the "silent killers" that bypass even the most robust cartridge designs.

1. What is Shaft Runout and Why Does 0.05mm Matter?

Shaft runout is the radial displacement of the shaft from its theoretical center of rotation. While a cartridge mechanical seal is designed to handle slight movements, it has a physical limit.

The Industry Standard: Most premium cartridge seals, including FBU series, are engineered to operate optimally within a Total Indicator Reading (TIR) of less than 0.05mm (0.002 inches).

The Impact: Once runout exceeds this threshold, the mechanical seal faces can no longer maintain a stable lubricating film. Instead of "gliding" on a micron-thin layer of fluid, the faces begin to oscillate violently.

2. How Vibration Destroys the "Cartridge Advantage"

A cartridge seal is a pre-assembled unit, but it still relies on the pump's mechanical integrity. Excessive vibration (often caused by cavitation, misalignment, or bearing wear) affects the seal in three catastrophic ways:

A. Carbon Face Chipping

High vibration causes the hard seal face (typically Silicon Carbide or Tungsten Carbide) to repeatedly hammer against the softer carbon face. This leads to micro-chipping at the edges, which creates leak paths that no amount of spring pressure can close.

B. "Hang-up" of the Dynamic O-ring

The dynamic O-ring in a cartridge seal must move freely to compensate for face wear. High-frequency vibration can cause the O-ring to fret against the shaft sleeve, creating grooves or causing the seal to "hang up." Once the O-ring loses its flexibility, the seal faces open up, and leakage is immediate.

C. Fatigue Failure of Springs or Bellows

In metal bellows cartridge seals, vibration induces harmonic resonance. This can lead to fatigue cracking of the bellows plates long before their theoretical service life is reached.

3. Diagnosing the "Runout Killer" at Your Site

Before installing your next replacement seal, use a dial indicator to check these three critical areas:

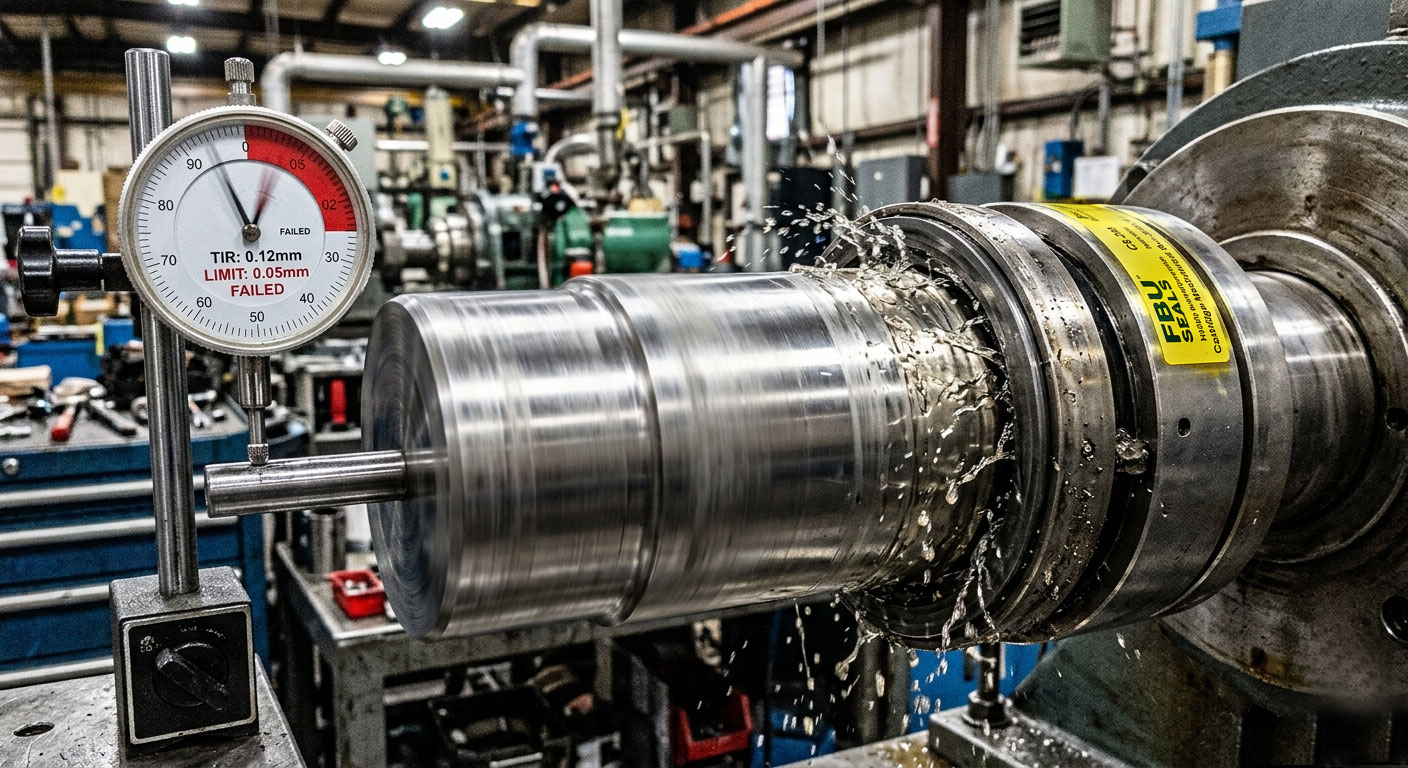

Radial Runout: Measure the shaft at the seal location. Is it over 0.05mm? If yes, check your bearings.

Axial End Play: Excessive float (over 0.1mm) can cause the seal faces to unload or over-compress during start-up.

Stuffing Box Squareness: If the face of the stuffing box is not perpendicular to the shaft, the cartridge gland will be cocked, leading to uneven face loading.

4. Technical Solutions: Beyond the 0.05mm Limit

If your application involves inherent vibration (such as in slurry pumps or agitators), a standard single cartridge seal may not be enough.

Flexible Stator Designs: Consider seals where the stationary element compensates for misalignment rather than the rotating one.

Upgrading to Double Cartridge Seals: A double mechanical seal with a pressurized barrier fluid provides a "cushion" that can dampen vibration and maintain face lubrication even in unstable conditions.

Material Selection: Switching to high-toughness materials like Tungsten Carbide (TC) can provide better resistance to the mechanical shock caused by vibration compared to brittle carbon.

Conclusion

A mechanical seal is only as good as the equipment it's installed in. The 0.05mm difference is the boundary between a seal that lasts two years and one that lasts two weeks. At FBU Sealing Technology, we don't just provide hardware; we provide the technical diagnostic support to ensure your pumps run true.

FAQ

1: Can a cartridge seal handle shaft deflection during pump start-up?

A: Yes, cartridge seals are more resilient than component seals during transients, but sustained deflection over 0.05mm will rapidly degrade the seal faces.

2: Will a balanced seal design help with vibration?

A: Balanced seals reduce the heat generated at the faces, which helps, but they cannot physically compensate for the mechanical impact of high-frequency vibration.

3: How do I know if my seal failed due to vibration or dry running?

A: Vibration failure typically shows uneven wear or "chipping" on the outer diameter of the faces. Dry running usually results in heat checking (fine radial cracks) and a characteristic "burnt" smell.
