Mechanical seals are crucial components in various industrial applications, especially in rotating equipment such as pumps, mixers, and compressors. Their primary function is to prevent leaks between rotating and stationary components, helping to maintain the integrity of systems while preventing fluid or gas leaks that could result in environmental contamination, efficiency loss, and costly downtime.
Installing a mechanical sealcorrectly is vital for optimal performance and longevity of both the seal and the equipment it protects. An improperly installed mechanical seal can lead to leakage, excessive wear, and even complete system failure. This guide provides a comprehensive, step-by-step approach to installing a mechanical seal, ensuring that your equipment operates smoothly and efficiently.
In this article, we will walk you through the entire process of mechanical seal installation, from preparation and inspection to final checks and testing. By following this guide, you can ensure that your mechanical seal is installed correctly and can deliver peak performance for an extended period.

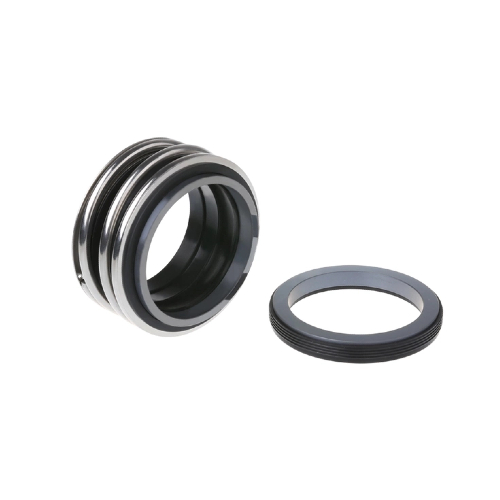

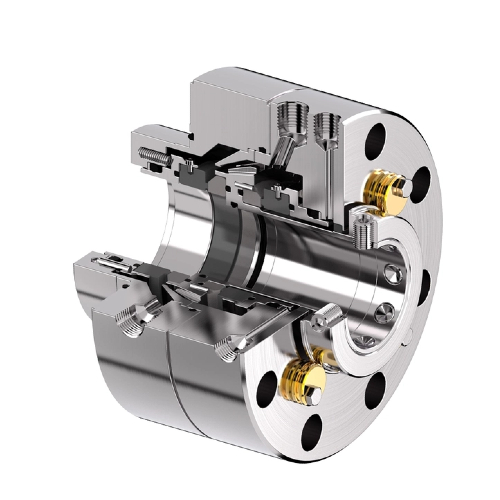

A mechanical seal is a device used to prevent the leakage of liquids or gases between rotating and stationary parts of machinery, most commonly in pumps, compressors, and mixers. The seal consists of several components that work together to create a tight, leak-free barrier.
Sealing Faces: These are the primary components that come into contact and provide the sealing action. The faces are typically made from materials like carbon, ceramic, or tungsten carbide, chosen based on the application.
Spring: The spring provides pressure to maintain the sealing faces in contact, ensuring a consistent seal.
O-rings: These rubber components provide secondary sealing to prevent leaks between the stationary and rotating parts.
Sleeve: The sleeve protects the shaft from damage and helps in proper alignment of the sealing faces.
Gaskets: Gaskets ensure a tight seal between different parts of the mechanical seal assembly.
The mechanical seal ensures that the pump or mixer can operate without any leakage of hazardous or expensive fluids, making it a critical component in various industrial processes, including chemical, oil and gas, and water treatment industries.
Correct installation of a mechanical seal is essential to ensure its performance and longevity. Improper installation can lead to multiple problems, including:
Leakage: Improper alignment can result in gaps between sealing faces, leading to fluid leakage.
Premature Wear: Incorrect installation forces on the sealing faces can cause excessive wear, reducing the lifespan of the seal.
Downtime: Seal failure due to installation errors can lead to costly downtime and repairs.
Correct installation ensures that the mechanical seal performs at its best, reducing the chances of leakage, wear, and failure. It also helps optimize the efficiency of the equipment and extends its operational life.
Before starting the mechanical seal installation, it's crucial to take the necessary steps to prepare both the seal and the equipment. Proper preparation will ensure a smooth and successful installation process.
Seal Inspection: Before installation, inspect the mechanical seal for any visible signs of damage, such as cracks, scratches, or wear on the sealing faces. Make sure the components are compatible with the equipment specifications, including the shaft and sleeve sizes.
Equipment Inspection: The sealing surface of the pump or mixer must be free of dirt, debris, or corrosion. Inspect the shaft and sleeve for any damage or wear, as these can negatively impact the seal’s performance.
Shaft and Sleeve Cleaning: Use a clean, lint-free cloth to wipe down the shaft and sleeve. If there is any rust or corrosion, remove it using a mild abrasive material or rust remover.
Seal Area: Clean the seal cavity thoroughly to remove any dirt or debris. Ensure that the sealing faces and O-rings are clean and free from contaminants.
You will need the following tools and materials for a successful mechanical seal installation:
Tool |
Purpose |
Torque Wrench |
For tightening bolts to specified torque. |
Seal Installation Tool |
For properly placing the mechanical seal. |
Lubricants |
To lubricate the O-rings and sealing faces. |
Cleaning Materials |
For cleaning the shaft, sleeve, and seal surfaces. |
Measuring Instruments |
For checking dimensions and ensuring proper fit. |
Protective Gloves |
To avoid contamination of the seal and to protect hands. |
Now, let’s go through the step-by-step process of installing a mechanical seal to ensure it is fitted correctly and operates efficiently.
Before you begin installing the mechanical seal, ensure that the shaft and sleeve are properly prepared.
Inspect the Shaft: Check for any grooves, nicks, or imperfections that could damage the seal during installation. The shaft should be smooth and free of any wear or damage.
Clean the Shaft: Use a lint-free cloth to wipe the shaft clean. If needed, use a mild abrasive to remove any stubborn dirt or corrosion.
Check Shaft Alignment: Ensure that the shaft is aligned properly with the pump housing to avoid misalignment during seal installation.
The primary sealing face is the rotating part of the seal. This step involves mounting it on the shaft.
Lubricate the Shaft: Apply a thin layer of lubricant on the shaft to help the seal fit smoothly during installation.
Slide the Primary Sealing Face: Gently slide the primary sealing face onto the shaft, ensuring that it is aligned with the shaft sleeve. It’s important that the face is not damaged during this process, so be gentle.
The secondary sealing face is the stationary part of the mechanical seal.
Position the Stationary Seal: Place the stationary sealing face into the seal cavity, aligning it with the mounting flange.
Check for Alignment: Ensure that the stationary face is properly aligned with the shaft and primary sealing face. Misalignment can cause leaks and premature wear.
Springs and O-rings are critical for maintaining proper pressure and sealing integrity.
Install the Springs: Place the springs around the sealing faces to apply uniform pressure. The springs should be securely fastened to ensure that the sealing faces maintain the right amount of compression.
Install the O-rings: Apply lubricant to the O-rings and place them in the designated grooves on the stationary face. Ensure that the O-rings are seated correctly to avoid leaks.
Align the Components: Carefully align all components of the mechanical seal, ensuring that the sealing faces and springs are properly positioned.
Secure the Seal: Use an installation tool to press the mechanical seal into place. The seal should fit snugly and securely, without any excessive force.
It is critical to ensure that the mechanical seal is properly compressed to provide effective sealing.
Check Compression: Use a feeler gauge or another measurement tool to check the compression of the seal. The mechanical seal should be tight but not overly compressed.
Adjust If Necessary: If the seal is not properly compressed, adjust the installation until the correct compression is achieved.
After the mechanical seal has been installed, it’s essential to conduct final checks and tests to ensure everything is functioning correctly.
Perform a visual inspection to ensure that the mechanical seal is seated properly and that all components are aligned. Check for any visible gaps or misalignments.
Once the mechanical seal is in place, perform a functional test:
Run the Equipment: Start the equipment at low speeds and check for any signs of leakage or abnormal behavior.
Monitor Pressure: Ensure that the system maintains the proper pressure without any fluctuation.
If any issues are detected during the testing phase, make the necessary adjustments. For example, if there is leakage, check the compression or alignment of the mechanical seal.
Proper maintenance is essential for extending the life of mechanical seals and ensuring they continue to perform effectively.
Inspect mechanical seals regularly to detect any early signs of wear or damage. This can prevent unexpected failures and reduce the risk of costly downtime.
Ensure that the mechanical seals are properly lubricated to reduce friction and wear. Regularly check the lubricant levels and replace them when necessary.
Keep track of the operational conditions of the equipment, including temperature, pressure, and vibration. Extreme conditions can shorten the lifespan of mechanical seals, so it’s crucial to maintain optimal operating conditions.
Proper mechanical seal installation is essential for maintaining the integrity and efficiency of rotating equipment. By following the step-by-step guide outlined in this article, you can ensure that your mechanical seal is installed correctly and performs at its best for an extended period. Regular inspection, proper installation, and routine maintenance are crucial to preventing seal failures, minimizing downtime, and prolonging the lifespan of both the seal and the equipment.
Mechanical seals are vital for the smooth and safe operation of industrial systems. Ensuring they are installed properly not only reduces the risk of failure but also minimizes unnecessary maintenance costs, contributing to the overall success of your operations.
At FBU Sealing Technology (Suzhou) CO. Ltd., we specialize in providing high-quality mechanical seal solutions and expert installation services. Our team is committed to delivering reliable performance and extended service life for your mechanical seals, ensuring optimal operation. Contact us today to learn more about how we can support your business with our advanced sealing technologies and services.
Essential tools include a torque wrench, seal installation tool, lubricants, cleaning materials, and measuring instruments.
Visual inspection and functional testing, such as running the equipment at low speed, help ensure the seal is installed properly.
With the right tools and knowledge, mechanical seal installation can be performed by individuals with technical expertise, following the manufacturer’s instructions.
Incorrect installation can lead to leaks, seal wear, and premature failure, resulting in downtime and costly repairs.
Mechanical seals should be inspected regularly, with replacements typically occurring every 1-2 years or based on the operating conditions.
