In the aggressive fluid-handling fluid loops of pulp and paper mills, pumping equipment faces some of the most destructive operating conditions in general heavy industry. Process mediums ranging from cooking liquor and chemical bleaches to high-consistency paper pulp fibers and abrasive black liquors are not only highly corrosive but also tightly loaded with suspended solids. Under these harsh conditions, standard cartridge mechanical seals frequently suffer premature failures due to physical erosion and geometric obstructions, provoking unplanned line shutdowns that inflict staggering maintenance costs and massive production yield deficits.
Particularly for the paper mill's critical stock and process pumps—such as the globally dominant Sulzer AHLSTARUP series—extending the Mean Time Between Failures (MTBF) of pump seals is a high priority for field maintenance engineers. This engineered guide breaks down the core failure mechanisms of cartridge seals in specialized pulp and paper工况 and highlights how strategic technical upgrades can optimize operational uptime.
Pumps handling medium-to-high consistency pulp stocks transport stock dense with long vegetable fibers. If a mechanical seal utilizes a design where the compensation springs are directly exposed to the process stream, these fibers rapidly intertwine and silt up within the compact spring coils. Over time, the packed fiber nest hardens and completely paralyzes the spring’s axial movement. When the pump shaft undergoes minor axial thermal displacement or sudden fluid surge fluctuations, the seal faces can no longer adjust, leading to catastrophic face separation and immediate leakage.
In chemical pulp recovery loops, evaporation processes yield black liquor that is highly viscous and saturated with aggressive organic solids. As this liquor attempts to seep across the microscopic primary seal faces toward the atmospheric side, the sudden drop in local temperature and pressure causes flash evaporation. The remaining moisture-deprived residues solidify into ultra-hard carbonized encrustations. Upon equipment restart, these crystalline matrices generate immense shear forces, scoring the seal faces or cracking the carbon graphite rings.
To physically repel fiber build-up from the seal chambers, many pulp mills rely on single cartridge configurations coupled with high-pressure external liquid injections (API Plan 32). While this successfully isolates the seal faces, it continually forces thousands of gallons of external diluting water directly into the chemical pulp stock. This injection corrupts process fluid properties and demands massive thermal energy inputs in subsequent evaporation stages to bake out the introduced water—violating modern mills' lean-energy environmental mandates.
Enduring repetitive "failure-shutdown-replacement" loops with aging or overpriced legacy seals is no longer a viable option for modern mill operators. To help global pulp production lines break away from tier-1 OEM monopolies, slash inflated spare parts expenditures (OPEX), and guarantee seal stability in dense slurries, FBU Sealing Technology (FBU) has engineered an exact-fit alternative solution specifically tuned for paper mill process pumps.

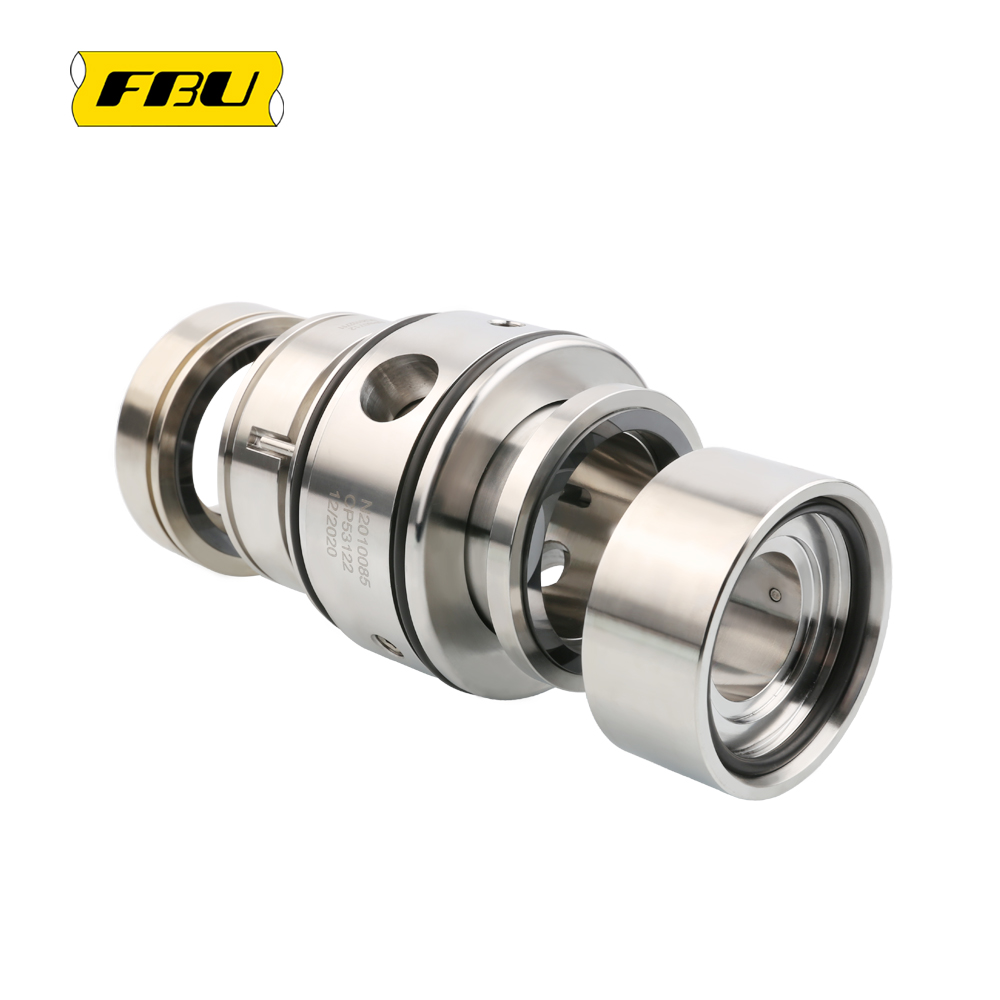

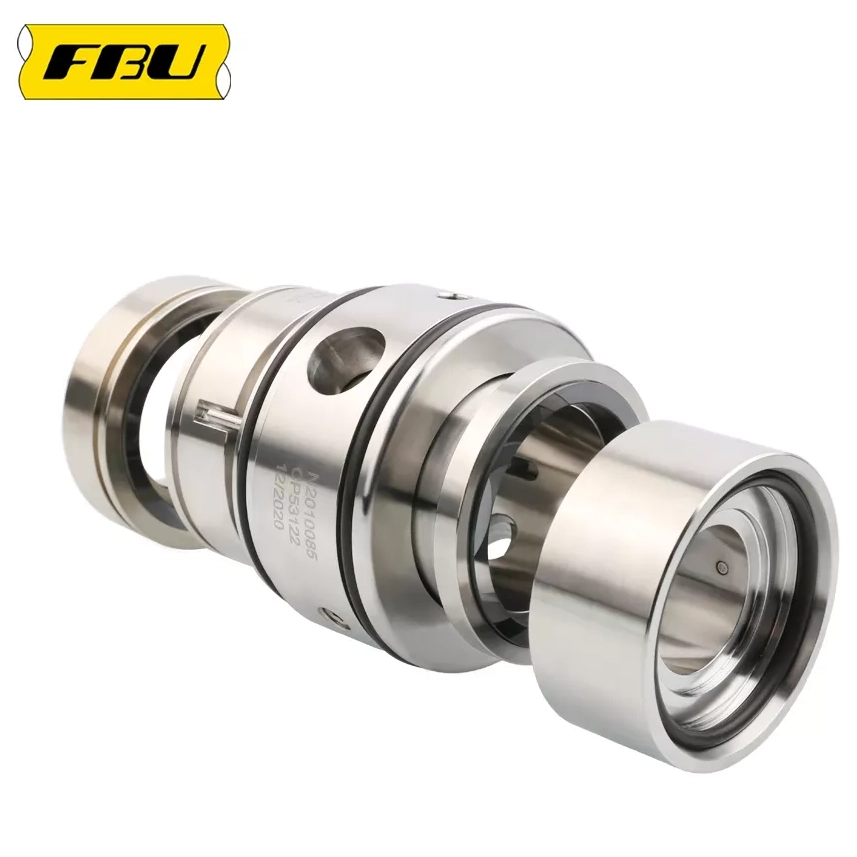

For mill operations currently utilizing the John Crane Type JCS2P double cartridge mechanical seal series, FBU's fluid R&D division has developed the heavy-duty FBU 2240 Series Double Cartridge Mechanical Seals.
Technical Upgrade Advantages of the FBU 2240 Series:
100% Seamless Dimensional Alignment: The FBU 2240 series is meticulously dimensioned to match the installation footprint of the John Crane JCS2P seal. It fits natively into the stuffing box profiles of Sulzer AHLSTARUP process pumps without requiring any field machining or modifying existing shaft sleeves.
Isolated Stationary Spring Architecture: Engineered to conquer fiber clogging, the FBU 2240 relocates the compensation springs entirely out of the process fluid, anchoring them safely within the stationary buffer/barrier fluid chamber. Slurry particles and paper fibers never come into contact with the spring coils, completely eliminating spring-locking failure modes.
Dual Barrier Safety & Eco-Friendly Water Savings: Operating as a true double cartridge seal configuration, the 2240 series works alongside an isolated barrier loop system to form a clean fluid barrier across the primary and secondary faces. This guarantees absolute containment of corrosive slurries while eliminating the need for continuous, wasteful API Plan 32 water injections, saving mills millions in wastewater treatment and fuel utility costs.
A: Yes, the FBU 2240 series is a direct, engineered alternative developed specifically for absolute dimensional and functional interchangeability with the John Crane Type JCS2P double seal. It maps perfectly to the geometric boundaries of Sulzer AHLSTARUP process pump stuffing boxes, ensuring a seamless retrofitting process with zero modifications required.
A: Standard OEM seals often feature rotating springs that wade through the dirty process fluid, collecting fibers. The FBU 2240 series employs a stationary design that repositions the multi-spring assembly inside the clean barrier/buffer fluid cavity. Because the springs are physically isolated from the pulp fibers and solid chemical salts, they cannot clog, ensuring permanent axial flexibility.
A: Yes, significantly. Many mills use single seals with massive external water flushes (API Plan 32) to keep fibers away, which dilutes the stock and spikes evaporation energy bills. The FBU 2240 operates as a closed-loop double mechanical seal with an independent barrier tank. This creates a pressurized fluid barrier that keeps out slurries without continuously dumping external water into your process loop.
A: For heavy slurry and black liquor applications, FBU avoids fragile carbons on the product side. We recommend solid, pressure-sintered Silicon Carbide vs. Sintered Silicon Carbide (SSiC vs. SSiC) or premium-grade Tungsten Carbide vs. Tungsten Carbide (TC vs. TC) face pairings. This guarantees maximum resistance against micro-particle abrasion and structural impacts from solids.
A: FBU acts as your dedicated Technical Partner. We don't just ship boxes; our application engineering team reviews your precise pulp consistency, operating chemical pH, and pressure curves to supply full cross-sectional drawings, installation advice, and specialized elastomer recommendations (like FFKM for aggressive chemical bleaching) to maximize your mill’s operational MTBF.
