I. Introduction

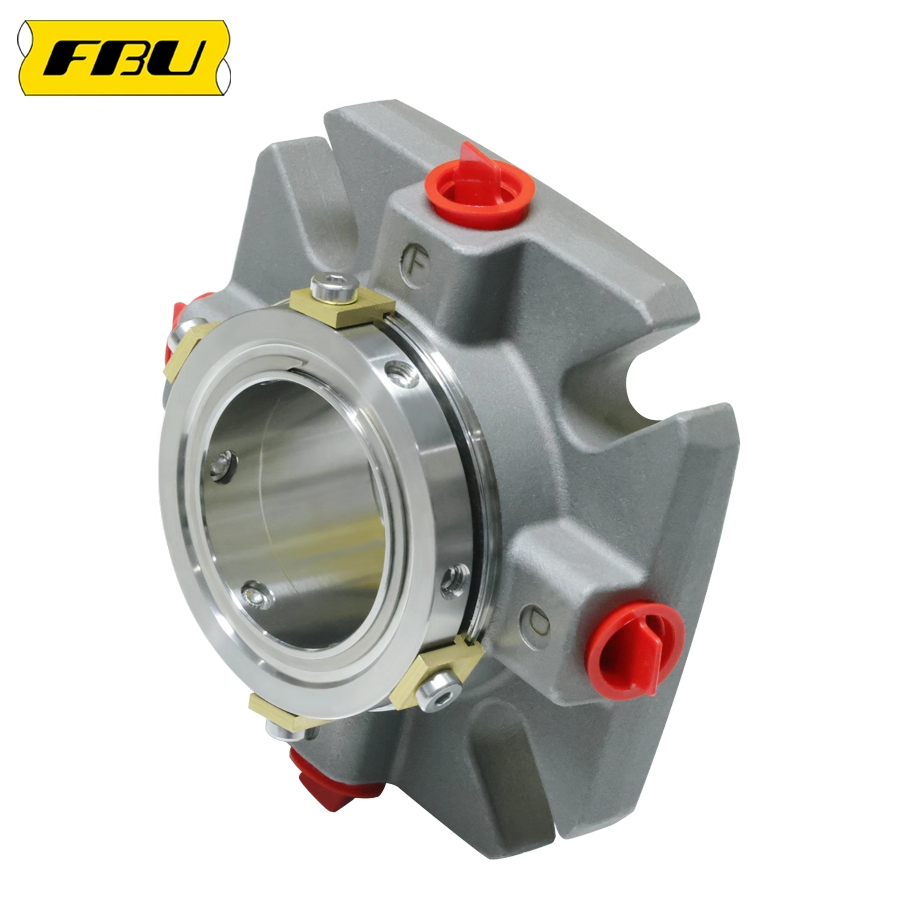

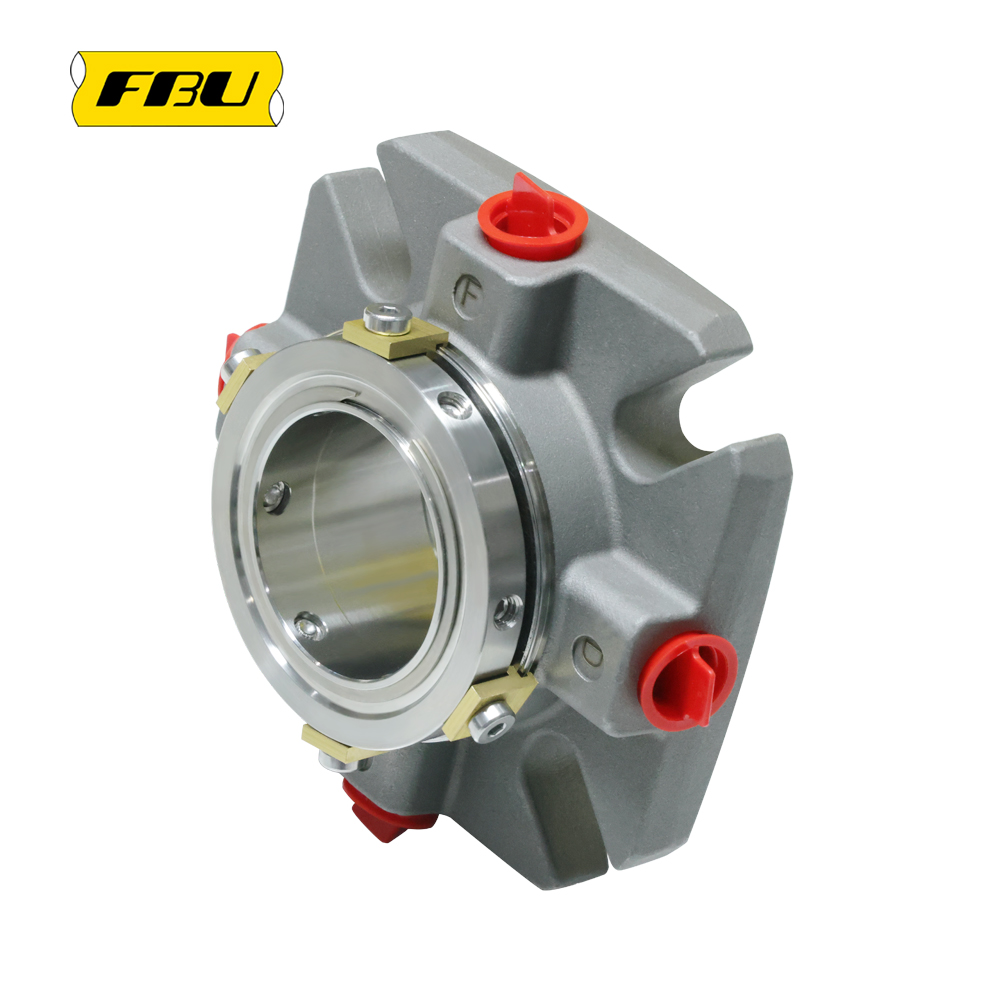

In modern industrial fluid handling, the reliability of a mechanical seal is often determined not by its mechanical design alone, but by the material science behind its components. For engineers and procurement managers in the chemical, oil and gas, and power sectors, selecting the right material is a balance between operational longevity and cost-efficiency.

Under extreme conditions—defined by temperatures exceeding 200°C, pressures above 2 MPa, or highly aggressive chemical media—standard materials often fail prematurely. This guide provides a technical deep-dive into material performance, helping industry professionals make informed decisions to minimize downtime and prevent catastrophic seal failure.

II. Working Conditions and Failure Mechanisms

Understanding how materials fail is the first step toward successful selection.

• High Temperature: Causes thermal expansion, which can lead to face distortion. Prolonged heat results in thermal oxidation of carbon components and creep in elastomers, leading to a loss of sealing force (compression set).

• High Pressure: Subjected to high PV (Pressure-Velocity) values, seal faces may experience heavy wear or "blistering." High pressure also risks extruding elastomers or causing structural deformation of the seal hardware.

• Corrosive Media: Chemicals (acids, alkalis, solvents) attack materials via chemical degradation(swelling/softening of polymers) or electrochemical corrosion (pitting or galvanic corrosion in metals).

• Synergistic Effects: The combination of high temperature and corrosion often accelerates chemical reactions, while high pressure can force corrosive fluids into microscopic pores, causing internal material failure.

III. Overview of Mainstream Sealing Materials

The following table summarizes the performance of common materials used in high-demand environments.

IV. Comparative Analysis: Three Extreme Scenarios

1. High-Temperature Scenarios (>200°C)

In high-heat applications like heat transfer oils or boiler feed water, Silicon Carbide (SiC) paired with Antimony-impregnated Carbon is a standard choice.

Design Consideration: Account for the Coefficient of Thermal Expansion (CTE). Mismatched expansion between a metal housing and a ceramic ring can cause cracking.

Mitigation: Use API Plan 21 or 23 cooling systems to stabilize the environment. For elastomers, FFKM is mandatory as standard Viton (FKM) will harden and fail.



2. High-Pressure Scenarios (>2 MPa)

Under high pressure, the primary risk is face deformation.

• Recommended Materials: Tungsten Carbide (TC) is often preferred over SiC for its higher fracture toughness and resistance to mechanical shock.

• Design Consideration: Use balanced seal designs to reduce the load on the faces. Back-up rings or "anti-extrusion" rings should be used for O-rings to prevent them from being forced into gaps.

3. Highly Corrosive Media (Acids/Alkalis)

Corrosion is often "silent." A material might look intact but lose its structural integrity.

• Recommended Materials: Sintered Silicon Carbide (SSiC) is the gold standard for chemical inertness. For metals, Hastelloy C-276 offers superior protection against pitting in chloride-rich environments.

• Electrochemical Note: Avoid pairing dissimilar metals (e.g., 316 SS and Hastelloy) in an electrolyte (saltwater) to prevent galvanic corrosion.



V. Face Pairing and Design Guidelines

The interaction between the stationary and rotating faces is the "heart" of the seal.



• Hard vs. Soft: Pairing SiC with Carbon allows the soft material to "wear-in," providing better lubrication and tolerance for dry-running.

• Hard vs. Hard: Required for abrasive media (sand, crystals). SiC vs. SiC is common, but requires strict cooling and lubrication to prevent "heat checking."

• Surface Finish: Faces must be lapped to a flatness of within 2–3 light bands (approx. 0.6–0.9 microns) to ensure a stable fluid film.

VI. Testing and Validation

Before field installation, materials should undergo rigorous validation:

• Chemical Immersion Tests: Soaking elastomers in the process fluid for 72+ hours to check for volume change or hardness loss.

• Pressure Cycling: Simulating start-stop conditions to ensure the seal doesn't "burp" or leak during transitions.

• Third-Party Certification: Ensure materials meet API 682, FDA (for food/pharma), or NACE (for sour gas) standards.

• VII. Selection Workflow: A Decision Tree

• Define Fluid Chemistry: What is the pH? Are there solids? (Select Face Material).

• Check Temperature: Is it within the elastomer's operating range? (Select O-ring/Bellows).

• Evaluate Pressure: Does the seal require a balanced design or high-strength metal? (Select Seal Type).

• Cost-Benefit Analysis: Does the MTBF (Mean Time Between Failure) justify the premium for FFKM or Hastelloy?

VIII. Industrial Case Studies

• Case A (Chemical): A pump handling 98% Sulfuric Acid replaced 316SS components with Hastelloy C and switched to SSiC faces. Seal life increased from 3 months to 24 months.

• Case B (Oil & Gas): High-pressure crude oil injection pumps experienced O-ring extrusion. Upgrading to 90-durometer FFKM with anti-extrusion rings eliminated leakage.



IX. Maintenance and Commercial Strategy

For distributors and agents, selling high-performance materials is not just about the sale; it is about providing solutions.

• Inventory Strategy: Maintain a stock of "universal" O-rings (like FFKM) for emergency repairs in critical sectors.

• Predictive Maintenance: Monitor temperature spikes and vibration; these are early indicators that the material limit is being reached.



X. Conclusion

Selecting sealing materials for extreme conditions is a precision engineering task. While SSiC and FFKM offer the broadest protection, the optimal choice often lies in the balance of temperature, pressure, and chemical compatibility. By prioritizing technical "dry goods" and data-backed selection, operators can significantly extend equipment life.



FAQ

1.Can I use PTFE O-rings for all corrosive applications?



While PTFE is chemically inert, it lacks "elastic memory." Once compressed or heated, it may not return to its original shape, leading to leaks. It is often better to use PTFE-encapsulated O-rings or FFKM.



2.Why did my SiC seal face crack in a high-temperature application?



This is likely "thermal shock." Rapid temperature changes or inadequate cooling (Plan 11/21) cause uneven expansion. Ensure consistent fluid flow to the seal faces.



3.Is Tungsten Carbide always better than Silicon Carbide for high pressure?



TC has higher impact resistance (it is less "brittle"), which is better for high-vibration or high-pressure spikes. However, SiC is harder and more chemically resistant.



4.How do I identify galvanic corrosion on my seal?



Look for localized pitting or "eating away" of the metal where two different metals touch. Using compatible alloys or non-conductive coatings can mitigate this.
