Understanding the Importance of Seal Flush Plans

In the world of fluid handling and centrifugal pumps, the longevity of a mechanical seal is rarely determined by the seal alone. Instead, it depends on the environment in which the seal operates. This is where Seal Flush Plans become indispensable. Seal Flush Plans are standardized configurations—most notably defined by the API 682 standard—designed to create the ideal operating environment for mechanical seals by managing temperature, pressure, and lubrication.

By implementing the correct Seal Flush Plans, industrial plants can significantly reduce "Dry Running" and "Heat Checking," two of the most common causes of seal failure. Whether you are managing a chemical processing facility or a high-pressure oil refinery, selecting the right Seal Flush Plans is the most effective way to optimize Mean Time Between Failure (MTBF).

How Do Seal Flush Plans Work?

Seal Flush Plans operate by circulating a specific fluid (either the process fluid or an external buffer/barrier fluid) through the seal chamber. This process serves several critical functions:

Heat Dissipation: Removing the frictional heat generated at the seal faces.

Lubrication: Ensuring a stable fluid film exists between the rotating and stationary faces.

Venting: Removing trapped air or vapors from the seal chamber.

Contamination Control: Using Seal Flush Plans to wash away abrasive particles that could cause wear.

Commonly, Seal Flush Plans involve auxiliary equipment such as heat exchangers, orifice plates, and leakage sensors to monitor and maintain the health of the system.

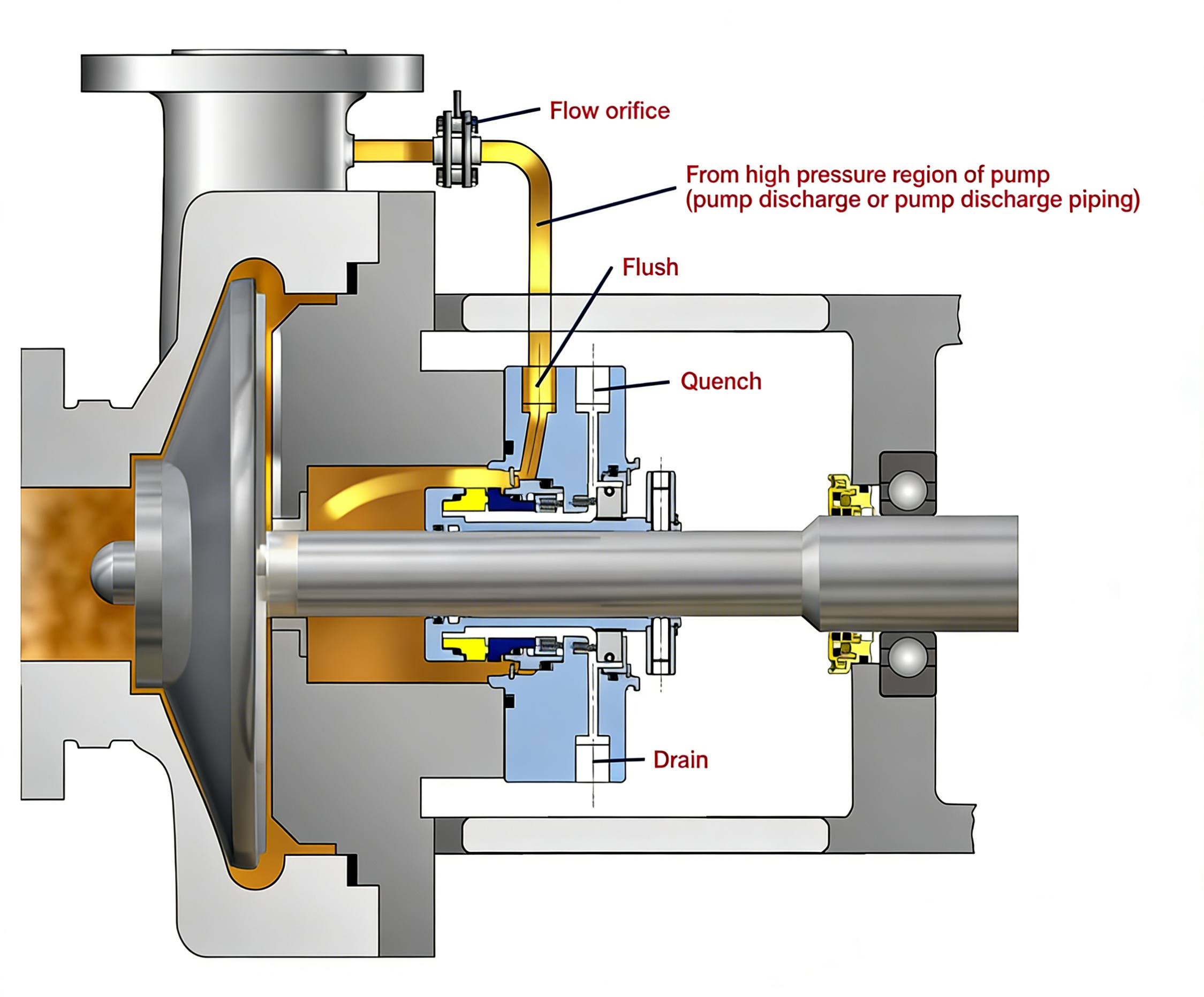

Plan 11

For general conventional working conditions.

The pump discharge bypass flows back to the seal cavity, providing both cooling and venting functions for mechanical seals.

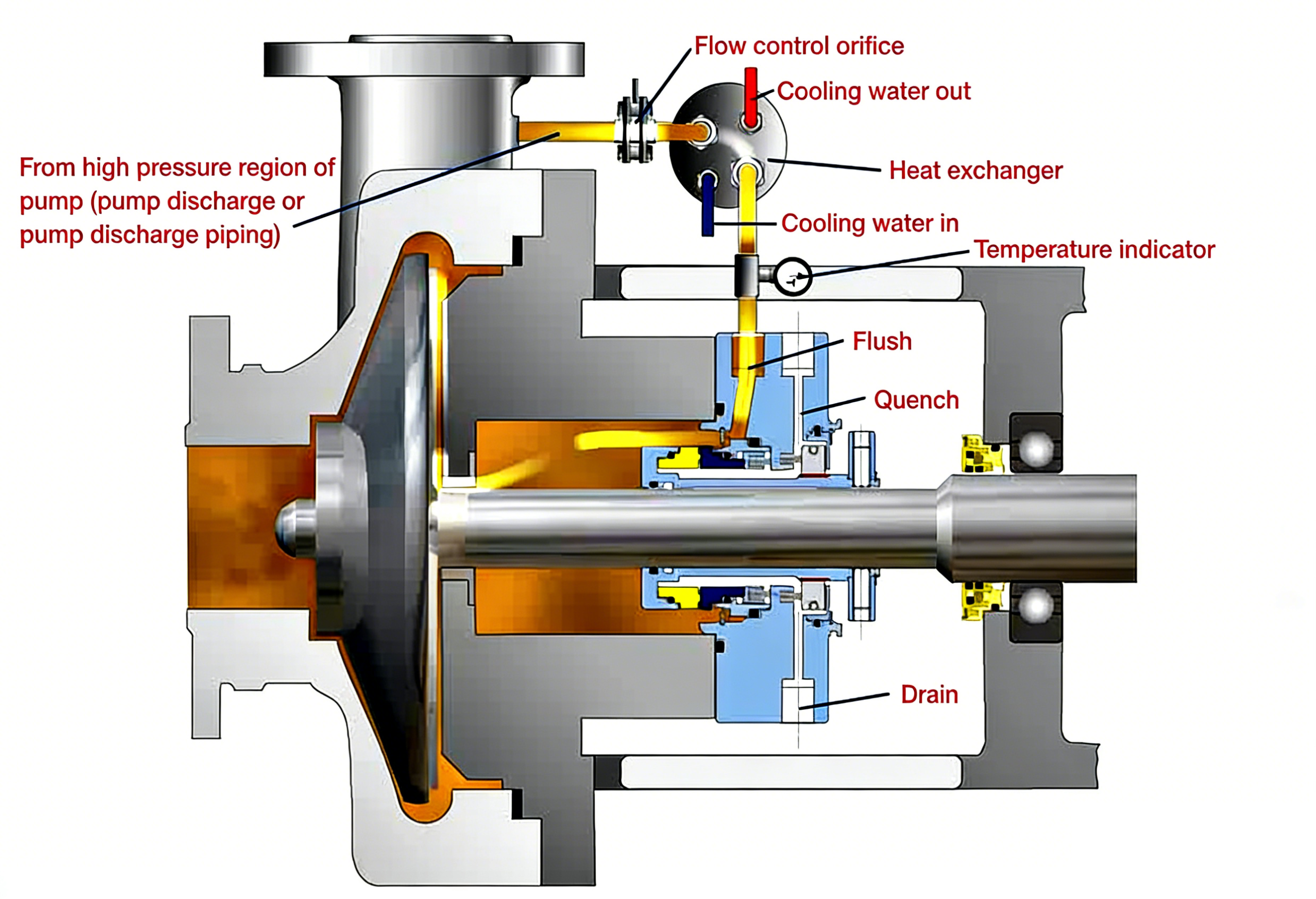

Plan 21

For high-temperature medium conditions.

A cooler is added on the basis of Plan 11 to reduce the medium temperature before it enters the seal cavity.

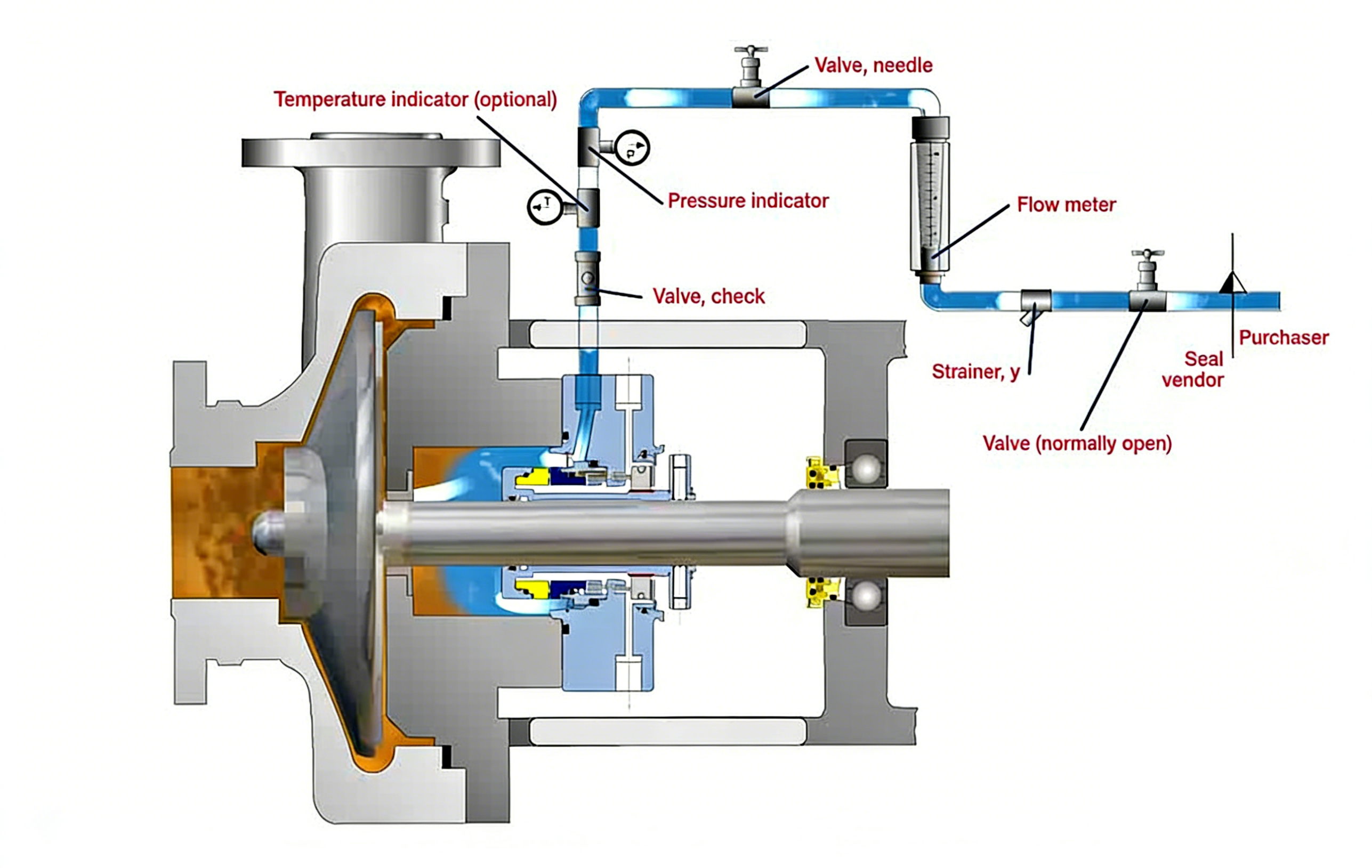

Plan 32

For abrasive slurry service conditions.

An external clean fluid source is connected to flush and discharge solid impurities contained in the medium.

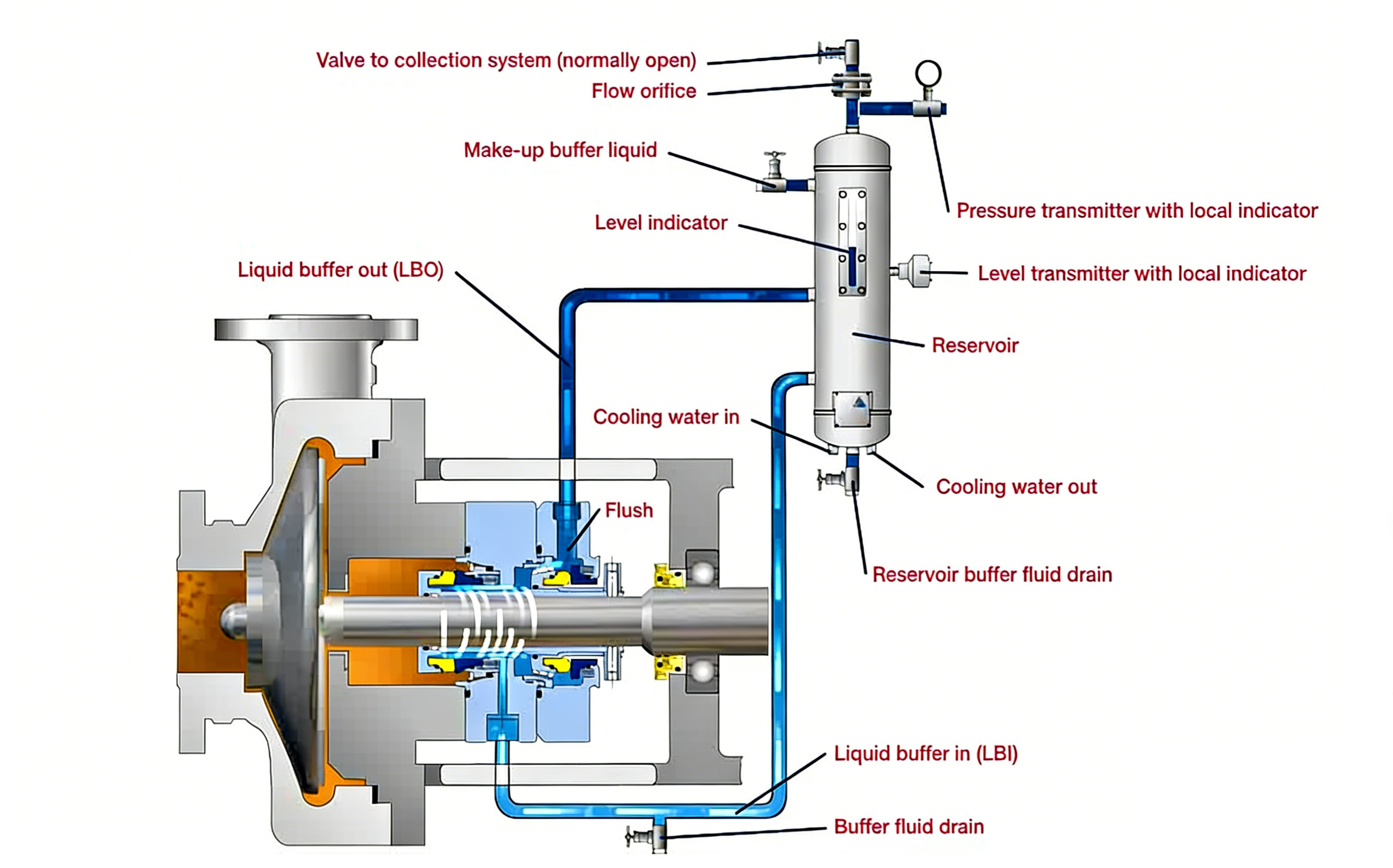

Plan 52

For hazardous process medium conditions.

It adopts a non-pressurized buffer system with dual seals to collect leaked medium effectively.

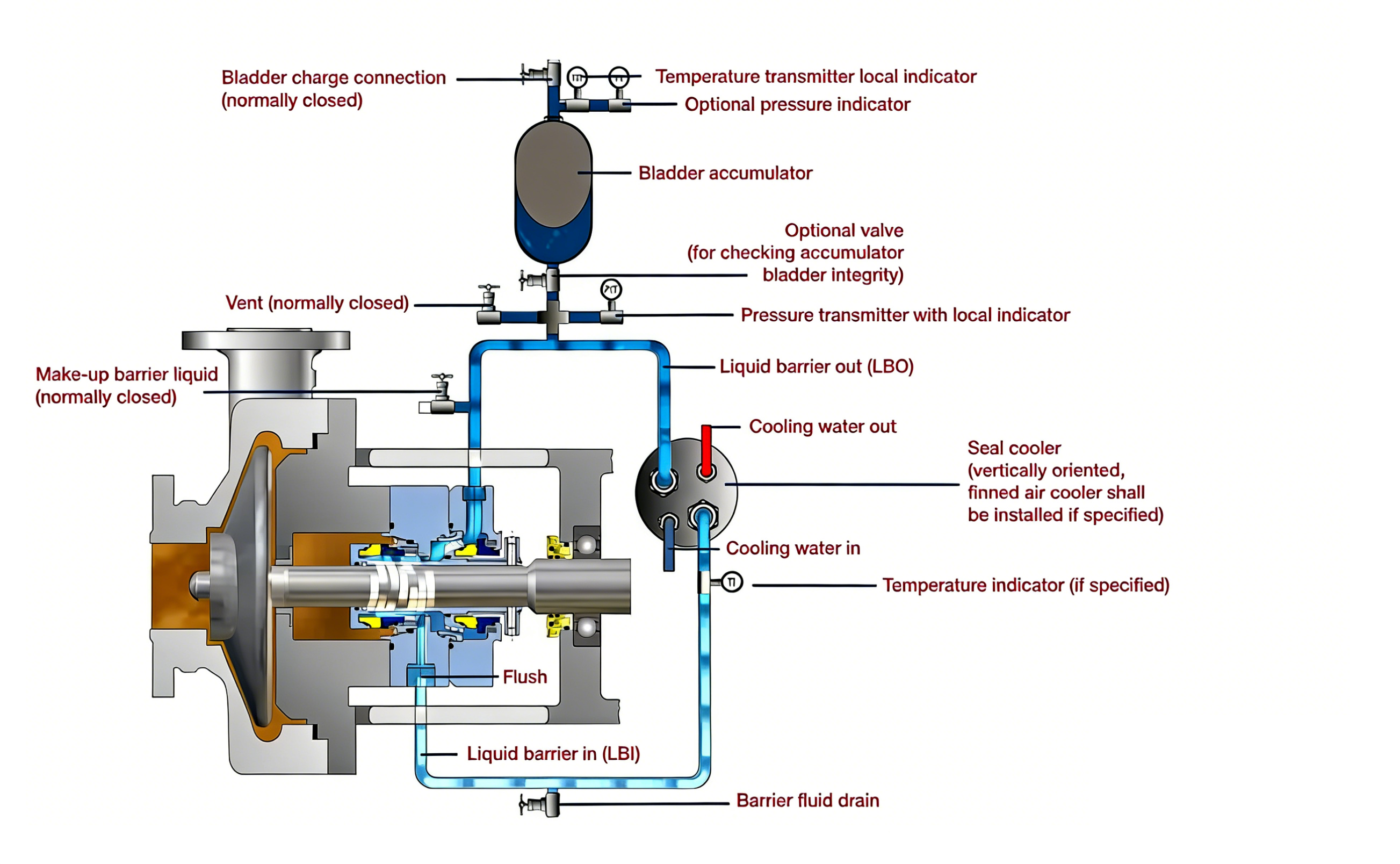

Plan 53B

For high-pressure and toxic medium conditions.

Equipped with a bladder accumulator, the pressurized barrier system realizes zero-emission sealing protection.

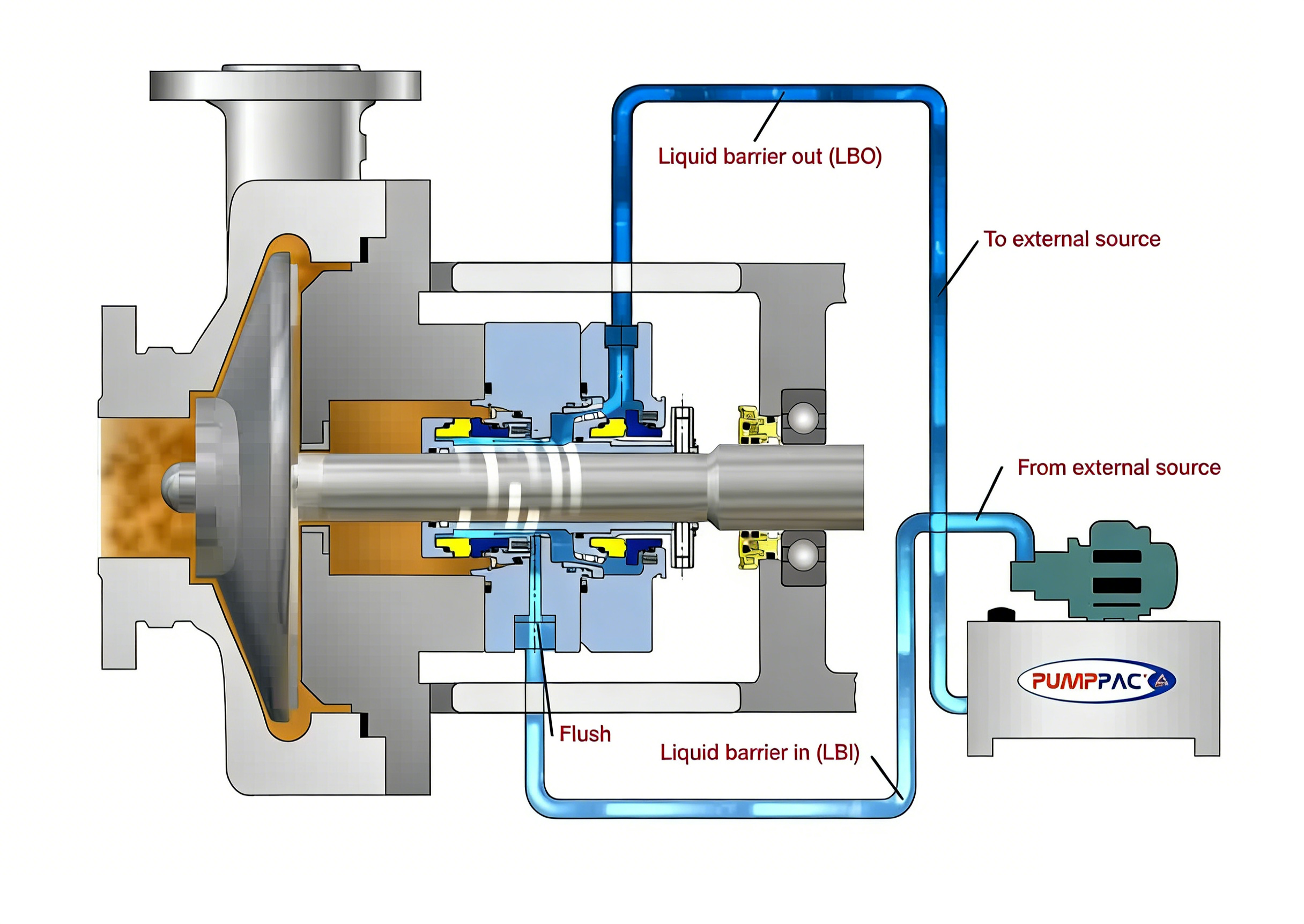

Plan 54

For extremely severe industrial conditions.

An independent external circulation system is configured to deliver high-efficiency cooling and full-condition lubrication protection for seals.

Comparison of Common Seal Flush Plans

Different industrial applications require specific configurations. Below is a comparison of the most widely used Seal Flush Plans in modern manufacturing:Choosing between these Seal Flush Plans depends on your specific pump type, fluid properties, and environmental safety requirements.

Benefits of Professional Seal Flush Plans

Investing in high-quality Seal Flush Plans offers measurable advantages for heavy-duty industrial operations:

Increased Productivity: Properly cooled seals lead to fewer unplanned shutdowns.

Cost Efficiency: While the initial setup for complex Seal Flush Plans (like Plan 53B) is higher, the reduction in replacement parts and labor costs provides a rapid ROI.

Environmental Safety: Modern Seal Flush Plans are essential for meeting strict VOC emission standards.

Versatility: Most advanced mechanical seals are compatible with multiple Seal Flush Plans, allowing for system optimization as plant conditions change.

Future Trends in Seal Flush Plans

As Industry 4.0 matures, Seal Flush Plans are evolving into "Smart Systems." Emerging trends include:

IoT-Enabled Monitoring: Sensors that provide real-time data on the temperature and flow of your Seal Flush Plans.

Self-Regulating Orifices: Components that adjust the flush rate based on the pump's RPM.

Sustainability Focus: New Seal Flush Plans designed to minimize water and energy consumption in pulp and paper or cooling tower applications.

Conclusion

Successfully managing a mechanical seal requires more than just high-end materials; it requires a deep understanding of Seal Flush Plans. From the simple reliability of Plan 11 to the sophisticated protection of Plan 53B, the right configuration ensures your equipment runs efficiently and safely. By prioritizing the integration of advanced Seal Flush Plans, engineers can ensure higher yields and improved profitability for their plants.

For those looking to optimize their current systems or replace existing competitor seals with high-performance alternatives, selecting the correct Seal Flush Plans is the first step toward excellence.

FAQ

1. Why are Seal Flush Plans necessary for mechanical seals?

Seal Flush Plans are critical because mechanical seals generate significant frictional heat at the faces during operation. Without proper Seal Flush Plans, this heat can lead to "Heat Checking" or fluid vaporization, causing premature seal failure. Additionally, Seal Flush Plans help remove abrasive particles and ensure continuous lubrication.

2. What is the most commonly used API 682 Seal Flush Plan?

Plan 11 is the most widely utilized among all Seal Flush Plans for general-purpose centrifugal pumps. It routes a small amount of the discharge fluid back to the seal chamber to provide cooling and venting. For more demanding high-temperature applications, Plan 21 (which adds a cooler to Plan 11) is often preferred.

3. How do I choose between Plan 52 and Plan 53B Seal Flush Plans?

The choice depends on whether you require a "Buffer" or "Barrier" fluid. Plan 52 is an unpressurized buffer system used for dual seals where minor leakage into the system is acceptable. In contrast, Plan 53B is a pressurized barrier system used for hazardous or toxic fluids to ensure zero process leakage into the atmosphere. Both are essential Seal Flush Plans for environmental compliance.

4. Can professional Seal Flush Plans improve MTBF?

Yes. Studies show that over 80% of premature mechanical seal failures are caused by poor operating environments. By implementing optimized Seal Flush Plans, plants can maintain stable pressure and temperature, directly extending the Mean Time Between Failure (MTBF) and reducing maintenance costs.

5. How often should the filters in Seal Flush Plans be maintained?

Maintenance frequency for Seal Flush Plans depends on the fluid's cleanliness. However, it is a best practice to monitor the differential pressure across filters or strainers. If you notice a drop in the effectiveness of your Seal Flush Plans, it is likely time to clean or replace the internal components to prevent dry running.
