Key Features
Application conditions:
Suitable for high demand chemical process pump application, in accordance with the API610 10/11th edition standard oil mist lubrication working conditions.
Design of axial sealing ring for horizontal equipment operating at a speed of 20m/s for splash lubrication/grease lubrication and other linear conditions.
To prevent oil mist lubrication leakage to the atmospheric side.
Key Features
Advanced magnetic sealing design.
With a pair of contact sealing surfaces, provides reliable sealing performance.
Prevent loss of oils from the bearing housing, and also prevents ingress of water & particles.
The magnets creates a magnetically energized positive seal between two flat faces.
Applicable temperature range for standard design: -26 ºC -204 ºC.
Eliminates shaft wear and maintenance free.

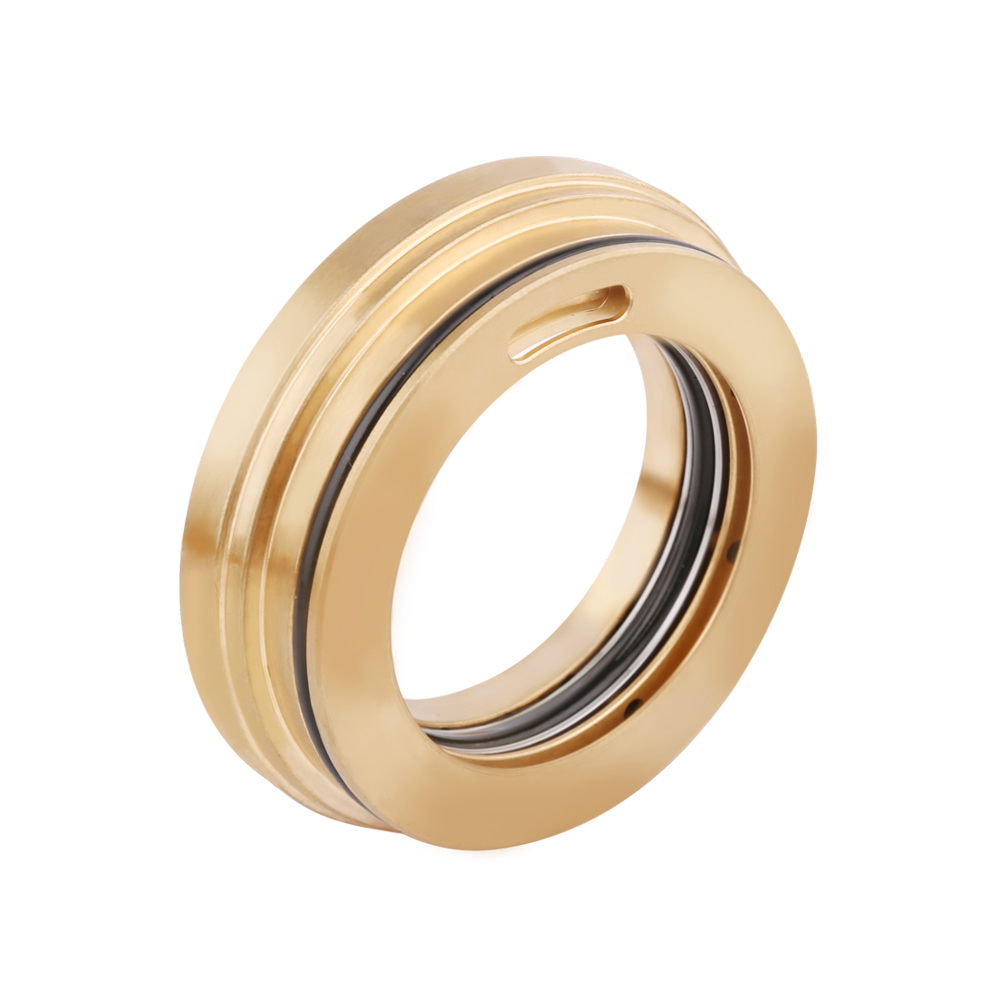

Magnetic Bearing Isolator mainly made by bronze, also available in an all stainless steel construction on special request.
Specifications
| Key word | MX | |
| Operation Parameters | Temperature | -26~204ºC |
| pressure | 2 Bar | |
| Speed Limits | 25 m/s | |
| Material | bronze;stainless steel | |

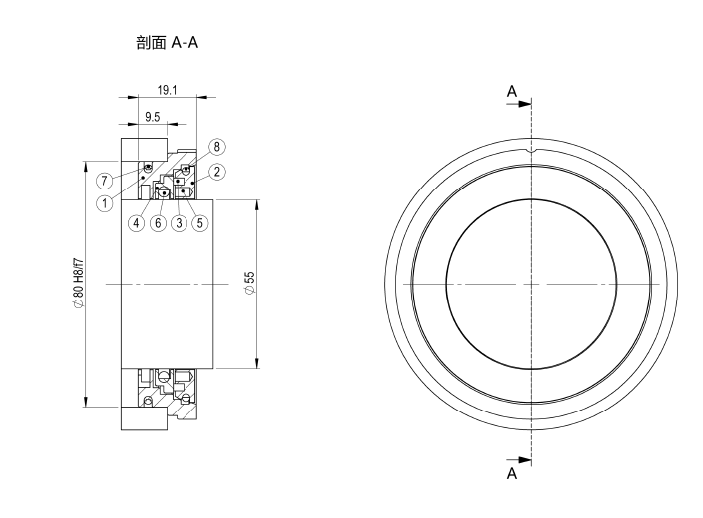

Assembly Chart
