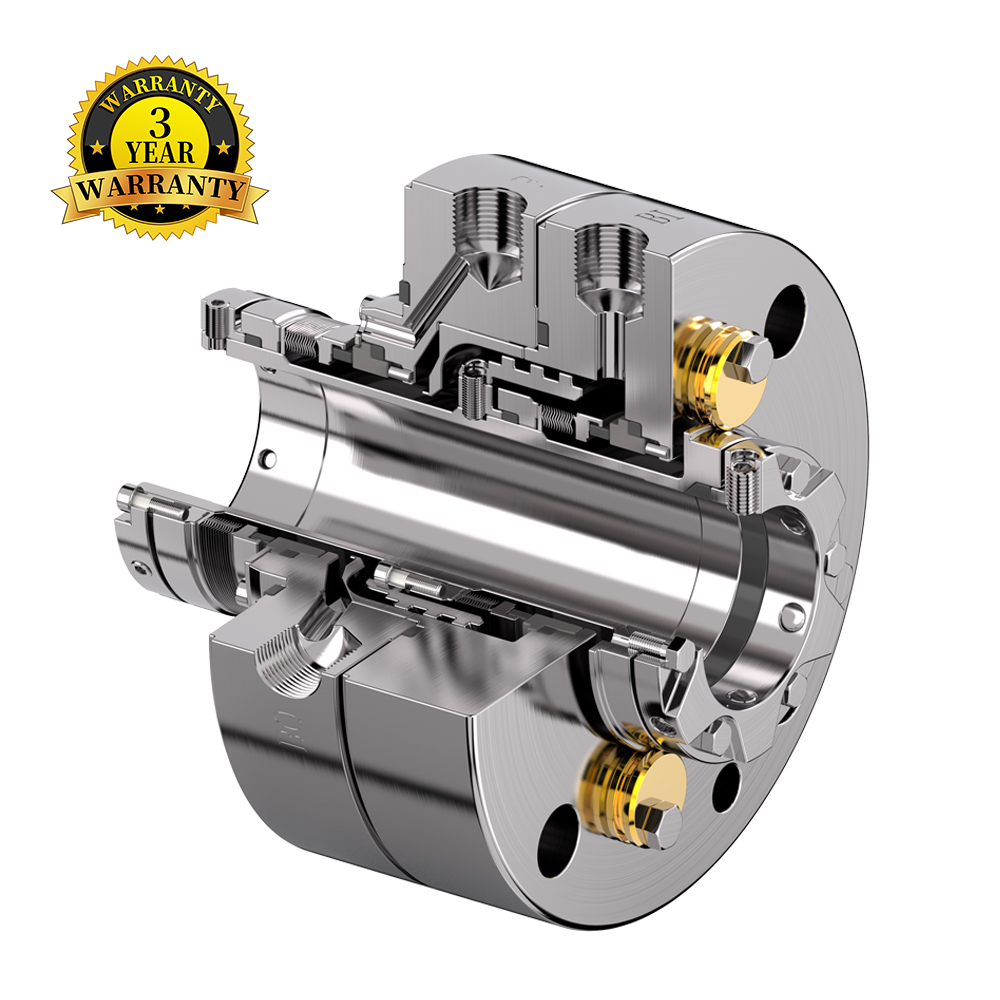

Product Description
TECHNICAL FEATURES
•Primarily utilized to suit the requirements of the Oil and gas industry application defined by API682.
•Both inner and outer seals adopt a design combining flexible graphite and metal bellows, which maximally ensures reliability under high-temperature operating conditions.
•Under high-temperature operating conditions, the special pump efficiency ring design can maximize the dissipation of heat generated by the front-end medium.
•The stationary ring adopts structural position limiting.
Pumping screw for media with higher viscosity also available
•The outer sealing, combined with the Plan 52, provides additional suppression sealing effect, while the Plan 53A/53B/54 maximizes the suppression of high-risk fluid leakage into the atmosphere.
•Well perform under Arrangement 2 or Arrangement 3 operation, containment control or eliminate of process emissions.
•Rugged design for long opera ng life.
PRODUCT DESCRIPTION
•API 682 Category 2 and 3, Type B, Arrangement 2& 3 seal
•Dual seal in face-to-back configuration
•Balanced design
•Independent of direction of rotation
•Cartridge construction
•For plain shafts
•Rotary metal bellows design
TYPICAL INDUSTRIAL APPLICATIONS
•API 610 pumps
•Chemical & Petrochemical industry
•Cold media
•Highly viscous media
•Hot media
•Power plant
•Refining technology
•Oil and gas industry
•Power plant technology
•LPG plants
•Process pumps
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01, 02, 03, 11, 12, 13, 14, 21, 22, 23, 31, 32, 41 |
| Between seals | 52, 53A, 53B, 53C, 54 |
| Atmospheric side | 61, 62, 65A, 65B |
PERFORMANCE CAPABILITIES
| Shaft diameter | 20~110 mm (0.79" ~4.33") |
| Pressure | ≤ 40 bar |
| Temperature | -40 ° C ~ +400 ° C |
| Sliding velocity | ≤ 20 m/s |

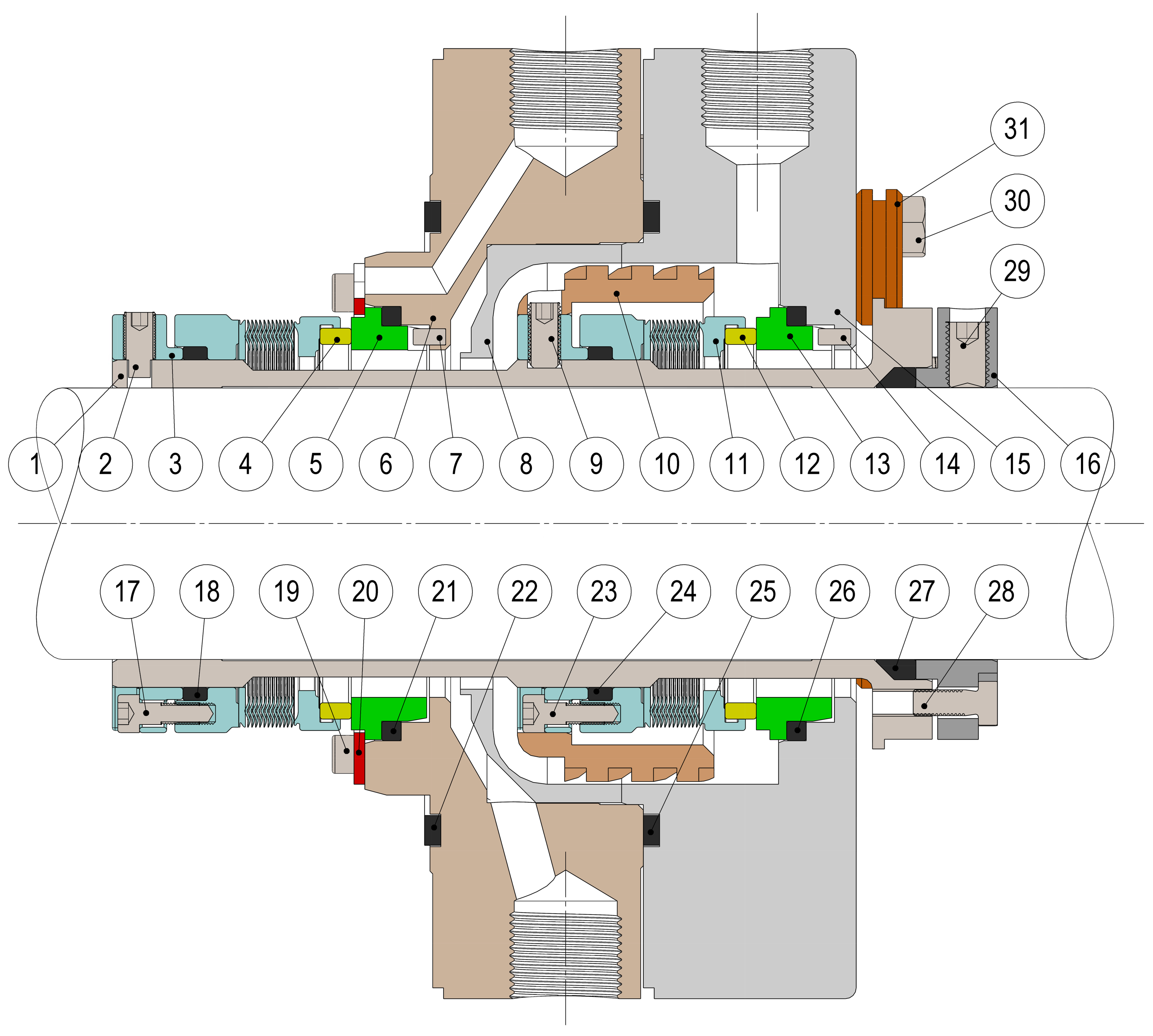

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Sleeve | 316SS/Hast.C/D2205/D2507/904L |
| 2,9,29 | Drive Screw | A2-70 |
| 3,11 | Metallic Bellows | AM350/Hast.276.Hast.718 |
| 4,12 | Rotary Face | Carbon/SIC/TC |
| 5,13 | Stationary Face | Carbon/SIC/TC |
| 6 | Gland Insert | 316SS/Hast.C/D2205/D2507/904L |
| 7,14 | Pin | 316SS |
| 8 | Deflector | 316SS |
| 10 | Rotary Holder | 316SS |
| 15 | Gland | 316SS |
| 16 | Clamp Ring | 316SS |
| 17,19,23 | Clip Screws | A2-70 |
| 18,21,22 | Graphite Gasket | Graphite |
| 20 | Thrust Ring | 316SS |
| 24,25,26 | Graphite Gasket | Graphite |
| 27 | Graphite Gasket | Graphite |
| 28,30 | Clip Screws | A2-70 |
| 31 | Setting Clips | 304SS |
