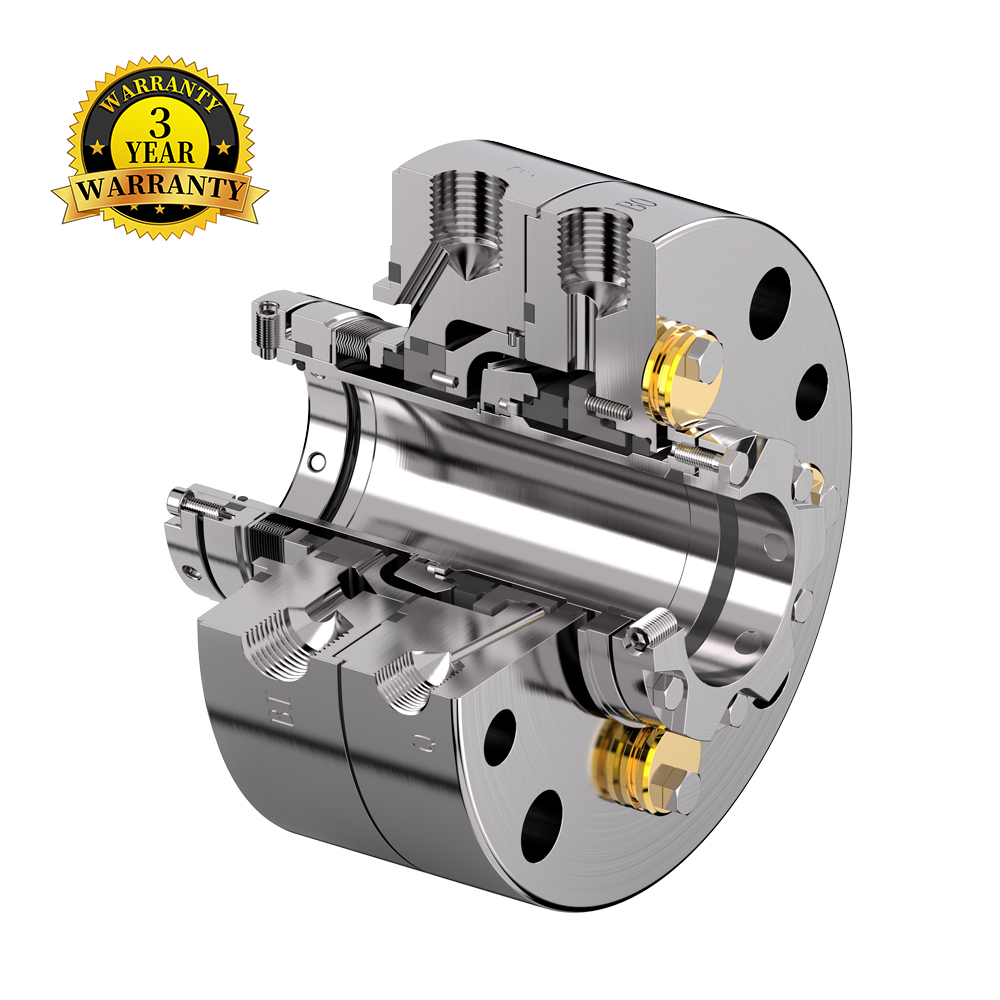

Product Description
TECHNICAL FEATURES
•The more compact design structure.
•The sealing configuration is 3CW-FB, Can also be used as 2CW-CW.
•The inner sealing adopts distributed flushing, which can evenly cool the friction surface.
•The inner sealing adopts a double balanced integral ring design, which can effectively reduce the impact of pressure fluctuations and is suitable for both arrangement 2 and arrangement 3.
•The outer sealing, combined with the Plan 52, provides additional suppression sealing effect, while the Plan 53A/53B/54 maximizes the suppression of high-risk fluid leakage into the atmosphere.
•Well perform under Arrangement 2 or Arrangement 3 operation, containment control or eliminate of process emissions.
•Equipped with Quench and Drain environmental ports.
•Adopting a fixed graphite throttle bushing.
•Used for API Plan 52/53A/53B/54/61/62.
PRODUCT DESCRIPTION
•API 682 Category 2/3, Type C/A, Arrangement 2/3
•Dual seal configuration
•Balanced design
•Independent of direction of rotation
•Cartridge construction
•Robust construction with shrink-fitted seal face
•Heavy duty solid seat design
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical industry
•Petrochemical industry
•Oil and gas industry
•Highly volatile hydrocarbons
•Toxic and hazardous media
•Media with poor lubrication properties
•Low solids content and low abrasive media
•Vertical and horizontal ANSI chemical standard pumps
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01, 02, 03, 11, 12, 13, 14, 21, 22, 23, 31, 32, 41 |
| Between seals | 52, 53A, 53B, 53C, 54 |
| Atmospheric side | 61, 62, 65A, 65B |
PERFORMANCE CAPABILITIES
| Shaft diameter | 20~110 mm (0.79" ~4.33") |
| Pressure | ≤ 16 bar |
| Temperature | -40 ° C ~ +400 °C |
| Sliding velocity | ≤ 20 m/s |

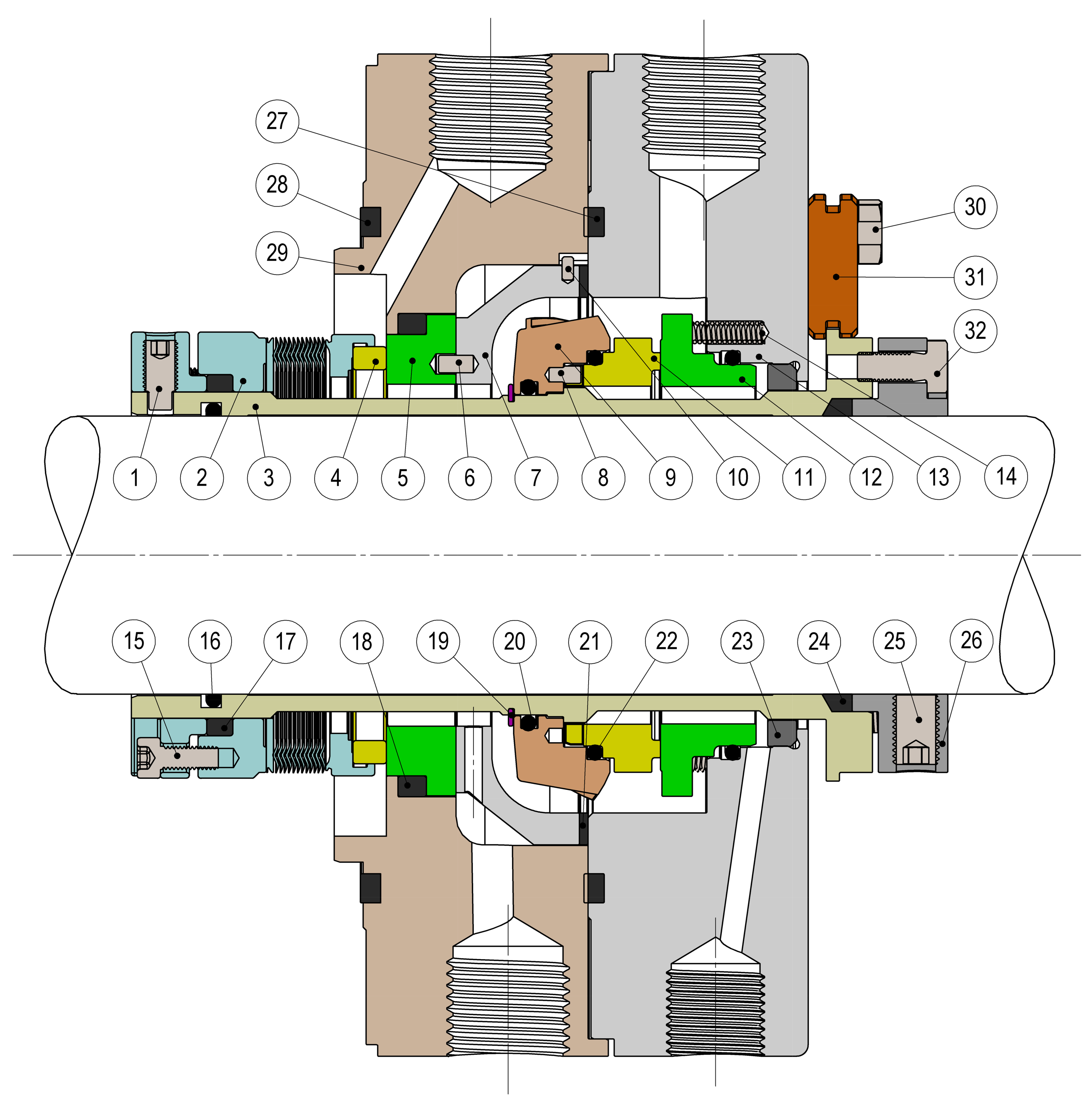

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1,25 | Drive Screw | A2-70 |
| 2 | Metallic Bellows | AM350/Hast.276.Hast.718 |
| 3 | Sleeve | 316SS/Hast.C/D2205/D2507/904L |
| 4,11 | Rotary Face | Carbon/SIC/TC |
| 5,12 | Stationary Face | Carbon/SIC/TC |
| 6,8,10 | Pin | A2-70 |
| 7 | Deflector | 316SS |
| 9 | Rotary Holder | Carbon/SIC/TC |
| 13 | Gland | 316SS |
| 14 | Spring | Hast.C |
| 15 | Clip Screw | A2-70 |
| 16,20,22 | O-Ring | FKM/EPDM/Aflas/Kalrez |
| 17,18,21 | Graphite Gasket | Graphite |
| 19 | Circlip | 316SS |
| 23 | BUSH | A Carbon |
| 24,27,28 | Graphite Gasket | Graphite |
| 26 | Clamp Ring | 316SS |
| 29 | Gland Insert | 316SS/Hast.C/D2205/D2507/904L |
| 30,32 | Clip Screws | A2-70 |
| 31 | Setting Clips | 304SS |
