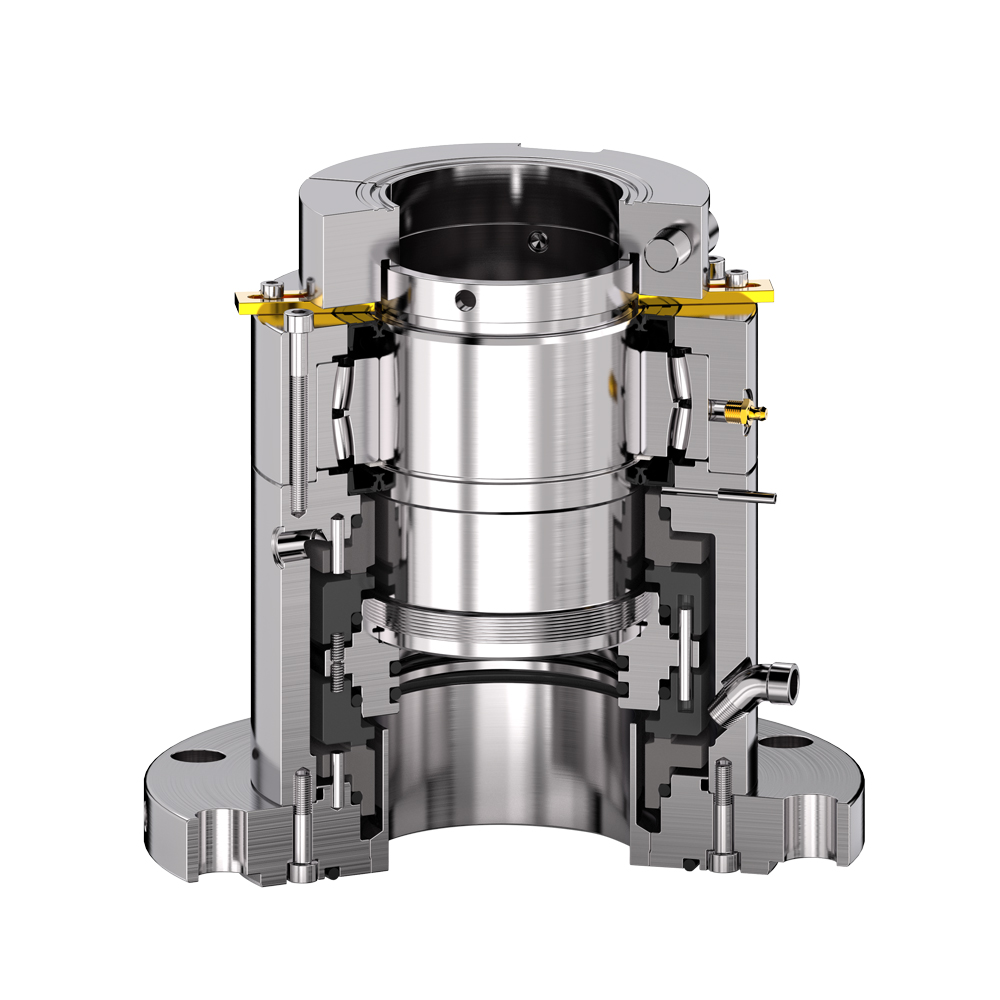

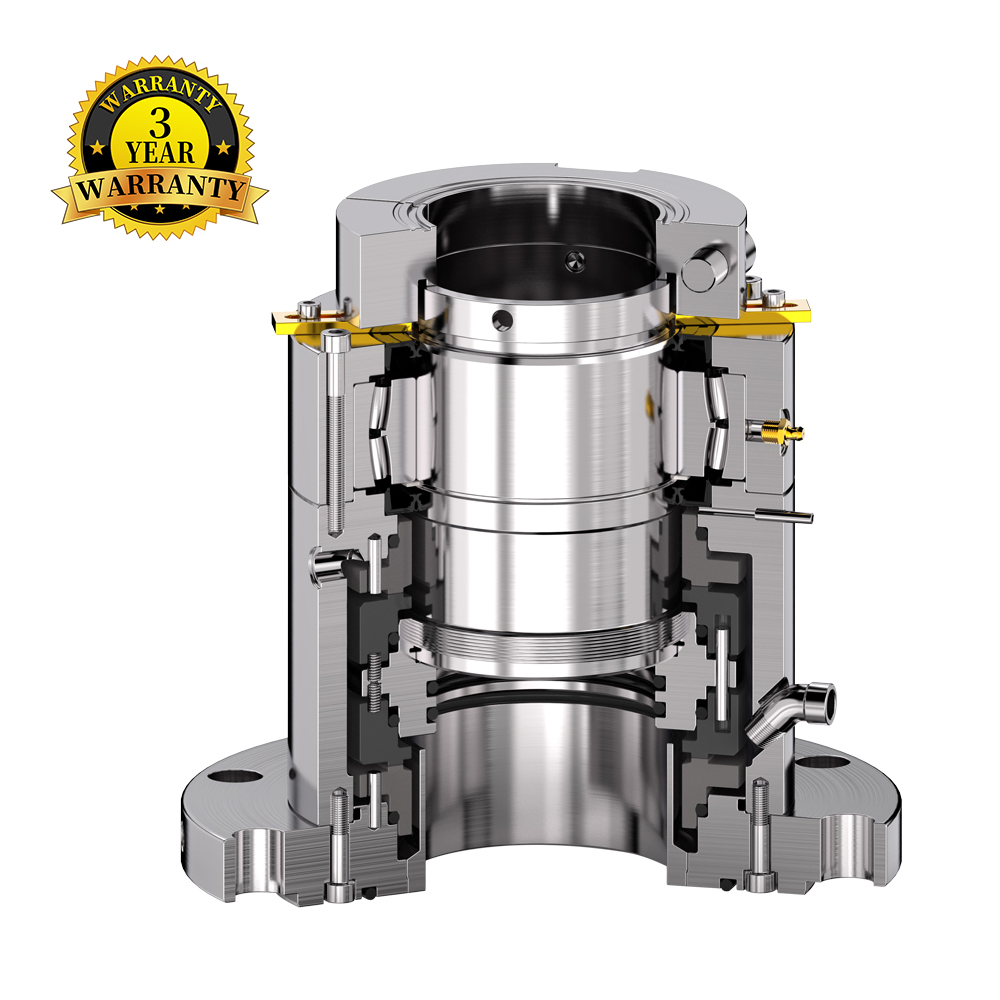

Product Description
Key Features
● Double balanced sealing ring design, with reverse pressure capability, reduces the load on the sealing end face, extends the service life of the seal, and enables the seal to work in a vacuum environment.
● The wear-resistant design of the shaft adopts a locking embrace to tighten the shaft instead of a set screw.
● The inner side can be equipped with an optional groove to prevent graphite chips from entering the kettle
● Modular design, with multiple optional components to adapt to more complex working conditions
● Can replace EKATO® . Burgmann® M481 .
Specifications
Operating Conditions | |
| Temperature | -20°C to +160°C |
| Pressure | 0~25 Bar |
| Speed | Up to 20 m/s |
| Sealing product | Acid,alkaline, low percentage of pulp, water, oil and other similar media. |
| Material Arrangement | |
| Seal faces | SSIC/CARBON/TC |
| Rubber | EPDM/ FKM /Aflas®/ Kalrez® |
| Springs | ALLOY276 |
| Meta I | 316SS/DUPLEX/ALLOY276/904L |
Assembly Chart
