Product Description
Key Features

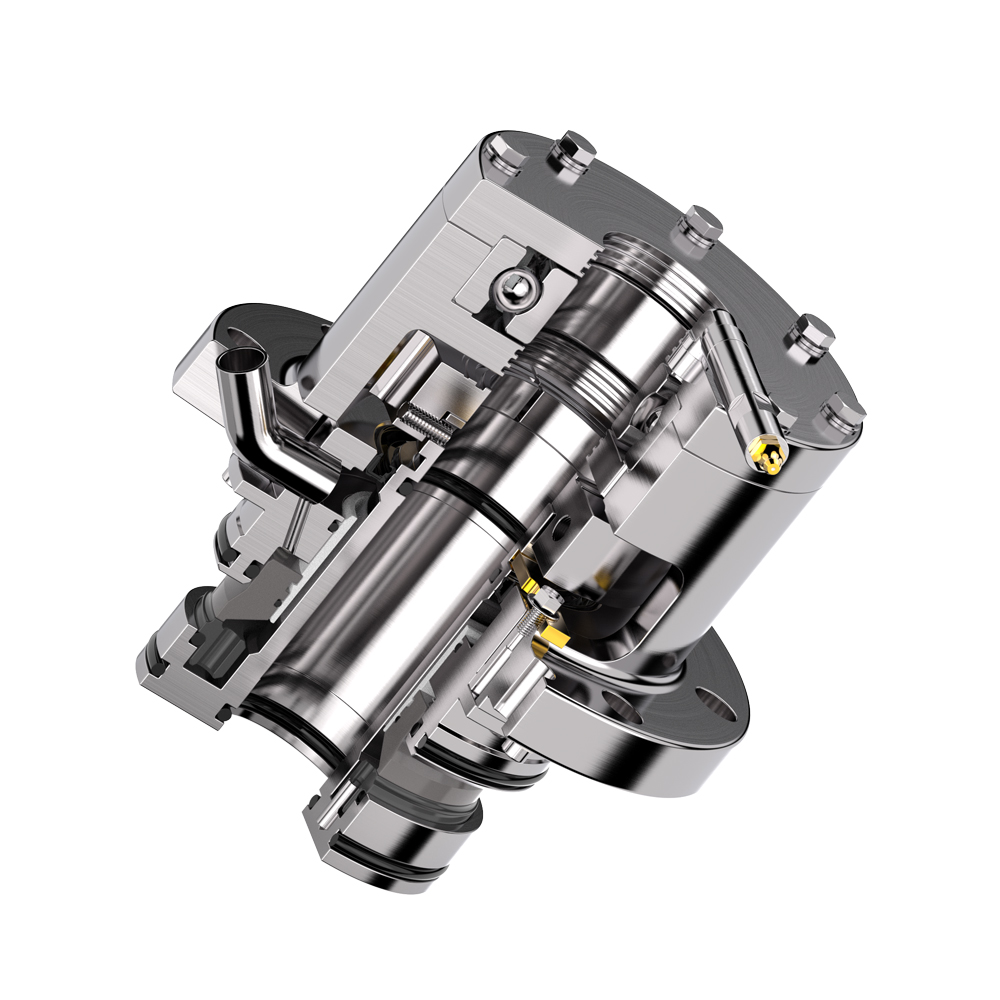

● Single sealing ring design, with reverse pressure capability, reduces the load on the sealing end face, extends the service life of the seal, and enables the seal to work in a vacuum environment.
● The wear-resistant design of the shaft adopts a locking embrace to tighten the shaft instead of a set screw.
● The inner side can be equipped with an optional groove to prevent graphite chips from entering the kettle
● Modular design, with multiple optional components to adapt to more complex working conditions.
Specifications
Operating Conditions | |
| Temperature | -20°C to +160°C |
| Pressure | 0~25 Bar |
| Speed | Up to 20 m/s |
| Sealing product | Acid,alkaline, low percentage of pulp, water, oil and other similar media. |
| Material Arrangement | |
| Seal faces | SSIC/CARBON/TC |
| Rubber | EPDM/ FKM /Aflas®/ Kalrez® |
| Springs | ALLOY276 |
| Meta I | 316SS/DUPLEX/ALLOY276/904L |
