Product Description
Key Features
53B system designed for on-site conditions with no water source or no water discharge allowed
Air cooled heat exchanger, no cooling water required, zero emissions, economical and energy-saving
The air-cooled heat exchanger has a higher pressure resistance, up to 65 bar
A variety of component options are available to adapt the reservoir to specific pump applications, such as thermometers, pressure switches, liquid level switches, pressure transmitters, liquid level transmitters, etc.
It can achieve on-site alarm and also transmit data to the PLC control panel for better monitoring of the operation of mechanical seals
Can replace SPB(Plan 53B),PA 53B,SPB.
Suit for API Plan 53B.
Specifications
| Key word | WE961 Mechanical Seal | |
| Operation Parameters | Temperature | -20°C~ +100°C |
| Pressure | 65Bar | |
| Heat Transfer Area | 0.4,0.6 m2 | |
| Volume | 20L,32L | |
| Customization | OEM and ODM | |
| Package | Carton,Wooden Case,outer package as request | |
| Delivery time | Depends on quantity you ordered | |
| Delivery way | DHL, UPS, EMS, Air, Sea or agent as you request available | |
| Payment term | 30% prepaid, 70% paid before delivery | |
| Shipping port | shanghai port | |

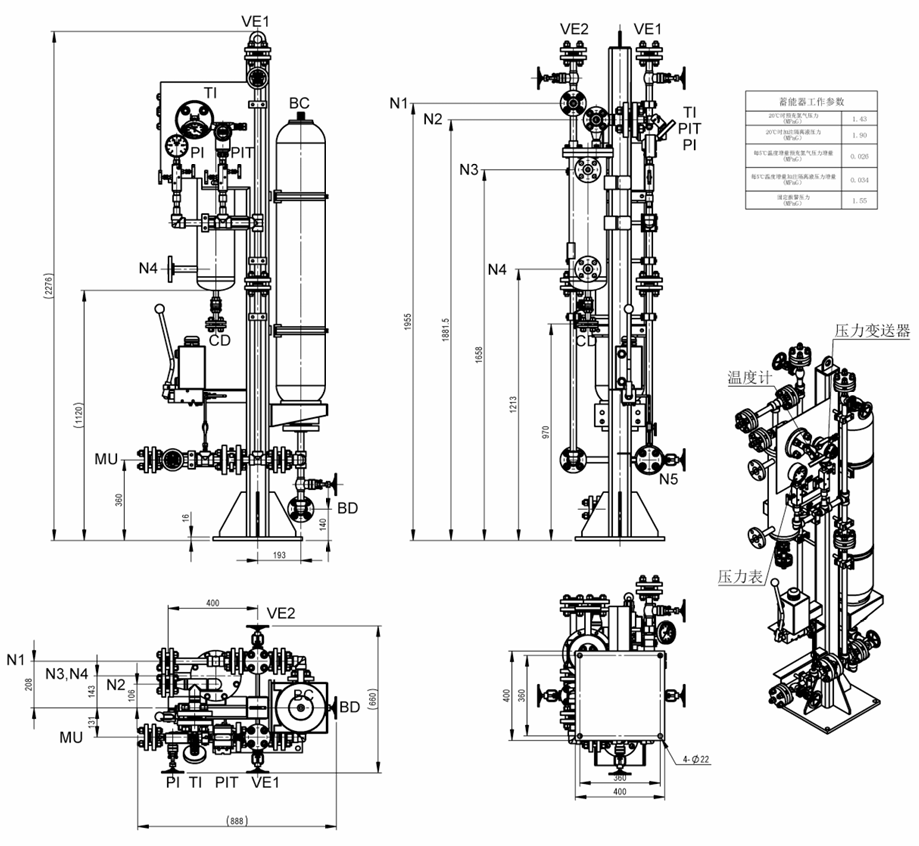

Assembly Chart
Downloads
