Key Features

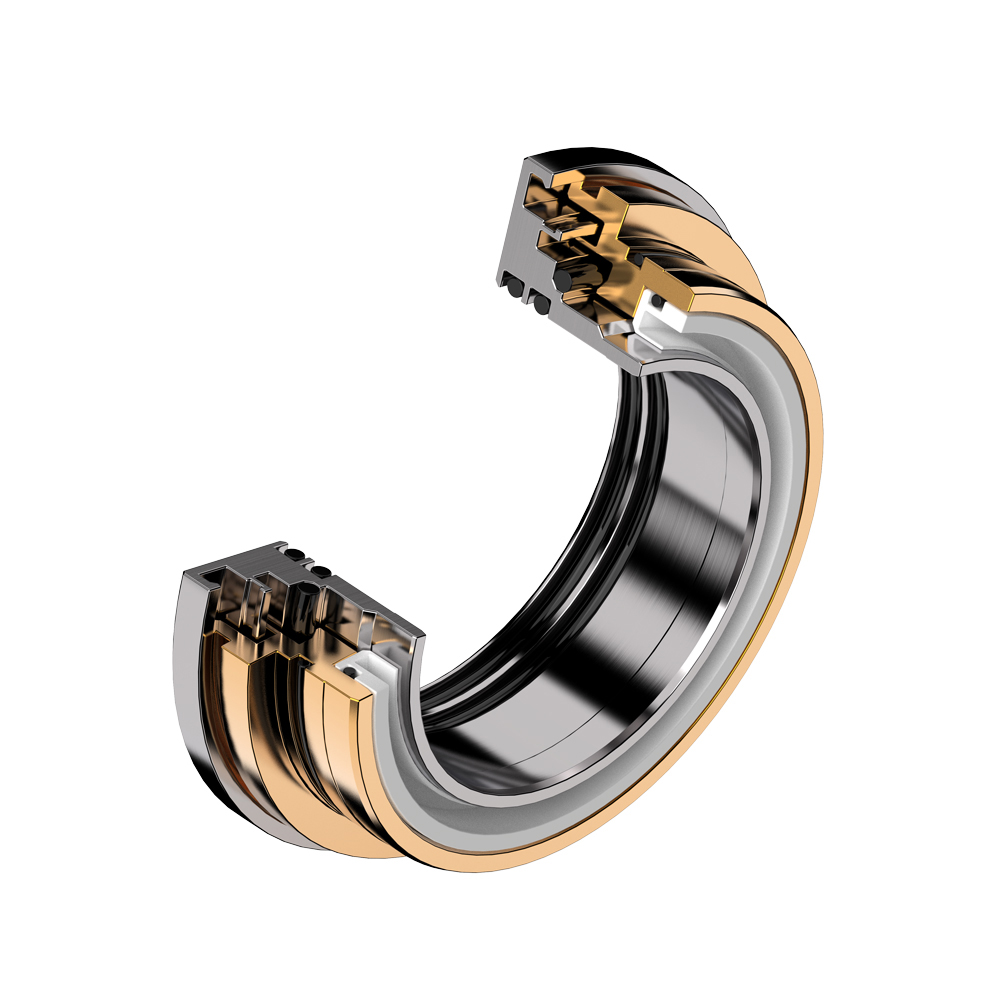

The SXV series is designed for use in Oil Splash, Dry running and Grease application on horizontonal pieces of equipment at shaft surface Veleocities up to 20m/s (3937 ft/min).
The SXV can also be used in the vast majority of existing Oil Mist applications that comply with the now superseed and API 610,7th Edition requirements and where small quantity of Oil Mist escapes to atmosphere.
Key Features
■Non-contact, zero friction, permanent bearing protection.
■Dynamic O-ring design to prevent water vapor from entering the bearing box when the equipment is cooled.
■Zero Maintenance.
■Zero Power Consumption.
■Temperature range for general design - 37°C-204°C.
■Copper is the main material for fabrication. Stainless steel, aluminium alloy and PTFE can also be selected for extreme working conditions.
Specifications
| NO | Decription | Material |
| 1 | Rotary | 316SS |
| 2 | O-Ring | Viton® |
| 3 | O-Ring | Viton® |
| 4 | O-Ring | Viton® |
| 5 | Stator Housing | Bronze |

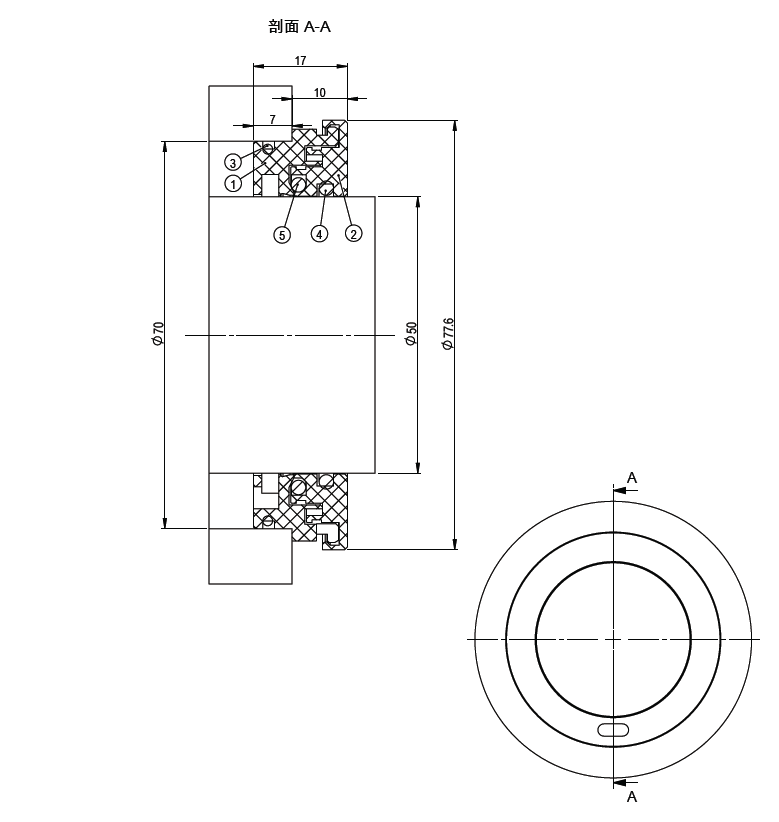

Assembly Chart
