Product Description
Key Features
The overall casting designed eliminates the temperature and pressure limitations caused by the design of the casing cover using bolts and washers.
The structure is simple, easy to install, and it also reduces maintenance and inventory costs.
Efficient and lightweight components reduce pipeline stress, and during embedded installation, the maximum working pressure can reach 207 bar/3000 psi.
Mainly used for mechanical seal auxiliary systems API 682 Plan 31, 41.
Can replace CYCL ,Cyclone separators,ZY Cyclone separators.
Specifications
| Key word | SSE Mechanical Seal | |
| Operation Parameters | Temperature | -20°C~ +200°C |
| Pressure | 207Bar | |
| Customization | OEM and ODM | |
| Package | Carton,Wooden Case,outer package as request | |
| Delivery time | Depends on quantity you ordered | |
| Delivery way | DHL, UPS, EMS, Air, Sea or agent as you request available | |
| Payment term | 30% prepaid, 70% paid before delivery | |
| Shipping port | shanghai port | |

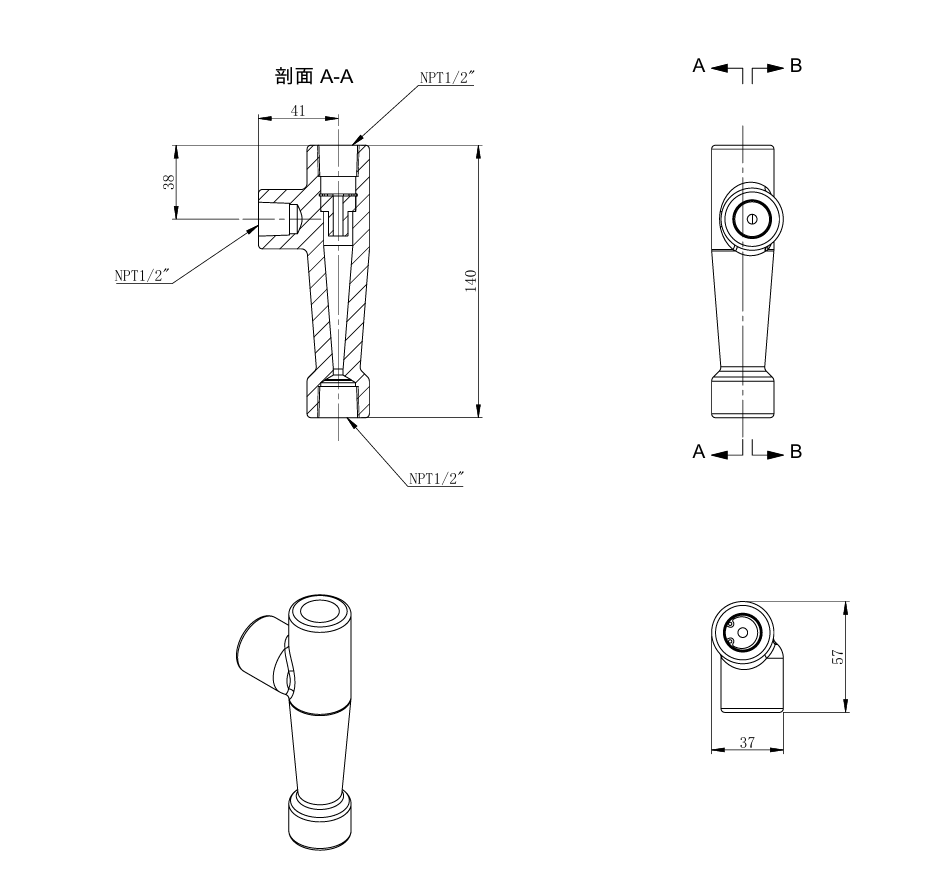

Assembly Chart
