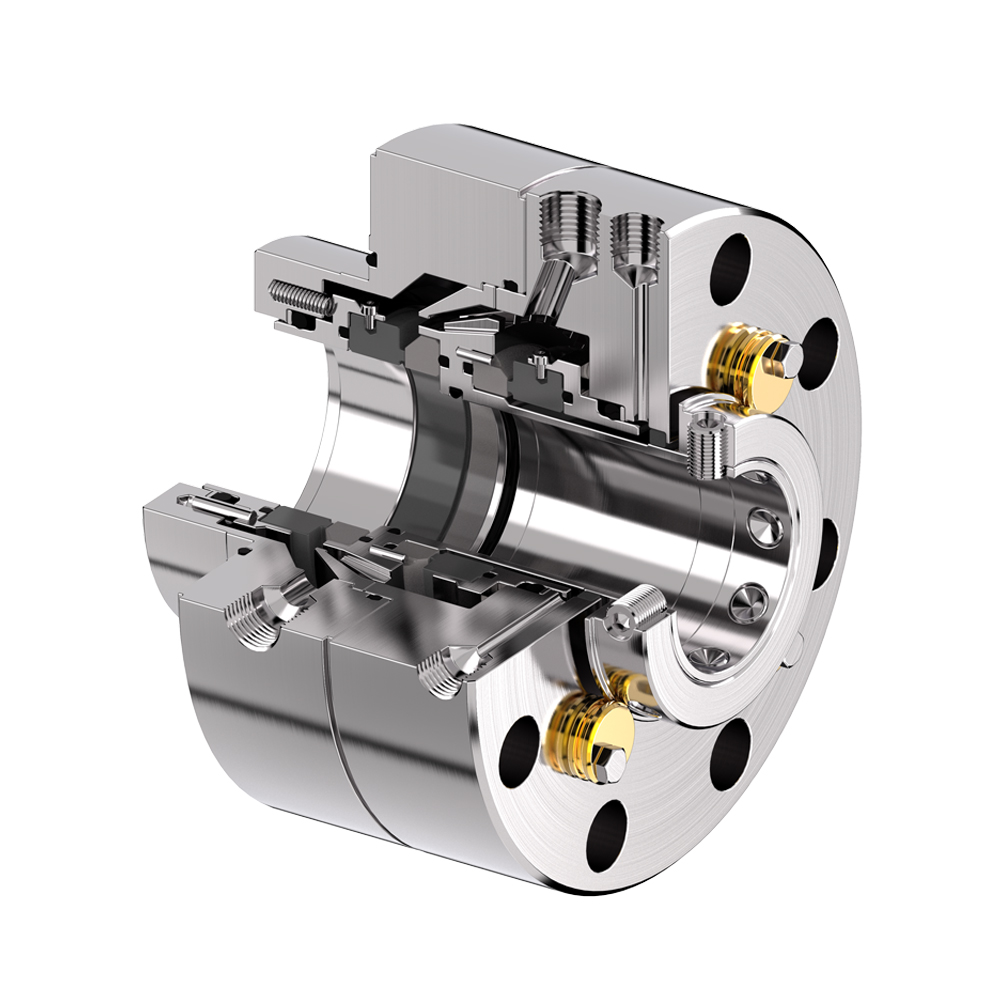

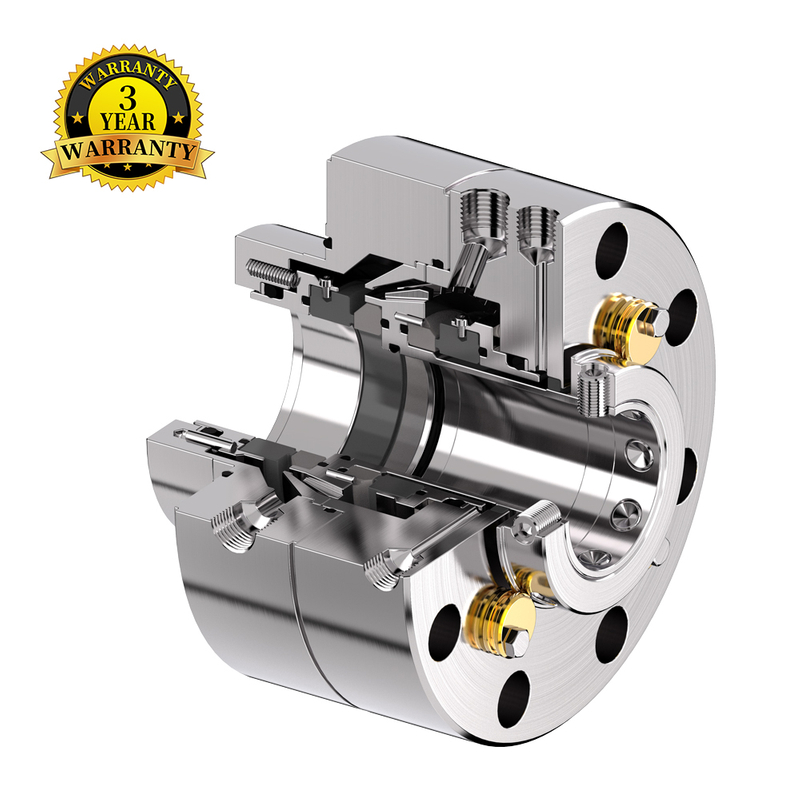

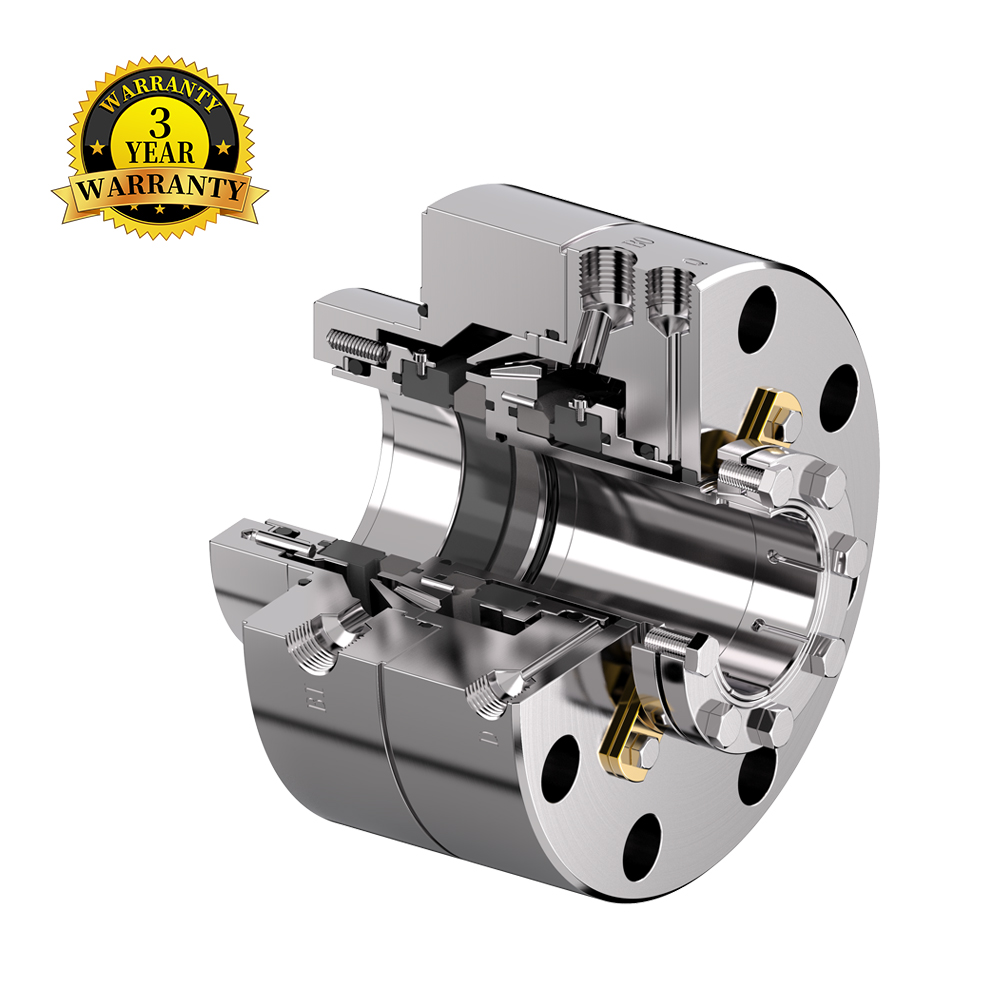

PVED Double Engineered Cartridge Mechanical Seal

TECHNICAL FEATURES

•Used for high-pressure working conditions outside the scope of API682 standard.

•Axial sealing design of sealing for better sealing effect.

•Static loop compensation design for more stable operation at high temperatures.

•Strongersealing rings, shaft sleeves, and other components can withstand higher pressures.

•Multi spring design for more uniform annular pressure.

•Smaller balance coefficient can effectively reduce the end face specific pressure under high pressure.

•The transmission structure is more sturdy and stable.

•Modular design for easier maintenance.

APPLICABLE CHAMBERS TYPE

•The sealing structure is 3CW-FF, with a face-to-face structure

•The bi-directional flow design of the isolation chamber better removes heat from the two friction surfaces

•Can be used for API Plan 53A/53B/54

TYPICAL INDUSTRIAL APPLICATIONS

•Oil and gas industry

•Refining technology

•Chemical industry

•Hot water

•Sour water

•Caustic soda

•Amines

•Crystallizing media

•Crude oil

•Process water

•Crude oil feed pumps

RECOMMENDED PIPING PLANS

PERFORMANCE CAPABILITIES
