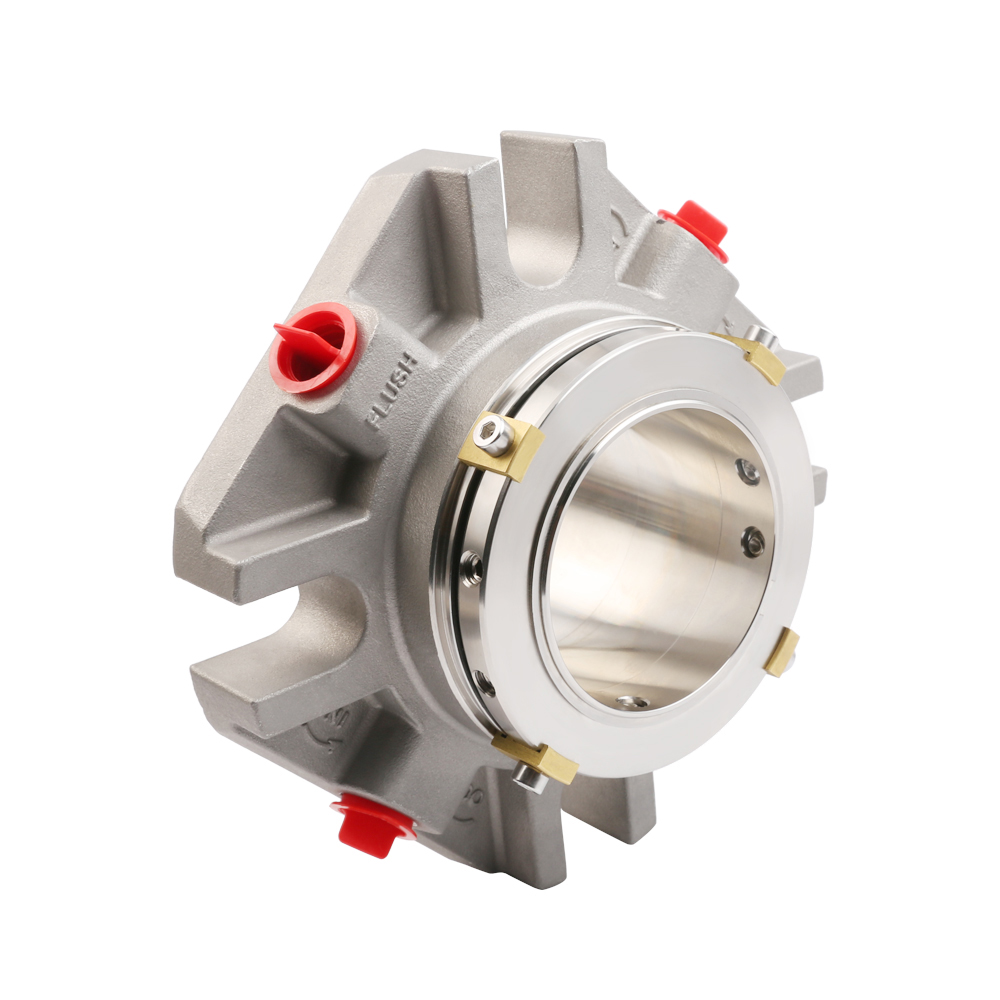

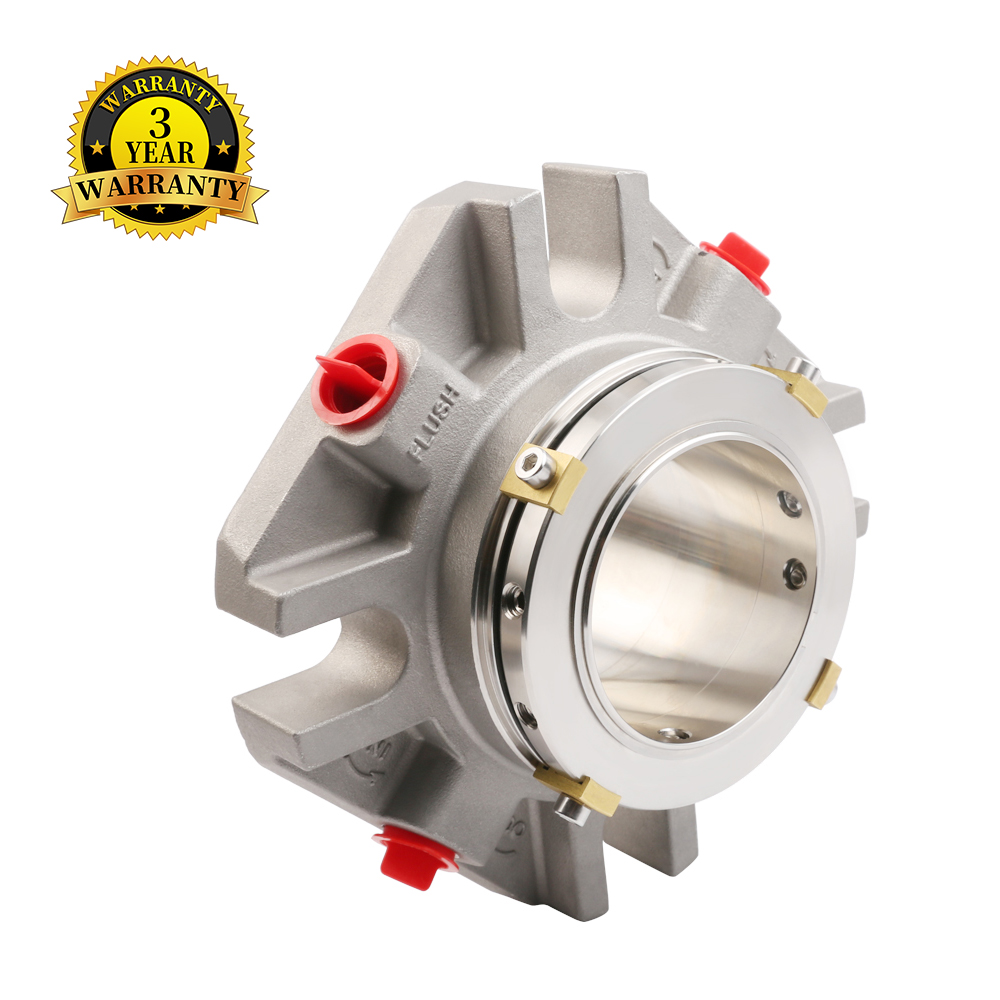

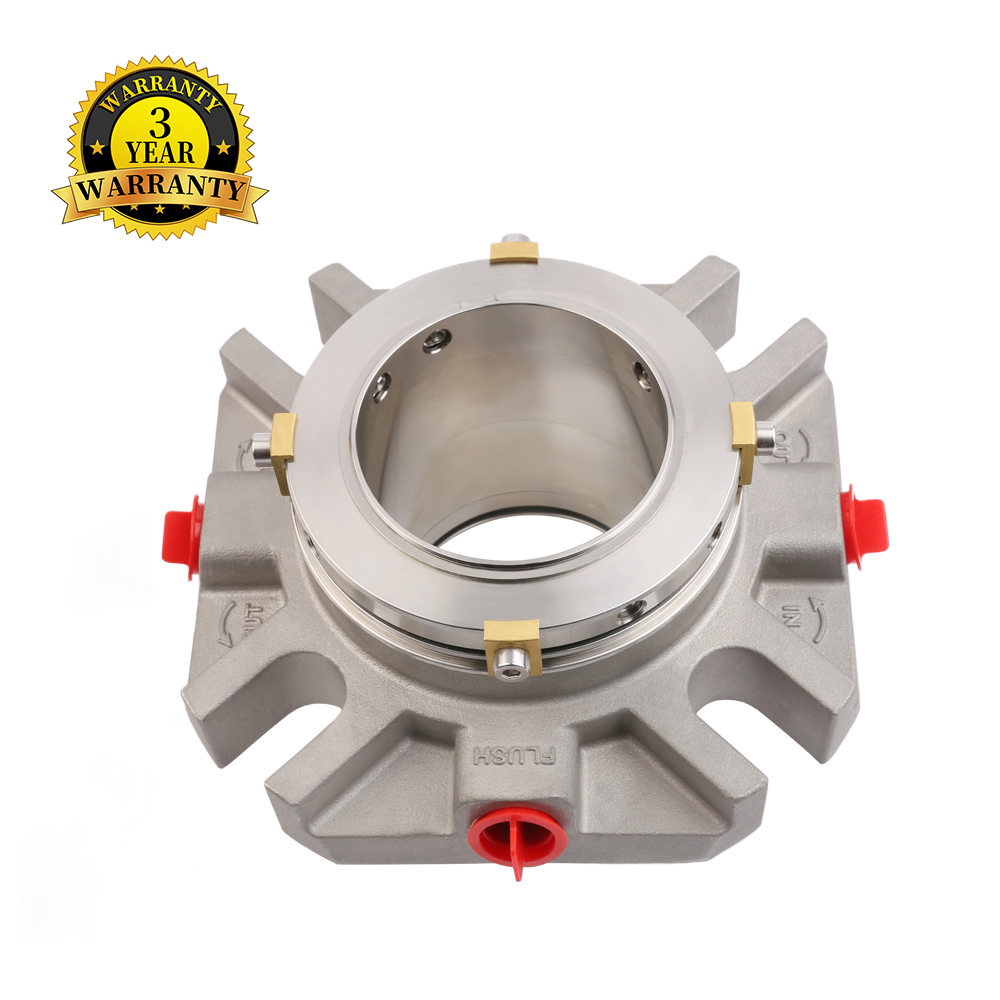

Product Description
TECHNICAL FEATURES
•Stationary face compensation technology.
•Solid seal structure reduces deformation at high temperature and low temperature conditions.
•High Speed limits, up to 220 degree. No seal face drop or displacement.
•Higher pressure limits, up to 25 bar.
•Standard design includes oil seals.
APPLICABLE CHAMBERS TYPE
•Applicable to ISO2858 standard chambers and other compact chambers
•Can be used as a containerized mechanical seal to replace packing
•Modular containerized design,suitable forgeneral working conditions
•Sizes range from 1.000 "to 4.000" (24mm~100mm)
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry
•Oil, Gas and Energy Sector
•Water Treatment and Environmental Protection Engineering
•Pharmaceutical and Food & Beverage Industries
•Hazardous Chemicals and Specialized Industries
•Marine and Offshore Engineering
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 | |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.000 "to 4.000" (24mm~100mm) | |
| Pressure | ≤ 20 bar | |
| Temperature | -20 ° C ~ + 150 °C | |
| Sliding velocity | ≤ 20 m/s | |

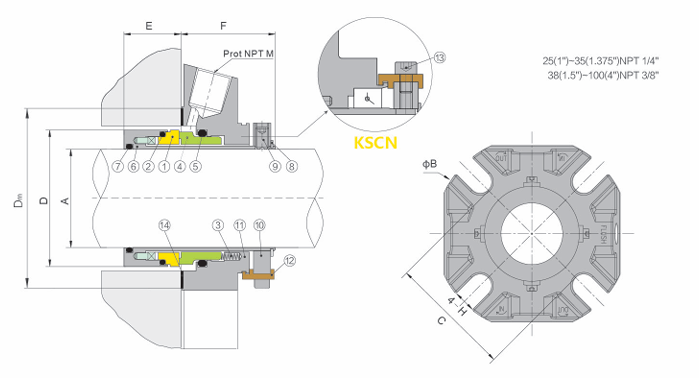

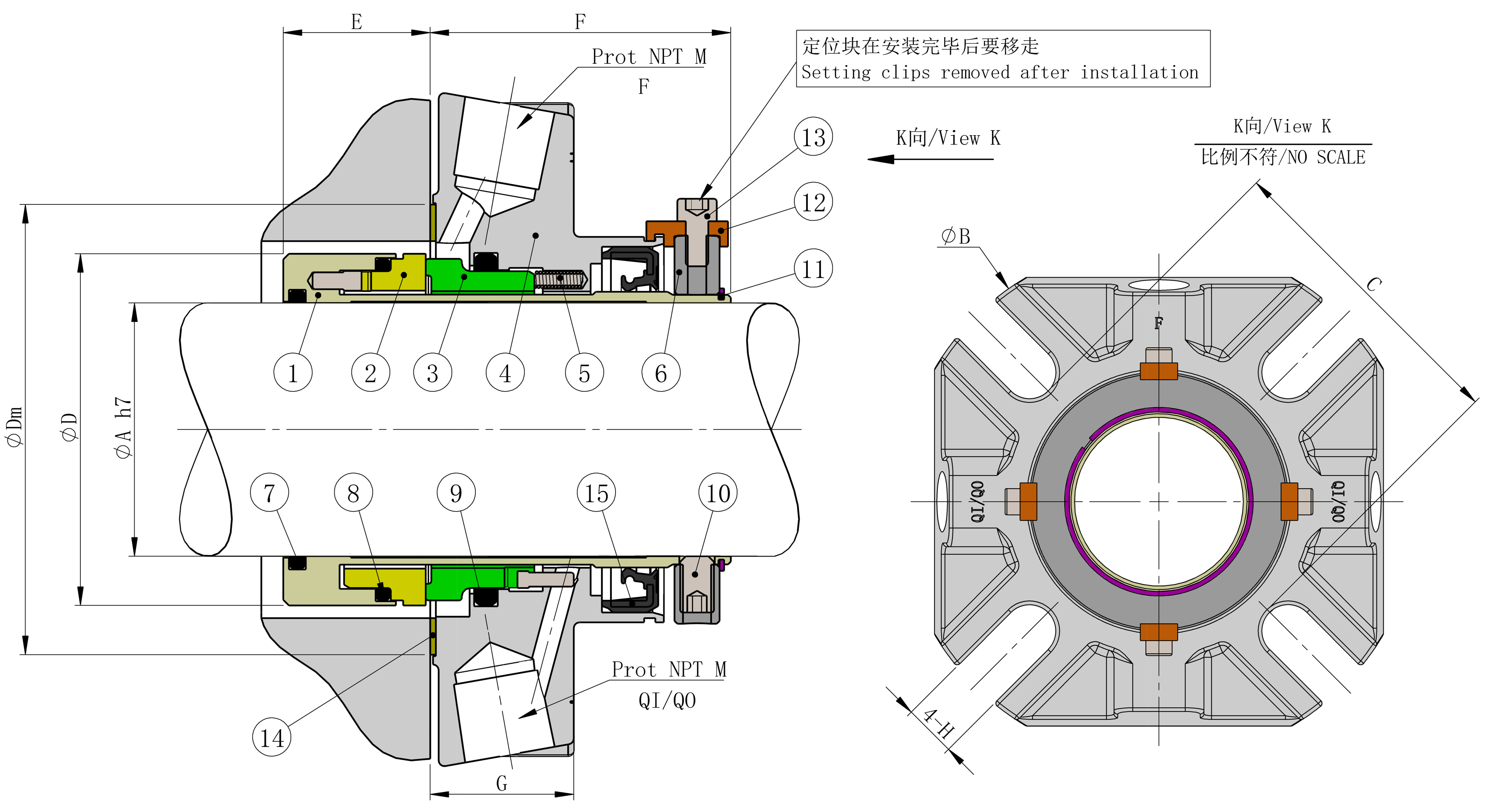

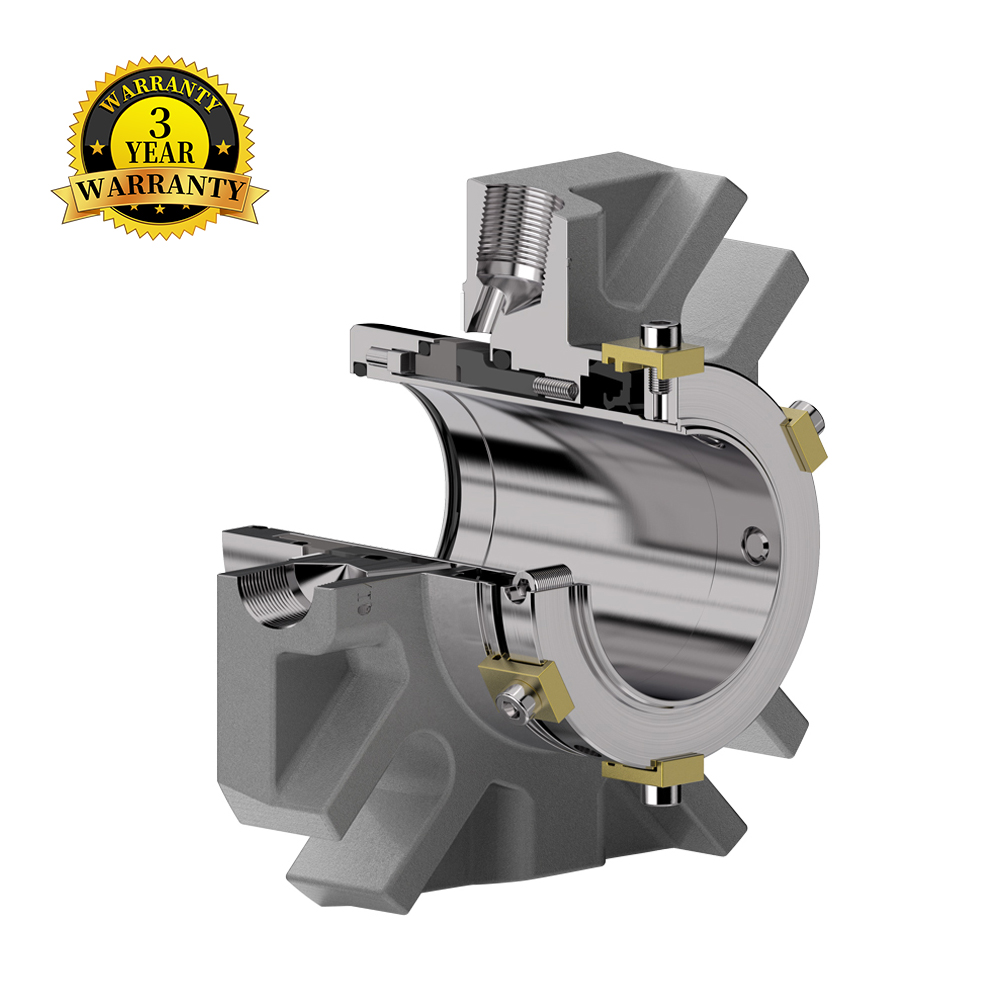

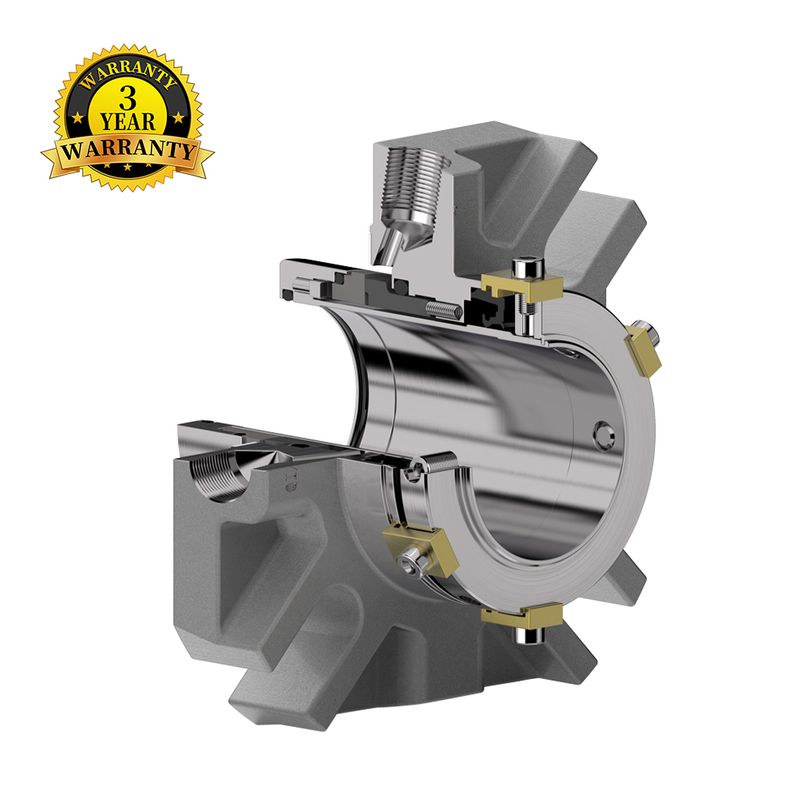

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Shaft Sleeve | 316SS |
| 2 | Rotary Face | SSIC/TC |
| 3 | Stationary Face | Carbon/SSIC/TC |
| 4 | Gland | 316SS |
| 5 | Spring | Alloy 276 |
| 6 | Clamp Ring | 316SS |
| 7,8,9 | O-Ring | EPR/ Viton/Aflas/Kalrez |
| 10 | Drive Screw | 316SS |
| 11 | Circlip | 316SS |
| 12 | Sesting Clip | Brass |
| 13 | Clip Screw | 316SS |
| 14 | Gasket | AFI |
| 15 | Oil Seal | NBR+316SS |
