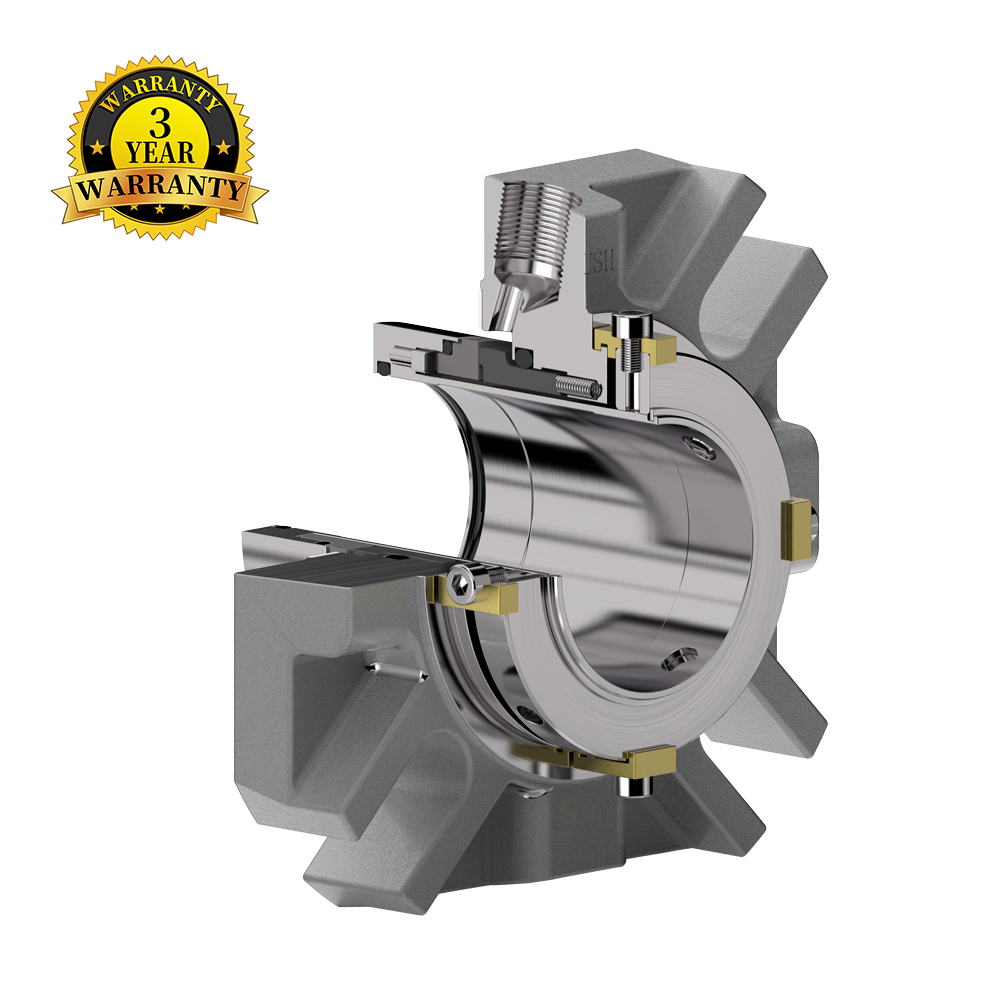

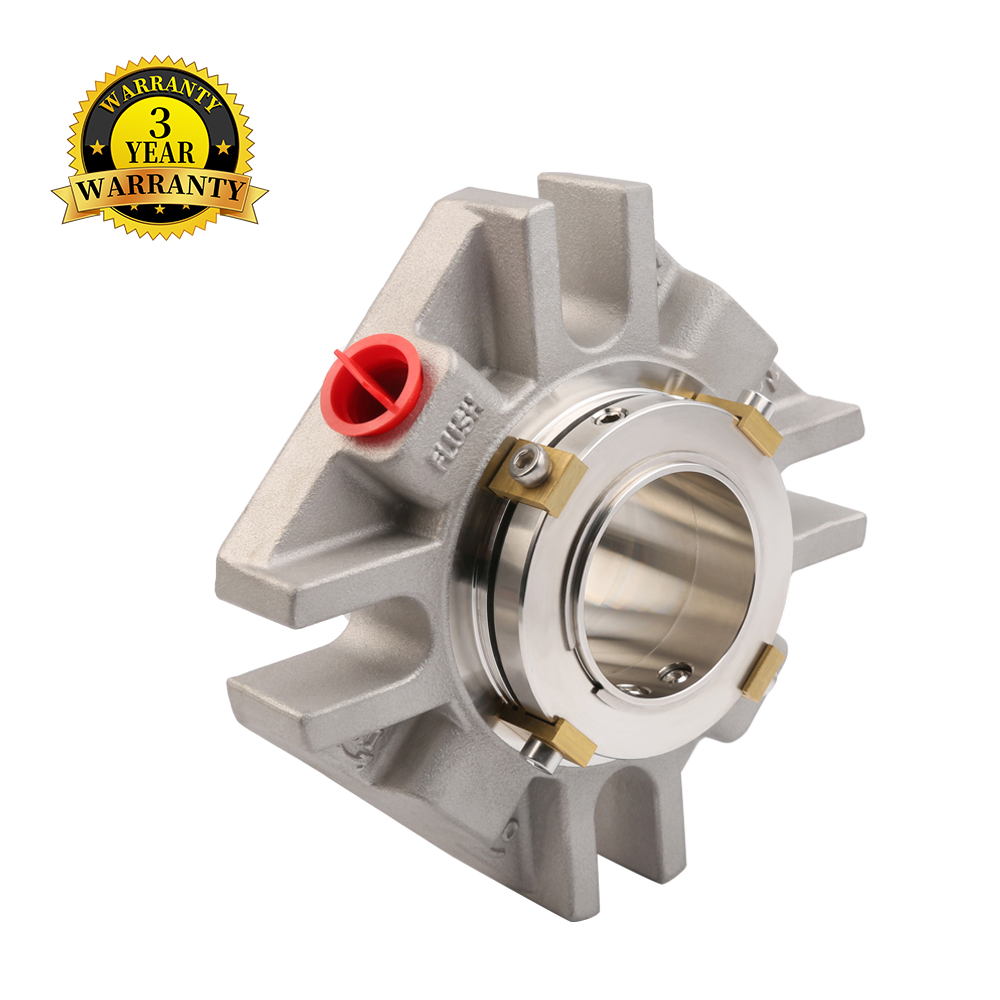

Product Description
TECHNICAL FEATURES
•Stationary face compensation technology.
•Solid seal structure reduces deformation at high temperature and low temperature conditions.
•High Speed limits, up to 220 degree. No seal face drop or displacement.
•Higher pressure limits, up to 25 bar.
•Standard design can be equipped with throttle bushings or oil seals.
APPLICABLE CHAMBERS TYPE
•Applicable to ISO2858 standard chambers and other compact chambers
•Can be used as a containerized mechanical seal to replace packing
•Modular containerized design,suitable forgeneral working conditions
•Sizes range from 1.000 "to 4.000" (24mm~100mm)
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry
•Oil, Gas and Energy Sector
•Water Treatment and Environmental Protection Engineering
•Pharmaceutical and Food & Beverage Industries
•Hazardous Chemicals and Specialized Industries
•Marine and Offshore Engineering
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01,02,03,11,12,13,14,21,22,31,32,41 | |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.000 "to 4.000" (24mm~100mm) | |
| Pressure | ≤ 20 bar | |
| Temperature | -20 ° C ~ + 150 °C | |
| Sliding velocity | ≤ 20 m/s | |

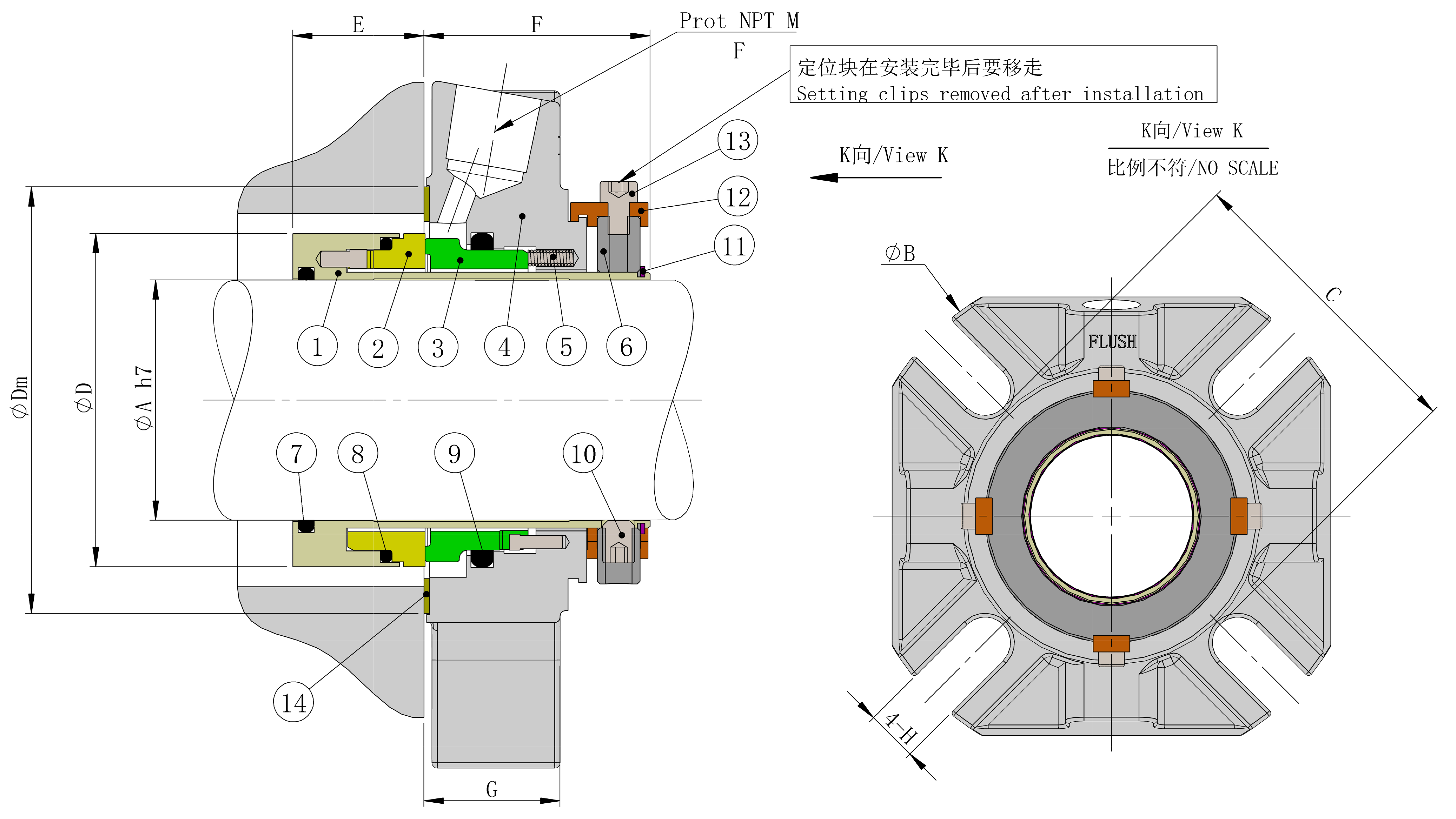

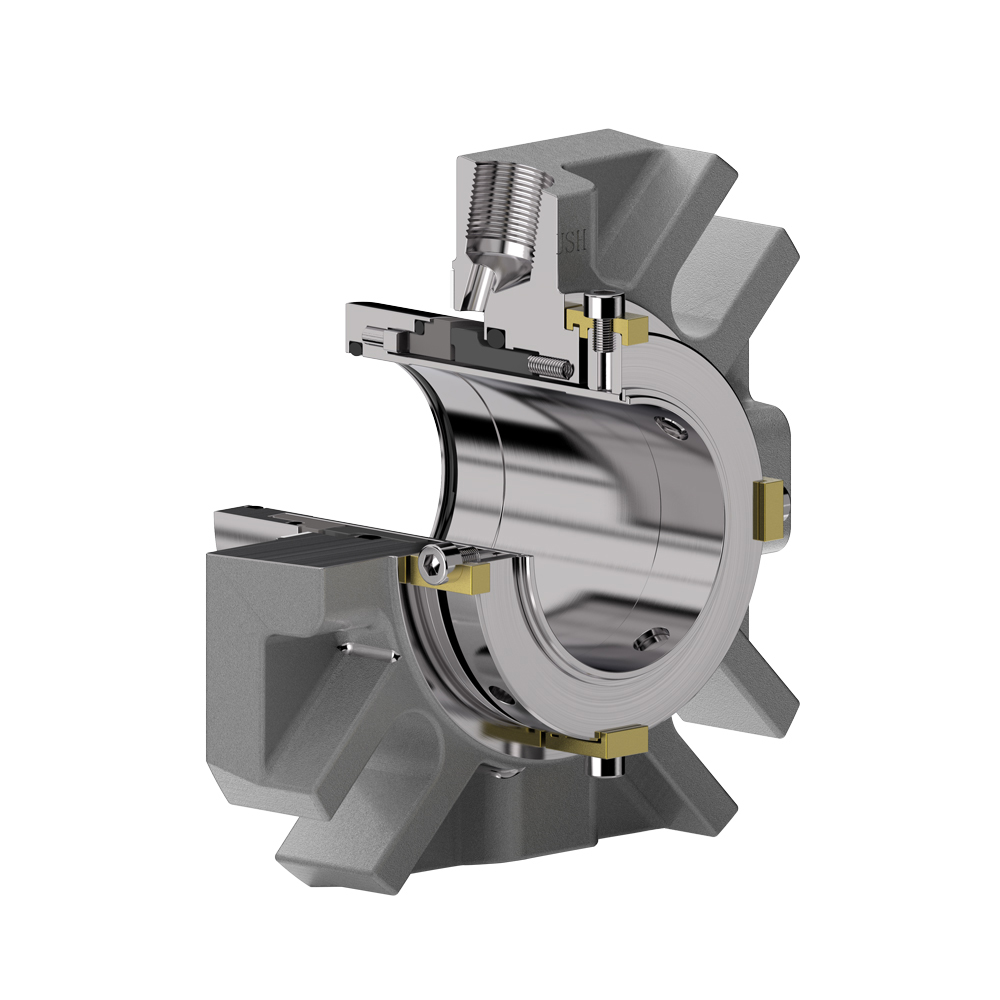

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Shaft Sleeve | 316SS |
| 2 | Rotary Face | SSIC/TC |
| 3 | Stationary race | Carbon/SSIC/TC |
| 4 | Gland | 316SS |
| 5 | Spring | Alloy 276 |
| 6 | Clamp Ring | 316SS |
| 7 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 8 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 9 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 10 | Drive Screw | 316SS |
| 11 | Circlip | 316SS |
| 12 | Setting Clip | Brass |
| 13 | Clip Screw | 316SS |
| 14 | Gasket | AFI |
